KPX-5 Wireless Digital Keypad Instruction Manual
KPX-5 Wireless Digital Keypad Instruction Manual
Thank you for purchasing the ATA SecuraCode
Digital Keypad. Familiarise yourself with the following
instructions prior to commencing set up. Store this information
including codes in a safe place for future reference.

OPERATION

To open a door or gate using the keypad transmitter simply
enter a valid code via the numerical buttons followed by one of
the programmed channel buttons. Up to 20 individual codes can
be stored in the keypads memory.
The keypad is supplied with a factory preset code (1111)
which must be changed to a new number before the
keypad will operate. A code can be any 4-8 digit number except
8888 8888. Refer to the initial set up sequence below.

INITIAL SET UP

1. Press and hold Channel 1 (CH1) (Fig. 1) until a long beep
is heard.
2. Press 1111 then CH1.
3. Enter new code (eg 1234) then CH1.
4. Repeat Step (3) (within 3 seconds) to confirm.

CODING THE KEYPAD INTO THE OPENER

1. Press and hold the blue Door Code button on the control
panel of your ATA garage door opener (Fig. 2) or SW1/SW2
on the receiver board (Fig. 3 & 4).
2. Enter your PIN code then press one of the four channel
buttons (CH1 - CH4) you wish to use to operate the door or
gate etc.
3. Press the same CH button again.
4. Release Door Code or SW button. The CH button should
now be stored into the opener's memory.
5. Test operation of the Keypad. Enter a valid code followed by
the stored CH button.
Note: You only need to program the CH button once as all users
will have the same access privileges once a valid code
has been entered.

ADDING AN ADDITIONAL PIN CODE

A user code can be any number of 4 to 8 digits except 1111 or
8888 8888.
1. Press and hold CH4 until a long beep is heard.
2. Enter any existing code followed by CH4.
3. Enter the new code followed by CH4.
4. Repeat step 3 to confirm.
5. Test operation using the new code.

CHANGING A STORED CODE

One code must remain in memory for adding, changing or
deleting additional codes.
WARNING: Changing a code to 8888 8888 will delete it.
Note: There is a timeout of approximately 10 seconds after the
last button is pressed.
1. Press and hold CH1 until a long beep is heard.
2. Enter the code that is to be changed followed by CH1.
3. Enter the new code followed by CH1.
4. Repeat step 3 (within 3 seconds) to confirm.
5. Test operation using the new code. You should hear a
continuous string of beeps.

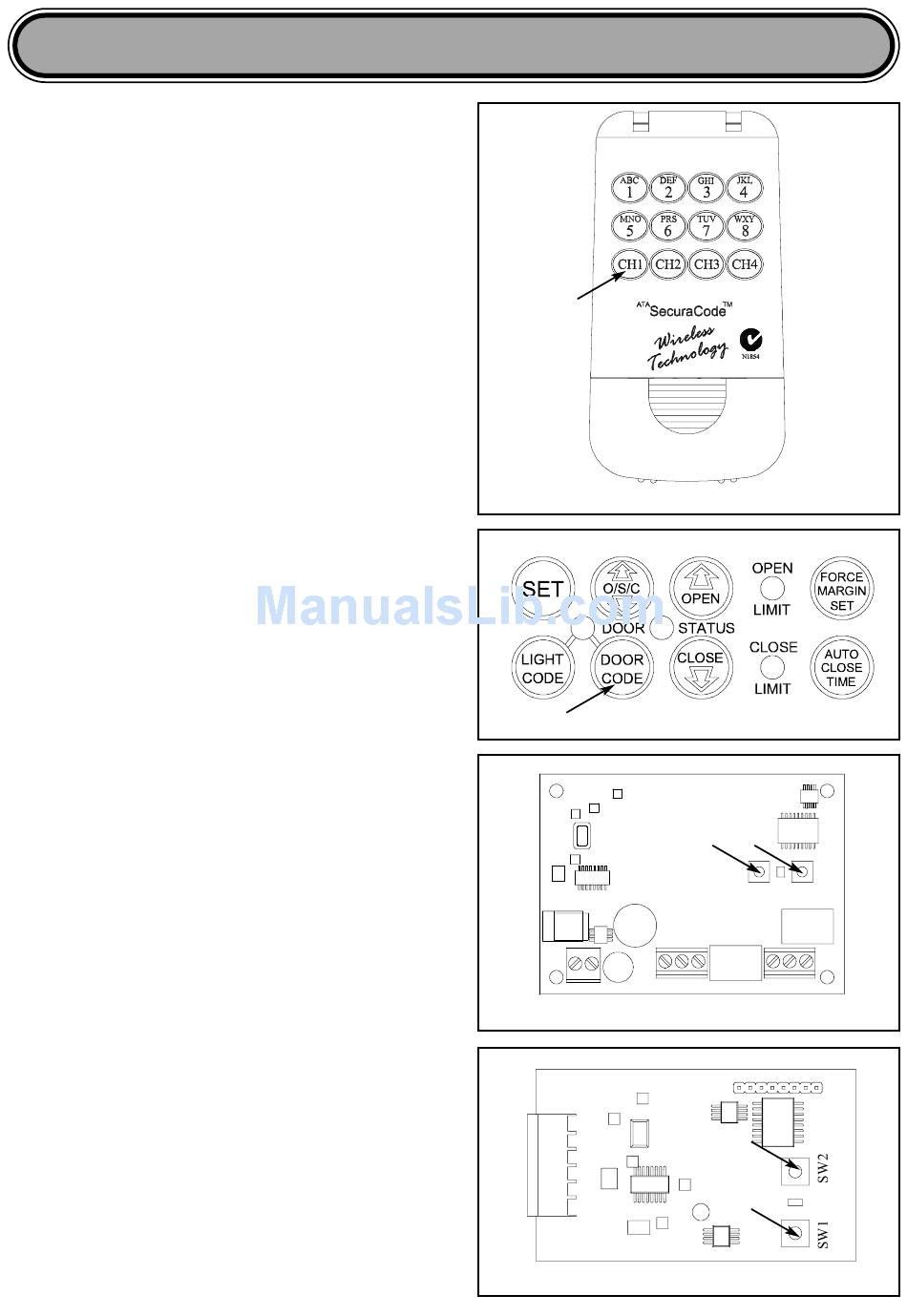

Wireless
®
Fig. 1
Fig. 2
GDO-2 & GDO-4 Garage Door Opener Control Panel
Fig. 3
Fig. 4
KPX-5 Wireless Digital Keypad
SW1
CRX-2 Stand Alone Receiver
RX-2 Receiver Board
SW2
