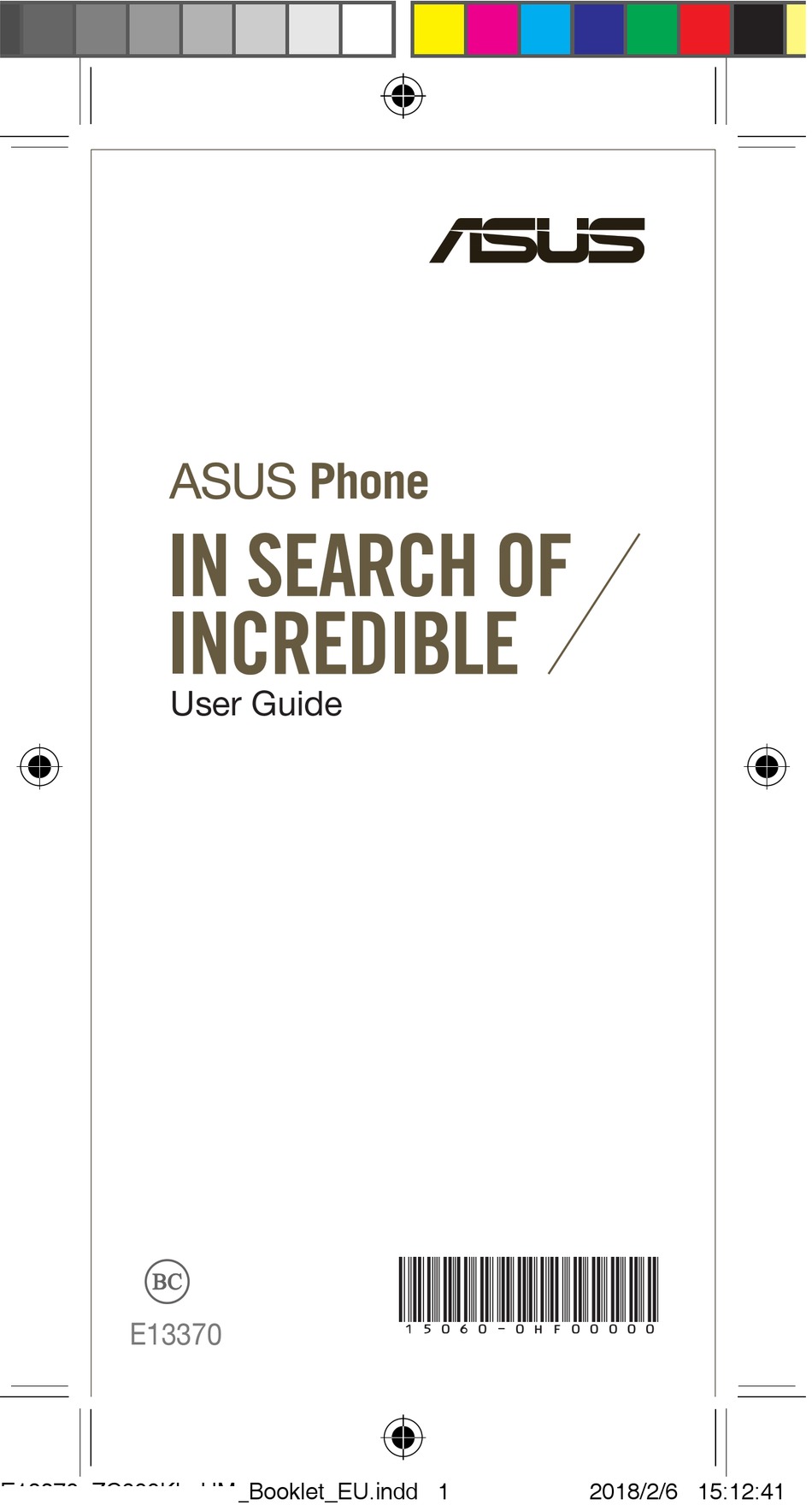

User Guide

15060-0HF00000
E13370
E13370_ZC600KL_UM_Booklet_EU.indd 1
2018/2/6 15:12:41

Advertisement

loading

  Summary of Contents for Asus X017DA

  • Page 1: User Guide

    User Guide 15060-0HF00000 E13370 E13370_ZC600KL_UM_Booklet_EU.indd 1 2018/2/6 15:12:41...
  • Page 2: Front Features

    Before you start, ensure that you have read all the safety information and operating instructions in this User Guide to prevent injury or damage to your device. NOTE: For the complete E-Manual and more detailed information, refer to https://www.asus. com/support/. Front features Receiver Front camera...
  • Page 3: Side Features

    Side features Audio jack Microphone Eject hole Volume Nano SIM1, Nano SIM2, Micro SD card slot Power Microphone Speaker Micro USB port E13370_ZC600KL_UM_Booklet_EU.indd 3 2018/2/6 15:12:42...
  • Page 4: Rear Features

    Rear features Flash Rear camera Fingerprint sensor • • • • • • E13370_ZC600KL_UM_Booklet_EU.indd 4 2018/2/6 15:12:42...
  • Page 5: Charging Your Asus Phone

    For safety purposes, use ONLY the bundled power adapter and cable to avoid damaging your device and prevent the risk of injury. • For safety purposes, use ONLY the bundled power adapter and cable to charge your ASUS Phone. • The input voltage range between the wall outlet and this adapter is AC 100V - 240V. The output voltage of the USB cable is +5.2V/5V 1A, 5W +5V 2A, 10W.
  • Page 6 Installing a Nano SIM/ microSD card • To install a Nano SIM/ microSD card: • Push the bundled eject pin into the hole on the card slot to eject the tray out. IMPO one 2. Insert the Nano SIM or microSD card into the appropriate slot. • • Push the tray to close it.
  • Page 7 NOTES: • The Nano SIM card slots support GSM, WCDMA, FDD-LTE, and TDD-LTE network bands. • The microSD card slot supports microSD and microSDXC card formats. IMPORTANT! When two SIM cards are inserted, only one SIM card slot supports 4G/3G/2G service. The other SIM card slot only supports 2G/3G service. CAUTION! • Do not use sharp tools or solvent on your device to avoid scratches on it. • Use only a standard Nano SIM card on your ASUS Phone. E13370_ZC600KL_UM_Booklet_EU.indd 7 2018/2/6 15:12:42...
  • Page 8: Canada, Industry Canada (Ic)

    Canada, Industry Canada (IC) Notices This device complies with Industry Canada’s licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux normes CNR d’Industrie Canada applicables aux appareils radio exempts de licence. Son utilisation est sujette aux deux conditions suivantes : (1) Cet appareil ne doit pas créer d’interférences nuisibles, et...
  • Page 9 Informations concernant l’exposition aux fréquences radio (RF) La puissance de sortie émise par cet appareil sans fil est inférieure à la limite d’exposition aux fréquences radio d’Industrie Canada (IC). Utilisez l’appareil sans fil de façon à minimiser les contacts humains lors d’un fonctionnement normal. Cet appareil été évalué et démontré conforme aux limites de DAS (Débit d’absorption spécifique) d’IC lorsqu’il est installé dans des produits hôtes particuliers qui fonctionnent dans des conditions d’exposition à des appareils portables.
  • Page 10 La fonction de sélection de l’indicatif du pays est désactivée pour les produits commercialisés aux États-Unis et au Canada. The IC ID for this device (ASUS_X017DA) is 3568A-X017DA. L’identifiant Industrie Canada de cet appareil (ASUS_X017DA) est: 3568A-X017DA. Caution This device(ASUS_X017DA) for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co- channel mobile satellite systems.
  • Page 11 Hereby, ASUSTek Computer Inc. declares that the radio equipment is in compliance ASUS_X017DA with Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www. asus.com/support/. (Search for ZC600KL) RF Output Table (ASUS_X017DA) Items Maximum Radio-Frequency Output Power Table Bluetooth BR/EDR (2402~2480 11.4(dBm) Bluetooth MHz) Bluetooth 4.0-LE (2402~2480 MHz) -0.4(dBm)
  • Page 12 Items Maximum Radio-Frequency Output Power Table WCDMA Band I (1920~1980 ; 22.69(dBm) 2110~2170 MHz) WCDMA WCDMA Band VIII (880~915 ; 22.32(dBm) 925~960 MHz) LTE Band I (1920~1980; 22.64(dBm) 2110~2170 MHz) LTE Band III (1710~1785; 22.71(dBm) 1805~1880 MHz) LTE Band VII (2500~2570; 23.1(dBm) 2620~2690 MHz) LTE Band VIII (880~915; 925~960 23.01(dBm) MHz) LTE Band XX (832~862; 791~821 23.01(dBm) MHz) LTE Band XL (2300~2400 MHz) 22.74(dBm) NOTE: This RF output power table is for EU member states, the EEA States, the EFTA States and Turkey only. The frequency range and the RF output power may differ from other non-EU countries.
  • Page 13: Using Gps (Global Positioning System) On Your Asus Phone

    0.5 cm from the body to ensure compliance with RF exposure requirements. CE Marking Using GPS (Global Positioning System) on your ASUS Phone To use the GPS positioning feature on your ASUS Phone: • Ensure that your device is connected to the Internet before using Google Map or any GPS-enabled apps.
  • Page 14: Prevention Of Hearing Loss

    35 °C (95 °F). The battery WARNING: Disassembling the battery by yourself will void its warranty and may cause serious harm. Your ASUS Phone is equipped with a high performance non-detachable Li-polymer battery. Observe the maintenance guidelines for a longer battery life.
  • Page 15 • Avoid charging in extremely high or low temperature. The battery performs optimally in an ambient temperature of +5 °C to +35 °C. • Do not remove and replace the battery with a non-approved battery. • Use only ASUS battery. Using a different battery may cause physical harm/injury and may damage your device. • Do not remove and soak the battery in water or any other liquid. • Never try to open the battery as it contains substances that might be harmful if swallowed or allowed to come into contact with unprotected skin.
  • Page 16: Operator Access With A Tool

    Phone. • Never pull the charger cord to disconnect it from the power socket. Pull the charger itself. Caution Your ASUS Phone is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on the (1) AC Adapter. • Do not use the ASUS Phone in an extreme environment where high temperature or high humidity exists. The ASUS Phone performs...
  • Page 17: Regional Notice For Singapore

    IMDA Standards. ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials.
  • Page 18: Proper Disposal

    Proper disposal Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. DO NOT throw this product in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and...
  • Page 19 Support: https://www.asus.com/support/ Copyright © 2018 ASUSTeK COMPUTER INC. All Rights Reserved. You acknowledge that all rights of this Manual remain with ASUS. Any and all rights, including without limitation, in the Manual or website, and shall remain the exclusive property of ASUS and/or its licensors. Nothing in this Manual intends to transfer any such rights, or to vest any such rights to you.

This manual is also suitable for:

Zc600kl
