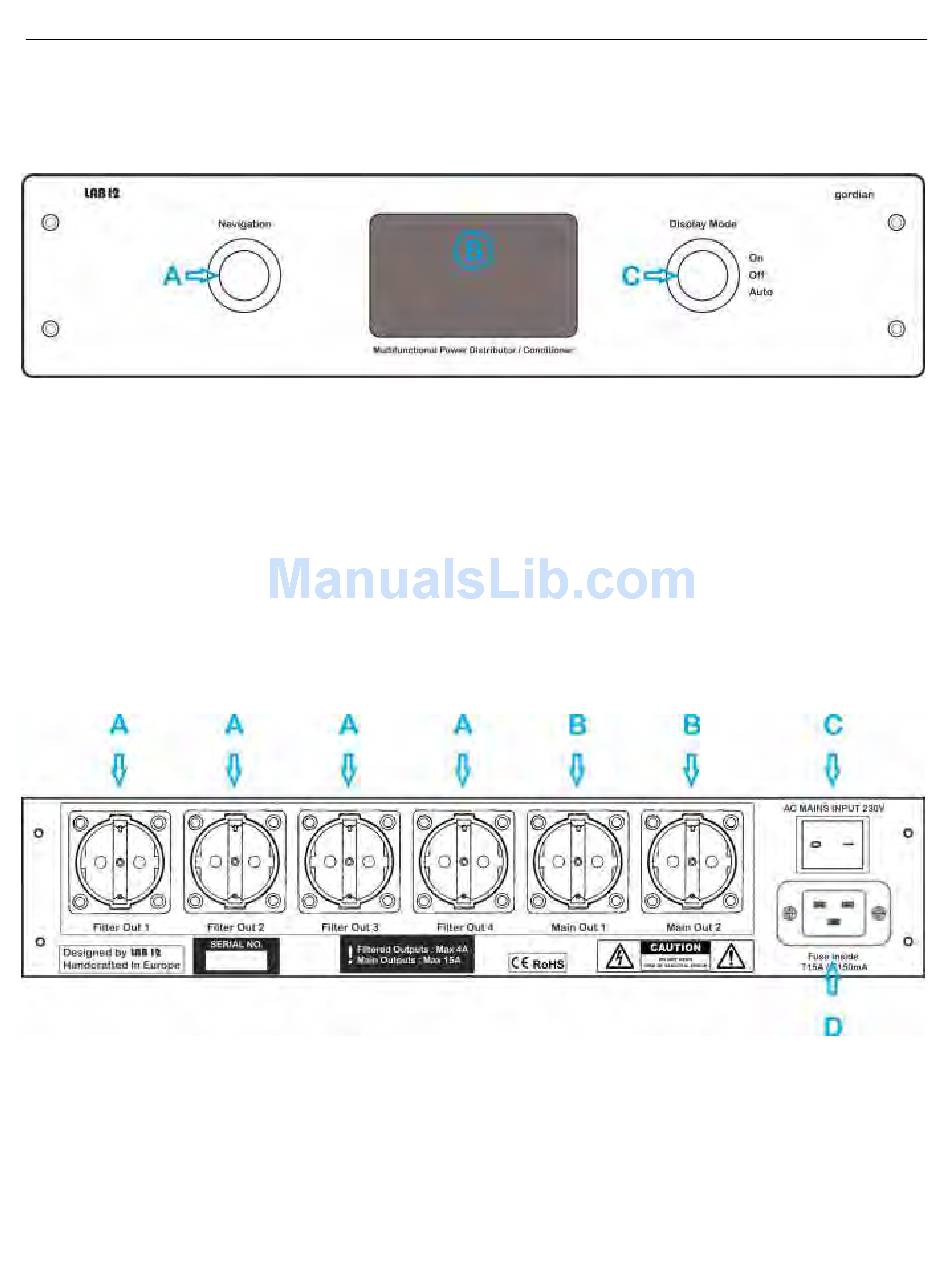

Front Panel

Gordian front panel
On the front panel you will see the OLED display, the navigation rotary knob and the display mode rotary
knob.
The left rotary/push knob (A) is there for navigation into device's menu structure.
The OLED display (B) is located in the middle of front panel. There you can see all the interface menu
details.
The right rotary knob (C) selects the OLED display mode (On, Off, Auto).

Rear Panel Connections

Gordian rear panel
On the rear panel you will find the output sockets, main inlet and main power switch.
From the left to right are four high filtered, low current outlets (A) and two low filtered, high current
outlets (B).
On the right side of the rear panel, the main power inlet (C) and the power switch (D) are located.
