SCT BDX Quick Start Manual

QUICK START GUIDE
407-774-2447 | WWW.SCTFLASH.COM
SECTION 3:
READING THE VEHICLE INFORMATION
NOTE: Please make sure that all stock electronics are turned off and disconnect any aftermarket electronics as well.
POWERING UP THE BDX
1. Using the provided HDMI/OBDII Cable from section 1, plug the
BDX device into the vehicle's OBDII Port commonly found within
24" of the steering column under the driver's side dash.
SECTION 5:
TUNING THE VEHICLE
1. Cloud Check – If your dealer has
PROGRAM VEHICLE
sent you a custom tune using
the cloud select "continue" to
CLOUD CHECK
download the custom tune. If not
Press CONTINUE to query Cloud
select "Skip" and follow prompts.
for available custom tunes.
2. Select your tune from the
following menu items:
Pre-Loaded Tune Files
Preloaded SCT tunes for use
on stock vehicles only.
SKIP CONTINUE
Custom Tune
Custom Tuning Dealer files, if there are any on the device.
NOTE: Custom Tunes are built by SCT's network of
Custom Tuning Dealers and any questions related to them
need to be directed toward the tuning dealer.
Return to Stock
Restore original factory file to vehicle.
3. Highlight the tune you wish to use and select confirm.
SECTION 1:
PARTS & CHECKLIST

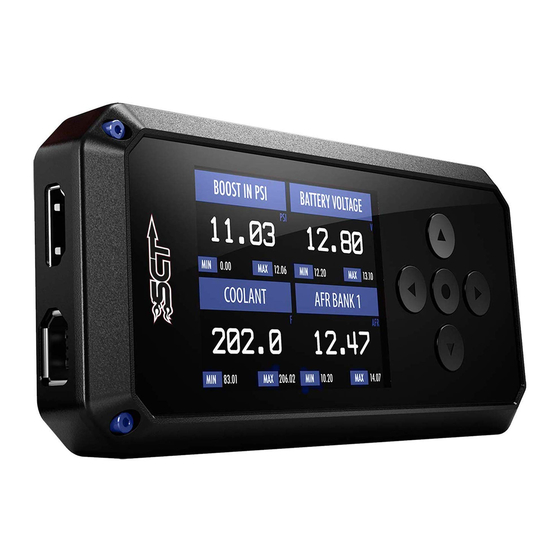

BDX DEVICE
READING THE VEHICLE'S INFORMATION
1. At this point, the key should be in the ignition, but in the
position until prompted to turn key ON/RUN position.
2. From the Main Menu, select Program Vehicle.
3. Processing Data: The BDX
MAIN MENU
is now reading your
vehicle information.
PROGRAM VEHICLE
4. Updates: Internet Required.
GAUGES / DATA LOG
In order to install the most
up-to-date files the BDX now
VEHICLE FUNCTIONS
requires internet
access. You can access
PROGRAM VEHICLE
VEHICLE INFO
these files via two
UPDATE REQUIRED
methods found
DEVICE INFO
in Section 4.
Update required. Please check
DEVICE SETTINGS
for updates
EXIT CONTINUE
4. Read and acknowledge the
PROGRAM VEHICLE
street use notice.
STREET USE NOTICE
5. Depending on your vehicle there
may be further parameters you
This device is NOT LEGAL for
can change under "Additional
sale or use in California on
Tune Option". Select "Change"
any pollution controlled
to view the available options
motor vehicles.
or "Skip" to continue with
Press CONTINUE to start
downloading the tune only.
programming.
6. The Tune and any Additional
Tune Options will now be
EXIT CONTINUE
installed. Follow the on-screen
directions to finish the process.
VEHICLE LICENSE
This BDX is not paired.
NOTE: During the installation the
Select CONFIRM to pair your
BDX will be paired to your (One)
BDX to this vehicle.
vehicle. Once paired, there is an
unlock fee to un-pair the device
from your vehicle in order to install
it on another vehicle.
EXIT CONFIRM
MICRO USB™ CABLE
HDMI/OBD II CABLE
SECTION 4:
THREE METHODS FOR UPDATING THE BDX
METHOD #1: UPDATING VIA WIFI
INSIDE THE VEHICLE
1. Select Continue from the Internet
Required screen.
PASSCODE (SECURITY KEY)
OFF
2. Select the WiFi network you would
like to connect to. Use the middle
button to confirm your selection.
3. Enter the network pass code using
the arrow keys and the middle
button to select.
EXIT
4. Confirm the WiFi settings and
select Continue.
METHOD #2: UPDATING VIA WIFI USING USB POWER
1. Plug the BDX into a computer or wall charger using the provided
Micro USB Cable.
2. Select "Program Vehicle" from the main menu .
3. "Vehicle Updates" select "Confirm".
4. "Device Updates" select "Continue".
5. "Internet Required" select "Continue".
6. Follow on screen instruction to set up WiFi.
7. Follow on screen prompts until the "Up-To-Date"
8. Unplug and return to the vehicle .
SECTION 6:
LOADING CUSTOM TUNES
NOTE: Make sure the "Updater Software" from Section 4 Has been completed before proceeding with Section 6.
The BDX is capable of having custom tune files sent over the Cloud straight to the device from a Custom Tuning Dealer. If your Custom Tuning Dealer
has chosen to email your file, you can load them onto the device using the Device Updater software.
1. From your e-mail, save your Custom Tunes
(.cef files) to your computer's Desktop.
2. Open the Updater software and click
the Load Custom Tune File button.
3. Click Browse and locate your custom tunes
on your Desktop. Alternatively, you can also
click Locate Custom Tunes.
4. Highlight the Tune you wish to load. The tune
you selected should move to the Available
Tunes section.
5. Select the listed tune in the Available Tunes
section, then click the >> button to move the
selected tune to the On Device section.
6. Highlight the tune under the On Device
section, then click program. Tunes can only
be loaded one at a time. Repeat steps 3-7
for each tune, the device can hold up to ten
custom tunes.
NOTE: To edit the name of the file as it appears on your device, you must highlight the file after transferring the file to the
On Device section of Updater. Next to
SECTION 2:
PRE-INSTALL CHECKLIST
INTERNET ACCESS
During the installation process you will need to connect the
BDX to the Internet using the built-in WiFi.
ALLOW TIME FOR INITIAL SETUP
Make sure you allow up to 30 minutes to complete the
initial setup and installation process.
NEED FURTHER SUPPORT?
Technical Support is available Monday to Friday, between
9 A.M. and 6 P.M. Eastern Standard Time, and can be
contacted via phone at
www.sctflash.com. Please have your BDX with you when
contacting Technical Support.
METHOD #3: UPDATING USING UPDATER SOFTWARE
PROGRAM VEHICLE
NOTE: Unplug the BDX from your computer before proceeding.
CONNECT TO WIFI
SSID (NETWORK NAME)
1. Go to: sctflash.com and click on the
SCT
of the page.
2. Locate and click the "BDX" option and then select "Downloads".
XXXXX
You will see "Download Now"
"Download Now" to begin downloading and installing updater
on your computer.
3. Wait for that program to download, then double click and
the SCTDeviceUpdater.exe
CONTINUE
4. Follow the on-screen directions of the
Installer until it allows you to click "Finish".
5. Connect your BDX to your Windows™ based PC using the
provided Micro USB™ cable.
We do not offer support for Apple computers at this time.
6. Double click and open the
7. Click "Automatically Check for Updates".
8. Confirm the update by pressing the
will now begin.
9. Let the updater run until it says
10. Unplug the BDX from your computer and proceed to Section 5.
screen.
2.
4.
Edit Name, change the name of the file here. Select Save, then Program.
(407) 774-2447 or live chat at
"Support" tab at the top
under the "Updater" section. Click
"Run"
file if it does not open automatically.
Device Update Software
Device Updater Software.
"Update" button. The update
"Your device is now up to date".
3.
6.
7.
