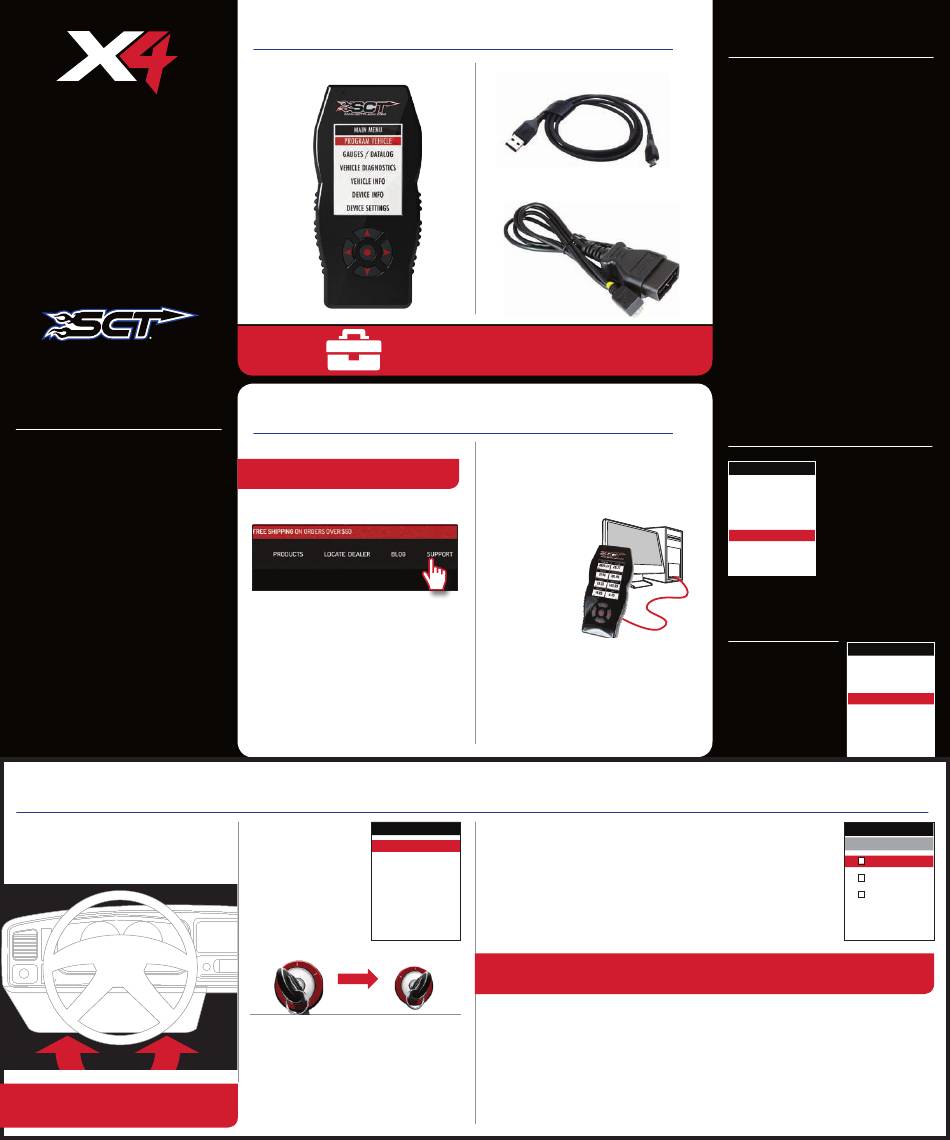

SCT X4 Quick Start Manual

QUICK START GUIDE
WWW.SCTFLASH.COM
SECTION 3:
IMPORTANT ON-DEVICE INFO.
From the Main Menu, select Device Info.
Within Device Info, you will find :
SERIAL NUMBER:
Needed for dealers to create custom tunes for your vehi-
cle and device.
FIRMWARE VERSION:
This is essentially your device's operating system.
TUNE REVISION
The version number of your preloaded tunes.
UNLOCKS LEFT:
Number of unlocks remaining. An unlock is used when the
tuned vehicle is returned to stock and a different vehicle
is programmed.
MARRIED STATUS:
Unmarried = Unlocked and ready for vehicle pairing.
Married = Locked to a vehicle.
VBATT:
The amount of voltage being run through the device from
your vehicle's battery. As a general rule, 12.75+ volts is
needed to flash a tune to a vehicle.
SECTION 7:
PROGRAMMING THE VEHICLE
POWERING ON THE X4
To power up your device using the provided HDMI to OBDII
cable, connect to the vehicle's OBDII port. The OBDII port
is most commonly found within 24" of the steering column
under the driver's side dash.
NOTE: Please make sure that all stock electronics are
turned off and disconnect any aftermarket electronics
as well.
SECTION 1:
PARTS & CHECKLIST
X4 DEVICE
MICRO USB CABLE
™
TOOLS NEEDED:
Fuse Puller | Voltage Tester | Battery Charger | Pliers
SECTION 4:
UPDATING YOUR X4 DEVICE
INSTALLING THE UPDATER SOFTWARE
NOTE: Make sure the X4 is unplugged from your
computer before starting this process.
1. Go to: sctflash.com and click "Support" tab at the top of
the page.
1. Locate and click the "SCT Software" option and then
click on "Downloads". You will see "Device Updater".
Click to begin downloading and installing on
your computer.
2. Wait for that program to download, then double click and
"Run" the SCTDeviceUpdater.exe file if it does not
open automatically.
3. Follow the on-screen directions of the SCT Device
Update Software Installer until it allows you to
click "Finish".
4. Follow the on-screen directions of the SCT Drivers
Installer until it allows you to click "Finish".
5. Your SCT Device Updater Software and Drivers are
now fully installed and ready for use.
BEGIN PROGRAMMING
MAIN MENU
1. From the Main Menu, select
Program Vehicle.
PROGRAM VEHICLE
2. At this point, the key should
GAUGES / DATALOG
be in the ignition, but in the
OFF position until prompted
VEHICLE FUNCTIONS
to turn key ON/RUN position.
VEHICLE INFO
DEVICE INFO
DEVICE SETTINGS
Two clicks
Within Program Vehicle, there are 2-3 selections depend-
ing on the state of the vehicle.
• Pre-Loaded Tune Files = Preloaded SCT tunes for use
on stock vehicles only.
• Custom Tune = Custom Tuning Dealer files, if there are
any on the device.
• Return to Stock = Restore original factory file to vehicle.
MICRO USB™ CABLE
HDMI/OBD II CABLE
UPDATING YOUR X4
1. Prior to updating your X4 you will need to return the
vehicle back to stock, if not at stock already.
2. Connect your X4 to your Windows™ based PC using the
provided Micro USB™ cable. Unfortunately, we do not
offer support for Apple computers at this time.
3. Double click and open the SCT Device Updater
Software.
4. Click "Automatically Check for Updates".
5. Confirm the update by pressing the "Update Now"
button. The update will now begin.
6. Let the updater run until it says "Your device is now up
to date".
7. You may now unplug your device from your computer
and load a tune to your vehicle.
USING PRE-LOADED TUNE FILES
Once you follow the first "Key On" prompt, the device will show you a selection of vehicles and
engine sizes. Select yours here. This will take you to Adjustable Options where you will be able to
adjust to different performance levels, vehicle characteristics, and options including, but not limited
to, speed limiters, axle ratio and tire size. (Adjustable Options are vehicle specific). For more infor-
mation on Adjustable Options, please see the Adjustable Options Explained
NOTE: Custom Tunes are built by SCT's network of Custom Tuning Dealers and any questions related to them
need to be directed toward the tuning dealer.
USING CUSTOM TUNES
To install Custom Tunes, select Program Vehicle, and scroll down to the Custom Tunes section. If your device contains any
custom tunes for your vehicle, this is where they will be listed. Once you've found your desired tune select it by highlighting it on
the menu and then pressing the center button on the X4 to choose the tune. Next, follow the on-screen instructions to load the
tune to your vehicle. If no custom tunes are listed the device will refer you to our website to find a custom tuning dealer.
RETURNING TO STOCK
With SCT devices, your stock file is stored during the initial programming. The stock file stays on the programmer until
returned to stock. From Program Vehicle, select Return to Stock and follow the on-screen instructions to advance through the
programming process.
SECTION 2:
PRE-INSTALL CHECKLIST
INTERNET ACCESS
In the unlikely event that technical support is needed,
Internet access may be required to troubleshoot. Our
Technical Support team may also need to remotely connect
to your computer to fix any issues you may be having.
ALLOW TIME FOR INITIAL SETUP
Make sure you allow up to 30 minutes to complete
the initial setup and installation.
NEED FURTHER SUPPORT?
For additional troubleshooting and support, see our
knowledge base on-line at sctflash.com/support.
Alterations made to the OEM configuration of
a vehicle may violate the Clean Air Act if such
alterations bypass, defeat, or render inoperative
Elements of Design installed on a vehicle in
compliance with the Clean Air Act. Users who alter
Derive's products in any way are required to make
their own individual determination that the altered
products do not violate the Clean Air Act.
This device is not legal for sale or use in California
on pollution controlled vehicles.
SECTION 5:
READING VEHICLE VIN AND
STRATEGY/OS PART#s
From the Main Menu,
MAIN MENU
select Vehicle Info.
PROGRAM VEHICLE
Once on the Vehicle Info
screen, you'll be asked to turn
GAUGES / DATALOG
the key on. The VIN# will display
VEHICLE FUNCTIONS
as well as the Strategy for Ford
vehicle/device. GM vehicle/
VEHICLE INFO
device, will display the OS
Part Numbers.
DEVICE INFO
DEVICE SETTINGS
SECTION 6:
CHECKING/CLEARING VEHICLE
TROUBLE CODES
MAIN MENU
From the Main Menu,
PROGRAM VEHICLE
select Vehicle Functions.
GAUGES / DATALOG
Within this menu, you will be
VEHICLE FUNCTIONS
given the option to read or
clear DTCs (Diagnostic Trouble
VEHICLE INFO
Codes). Finally, make your
DEVICE INFO
selection and follow the
on-screen prompts.
DEVICE SETTINGS
PROGRAM VEHICLE
FUEL OCTANE
93 0CTANE
section of this guide.
91 OCTANE
87 OCTANE
