Bazooka BPB24 Installation Instructions

BPB24
Installation Instructions

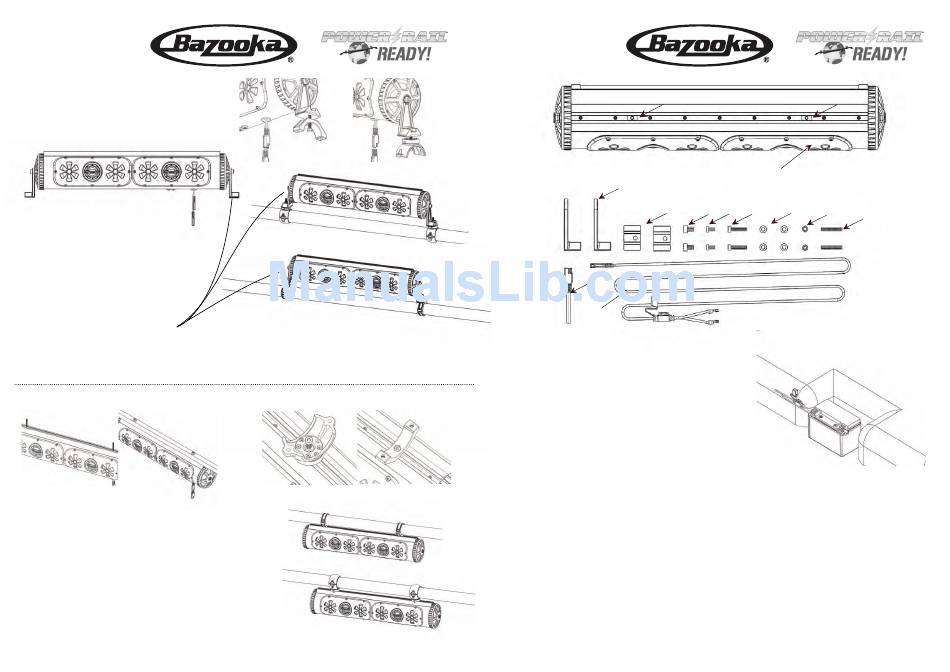

End Mounting Options
with Cast Aluminum Legs
See Warning Below!
Use the 8mm X 12mm bolts (5) to attach
the mounting legs. Mounting legs (3) can
be installed in ether direction depending
on space constraints. When mounting with
opional clamps (PR-URM, PR-FRC200, and
PR-FRC175) use the hex bolts provided with
the clamps to mount the bottom half of the
clamps to the mounting legs.
Warning:
If you are using the cast aluminum mounting legs to secure the Party Bar to your machine, the mounting legs must
FIRST be attached and tightened to the Party Bar before mounting it to your machine. Attaching the legs to the
machine first and then inserting the Party Bar between them can cause misalignment, spacing, and torque issues
that can cause damage to the mounting assembly resulting in a failure.
Adjustable T-Slot Mounting Options
When using the t-slot mounting system. First determine your
mounting stud spacing. Adjust t-nuts (2) to desired length then
screw the 6mm X 40mm studs (10) into the t-nuts. Mark your
desired spacing onto the flat surface you are mounting to. Use a
1/4" or 7mm drill bit to drill mounting holes. Mount the BPB24 to
your mounting surface using the 6mm washers (8) and 6mm
nylon locking nuts (9) provided in hardware kit. You can also
use our optional PR-URM, PR-FRC175, and PR-FRC200 clamps
(sold separately) to mount to round tubbing. When mounting
the bottom half of the clamps to the BPB24. You will need to
use the 2 ea. 6mm X 12mm low profile socket head cap screws. (6)
PR-URM
PR-FRC200
2" clamps
PR-FRC175
1.75" clamps
PR-URM
2" to 1.5 "
PR-FRC200
2" to 1.5" 2" clamps
PR-FRC175
1.75" clamps
Rev.9/24/2016 Pg. 4
BPB24
Installation Instructions
"
3 .
11.
12.
1. BPB24 1 ea.
2. T-Nuts 6mm 2 ea.
3. Mounting Leg 2 ea.
4. Rubber Vibration Insulation Pads 2 ea.
5. Socket Head Cap Screw 8mm X 12mm 2 ea.
6. Low Profile Socket Head Cap Screw 6mm X 12mm 2 ea.
7. Socket Head Cap Screw 6mm X 30mm 2 ea.
8. Narrow Washer 6mm 4 ea.
9. Nylon Insert Locking Nut 6mm 2 ea.
10. Stud 6mm x 40mm 2 ea.
11. Accessory Pigtail 1 ea.
12. Power Cable 6 ft. 1 ea.
The internal RF circuit for the remote control will draw a small amount of current because it must always be ON
listening for the remote commands. Over time this could draw down your battery when your machine remains in
storage without being connected to a charger or not being actively used. For this reason, we recommend
connecting the Party Bar to a switched master power source or disconnecting the main power wire when the
machine is in storage. We also make a plug & play inline 12v master power switch that can be easily added to the
main battery wire for the Party Bar to completely kill power to the unit. It is listed under the Accessories tab on the
Party Bar product page on our website (Model number: PR-ILS16)
Remove fuse from 6 ft power cable (12). Attach the red wire to the positive battery terminal. Attach the black wire
to the negative battery terminal. Run power cable to the location of the BPB24. making sure power wire does not
hinder the safe operation of the vehicle. Plug the red power cable end into the BPB24's red input power plug. The
black 12vdc accessory plug can be used to power any 12vdc accessory up to 15 amps. Use the included black
accessory pigtail (11) to wire your accessories.
2. 2.
1.
4.
7. 8.
5. 6.
9.
IMPORTANT NOTICE:
10.
Rev.9/24/2016 Pg. 1
