VTech VM342 Quick Start Manual

Go to www.vtechphones.com VM342
to register your product for
enhanced warranty support
and latest VTech product news.
Quick start guide
Connect and power on - Baby unit
Install the lens (optional)
The wide-angle lens (VM101) provided allows you to view more of your baby's room from the parent unit screen.
If you do not use the lens at the moment, cover both sides of the lens with the lens covers provided to avoid scratches.
What's in the box
Install the battery
>
1m (3ft)
THIS SIDE UP
Dim mode
With dim mode preset to on, your parent unit display will dim after 10 minutes of inactivity to conserve energy.
10 min inactivity
Press any buttons

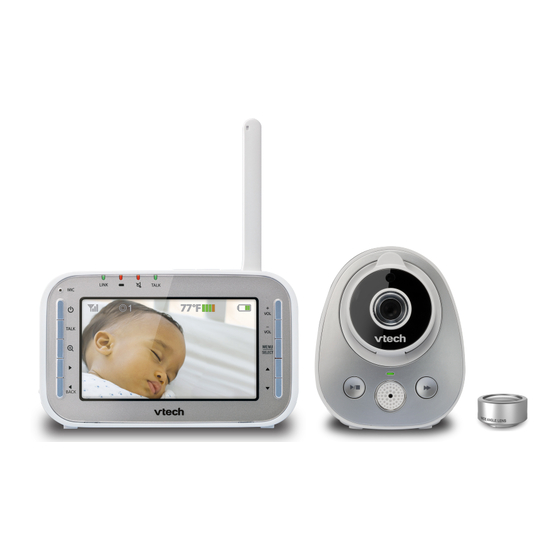

VM342 baby monitor system
Baby's room
Connect and power on - Parent unit
2s
>
1m (3ft)
CAUTION
• The default volume of your parent unit
is level 4. If you experience high-pitched
screeching noise from your baby monitor
while positioning:
<
1m (3ft)
- Make sure your baby unit and parent unit
are more than 1 meter (3 feet) apart, OR
- Turn down the volume of your parent unit.
Sound activation
Automatically turns on the parent unit screen when the baby
Sound-activated Screen
unit being viewed detects a sound after the screen is turned
off. When no sound is detected within 50 seconds, the
On
screen is automatically turned off to save power.
O
Living room
Status check
Once you power on your baby monitor, your parent unit displays image from the baby unit, and the LINK LED light
turns on. The ON/OFF LED light of the baby unit also turns on.
Night vision
The baby unit has infrared LEDs that allow you to
see your baby at night or in a dark room. When the
baby unit detects low light levels, the infrared LEDs
turn on automatically. The images from this baby
unit is in black and white, and appears on screen.
NOTES
• It is normal if you see a short white glare on your parent
unit screen as the baby unit is adapting to the dark
environment.
• When the infrared LEDs are on, the image is in black
and white. This is normal due to external light sources.
TIP
• Depending on the surroundings and other interfering
factors, like lightings, objects, colors and backgrounds,
the display resolution may vary. Adjust the baby unit's
angle, or place the baby unit at a higher level to prevent
glare and blurry display.
