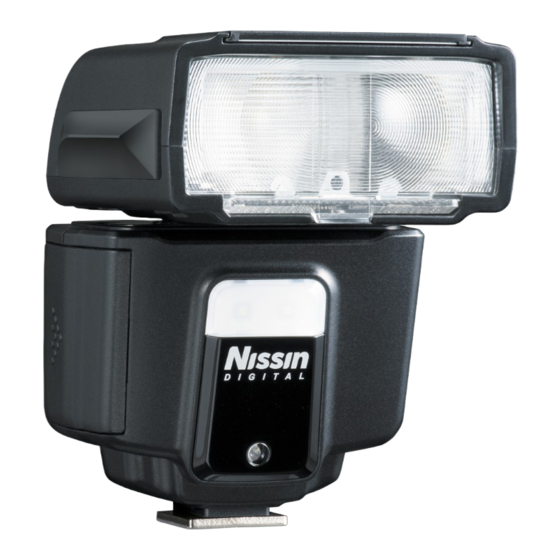

Nissin i40 Quick Manual
Hide thumbs Also See for i40:

Advertisement

POWER ON/ OFF

Mode

Video light
Slave Film
Slave Digital
Manual
Auto

TTL

Wireless TTL
(Group A/ B/ C)

Power Dial

Auto control
Auto control
for Canon/ Nikon/ Four Thirds

Nomenclature

1 Fill-in reflector
2 Flash head
3 Light diffusing panel
4 Video light
5 Remote/ Slave sensor
6 AF-assist light
7 Mounting foot
8 Hotshoe contacts
9 On/ Off switch
10 Pilot button (Test flash button)
11 Function dial
12 Release button
13 Power dial
14 Battery compartment door
A Indicator lamp A
B Indicator lamp B
C Indicator lamp C

Turn on the flash unit

Press the on/ off switch. Indicator lamp A is on.
The pilot button turns red showing the unit is charging.
In a few seconds, the pilot button turns green.
The flash sleep mode turns off in about 2 mintues (in A/ TTL/ M mode)
or about 5 mintues (in SD/ SF/ Wireless TTL Slave mode) after the
setting job is terminated.
For a test-flash, press the pilot button.
The power is automatically tuned off in about 60 mintues, when the
flash is not in use.
For Four Thirds only

FP High-speed synchronization in A/ M/ TTL mode

Press and hold the Pilot button in 3 seconds.
Indicator lamp A starts blinking.

Accessories:

Flash stand
Carabiner
(NOT FOR CLIMBING)
Pouch
Soft box
022014_R.3.0
