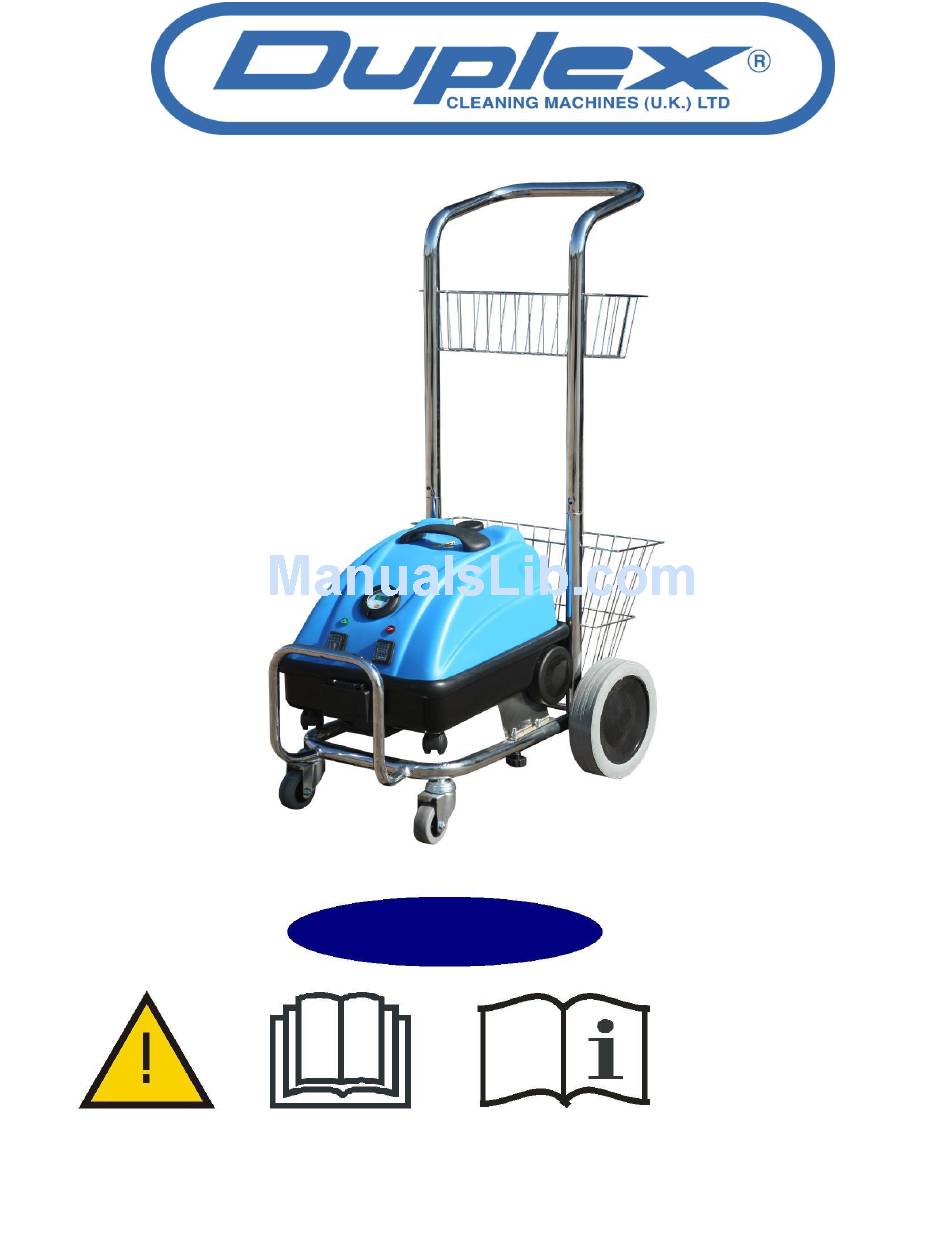

- Page 1 Jet Steam Professional ENGLISH DUPLEX U K...
- Page 2 PLEASE READ THE SAFETY INSTRUCTIONS ON THIS HANDBOOK BEFORE PROCEEDING ON THE FIRST USE. EVENTUAL DAMAGES DUE TO THE CARRIAGE MUST BE COMUNICATED AS SOON AS POSSIBLE TO YOUR OWN RETAILER. ATTENTION!! STEAM…. HOT SURFACES ATTENTION ! READ THE OPERATING MANUAL OPRATING MANUAL DUPLEX UK...
- Page 3 DUPLEX JSP ENVIRONMENT PROTECTION ALL THE PACKINGS ARE RECYCLABLE, PACKINGS DO NOT HAVE TO BE THROWN IN THE DOMESTIC WASTE BUT THEY HAVE TO BE DELIVERED TO THE CENTERS SPECIALIZED FOR THE DISPOSING OF THE WASTE. ALL DEVICES NOT USED ANYMORE CONTAIN PRECIOUS RECICLABLE MATERIALS THAT SHOULD BE DELIVERED TO THE CENTERS SUITABLE FOR THE DISPOSING OF THE WASTE.
- Page 4 DUPLEX UK...
-
Page 5: Table Of Contents
DUPLEX JSP SUMMARY SUMMARY SAFETY REGULATIONS TECHNICAL CHARACTERISTICS PREFACE TECHNICAL DRAWINGS NOMENCLATURE OPERATING INSTRUCTIONS MAINTENANCE BEFORE REFERRING TO THE TECHNICAL SERVICE DECLARATION OF CONFORMITY 2. SAFETY REGULATIONS The electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1. -
Page 6: Technical Characteristics
Please consider that the machine before leaving our factory has been tested and tweaked by qualified and specialized personnel. In order to improve and to update its production, as well as to always offer new technological models, DUPLEX has projected and realized JSP steam generator. -
Page 7: Technical Drawings
DUPLEX JSP 5. TECHNICAL DRAWING DUPLEX UK... -
Page 8: Nomenclature
DUPLEX JSP 6. PARTS LIST Triangular brush Cap for water tank Window cleaner Main power switch Steam lance Boiler switch Nylon brush ø 60 “Low Water” Indicator Small nylon brush ø 28 “Ready Steam” Indicator Small brass brush ø 28 6B) Digital pressure gauge (hour meter) Small stainless steel brush ø... - Page 9 DUPLEX JSP TOOLS USAGE Insert the steam plug (12) into the tools connection socket (7) placed on the unit. Press well as the block switch (13) has to guarantee the fixing of the tool. Activate the general switch (2) and the boiler switch (3) then wait for about 5 minutes until the green indicator light switches on.
- Page 10 DUPLEX JSP IN THE BATHROOM For all areas difficult to reach, we suggest applying to the steam hose hand grip (9) the steam lance (20) and a small brush (22). This accessory allows cleaning radiator crevices and all difficult points. In case of washbasin clogging, attach the steam plunger (26) to the steam lance (20) and direct the steam into the drain.
- Page 11 DUPLEX JSP WARNING THE GENERATOR PRODUCES STEAM WITH A TEMPERATURE OVER 100°C. BEFORE STARTING THE CLEANING TASK WE SUGGEST TO TRY ON A SMALL AREA TO AVOID DAMAGES. ON MARBLE AND PARQUET FLOORS We suggest adding a cotton cloth (32) wrapped on the brush (17) to avoid scratching the surface. To continue the cleaning it is necessary to change the cloth according to the quantity of dirt to be collected on the floor.
-
Page 12: Maintenance
DUPLEX JSP MAINTENANCE WARNING SWITCH OFF THE ELECTRIC SUPPLY BEFORE PROCEEDING TO THE USER'S MAINTENANCE. WE SUGGEST CLEANING THE BOILER ONLY WHEN THE MACHINE HAS COOLED DOWN (SWITCHED OFF FOR AT LEAST 5 HOURS). MAINTENANCE OF THE STEAM GENERATOR ELIMINATION OF SCALE DEPOSITS FROM THE BOILER If you are not acquainted with the hardness level of the used water, it is recommended to proceed with the boiler cleaning after 24 hours of usage. - Page 13 DUPLEX JSP BEFORE CALLING FOR SERVICE PROBLEM POSSIBLE CAUSE REMEDY Machine does not produce steam Lack of power. Make sure plug (21) is well inserted and that and vacuum does not work. there is main power to the socket outlets.
-
Page 14: Before Referring To The Technical Service
DUPLEX UK... -
Page 15: Declaration Of Conformity
DUPLEX JSP 10. EC DECLARATION OF CONFORMITY DICHIARAZIONE DI CONFORMITA’ CE (EC DECLARATION OF CONFORMITY) DUPLEX S.R.L. con la presente dichiara che: le macchine per pulizia a vapore modello: (Certifies that the steam cleaning machine model): Duplex JSP Risultano conformi alle specifiche delle direttive... - Page 16 DUPLEX UK...
- Page 17 DUPLEX JSP Ordinary maintenance procedures Generator Working Frequency of Notes Hours intervention...
- Page 18 DUPLEX UK...
- Page 19 DUPLEX JSP THE MANUFACTURER RESERVES THE RIGHT TO PRODUCE TECHNICAL AND STRUCTURAL IMPROVENTS WITHOUT NOTICE...
- Page 20 DUPLEX UK...
