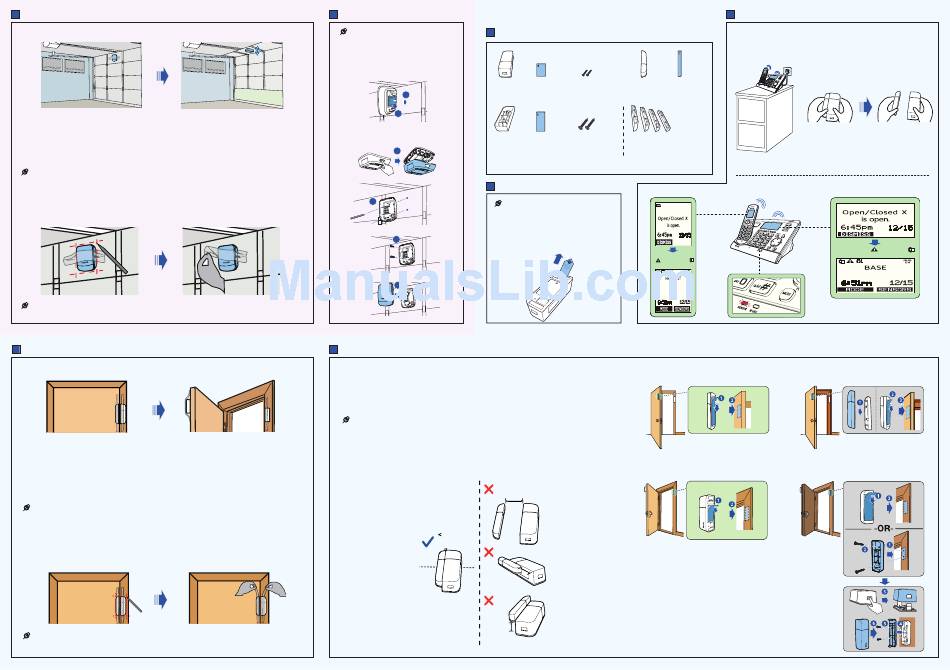

VTech VC7151-109 User Manual page 2

3
Check and locate (continued)
Test the sensor signal strength
• Use adhesive tape to hold the sensor temporarily in place.
• Depending on surroundings and obstructing factors, like walls or cabinets, the sensor may not
transmit to the telephone base properly.
Use your handset to enter the Sensor setup menu, and then select the Check signal menu. Follow
the steps to test the sensor's signal strength, and then exit the sensor setup mode. Make sure you
receive alerts when you open the garage door as usual.
NOTES
• If No signal or Weak signal message is displayed in sensor setup mode, mode, or if you do not receive an
alert when you open the garage door, move the telephone base closer to the mounting location or move the
sensor closer to the telephone base.
After testing the sensor signal strength, mark the mounting position on the garage door.
Then, remove the adhesive tape and proceed to the mounting process.
NOTES
• The garage images in this installation guide are for conceptual reference only.
3 Check and locate (continued)
Test the sensor signal strength
• Use adhesive tape to hold the sensor temporarily in place.
• Mount the sensor to a higher position to avoid obstacles or blockages. Depending on
surroundings and obstructing factors, like walls or cabinets, the sensor may not transmit to the
telephone base properly.
Use your handset to enter the Sensor setup menu, and then select the Check signal menu.
Follow the steps to test the sensor's signal strength, and then exit the sensor setup mode. Make
sure you receive alerts when you open the door as usual.
NOTES
• If No signal or Weak signal message is displayed in sensor setup mode, or if you do not receive an alert
when you open the door, move the telephone base closer to the mounting location or move the sensor
closer to the telephone base.
After testing the sensor signal strength, mark the mounting position on the door, window, or
medicine cabinet and its respective frame. Then, remove the adhesive tape and proceed to the
mounting process.
NOTES
• The door images in this installation guide are for conceptual reference only.
4 Open/Closed sensor installation
Mount
1
NOTES Parts checklist
• Make sure the mounting surface is clean.
A textured surface or any imperfections to
a smooth surface can keep the mounting
tape from making a strong bond.
With tape
Sensor unit
1 2 3 4
5 6 7 8
1 2 3 4
5 6 7 8
With screws Spacer for
sensor unit
(optional)
1 2 3 4
5 6 7 8
2 Power on
1 2 3 4
NOTES
5 6 7 8
• The batteries are pre-installed in your
Open/Closed sensor.
• The Open/Closed sensor is already
pre-registered to the telephone base.
• The batteries operate properly under the
1 2 3 4
temperature between 0°F (-18°C) and
5 6 7 8
130°F (55°C).
1 2 3 4
5 6 7 8
4 Mount
We recommend you mount the magnet unit on a door, window, or medicine cabinet, and mount
the sensor unit on its respective frame.
You can use the spacers provided if there is a difference in level between the door and the
frame. The spacer will help to align your sensor to the correct height. You can also use a spacer
if the frame is too narrow or has some decorative molding.
NOTES
• You can mount the sensor unit with mounting tape first, and then use screws later if you decide to mount
it at that location for long term.
• Make sure the mounting surface is clean. A textured surface or any imperfections to a smooth surface can
keep the mounting tape from making a strong bond.
• Align the magnet unit with sensor unit when mounting.
• The distance between the sensor unit and magnet unit must be less than 1 cm (0.4 inch).
> 1 cm
(0.4 inch)
1 cm
(0.4 inch)
> 1 cm
(0.4 inch)
> 1 cm
(0.4 inch)
Double-sided Small screw x 2 Magnet unit Double-sided
mounting (for fixing sensor mounting tape C
tape B unit's back cover on
the spacer; optional)
Double-sided Large screw x 2 Spacers of 4 different
mounting (for fixing the heights for magnet unit
tape A spacer on the (optional)
frame; optional)
Alerts
Missed alert icon
and open icon
will be displayed.
Without spacer
Without spacer
3
Check and locate
Check the Open/Closed sensor before use
Refer to Alerts section below for the alerts.
"Open/Closed X*
is open. "
Missed alert icon and open icon
will be displayed.
*
Open/Closed X refers to the sensor's name.
X refers to the system-assigned number of
the sensor.
Mount the magnet unit
With spacer (optional)
c c
c c
* The door frame is thicker than
the door.
Mount the sensor unit
With spacer (optional)
A
B B
* The door is
thicker than
the door frame.
