Summary of Contents for Goji GDABN14

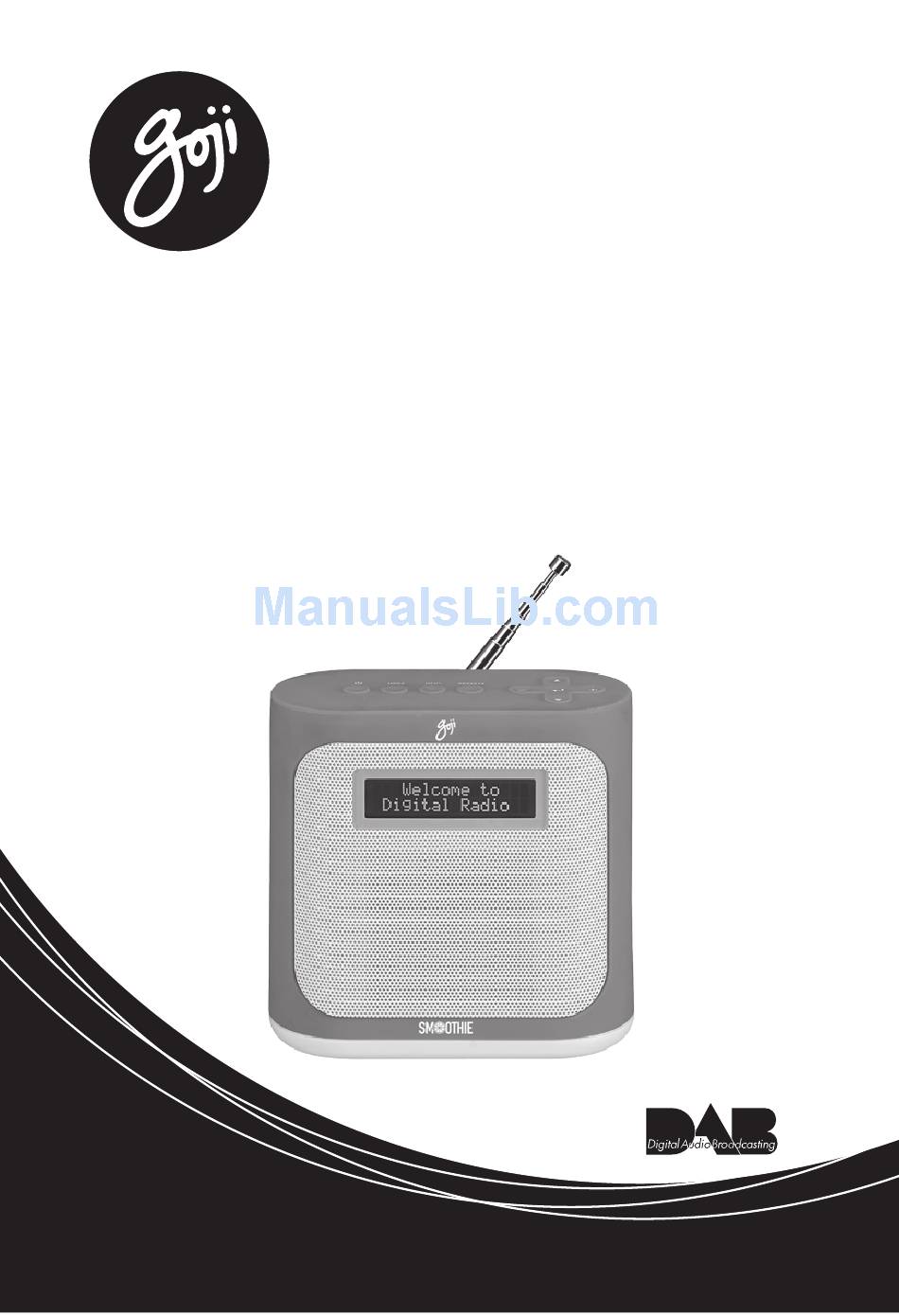

- Page 1 Portable DAB radio Instruction Manual GDABN14 / GDABR14...
-
Page 3: Table Of Contents
Contents Contents ......................3 Safety Warnings ....................5 Unpacking .......................10 Product Overview ..................11 Front & Side View ..................11 Top View ......................12 Power Source ....................13 Battery Power ....................13 Battery Life (Approx. hours) ..............13 Knowing When to Replace the Batteries .........14 Mains Power ....................15 Using Earphones ...................15 Basic Operation .....................16 Powering ON/OFF ..................16... - Page 4 Presetting Stations ..................23 Storing Preset Stations ................23 Recalling Preset Stations ...............23 AUX IN Mode ....................24 Maintenance ....................25 Cleaning the Unit ..................25 Hints and Tips ....................26 Specifications ....................27...
-
Page 5: Safety Warnings
Safety Warnings • Read all the instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party make sure to include this manual. • Check that the voltage marked on the rating label matches your mains voltage. - Page 6 Naked Flames • Never place any type of candle or naked flame on the top of or near the unit. Moisture • To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing.
- Page 7 • In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.
- Page 8 • Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level. Batteries • Batteries used in the unit are easily swallowed by young children and this is dangerous. • Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit.
- Page 9 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit. Service • To reduce the risk of electric shock, do not remove screws.
-
Page 10: Unpacking
Thank you for purchasing your new Goji Portable DAB radio. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offered. You will also find some hints and tips to help you resolve any issues. -
Page 11: Product Overview

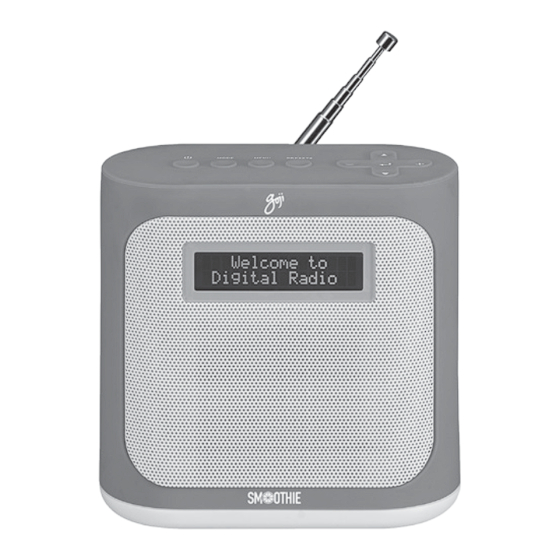

Product Overview Front & Side View AUX IN DC IN 6V = 500mA 1. Display Earphones Socket 3. AUX IN Socket 4. DC IN 6V 500mA Socket 5. Aerial 6. Battery Compartment... -
Page 12: Top View
Top View Button Press to switch radio on or off. 2. MODE Button Press to switch among DAB, FM and AUX IN modes. 3. MENU Button Press to display menu screen of DAB, FM and AUX IN modes. 4. PRESETS Button • Press and hold to store preset station. -
Page 13: Power Source
Power Source Battery Power Insert 4 x 1.5V AA batteries (not included) correctly by following the polarity (+ or –) indications in the battery compartment. – – – – Battery Life (Approx. hours) When Using Alkaline (Size AA) -
Page 14: Knowing When To Replace The Batteries
Knowing When to Replace the Batteries When the batteries become weak, the sound becomes weak and distorted. When the batteries are completely exhausted, the power is turned off. Handling the Batteries • Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property. -
Page 15: Mains Power
Mains Power • This unit is designed to operate with the provided mains adapter. • Connecting the unit to any other power source may cause damage to the unit. Unwind the mains adapter cable to its full length. Connect the end AUX IN DC IN of the cable to the DC IN 6V... -
Page 16: Basic Operation
Basic Operation Powering ON/OFF • Press the button to switch the unit on. • Press the button again to switch the unit off. • To switch the unit off completely, unplug the power adapter from the mains socket. Adjusting the Volume Adjust the volume to the desired level by pressing +/–. -
Page 17: Factory Reset
3. Press the buttons repeatedly to select the desired language. Press the button to confirm. Factory Reset 1. Press the MENU button and then the buttons repeatedly to select <System>. Press the button to confirm. buttons repeatedly to select <Factory 2. -
Page 18: Dab Operation
DAB Operation When you turn on the radio it will automatically search and store all the available stations. You may conduct an additional Full Scan to ensure all stations are picked up and stored. It is also recommended every few months to run a new scan to pick up any new DAB/DAB+ that may have begun broadcasting after your radio scanned last time. -
Page 19: Showing Signal Strength
buttons to browse through Scrolling 2. Press the text, Signal strength, Program Type, Ensemble, Frequency, Signal quality, Bitrate and Codec, Format, and then press the button to confirm your selection. Showing Signal Strength While you selected Signal strength, a signal bar with the strength of the current station will show on the display. -
Page 20: Full Scan
Full Scan This feature enables your radio to scan for all available stations. Press the MENU button, and then the buttons to select Full scan, press the button to confirm. Station Order This feature enables your radio to display the stations in different order. -
Page 21: Fm Operation
3. Press the buttons to browse stations list, and then press the button to confirm. The selected station will be broadcasting. FM Operation Selecting FM Mode 1. Press the MODE button repeatedly to select FM mode. 2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). -
Page 22: Display
Display This feature enables you to select the station information which shows on the display. 1. Press the MENU button, and then press the buttons to select Display, press the button to confirm. buttons to browse through Radio 2. Press the text, Program Type, Ps, Audio info and then press button to confirm your selection. -
Page 23: Presetting Stations
Presetting Stations Storing Preset Stations This is the same for DAB/DAB+ and FM stations. Your radio can store up to 10 of your favourite DAB/ DAB+ and FM stations as preset stations. This will enable you to access your favourite stations quickly and easily. -
Page 24: Aux In Mode
AUX IN Mode 1. Before connecting to the mains socket, use a 3.5mm audio cable (not included) to connect to your external audio device through the AUX IN Socket on the side of unit. 2. Connect power adapter to mains socket, press the button to switch unit on. -
Page 25: Maintenance
Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. •... -
Page 26: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Problem Solution No power • Ensure the mains adapter cable is connected securely. • Make sure that the unit is switched on. -
Page 27: Specifications
Specifications Model GDABN14 / GDABR14 Mains Adapter AC Input: 100-240 V, 50/60 Hz DC Output: DC 6V/500mA Power Consumption Speaker Output 1 W rms Power Radio Frequency FM 87.5 – 108 MHz DAB/DAB+ 174.928 - 239.200 MHz Dimensions 135 (L) x 72 (W) x 139 (H) mm Net weight 0.49 kg... - Page 28 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
