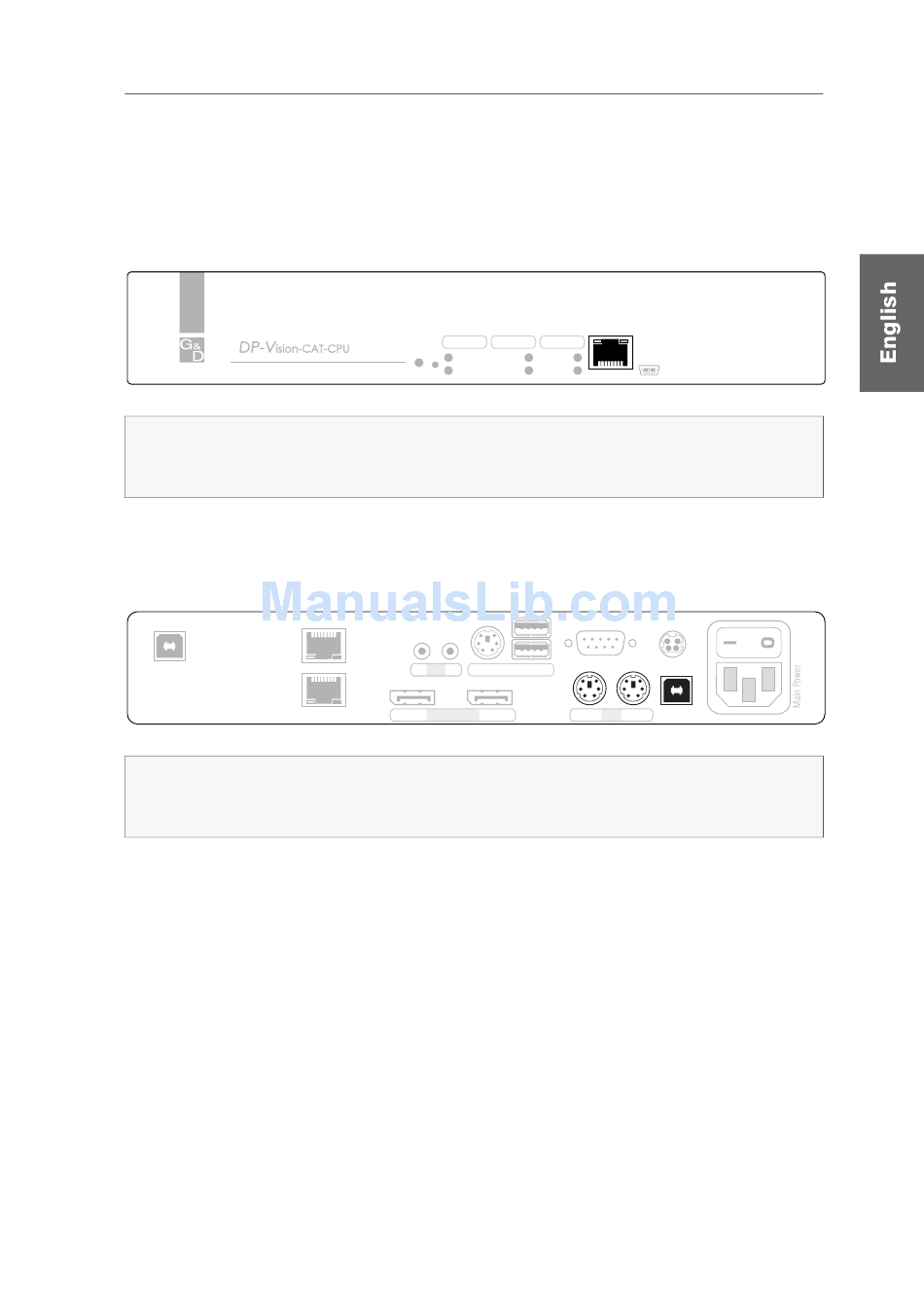

Installing the computer module

The computer, whose signals are transmitted to the remote console, is connected to
the
DP-Vision-CAT-CPU
computer module.
Establishing a connection to a local network
NOTE: If desired, connect the network interface to a local network. This enables
you to access the Config Panel
log messages to this network.
Network: Insert a category 5 twisted pair cable (or better), which is available as acces-
sory. Connect the other end of the cable to the local network.
Connecting keyboard and mouse to the local computer
USB 2.0 CPU USB 2.0 Trans.
NOTE:
Mouse and keyboard signals of both consoles can either be transmitted to
the computer using the USB interface USB CPU or using the PS/2 interfaces Mouse
CPU and Keyb. CPU PS/2.
Mouse CPU: Use the green plug of an optionally available twin PS/2 cable (Twin-PS/
2-M/M-2) to connect the computer's PS/2 mouse interface to this interface.
Keyb. CPU: Use the green plug of an optionally available twin PS/2 cable (Twin-PS/
2-M/M-2) to connect the computer's PS/2 keyboard interface to this interface.
USB CPU: Use the USB-AM/BM-2 cable to connect one of the computer's USB inter-
faces to this interface.
computer module. If desired, connect a local console to the
Ident. Power
Red.
Main
web application from this network and to send sys-
In Line Out
Transmission DisplayPort 1
CPU
Network
Service
Status Channel
K/M Video
System Trans.
RS232
Red. Power
Keyb./Mouse
Keyb. CPU Mouse USB CPU
Out
