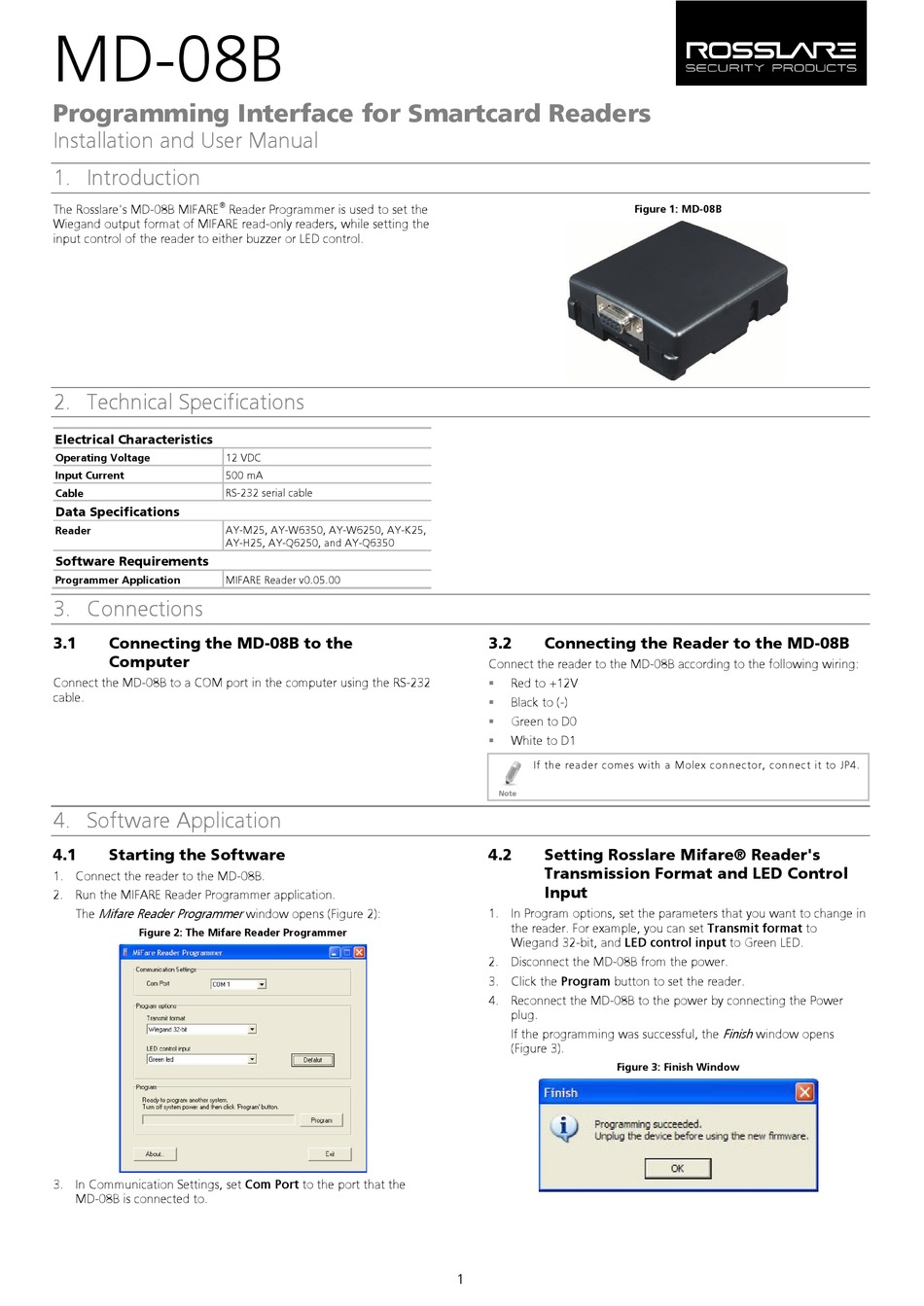

MD-08B
Programming Interface for Smartcard Readers
Installation and User Manual

1. Introduction

®
The Rosslare's MD-08B MIFARE
Wiegand output format of MIFARE read-only readers, while setting the
input control of the reader to either buzzer or LED control.

2. Technical Specifications

Electrical Characteristics
Operating Voltage 12 VDC
Input Current 500 mA
Cable RS-232 serial cable
Data Specifications
Reader AY-M25, AY-W6350, AY-W6250, AY-K25,
AY-H25, AY-Q6250, and AY-Q6350
Software Requirements
Programmer Application MIFARE Reader v0.05.00

3. Connections

3.1 Connecting the MD-08B to the
Computer
Connect the MD-08B to a COM port in the computer using the RS-232
cable.

4. Software Application

4.1

Starting the Software

1. Connect the reader to the MD-08B.
2. Run the MIFARE Reader Programmer application.
The Mifare Reader Programmer
Figure 2: The Mifare Reader Programmer
3. In Communication Settings, set Com Port to the port that the
MD-08B is connected to.
Reader Programmer is used to set the
window opens (Figure 2):
3.2

Connecting the Reader to the MD-08B

Connect the reader to the MD-08B according to the following wiring:
 Red to +12V
Black to (-)

 Green to D0
 White to D1
If the reader comes with a Molex connector, connect it to JP4.
4.2 Setting Rosslare Mifare® Reader's
Transmission Format and LED Control
Input
1. In Program options, set the parameters that you want to change in
the reader. For example, you can set Transmit format to
Wiegand 32-bit, and LED control input to Green LED.
2. Disconnect the MD-08B from the power.
3. Click the Program button to set the reader.
4. Reconnect the MD-08B to the power by connecting the Power
plug.
If the programming was successful, the
(Figure 3).
Figure 3: Finish Window
1
Figure 1: MD-08B
Finish window opens
