•Incorporates HD Base-T technology
•Distributes 1 HDMI source to 4 HDMI Displays simultaneously.
•Incorporates HD Base-T technology
•Full HD support: 1080p@60Hz@48 b/pixels, support 3D and 4Kx2K
•Distributes 1 HDMI source to 4 HDMI Displays simultaneously.
•Extends HDMI and IR up to 328 feet (100 meters) using one CAT5e (or better) cable
•Full HD support: 1080p@60Hz@48 b/pixels, support 3D and 4Kx2K
•With Infrared control signal passing through function.
•Extends HDMI and IR up to 328 feet (100 meters) using one CAT5e (or better) cable
•With Infrared control signal passing through function.
•Supports high bit-rate audio formats (Dolby True-HD / DTS Master Audio )
•Supports high bit-rate audio formats (Dolby True-HD / DTS Master Audio )
•100BaseT Ethernet &RS-232 Pass-Through (Output1)
•100BaseT Ethernet &RS-232 Pass-Through (Output1)
•HDCP compliant.
•HDCP compliant.
Compliant HDCP
•CEC Pass-Through
•CEC Pass-Through
•DC 12V power supply
•DC 12V power supply
4-PORT HDBaseT SPLITTER
4-PORT HDBaseT SPLITTER
1
Operating Instructions
Advertisement
Table of Contents
Related Manuals for Shunxun SX-SPH4-100
Summary of Contents for Shunxun SX-SPH4-100

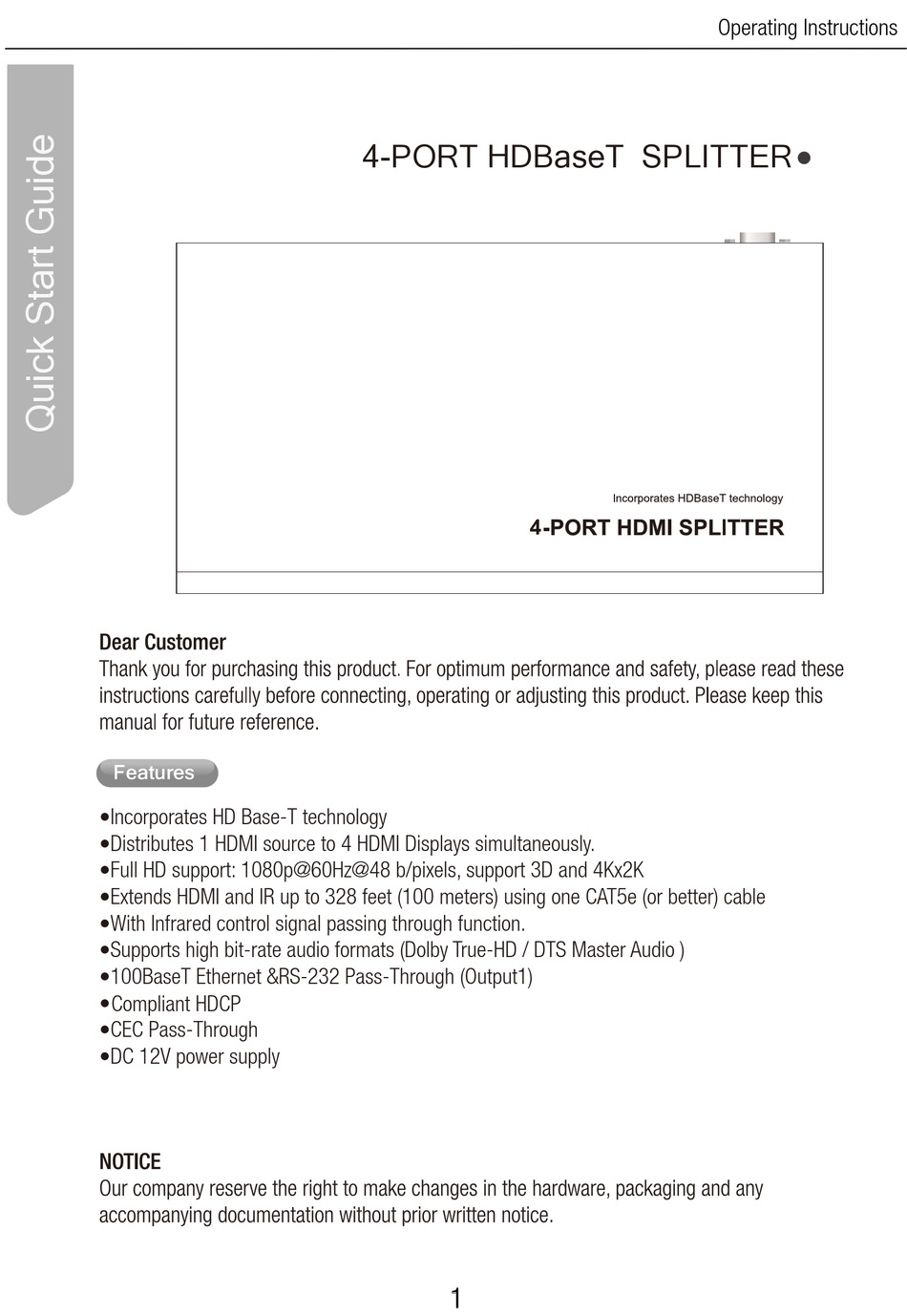

- Page 1 Operating Instructions 4-PORT HDBaseT SPLITTER 4-PORT HDBaseT SPLITTER Features Features •Incorporates HD Base-T technology •Distributes 1 HDMI source to 4 HDMI Displays simultaneously. •Incorporates HD Base-T technology •Full HD support: 1080p@60Hz@48 b/pixels, support 3D and 4Kx2K •Distributes 1 HDMI source to 4 HDMI Displays simultaneously. •Extends HDMI and IR up to 328 feet (100 meters) using one CAT5e (or better) cable •Full HD support: 1080p@60Hz@48 b/pixels, support 3D and 4Kx2K •With Infrared control signal passing through function.
- Page 2 Operating Instructions Packing contents TABLE OF CONTENTS 1) Main Unit: 1x4 HDBaseT Splitter Package Contents Packing contents TABLE OF CONTENTS 2) Power supply DC 12V 2A Dimensional drawing 1) Main Unit: 1x4 HDBaseT Splitter Package Contents 3) IR-TX cable x 4PCS 2) Power supply DC 12V 2A Dimensional drawing 4) IR-RX cable x 4 PCS...
- Page 3 Operating Instructions -5 to +35 C(+23 to +95 F) 5 to 90%RH (No Condensation) 300MHz/9Gbps Up to 1080p@60Hz@48 b/pixels, support 3D ,4K HDMI receptacle. RJ45 Power connector terminal Power DC receptacle IR Blaster D-Type 9pin plug 1080P 328FT/100m over single CAT5E/6 cable 110-240V/ 12VDC 2A power supply 12Watts Cold-Rolled (Cold Rolled) Steel...
- Page 4 Operating Instructions Front Panel Power ON/OFF Reset key Status indicator lamp:The LED will illuminate when the HDMI equipment is connected. Power indicator lamp:The LED will illuminate when the power is on. Rear Panel RS232 port Ethernet port Output1 port ( Ethernet,RS232&IR pass-though) Output2,3&4 port ( IR pass-though) HDMI input port Power input port...
- Page 5 Operating Instructions 7) To get on the ethernet,pls connect as below steps: Router 1.Connect ethernet cable into ethernet port on HDBaseT splitter. 2.Connect ethernet cable with TV and ethernet extender receiver Note:1.The ethernet function is designed for ethernet compatible receiver units only. Internet 2.Only output1 with ethernet function.
- Page 6 Operating Instructions Router 7) Copy EDID function Copy the EDID of the sink which connected the OUTPUT1,it is suggested to put lowest or Internet For example: One SDTV(480p) ,one HDTV(1080p), in order to make the 2 TV work, you need to put the SDTV is connected to the output 1 .
- Page 7 Operating Instructions...
- Page 8 Operating Instructions...
