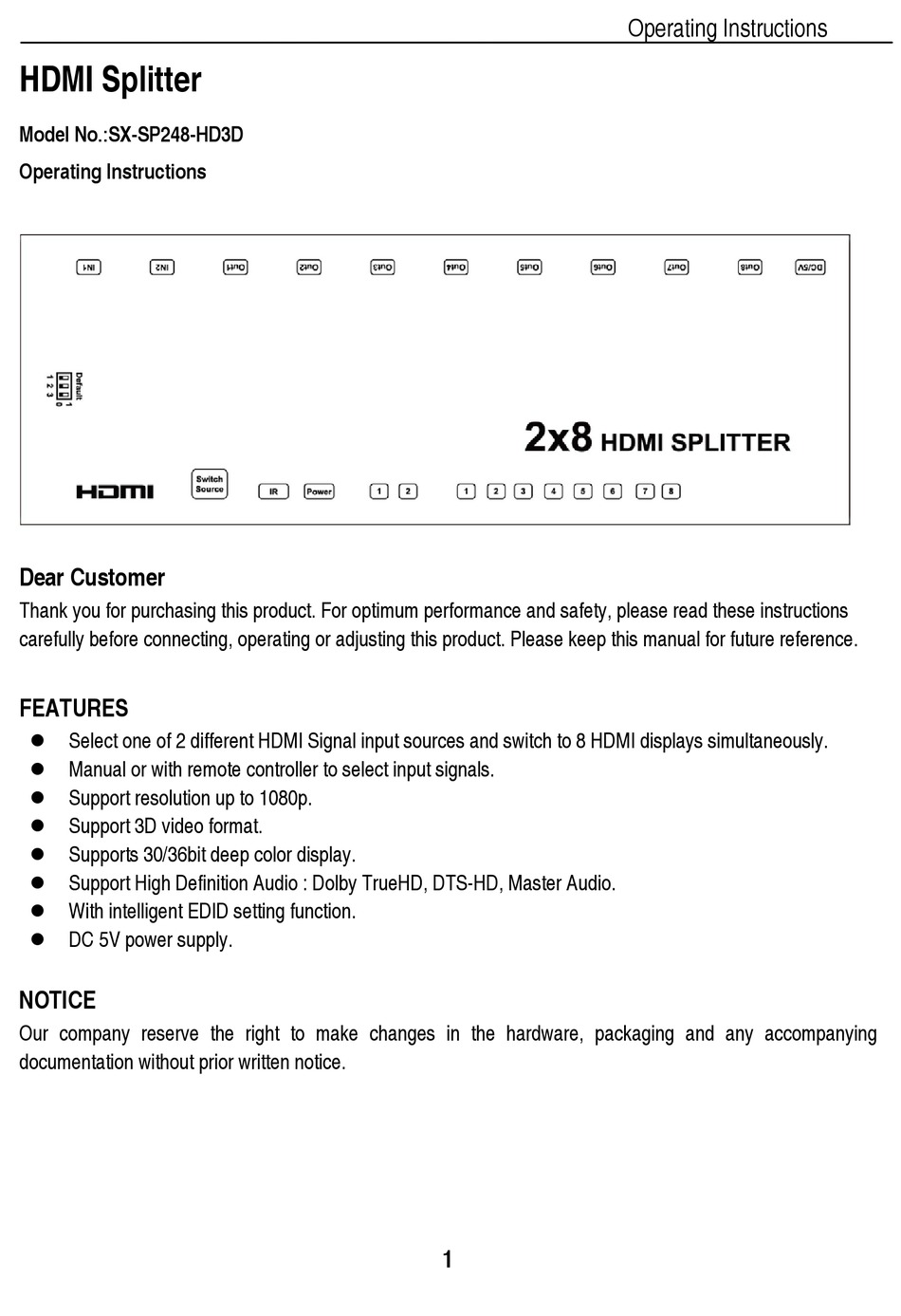

HDMI Splitter
Model No.:SX-SP248-HD3D
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
FEATURES
Select one of 2 different HDMI Signal input sources and switch to 8 HDMI displays simultaneously.
Manual or with remote controller to select input signals.
Support resolution up to 1080p.
Support 3D video format.
Supports 30/36bit deep color display.
Support High Definition Audio : Dolby TrueHD, DTS-HD, Master Audio.
With intelligent EDID setting function.
DC 5V power supply.
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
1
Operating Instructions
Advertisement
Related Manuals for Shunxun SX-SP248-HD3D
Summary of Contents for Shunxun SX-SP248-HD3D
- Page 1 Operating Instructions HDMI Splitter Model No.:SX-SP248-HD3D Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
- Page 2 Operating Instructions TABLE OF CONTENTS Specifications Package Contents Panel Descriptions Connecting and Operating EDID Connection diagram Product Service Warranty SPECIFICATIONS Operating Temperature Range -5 to +35℃(+23 to +95℉) Operating Humidity Range 5 to 90%RH (No Condensation) Input Video Signal 0.5-1.0 Volts P-P Input DDC Signal 5 volts p-p(TTL)
-
Page 3: Panel Descriptions
Operating Instructions PANEL DESCRIPTIONS 1) Source Select Button:Manually select button to switch signal source. 2) IR Receiver window. 3) Indicator of power Inputs. When power is ON, the corresponding LED lights. 4) Indicator of HDMI Inputs. When a HDMI equipment is connected, the corresponding blue LED lights 5) Indicator of HDMI output. - Page 4 Operating Instructions EDID Function 1).The default mode of this splitter is mix mode (0.0.0). This function applies to the situation when the source’s HDMI Version exceeds the sink’s HDMI Version, it can be used to fix the deep color ,1080p ,1080i, 2ch audio, multi channel audio issue) For example :When the TV is HDMI 1.2 version and PS3 Source is HDMI 1.,3 version, it will output HDMI 1.2 version.
-
Page 5: Connection Diagram
Operating Instructions Remote Description ①Button "1" ②Button “2” Note: Press button "1" and button “2” to choose the source. Connection Diagram... - Page 6 Operating Instructions MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: a. The DC power supply cord or AC adaptor has been damaged; b.
- Page 7 Operating Instructions LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor,or failures which result from accidents,misuse,abuse,neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge,...
