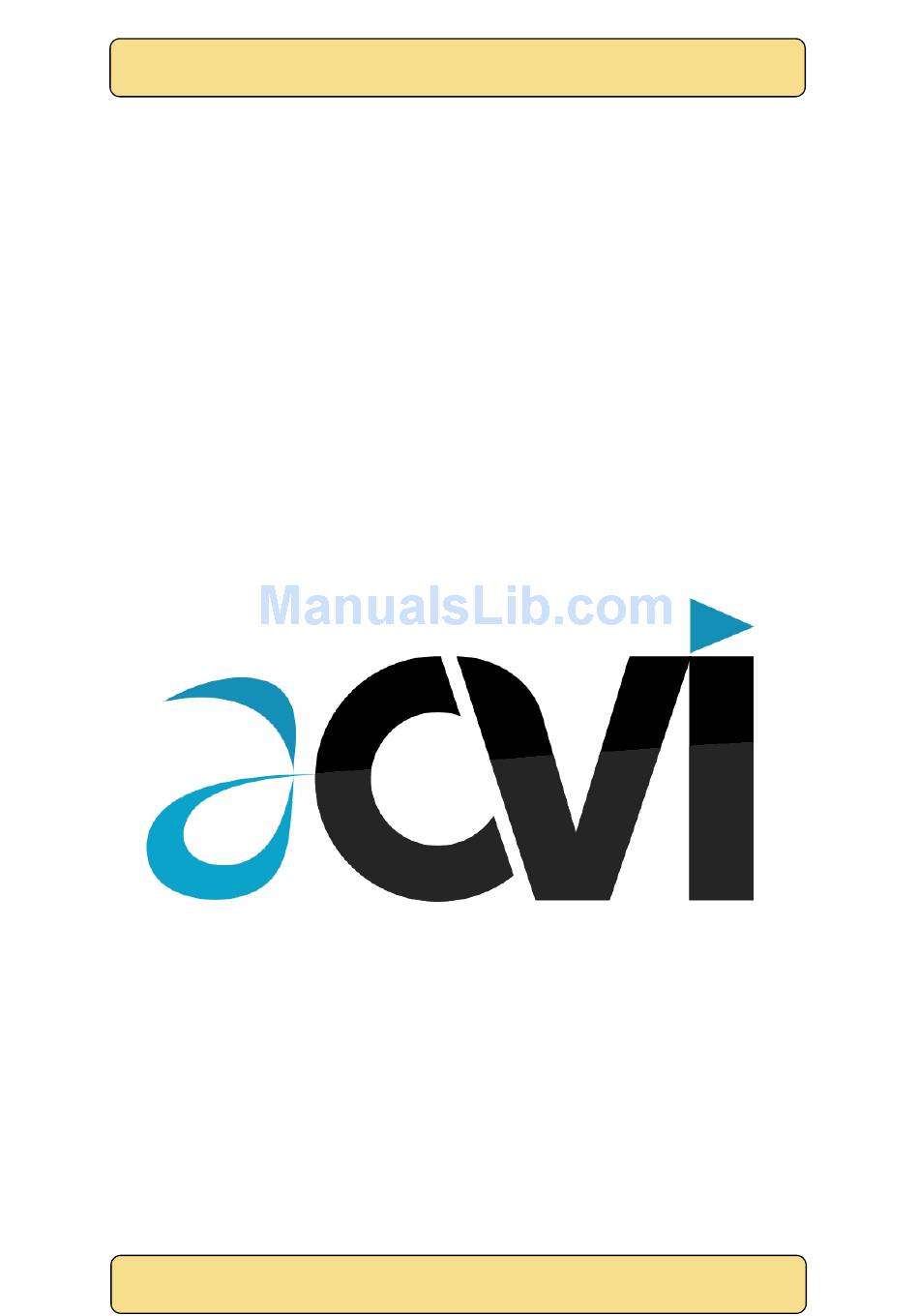

Page 1: User Manual
SingMai Electronics SM06 Advanced Composite Video Interface: HD-SDI to aCVi converter module User Manual Revision 0.4 May 2017 SM06 User Manual Revision 0.4 Page 1 of 26... -
Page 2: Revision History
17-07-2016 First Draft. 28-08-2016 Added support for NTSC/PAL encoding. 30-12-2016 Updates for Revision 2 PCB. 01-05-2017 DVI inputs removed. NTSC/PAL inputs removed. Minor schematic changes. Auto standard detection of 29/59Hz standards. SM06 User Manual Revision 0.4 Page 2 of 26... -
Page 3: Table Of Contents
Figure 3 SM06 Interconnections......................7 Figure 4 UTP connector pin assignments....................8 Figure 5 SM06 Data slicing selection - J9....................8 Figure 6 aCVi cable length compensation (lines 7,8 and 9 of the VBI)..........10 Figure 7 Original HD-SDI image (screen capture)................. 11 Figure 8 aCVi image after transmission through 300m of RG59 cable (screen capture).... -
Page 4: Introduction
1. Introduction SM06 is a transmitter module compatible with the aCVi Advanced Composite Video Interface format. SM06 accepts HD-SDI input format which it converts to analogue aCVi encoded video for driving both twisted pair and coaxial cable. aCVi is a method to transmit HD video over long distances of existing coaxial or twisted-pair cable networks or allow the use of less expensive RG-59/UTP cable in long distance installations. -
Page 5: Acvi Overview
2200 33.750kHz 733.5 24.755625MHz 1080i/50Hz 2640 28.125kHz 880.5 24.7640625MHz 1080i/59.94Hz 2200 33.716kHz 734.5 24.73089411MHz 1080i/60Hz 2200 33.750kHz 733.5 24.755625MHz Table 1 aCVi supported video formats. Input clock is 148.3516484MHz (else 148.5MHz). SM06 User Manual Revision 0.4 Page 5 of 26... -
Page 6: Figure 2 Acvi Spectrum
SingMai Electronics Figure 2 aCVi Spectrum. SM06 User Manual Revision 0.4 Page 6 of 26... -
Page 7: Connecting Up The Module
SingMai Electronics 3. Connecting up the module The SM06 module is powered by a universal input (90-260VAC) AC-DC adaptor (see Chapter 7 for the power supply specification). The 5VDC, 12W output of this adaptor should be connected to the jack input, ‘+5V IN’, of the SM06. Once connected, the yellow LED, ‘FPGA OK’ should light, indicating the FPGA has been correctly configured and the module is running. -
Page 8: Figure 4 Utp Connector Pin Assignments
Figure 4 UTP connector pin assignments. Should the input to the SM06 be removed or fail, the SM06 will switch to an internal colour bar generator. The output video standard will be whatever was last detected on the inputs (e.g. if the last detected input was 1080p/30Hz, the output will be 75% colour bars at 1080p/30Hz standard). - Page 9 J9 pins 2-3 connected for the UTP aCVi input: Pull off the small pin header and place over the pins you require for your cable type. The panels can then be refitted. SM06 User Manual Revision 0.4 Page 9 of 26...
-
Page 10: Automatic Cable Length Compensation
Figure 7 shows a screen capture of a camera test pattern image (HD-SDI) and Figure 8 shows that same image after aCVi transmission through 300m of RG-59 coaxial cable. SM06 User Manual Revision 0.4 Page 10 of 26... -
Page 11: Figure 7 Original Hd-Sdi Image (Screen Capture)
SingMai Electronics Figure 7 Original HD-SDI image (screen capture). Figure 8 aCVi image after transmission through 300m of RG59 cable (screen capture). SM06 User Manual Revision 0.4 Page 11 of 26... -
Page 12: Circuit Description
U7 is compared with an FPGA internally generated checksum. If the two do not match the SM06 module is shut down. This means that even if the bit stream of the FPGA/EEPROM is captured the PT55 IP core will not run without U7 being fitted. - Page 13 DC levels into the data slicer. The data slicer is formed by comparator U10-D and buffered by U11 before being decoded by the PT55 aCVi encoder IP core. SM06 User Manual Revision 0.4 Page 13 of 26...
-
Page 14: Figure 9 Sm06 Schematics - Sheet 1
SingMai Electronics Figure 9 SM06 Schematics - Sheet 1. SM06 User Manual Revision 0.4 Page 14 of 26... -
Page 15: Figure 10 Sm06 Schematics - Sheet 2
SingMai Electronics Figure 10 SM06 Schematics - Sheet 2. SM06 User Manual Revision 0.4 Page 15 of 26... -
Page 16: Figure 11 Sm06 Schematics - Sheet 3
SingMai Electronics Figure 11 SM06 Schematics - Sheet 3. SM06 User Manual Revision 0.4 Page 16 of 26... -
Page 17: Figure 12 Sm06 Schematics - Sheet 4
SingMai Electronics Figure 12 SM06 Schematics - Sheet 4. SM06 User Manual Revision 0.4 Page 17 of 26... -
Page 18: Figure 13 Sm06 Schematics - Sheet 5
SingMai Electronics Figure 13 SM06 Schematics - Sheet 5. SM06 User Manual Revision 0.4 Page 18 of 26... -
Page 19: Figure 14 Sm06 Schematics - Sheet 6
SingMai Electronics Figure 14 SM06 Schematics - Sheet 6. SM06 User Manual Revision 0.4 Page 19 of 26... -
Page 20: Figure 15 Sm06 Schematics - Sheet 7
SingMai Electronics Figure 15 SM06 Schematics - Sheet 7. SM06 User Manual Revision 0.4 Page 20 of 26... -
Page 21: Figure 16 Sm06 Schematics - Sheet 8
SingMai Electronics Figure 16 SM06 Schematics - Sheet 8. SM06 User Manual Revision 0.4 Page 21 of 26... -
Page 22: Figure 17 Sm06 Schematics - Sheet 9
SingMai Electronics Figure 17 SM06 Schematics - Sheet 9. SM06 User Manual Revision 0.4 Page 22 of 26... -
Page 23: Figure 18 Sm06 Schematics - Sheet 10
SingMai Electronics Figure 18 SM06 Schematics - Sheet 10. SM06 User Manual Revision 0.4 Page 23 of 26... -
Page 24: Specification
7.5MHz ± 1dB. >-40dB @ 12.3MHz. Transmission distance: >300m of RG-59 coaxial cable. >500m RG-59 cable with reduced luma bandwidth. Latency: <100µs (transmitter HD-SDI input to receiver HD-SDI output). Operating temperature: 0 – 40 degC. SM06 User Manual Revision 0.4 Page 24 of 26... -
Page 25: Power Supply Specification
SingMai Electronics 7. Power Supply Specification Figure 19 Power supply specification, Page 1. SM06 User Manual Revision 0.4 Page 25 of 26... -
Page 26: Figure 20 Power Supply Specification
SingMai Electronics Figure 20 Power supply specification, Page 2. SM06 User Manual Revision 0.4 Page 26 of 26...
