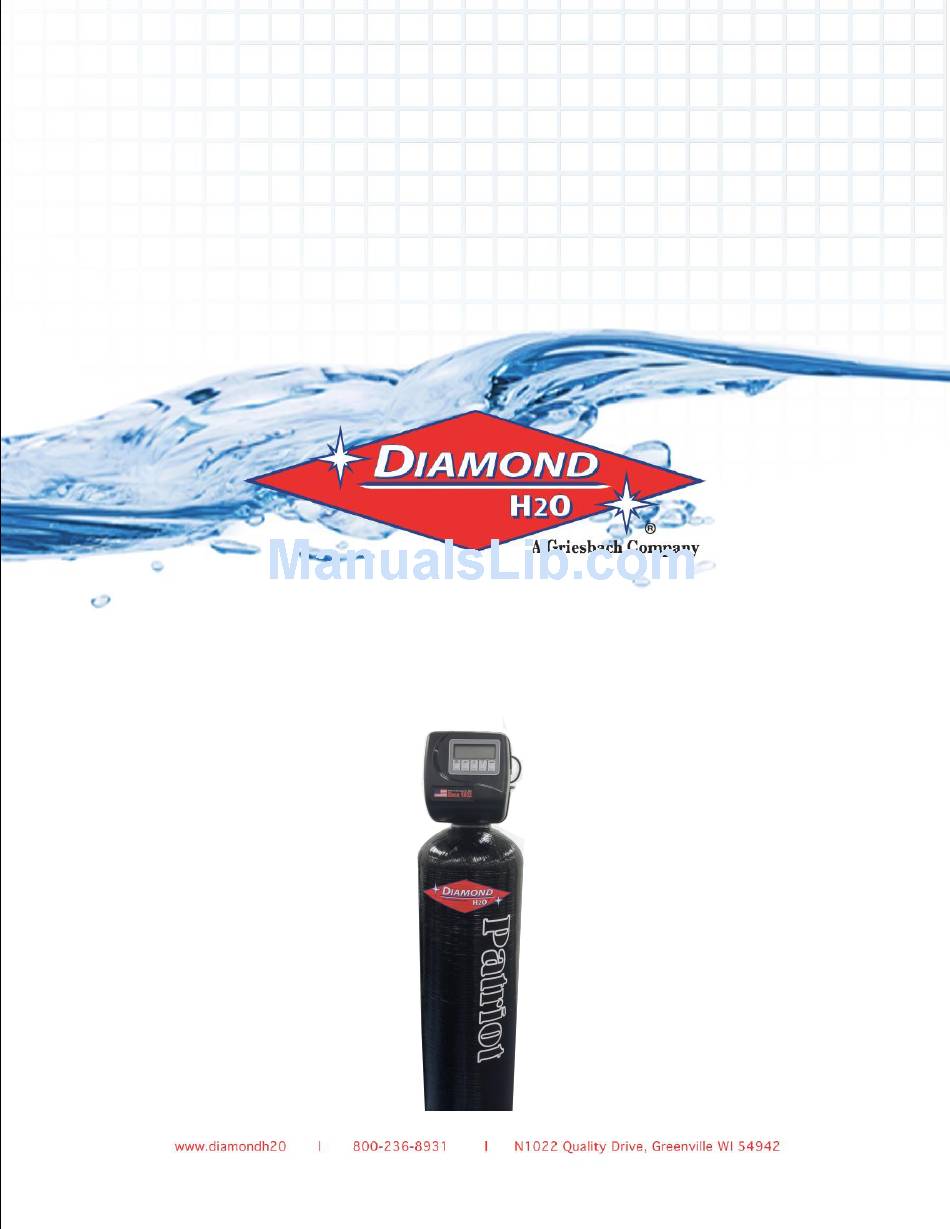

- Page 1 Patriot Series Single Tank Product Manual Patriot Single Tank Product Manual pg. 0...
- Page 2 _____ 6) Correct Amount of Resin (from Model and Media Requirements Table on page 2) Call Diamond H2O right away if anything is missing. Contact the freight company immediately if anything is damaged. Diamond H2O will not be liable for any damage received after shipping.
- Page 3 Patriot Series Single Tank Product Manual Table 1: Media Requirements. Example: A DCS6-210-150 would require 7 cubic feet of resin and 100 pounds of gravel per tank. Model Number Amount of Resin per Amount of Gravel Tank (cu. ft.) per Tank (pounds) Distributer DCS6-24-xxx Tube...
- Page 4 Obtain a funnel to assist placing the resin in the resin tanks. (A funnel designed specifically for our resin tanks can be ordered from Diamond H2O Conditioning. The part numbers for the two types of funnels are table 3.)
- Page 5 E. Visually confirm that the gravel is level and covering the distributor basket and radials, if it is not, contact Diamond H2O Conditioning. F. SLOWLY, pour the correct amount of resin into the tank. Again, try to keep the media level by carefully rocking the tank back and forth.
- Page 6 Patriot Series Single Tank Product Manual 4. Connect the brine tank. A. Remove the ties on the brine line hose (included in the brine tank). B. Remove the well cap and connect one end of the brine line hose to the brine line connection (Shown in Figure 12) of the brine tank.
- Page 7 Run each step of the regen cycle (Figure 21) for a few minutes. C. Program the Valve. Most of the settings were pre-programed by Diamond H2O. The installer must enter the installer settings shown in part 8 section C of this manual.
-
Page 8: Normal Operation
Patriot Series Single Tank Product Manual 7. Bypass Valve Operations A. The red controls of the bypass valve can be turned 90° resulting in four modes of operation. “Treated” Supply Water Supply Water Supply Water Water Exits Enters Exits Enters Figure 18: Figure 17: Bypass Operation... - Page 9 Patriot Series Single Tank Product Manual Figure 21: General Softener Operations Key: Hard Water Soft Water Salinized Water Resin Backwash: Service/Operation Flow reversed to flush debris from resin bed to drain. Regenerant Draw/ Slow Regenerate Fill: Rinse: Water is sent to the After one Tank’s Resin Bed is Brine Tank to create exhausted, Regenerate is...
- Page 10 Important: All OEM softener setup settings will be entered by Diamond H2O prior to shipping. No value in these settings needs to be changed in the field. If you can’t get into a certain setting, make sure the display is unlocked (Part D).
- Page 11 Patriot Series Single Tank Product Manual f. Brine Tank Refill Option (Post/Pre) Post: Refill the brine tank after the final rinse. Pre: Refill the brine tank two hours before the regeneration. g. Set Regenerant Flow (Down/Up) Down: The regenerant flows downward through the media. Up: The regenerant flows upward through the media.
- Page 12 Patriot Series Single Tank Product Manual Important: All OEM softener setup settings will be entered by Diamond H2O prior to shipping. No value in these settings needs to be changed in the field. If you can’t get into a certain setting, make sure the display is unlocked (Part D).
- Page 13 Patriot Series Single Tank Product Manual F. General Operation a. User Display One Shows the time of day. b. User Display Two Shows how many gallons (or days) before regeneration OEM Softener Setup Settings. NOTE: Display will show “REGEN TODAY” in the bottom left corner on the day that the system will regenerate.
- Page 14 Patriot Series Single Tank Product Manual H. Set Time of Day SET CLOCK Press: a. Set Hours b. Set Minutes Diagnostics. Press and Hold: & a. Days Since Last Regeneration b. Gallons Since Last Regeneration c. Reserve capacity used for the last 7 days in gallons. First, the display will flash between showing “A-0”...
- Page 15 Patriot Series Single Tank Product Manual g. Total number of gallons used (since last time the system was reset). h. Total number of days (since last time the system was reset). i. Total number of regenerations (since last time the system was reset). Note: To reset the diagnostic information to 0, go into the OEM Softener Setup Settings NEXT Press and Hold:...
- Page 16 Patriot Series Single Tank Product Manual pg. 15...
- Page 17 Patriot Series Single Tank Product Manual pg. 16...
- Page 18 Patriot Series Single Tank Product Manual 9. System Specifications pg. 17...
- Page 19 Patriot Series Single Tank Product Manual pg. 18...
-
Page 20: Troubleshooting
Patriot Series Single Tank Product Manual 10. Troubleshooting Problem Possible Cause Solution No Display on PC Board No power at electric outlet Repair outlet or use working outlet Control valve power adapter not Verify that cord is plugged in and that plugged into outlet or power cord proper voltage is being delivered to PC end not connected to PC board... - Page 21 Patriot Series Single Tank Product Manual 10. Troubleshooting (2) Problem Possible Cause Solution Time of day flashes on Power outage Reset time of day. If PC board has and off battery back-up present, the battery may be depleted. See page 12 for instructions on how to change the time.
- Page 22 Patriot Series Single Tank Product Manual 10. Troubleshooting (3) Problem Possible Cause Solution Control valve uses too Improper refill settings Check refill settings (7.A) much brine Improper program settings Check program setting to make sure they are specific to the water quality and application needs Control valve regenerates Check for leaking fixtures that may be...
- Page 23 Patriot Series Single Tank Product Manual 11. Control Error Codes Problem Possible Cause Solution E1, Err-1001, Err-101 = Motor not inserted full to engage Disconnect power, make sure motor is Control unable to sense pinion, motor wires broken or fully engaged, check for broken wires, and motor movement disconnected make sure two-pin connector on motor is...
- Page 24 Patriot Series Single Tank Product Manual 11. Control Error Codes (2) Problem Possible Cause Solution E3, Err-1003, Err-103 = Motor failure during a Check motor connections. Press NEXT and REGEN Control valve motor ran too regeneration buttons for 3 seconds to resynchronize software long and was unable to find with piston position or disconnect power supply the next cycle position and...
- Page 25 Patriot Series Single Tank Product Manual 11. Control Error Codes (3) Problem Possible Cause Solution Err-1007, Err-107, Err-117 Foreign material is lodged in Check motor connections. Press NEXT = MAV/SEPS/NHBP/AUX MAV/NHBP valve and REGEN buttons for 3 seconds to MAV valve motor ran too resynchronize software with piston short (stalled) while position or disconnect power supply...
