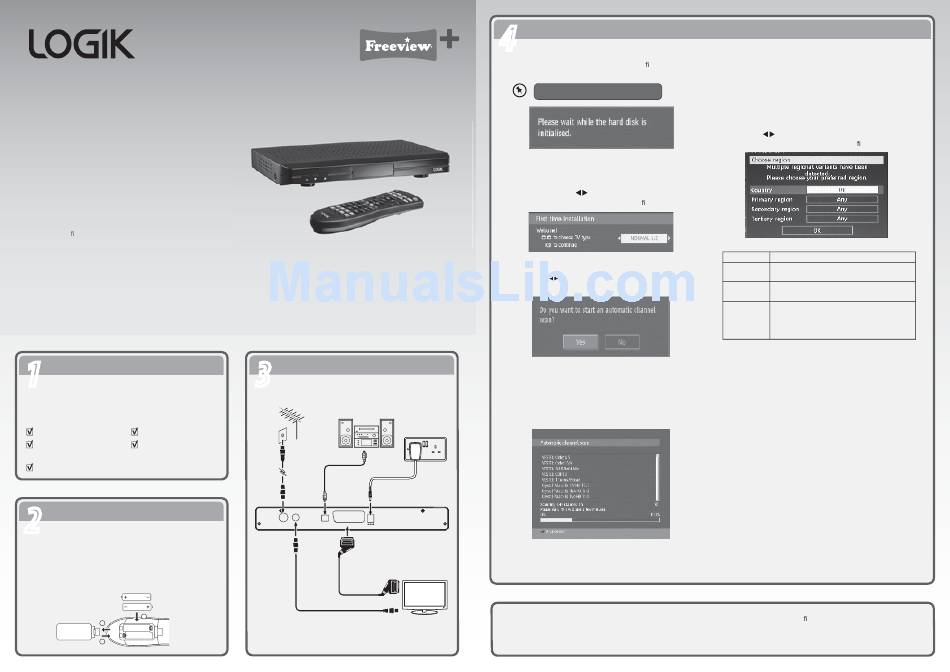

Logik L5SSTB12 Quick Start Manual

500GB Freeview
SD TV recorder
Quick Start Guide
L5SSTB12
Thank you
for purchasing your new
Logik 500GB Freeview SD TV recorder
set-top box.
Please follow this quick start guide for a
successful rst time set up.
We recommend that you spend some time reading
the instruction manual in order to fully understand
all the operational features it offers.
Read all the safety instructions carefully before
use and keep the instruction manual for future
reference.
1 1
Unpacking
Remove all packaging from the unit. Retain the
packaging. If you dispose of it please do so
according to any local regulations.
Main Unit Mains Adapter
Remote Control Quick Start Guide
and Batteries
Instruction Manual
2 2
Operating Your Remote Control
1. Squeeze the cover lever and lift the battery cover
to access the battery compartment of the remote
control.
2. Insert two AAA size batteries (included).
3. Close the battery compartment cover.
2
1
3
3 3
Connection
Aerial
Audio System
OR
To aerial
wall
socket
To SPDIF
socket
RF Coaxial
To Mains Socket
Cable
Digital Optical
(not
Cable
included)
Mains Adapter Cable
(not included)
(included)
ANTENNA ANTENNA OPTICAL SCART (TV)
DC IN
IN OUT AUDIO OUT
To SCART
SCART Cable
TV
socket
(not included)
RF Coaxial Cable
To RF IN
(not included)
socket
4 4
First Time Installation
1. When your unit is switched on for the rst time, it will
go straight into the First Time Installation menu.
The unit will take a while to load.
2. After hard disk initializing process, First Time
Installation Menu window is displayed on the
screen. Press the buttons to select the TV type
and then press the OK button to con rm.
3. Press the buttons to select Yes and then press
the OK button to begin automatic channel scan.
4. The tuning progress screen will be displayed,
showing you how many channels have been found
and saved. The tuning may take several minutes to
complete. You can press the MENU button to cancel
the auto tuning.
Well done,
your new 500GB Freeview SDTV PVR is now ready to use. You will nd that there are many exciting
features available.
To get to know all these features, please take some time to read the instruction manual provided.
Target Region Descriptor
During tuning your TV may have received signals from
more than one transmitter. If this has occurred the
Target Region Descriptor screen will be displayed. This
will enable you to select the correct regional
transmission for the local news service that you require.
1. Press the buttons to adjust each option's setting
and then press the OK button to con rm.
Country This will be shown as UK for the UK.
Primary This will show the regional country
Region
(e.g. England, Wales, Scotland, NI).
Secondary This will allow you to set the region for your
Region local news service.
Tertiary You may receive signals from more than one
Region transmitter within the Secondary Region
(e.g. Beds and Cambs may have Luton or
Sandy Heath).
2. When the tuning is complete, a message will be
displayed on the screen. Press the OK button to
restart the unit after 3-5 seconds. The channels are
arranged in a preset order. When the search progress
is completed, you can watch saved broadcasts after
the restart process.
(QSG-L5SSTB12-20120918-V2)
