Intact BT701 Operating Instructions Manual

Battery tester with printer, battery/charging/starting system analyzer / printer
Hide thumbs

Advertisement

Quick Links

Download this manual
BT701 BATTERY TESTER WITH PRINTER
BT747 BATTERY/CHARGING/STARTING SYSTEM ANALYZER / PRINTER
TEST PROCEDURES / OPERATING INSTRUCTIONS
IMPORTANT：
1.
For testing 6 and 12 volt batteries (BT701/BT747), and
for testing 12 and 24 volt charging systems (BT747).
2.
Suggested operation range 32℉(0℃) a 122℉(50℃) in
ambient temperature.
.
- GB.1-V1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the BT701 and is the answer not in the manual?

Questions and answers

Related Manuals for Intact BT701

Summary of Contents for Intact BT701

  • Page 1 BT701 BATTERY TESTER WITH PRINTER BT747 BATTERY/CHARGING/STARTING SYSTEM ANALYZER / PRINTER TEST PROCEDURES / OPERATING INSTRUCTIONS IMPORTANT： For testing 6 and 12 volt batteries (BT701/BT747), and for testing 12 and 24 volt charging systems (BT747). Suggested operation range 32℉(0℃) a 122℉(50℃) in ambient temperature.

  • Page 2: Personal Safety Precautions

    WARNING： Working in the vicinity of a lead acid battery is dangerous. Batteries generate explosive gases during normal battery operation. For this reason, it is of utmost importance, if you have any doubt, that each time before using your tester, you read these instructions very carefully. To reduce risk of battery explosion, follow these instructions those...

  • Page 3: Preparing To Test

    OPERATION & USE ： BATTERY TEST - BT701/BT747 Before you test a battery in a vehicle, turn off the ignition, all accessories and loads. Close all the vehicle doors and the trunk lid.

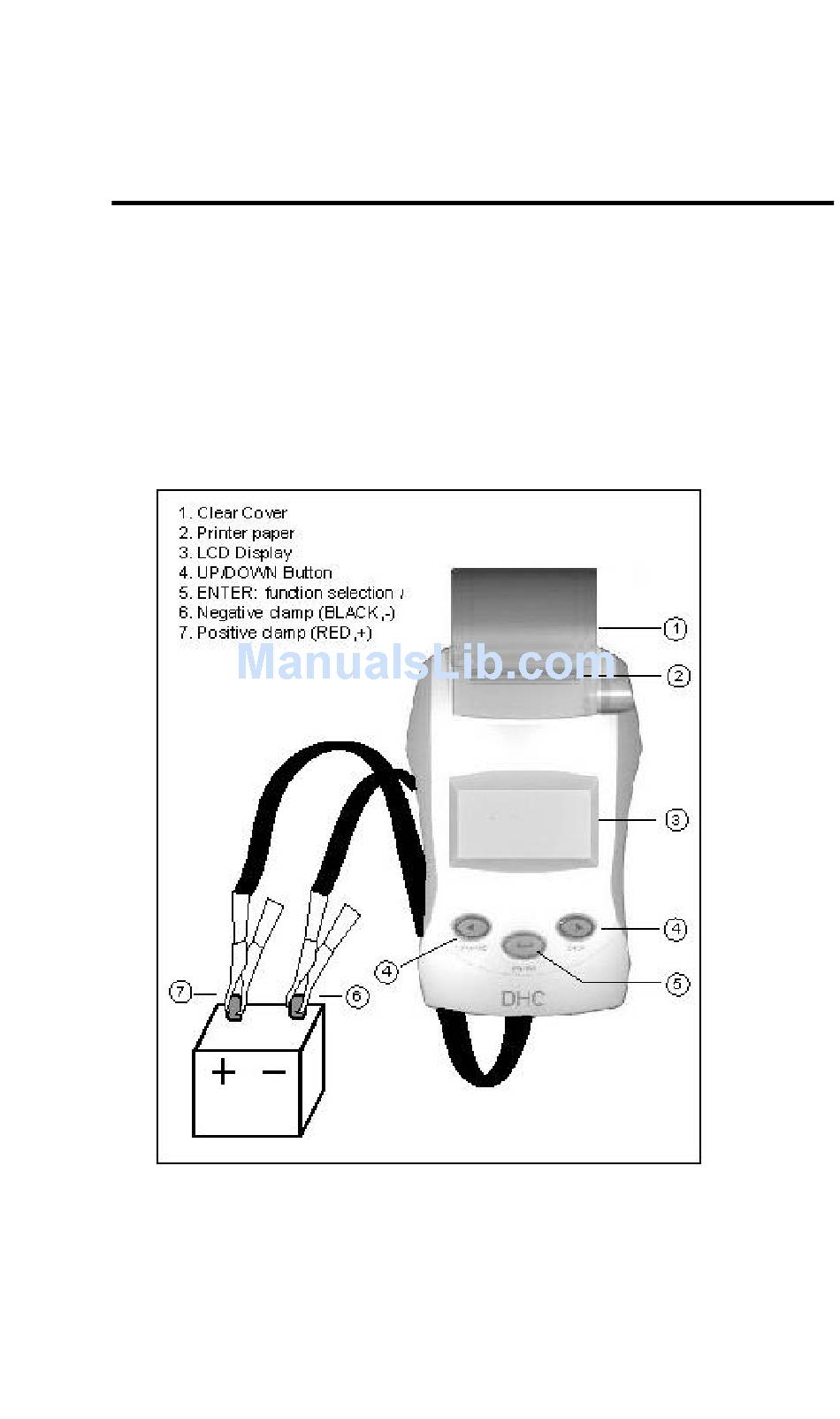

  • Page 4 lead to the vehicle positive battery terminal. Paper load: Open the clear cover. Insert paper to the paper feeding for auto running the paper into printer - GB.4-V1 -...
  • Page 5 You will view the following screens： *BT701 ◄► ↵ * Press ◄ / ► to BATTERY VOLTS BATTERY TESTER select language. ××.×× V * Press “Enter” to battery test. LANGUAGE ◄► ↵ * Press “Enter” to set language. SELECT * Press ◄ / ► back to battery test.
  • Page 6 Press «ENTER» to BRIGHTNESS confirm the ◄ ADJUST ► brightness setting Press ◄ / ► to adjust the brightness of the display. Press “Enter” to confirm the brightness & go back to battery test. *BT747 * Press ◄ / ► to BATTERY TEST◄►...
  • Page 7 Press ◄ / ► to adjust “Year”. Press «ENTER» to finish ”Year” setting & enter ”Month” setting. Please follow previous step to finish “Day”, ”Hour”& ”Minute” setting. After finishing “Minute” setting, press “Enter” to battery test Press «ENTER» to BRIGHTNESS ◄...
  • Page 8 Press the ◄ ► key to input SET CAPACITY ◄► ↵ the battery capacity of CCA： ×××× SAE • SAE：40~2000 • EN：40~2100 • IEC：30~1500 • DIN：25~1300 • JIS：By Battery Type No. Press «ENTER» to begin the test. Test the battery for few TESTING seconds.
  • Page 9 BAD & REPLACE : BAD & REPLACE ××.××V ×××× SAE The battery will not hold a charge. It should be replaced immediately. BAD CELL & REPLACE : BAD CELL & REPLACE ××.××V ×××× SAE The battery has at least one cell short circuit.
  • Page 10 SYSTEM TEST - BT747 Example : Press «ENTER» button, you SYSTEM TEST will view the following screen: ××.××V Turn off all vehicle accessory loads such as light, air TURN OFF LOADS conditioning, radio, etc. Before START ENGINE start the engine. When the engine is started, one of the three results will be displayed along with the actual reading measured.
  • Page 11 LOW CHARGING VOLTS WHEN TEST AT IDLE The alternator is not providing ALT. IDLE VOLTS sufficient current to the battery. ××.××V LOW Check the belts to ensure the alternator is rotating with engine running. If the belts are slipping or broken, replace the belts and retest. Check the connections from the alternator to the battery.
  • Page 12 wipers. When testing older model RUN ENGINE UP TO diesel engines, the users need 2500 RPM 15 SEC. to run up the engine to 2500 rpm for 15 seconds. You will view the screen as follows: Press «ENTER» to look for the amount of ripple from the charging system to the battery.
  • Page 13 Check to ensure there are no loose connections and that the ground connection is normal. If there are no connection issues, replace the regulator. Since most alternators have the regulator built-in, this will require you to replace the alternator. CHARGING SYSTEM LOW WHEN TEST WITH ACCESSORY LOADS ALT.
  • Page 14 GLOSSARY What is a GEL battery? A gel battery is a lead-acid electric storage battery that: is sealed using special pressure valves and should never be opened. is completely maintenance-free.* uses thixotropic gelled electrolyte. uses a recombination reaction to prevent the escape of hydrogen and oxygen gases normally lost in a flooded lead-acid battery (particularly in deep cycle applications).

  • Page 15: Terms And Conditions Of Warranty

    What is a SLI battery? These initials stand for Starting, Lighting and Ignition, which are the three basic functions which a battery has to perform on all normal vehicles. Batteries given this description will have been specifically designed for service on cars and trucks within a voltage controlled electrical system.
  • Page 16 published test procedures are available upon request. This warranty does not cover any unit that has been damaged due to accident, abuse, alternation, use for a purpose other than that for which it was intended, or failure to follow operating instructions.

This manual is also suitable for:

Bt747
