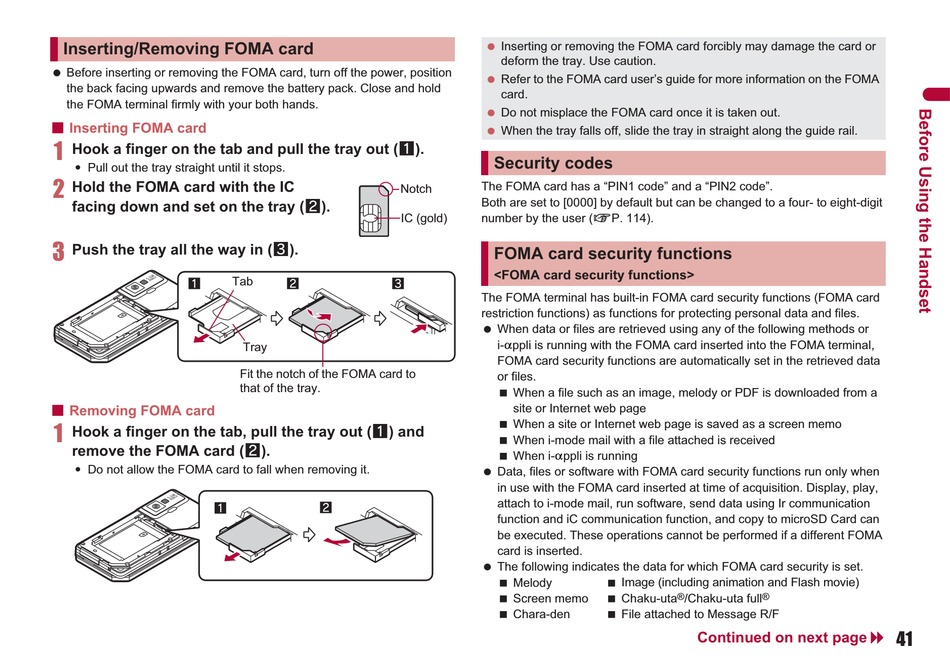

Inserting/Removing FOMA card
Before inserting or removing the FOMA card, turn off the power, position
the back facing upwards and remove the battery pack. Close and hold
the FOMA terminal firmly with your both hands.
Inserting FOMA card
1 Hook a finger on the tab and pull the tray out (1).
: Pull out the tray straight until it stops.
2
Hold the FOMA card with the IC
facing down and set on the tray (2).
3 Push the tray all the way in (3).
Tab
1
Removing FOMA card
1 Hook a finger on the tab, pull the tray out (1) and
remove the FOMA card (2).
: Do not allow the FOMA card to fall when removing it.
1
Notch
IC (gold)
2 3
Tray
Fit the notch of the FOMA card to
that of the tray.
2
Inserting or removing the FOMA card forcibly may damage the card or
deform the tray. Use caution.
Refer to the FOMA card user's guide for more information on the FOMA
card.
Do not misplace the FOMA card once it is taken out.
When the tray falls off, slide the tray in straight along the guide rail.

Security codes

The FOMA card has a "PIN1 code" and a "PIN2 code".
Both are set to [0000] by default but can be changed to a four- to eight-digit
number by the user (nP. 114).
FOMA card security functions
<FOMA card security functions>
The FOMA terminal has built-in FOMA card security functions (FOMA card
restriction functions) as functions for protecting personal data and files.
When data or files are retrieved using any of the following methods or
i-appli is running with the FOMA card inserted into the FOMA terminal,
FOMA card security functions are automatically set in the retrieved data
or files.
When a file such as an image, melody or PDF is downloaded from a
site or Internet web page
When a site or Internet web page is saved as a screen memo
When i-mode mail with a file attached is received
When i-appli is running
Data, files or software with FOMA card security functions run only when
in use with the FOMA card inserted at time of acquisition. Display, play,
attach to i-mode mail, run software, send data using Ir communication
function and iC communication function, and copy to microSD Card can
be executed. These operations cannot be performed if a different FOMA
card is inserted.
The following indicates the data for which FOMA card security is set.
Melody Image (including animation and Flash movie)
Screen memo Chaku-uta
Chara-den File attached to Message R/F
® ®
/Chaku-uta full
Continued on next page
