VIA Technologies AMOS-5110 Quick Manual

AMOS-5110
Quick Guide

Key Features:

• Fanless, and robust casting construction
• High and scalable performance with low
power consumption
• Quick installation and easy maintenance
• Easy to use, interchangeable and
customizable front and rear panels
Built-in common I/O functional cutouts
•
for an easy external access
P/N: 99G51-013014-10

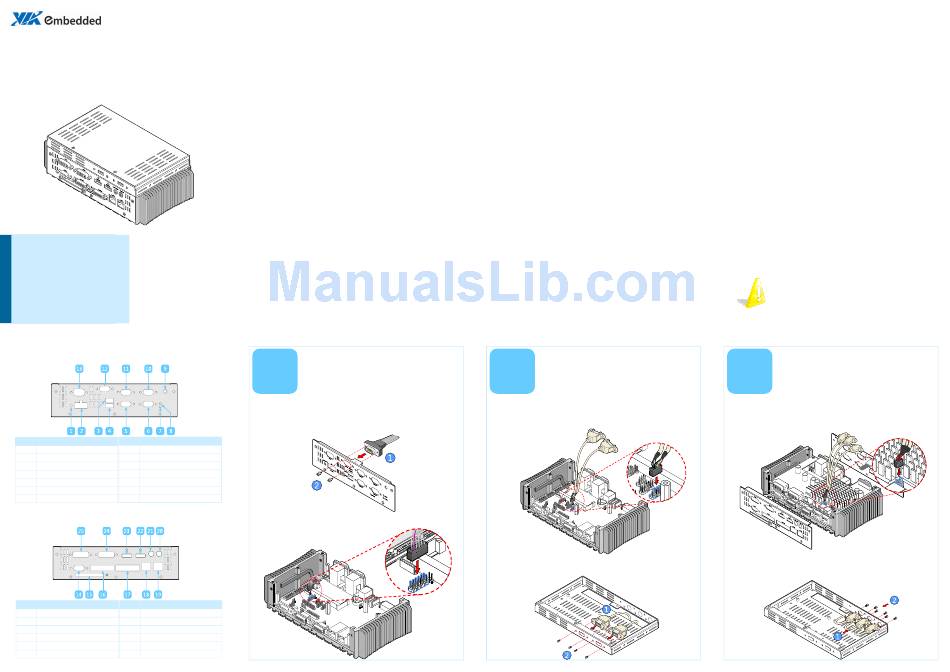

Front I/O cutout layout

Item Description Item Description
1 Power button (Power On/Off) 8 HDD LED indicator
9 WLAN antenna hole
2 DC-in power input connector
3 USB 2.0 port 1 (USB1) 10 COM3 port (RS-232)
4 USB 2.0 port 2 (USB2) 11 COM4 port (RS-232)
12 GPIO port
5 COM2 port (RS-232/422/485)
6 COM1 port (RS-232/422/485) 13 VGA port
7 Power LED indicator

Rear I/O cutout layout

Item Description Item Description
14 VGA port 20 Mic-in jack
15 CompactFlash slot 21 Speaker-out jack
16 LVDS port 1 (LVDS1) 22 HDMI port 1 (HDMI1)
17 LVDS port 2 (LVDS2) 23 HDMI port 2 (HDMI2)
18 RJ-45 GigaLAN port 2 (LAN2) 24 DVI port 1 (DVI2)
19 RJ-45 GigaLAN port 1 (LAN1) 25 DVI port 2 (DVI1)
The VIA AMOS-5110 is a rugged chassis kit, specially designed for VIA
EITX-3000 Em-ITX board stacked with EMIO-3110 Em-IO module. The
chassis kit offers fast and easy assembly. It consists of four parts: front
and rear I/O access plates, storage bottom chassis and the top cover.
The modularity of AMOS-5110 chassis kit combines with heatsink found
on the EITX-3000 board forming a solid and robust system chassis . It
gives developers a wealth of advantages including rich and versatile I/O
configurations through its expansive dual I/O coastline.
A system with the combination of AMOS-5110 chassis kit, EITX-3000
board and EMIO-3110 module can support up to six displays (four of
which can display completely different content). The combination is
ideally suited for display streaming media/advertisement in schools,
hospitals, corporations, airports, museums, retailers and train stations.

Specifications:

Chassis Construction:
•
▪ Front and rear I/O metal face plate
▪ Top cover metal plate
▪ Storage sub-system metal chassis
▪ Aluminum bottom chassis housing mixed
copper heat-pipe (installed with EITX-3000)
Front I/O support:
•
▪ 4 x Serial ports (COM ports)
− D-Sub 9-pin COM connector
− COM1 ~ COM4 (two RS-232 and two
RS-232/422/485) from EITX-3000
▪ 1 x GPIO port (default GPIO cable connector)
− D-sub 9-pin GPIO male connector
▪ 2 x USB ports (USB 2.0 compliant)
▪ 1 x VGA connector
− D-sub 15-pin connector (from EMIO-3110)
▪ 1 x DC-in port (onboard power input)
− 2-pole Phoenix power input
▪ 1 x ATX Power On/Off button
Installing the
1
GPIO cable
Step 1
Break off the GPIO cutout filler. Then insert the D-sub 9-pin GPIO
connector into the GPIO cutout and fasten the provided hex standoff
screws to secure the connector.
Step 2
Locate the GPIO pinheader on the EITX-3000 mainboard and gently
connect the other end of GPIO cable.
▪ 1 x WLAN antenna hole
▪ 1 x Green LED indicator (Power On/Off status)
▪ 1 x Red LED indicator (HDD activities status)
Rear I/O support:
•
▪ 1 x VGA connector
− D-sub 15-pin connector
▪ 2 x LVDS connectors
− DB-26 connectors as LVDS1 and LVDS2
▪ 2 x GigaLAN connectors
− RJ-45 connectors
− GigaLAN connectors as LAN1 and LAN2
▪ 2 x 3.5Φ Audio jacks
− Speaker-out and Mic-in
▪ 2 x HDMI ports
− HDMI1 and HDMI2 (from EMIO-3110)
▪ 2 x DVI ports (as DVI1 and DVI2)
Board-level support:
•
▪ Compatible with VIA EITX-3000 embedded
board and EMIO-3110 module
• Drive bay:
▪ Default support 1 x 2.5" SATA hard disk drive
bay located on the storage bottom chassis
▪ Default support 1 x CompactFlash
type I/II socket (from EITX-3000)
• Mounting (optional):
▪ Supports VESA, table and wall mounting
Dimension after assembly:
•
▪ 232.6 mm (W) x 73 mm (H) x 124.8 mm (D)
Weight (front & rear plates and storage chassis):
•
▪ 0.8 kg
Barebones weight (after assembly):
•
▪ 2.0 kg (front & rear plates, storage chassis and
aluminum bottom housing)
Storage Temperature: -20˚C up to 60˚C
•
Installing the
2
USB cable (optional)
Step 1
Locate the USB pinheader (USB_4/5) on the EITX-3000 board and
gently attach USB cable to the pinheader.
Step 2
Break off the USB cutout filler. Then attach USB cable port onto the
USB pre-cutout and fasten the screws to secure the USB cable port.
Operating Temperature:
•
▪ 0˚C up to 45˚C (system equipped with HDD)
▪ -20˚C up to 45˚C (system equipped with CF)
Relative Humidity:
•
0% to 90% @ 45˚C, non-condensing
EMC approved: CE, FCC, CCC Class A
•
Safety approved: CB, CCC
•

Packing List:

1 x Front I/O plate (P/N: 99G42-091636-A1)
•
1 x Rear I/O plate (P/N: 99G42-091646-A1)
•
1 x Storage metal top cover (P/N: 99G42-091656-A1)
•
1 x Storage bottom case (P/N: 99G42-092076-A1)
•
• 1 x CompactFlash cover (P/N: 99G42-090886-A0)
1 x Antenna cover (P/N: 99G43-120011)
•
1 x GPIO cable kit (P/N: 99G33-080185)
•
- 1 x GPIO cable port
- 2 x 6mm hex standoff screw
1 x SATA HDD (data and power) cable (P/N: 99G33-02093F)
•
1 x Screw pack (P/N: 99G44-030231)
•
- 23 x M3*5mm screw
1 x Screw pack (P/N: 99G44-010415)
•
- 10 x M3*6mm screw
1 x Hex screw package (P/N: 99G44-030221)
•
- 16 x 6mm hex standoff screw
1 x Quick guide (P/N: 99G51-013014-10)
•
Note:
Please ensure that all items in the packing list are present
before using this product. If any of the items are missing or
damaged, contact your distributor or sales representative
immediately.
Installing the TV-out
3
cables (optional)
Step 1
Locate the TV-out pinheader (TV1) on the EMIO-3110 module and
gently attach Component video (YPbPr) cables to the pinheader.
Step 2
Break off the TV-out cutout filler. Then attach the other end (RCA
plugs) of the Component video (YPbPr) cables onto the TV pre-
cutout. And fasten the screws and nuts to secure the cables.
