Summary of Contents for TESTO 0572 0576

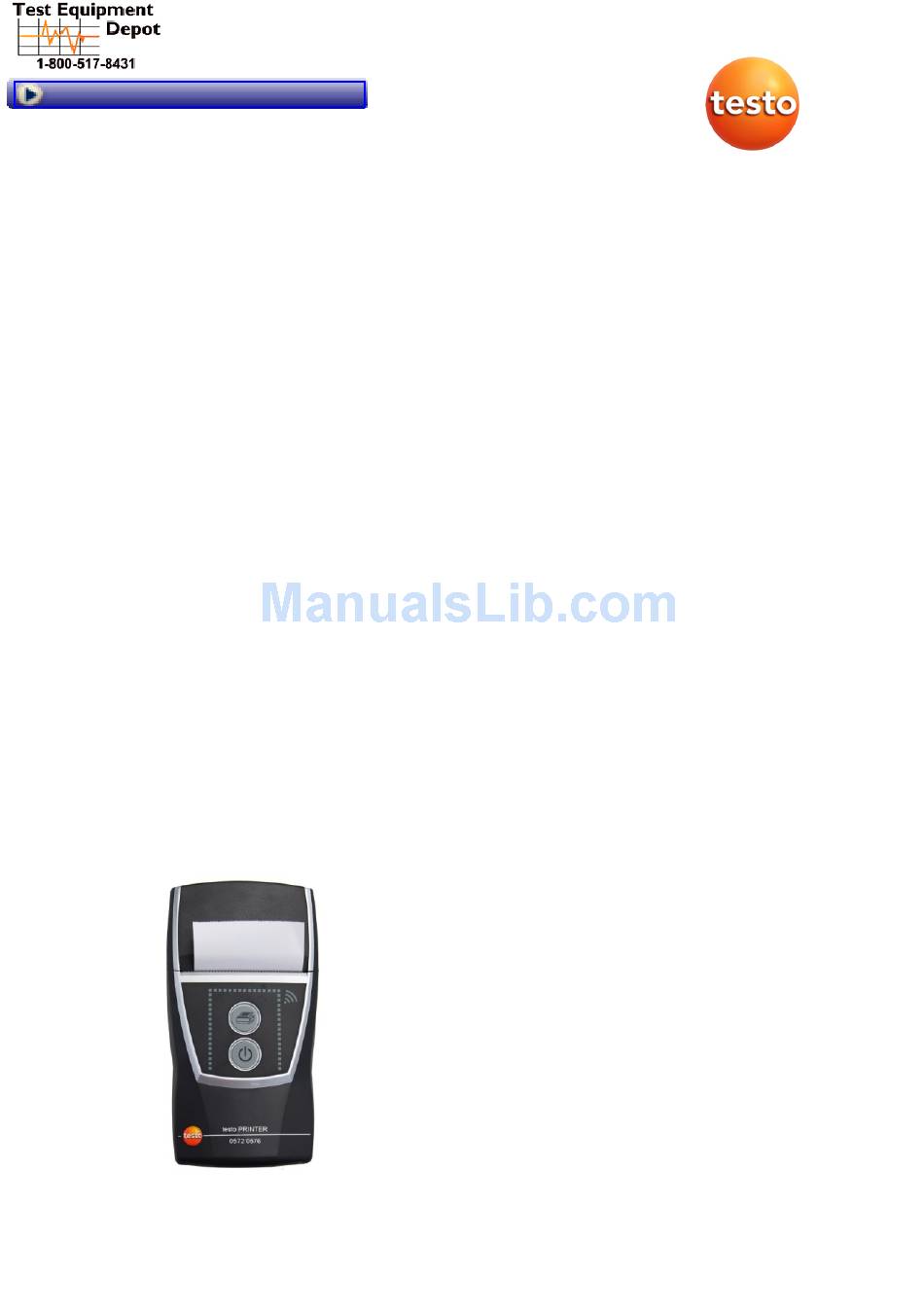

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Mobile printer for data loggers 0572 0576 Instruction manual...
-
Page 2: Safety And The Environment
(observe local regulations) or return the product to Testo for disposal. Specifications 2.1. The testo mobile printer for data loggers is used to produce report printouts, in conjunction with compatible devices: • testo 175/176 (manufactured during or after 2011) •... - Page 3 > 6 h (20 °C / 68 °F ambient temperature) battery life Warranty 2 years (excl. printer mechanism, rechargeable battery pack) Warranty terms Warranty terms: see website www.testo.com/warranty Accessories/spare parts Description Item no. Mains unit 5 V / 1.0 A 0554 1105 Micro USB cable...
-
Page 4: Product Description
3 Product description Product description 3.1. Overview 1 Operating mode indicator 2 On/Off control key 3 Paper feed / print control key 4 Paper roll (printable side out) 5 Paper compartment cover 6 Magnetic holder (on back) WARNING Magnetic field May be harmful to those with pacemakers. -
Page 5: Operating Mode Indicator
3 Product description CAUTION Magnetic field Damage to other devices! > Keep a safe distance away from products that could be damaged by the effects of magnetism (e.g. monitors, computers or credit cards). 7 Contact surface for data logger 8 Micro USB connection for connecting to the mains unit or the 3.2. -
Page 6: Control Key Functions
±0 to +35 °C. If the rechargeable battery has been completely discharged, charging time at room temperature using the testo mains unit is approx. 6 h. > Connect battery charger (0554 1105) to a mains socket and connect the printer. -
Page 7: Inserting Paper
4 First steps 4.2. Inserting paper 1. Flip paper compartment cover up. 2. Insert paper roll, see illustration. 3. Close paper compartment cover. 4.3. Setting the language version ✓ Printer is switched off. 1. Press > 2 s. Configuration mode is activated. Automatic printout of the available language versions. -
Page 8: Using The Product
Using the product 5.1. Printing data, testo 175 and testo176 ✓ Printer is switched on. 1. Connect the printer and testo175 / testo 176 via the micro USB cable. Printer detection is automatic and is indicated as a message. 2. Press briefly. - Page 9 5.2. Printing data, testo 184 ✓ Printer is switched on. 1. Move the testo 184 up to the indicated area (distance approx. 0 - 10 mm). The printer is detected automatically and the data is transferred. 2. Remove testo 184.
- Page 10 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
