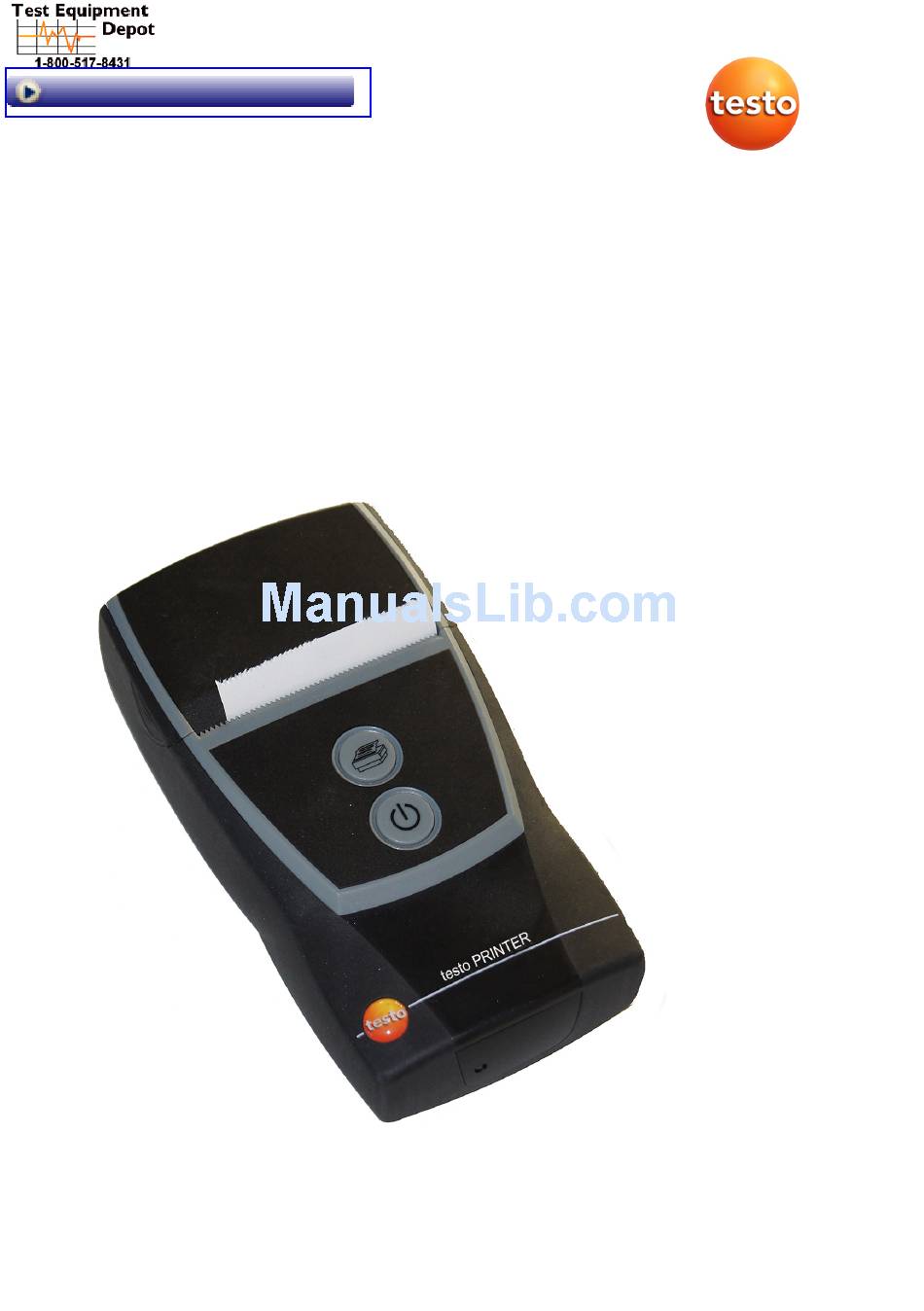

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Bluetooth®/IRDA printer 0554 0620/ 0554 0621 Instruction manual...
-
Page 3: Table Of Contents
Safety and the environment ..............4 Specifications ..................4 3.1. Use ....................4 3.2. Technical data ................. 4 EC declaration of conformity 0554 0620 ................10 EC declaration of conformity 0554 0621 ................11 Product description ................12 4.1. Overview ..................12 4.2. -
Page 4: Safety And The Environment
/IRDA printer is used to produce report printouts, in conjunction with compatible devices: E.g. testo 330 (0632 3306 - 3307 from firmware 2.02 onwards), testo 320 (from firmware 1.06 onwards), testo 324 (from firmware 1.08 onwards), testo 330i (0554 0621 only) - Page 5 Range < 10 m (optional) Warranty 2 years (excl. printer mechanism, rechargeable battery pack) Warranty terms Warranty terms: see website www.testo.com/warranty ® Bluetooth data 0554 0620 Feature Values Type Bluegiga WT12 designation Specification Radio class Class 2 Coverage < 10 m / < 32.8 ft.
- Page 6 Changes The FCC demands that the user be informed that any changes or modifications to the instrument that are not explicitly approved by testo AG may void the user's right to use this instrument. ® Bluetooth data 0554 0621...
- Page 7 3 Specifications Certification Country Comments EU countries: EU + EFTA Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary...
- Page 8 3 Specifications IC Warnings This instrument complies with Part 15C of the FCC Rules and Industry Canada RSS-210 (revision 8). Commissioning is subject to the following two conditions: (1) This instrument must not cause any harmful interference and (2) this instrument must be able to cope with interference, even if this has undesirable effects on operation.
- Page 9 3 Specifications Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits. Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,...
-
Page 10: Ec Declaration Of Conformity 0554 0620
3 Specifications EC declaration of conformity 0554 0620... -
Page 11: Ec Declaration Of Conformity 0554 0621
3 Specifications EC declaration of conformity 0554 0621... -
Page 12: Product Description
4 Product description Product description 4.1. Overview ® 1 Bluetooth /infrared interface 2 Operating mode indicator 3 On/Off control key 4 Paper feed control key 5 Paper roll (printable side out) 6 Paper compartment cover 7 Magnetic holder (on back) WARNING Magnetic field May be harmful to those with pacemakers. -
Page 13: Operating Mode Indicator
4 Product description CAUTION Magnetic field Damage to other devices! > Keep a safe distance away from products that could be damaged by the effects of magnetism (e.g. monitors, computers or credit cards). 8 Micro USB connection for connecting to the mains unit or the 4.2. -
Page 14: First Steps
±0 to +35 °C. If the rechargeable battery has been completely discharged, charging time at room temperature using the testo mains unit is approx. 6 h. > Connect battery charger (0554 1105) to a mains socket and connect the printer. -
Page 15: Using The Product
6 Using the product Using the product Printing data When first setting up a connection between a testo measuring instrument and the Bluetooth / IRDA printer, the initialization phase can last up to 30 seconds. ✓ Printer is switched on. - Page 16 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
