EL-USB-RT
INSTALLATION AND
OPERATION GUIDE
electronics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-USB-RT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lascar EL-USB-RT

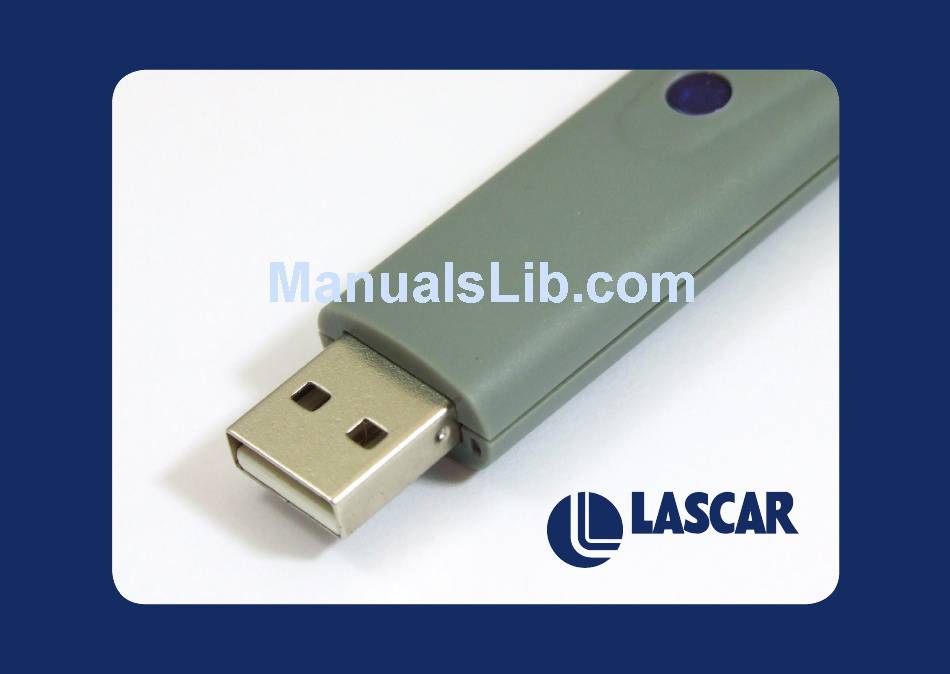

  • Page 1 EL-USB-RT INSTALLATION AND OPERATION GUIDE electronics...
  • Page 2 SOFTWARE INSTALLATION Windows ™ 2000/XP/Vista(32-bit) 1. Insert the EL-USB-RT 2. Installing software requires 3. Click “Next” 4. Read the “IMPORTANT Configuration Software CD administrative privileges. Accept NOTICE”, select “I Agree” into the CD drive of your computer. the “User Account Control”...
  • Page 3 EL-USB-RT uses a standard built NOTE - At various times Vista may in Windows drivers ask security questions; allow access when prompted You have successfully installed the necessary software and driver for your EL-USB-RT data logger.
  • Page 4 HOW TO USE EL-USB-RT SOFTWARE Windows ™ 2000/XP/Vista(32-bit) Once installed, the EL-USB-RT software should automatically If the following error message appears, you will need to run. Icons will be displayed in the “Notification Area” of your install .NET framework Ver 2.0, the redistributable of which screen and on the desktop.
  • Page 5 If “Open Graph Data” is selected, you will see the following: To view an area of this graph in more detail, use the left mouse button to drag a rectangle around the region to be magnified. The previous view can be restored by clicking on “Zoom Out”.
  • Page 6 “About EL-USB-RT” provides you with Lascar’s contact details and the software version number. “Exit“ closes the EL-USB-RT application. The EL-USB-RT can be configured to send an alert via E-mail in the event of an alarm condition being met. Click “Settings” to access E-mail configuration.
  • Page 7 CONFIGURING EMAIL ALERTS To configure E-mail alerts, you need to provide the SMTP details This information can be found within your E-mail client software of your E-mail account. These include: or if it is an internet E-mail account with their online help regarding SMTP/POP access.
  • Page 8 Low cost temperature -10°C to +50°C (+14 to +122°F) ±1ºC (±2ºF) 4,080 CR1620 1 month Lithium coin cell EL-USB-RT Real-time temperature & humidity -20 to +70°C (-4 to +158°F) ±1.5ºC (±3ºF) 7 days monitor ±4.5%RH *Depending on logging rate, ambient temperature, and use of alarm LED...
