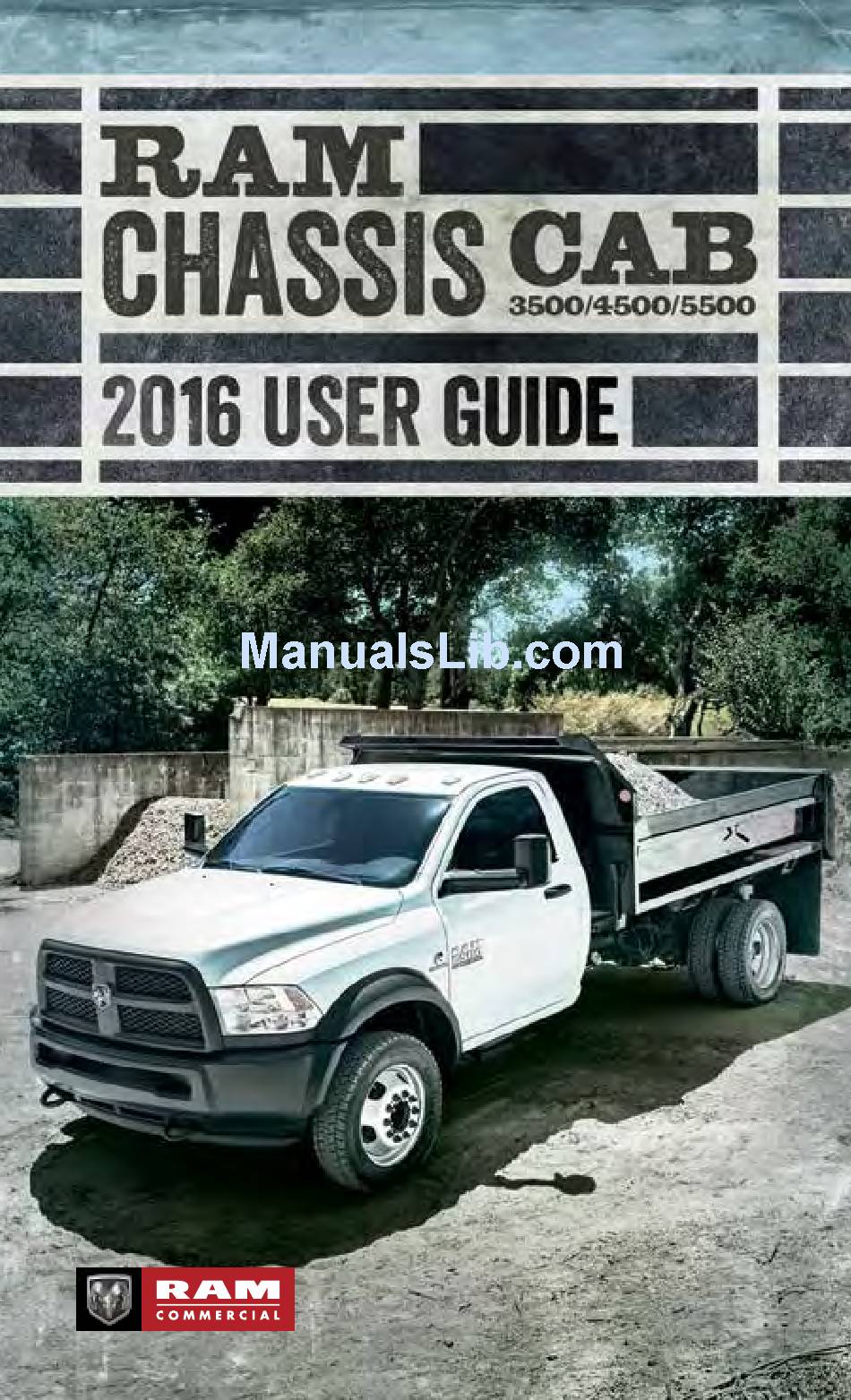

  • Page 2 CHASSIS 3500/4500/5500 2016 User Guide If you are the first registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Owner’s Manual, Navigation/Uconnect Manuals or Warranty Booklet by calling 1-866-726-4636 (U.S.) or 1-800-387-1143 (Canada) or by contacting your dealer. IMPORTANT This User Guide is intended to familiarize you with the important features of your vehicle.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S INTRODUCTION/WELCOME ELECTRONIC VEHICLE INFORMATION CENTER (EVIC) OR DRIVER INFORMATION WELCOME FROM FCA US LLC ..3 DISPLAY (DID) ....124 PROGRAMMABLE FEATURES .
  • Page 4 T A B L E O F C O N T E N T S MAINTAINING YOUR VEHICLE CUSTOMER ASSISTANCE TO OPEN AND CLOSE THE HOOD . . . 181 FCA US LLC CUSTOMER CENTER . . . 213 ENGINE COMPARTMENT — 6.4L .

  • Page 5: Introduction/Welcome

    I N T R O D U C T I O N / W E L C O M E WELCOME FROM FCA US LLC Congratulations on selecting your new FCA US LLC (“FCA US”) vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles.
  • Page 6 I N T R O D U C T I O N / W E L C O M E VEHICLES SOLD IN CANADA With respect to any vehicles sold in Canada, the name FCA US LLC shall be deemed to be deleted and the name FCA Canada Inc.
  • Page 7 I N T R O D U C T I O N / W E L C O M E USE OF AFTERMARKET PRODUCTS (ELECTRONICS) The use of aftermarket devices including cell phones, MP3 players, GPS systems, or chargers may affect the performance of on-board wireless features including Keyless Enter-N-Go and Remote Start range.

  • Page 8: Controls At A Glance

    C O N T R O L S A T A G L A N C E DRIVER COCKPIT 1. Headlight Switch pg. 43 2. Turn Signal/Wiper/Washer/High Beams Lever pg. 42 3. Electronic Vehicle Information Center (EVIC) Controls / Driver Information Display (DID) Controls pg.
  • Page 9 C O N T R O L S A T A G L A N C E 10. Lower Storage Compartment 11. Power Outlet pg. 132 12. Electronic Stability Control OFF pg. 165 13. Manual Climate Controls pg. 48 14. Hazard Warning Light 15.

  • Page 10: Instrument Cluster

    C O N T R O L S A T A G L A N C E INSTRUMENT CLUSTER 1. Temperature Gauge 2. Tachometer 3. Voltmeter (See page 159 for Instrument Cluster Warning Lights.)
  • Page 11 C O N T R O L S A T A G L A N C E 4. Electronic Vehicle Information Center (EVIC) Or Driver Information Display (DID) 5. Oil Pressure Gauge 6. Speedometer 7. Fuel Gauge (See page 165 for Instrument Cluster Indicator Lights.)

  • Page 12: Getting Started

    G E T T I N G S T A R T E D KEY FOB This feature allows the driver to operate the ignition switch with the push of a button, as long as the Remote Keyless Entry (RKE) Key Fob is in the passenger compartment.

  • Page 13: Panic Alarm

    G E T T I N G S T A R T E D Locking And Unlocking The Doors Push and release the UNLOCK button on the RKE Key Fob once to unlock the driver’s door. Push and release the UNLOCK button twice within five seconds to unlock all doors and the tailgate and the RamBox (if equipped).

  • Page 14: Keyless Enter-N-Go - Passive Entry

    G E T T I N G S T A R T E D KEYLESS ENTER-N-GO — PASSIVE ENTRY Introduction To Keyless Enter-N-Go The Keyless Enter-N-Go — Passive Entry system is an enhancement to the vehicles RKE Key Fob. This feature allows you to lock and unlock the vehicle’s door(s) without having to push the RKE Key Fob lock or unlock buttons as well as starting and stopping the vehicle with the push of a button.

  • Page 15: Remote Start

    G E T T I N G S T A R T E D To Unlock From The Driver Or Passenger Side: With a valid Keyless Enter-N-Go Key Fob located outside the vehicle and within 5 ft (1.5m) of the driver or passenger side door handle, grab either front door handle to unlock the door automatically.

  • Page 16: Vehicle Security Alarm

    G E T T I N G S T A R T E D VEHICLE SECURITY ALARM The Vehicle Security Alarm monitors the vehicle doors for unauthorized entry and the ignition for unauthorized operation. While the Vehicle Security Alarm is armed, interior switches for door locks and tailgate are disabled.

  • Page 17: Seat Belt Systems

    G E T T I N G S T A R T E D SEAT BELT SYSTEMS Lap/Shoulder Belts • All seating positions except the Crew Cab front center seating position have combination lap/shoulder belts. • Be sure everyone in your vehicle is in a seat and using a seat belt properly. •...

  • Page 18: Supplemental Restraint System (Srs) - Air Bags

    G E T T I N G S T A R T E D SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIR BAGS Air Bag System Components Your vehicle may be equipped with the following air bag system components: • Occupant Restraint Controller (ORC) •...
  • Page 19 G E T T I N G S T A R T E D Do not drive your vehicle after the air bags have deployed. If you are involved in another collision, the air bags will not be in place to protect you. If it is necessary to modify the air bag system for persons with disabilities, contact your authorized dealer.

  • Page 20: Enhanced Accident Response System

    G E T T I N G S T A R T E D WARNING! • Side Air Bags need room to inflate. Do not lean against the door or window. Sit upright in the center of the seat. • Being too close to the Side Air Bags during deployment could cause you to be severely injured or killed.
  • Page 21 G E T T I N G S T A R T E D Air Bag Warning Light The air bags must be ready to inflate for your protection in a collision. The Occupant Restraint Controller (ORC) monitors the internal circuits and interconnecting wiring associated with air bag system electrical components.

  • Page 22: Child Restraints

    G E T T I N G S T A R T E D NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded.
  • Page 23 G E T T I N G S T A R T E D LATCH System Weight Limit You may use the LATCH anchorage system until the combined weight of the child and the child restraint is 65 lbs (29.5 kg). Use the seat belt and tether anchor instead of the LATCH system once the combined weight is more than 65 lbs (29.5 kg).
  • Page 24 G E T T I N G S T A R T E D Installing The Child Restraint Using The LATCH Lower Anchors NOTE: Never “share” a LATCH anchorage with two or more child restraints. 1. Loosen the adjusters on the lower straps and on the tether strap of the child seat so that you can more easily attach the hooks or connectors to the vehicle anchorages.
  • Page 25 G E T T I N G S T A R T E D To Install A Child Seat Using An ALR 1. Pull enough of the seat belt webbing from the retractor to pass it through the belt path of the child restraint. Do not twist the belt webbing in the belt path. 2.
  • Page 26 G E T T I N G S T A R T E D Installing The Top Tether Strap (With Either Lower Anchors Or Vehicle Seat Belt) When installing a forward-facing child restraint, always secure the top tether strap, up to the tether anchor weight limit, whether the child restraint is installed with the lower anchors or the vehicle seat belt.
  • Page 27 G E T T I N G S T A R T E D Crew Cab Trucks: The top tether anchorages in this vehicle are tether strap loops located between the rear glass and the back of the rear seat. There is a tether strap loop located behind each seating position.
  • Page 28 G E T T I N G S T A R T E D 4. Attach the hook to the center tether strap loop (see diagram). Tighten the tether strap according to the child seat manufacturer’s instructions. NOTE: If there are child seats in both of the outboard (left and right) seating posi- tions, the tether strap hooks of both child seats should be connected to the center...
  • Page 29 G E T T I N G S T A R T E D 3. Pass the tether strap hook under the head restraint behind the child seat, through the tether strap loop behind the seat and over to the right or left outboard tether strap loop.

  • Page 30: Head Restraints

    G E T T I N G S T A R T E D 5. Tighten the tether straps according to the child seat manufacturer’s instructions, tightening the right and left tether straps before the center tether strap. WARNING! • In a collision, an unrestrained child, even a tiny baby, can become a projectile inside the vehicle.

  • Page 31: Front Head Restraints

    G E T T I N G S T A R T E D Front Head Restraints To raise the head restraint, pull upward on the head restraint. To lower the head restraint, push the adjustment button located on the base of the head restraint and push downward on the head restraint.

  • Page 32: Front Seats

    G E T T I N G S T A R T E D NOTE: • The rear center head restraint (Crew Cab and Quad Cab) has only one adjustment position that is used to aid in the routing of a tether. Refer to “Occupant Restraints”...
  • Page 33 G E T T I N G S T A R T E D Tilting The Seat Up Or Down The angle of the seat cushion can be adjusted in four directions. Pull upward or push downward on the front or rear of the seat switch, the front or rear of the seat cushion will move in the direction of the switch.
  • Page 34 G E T T I N G S T A R T E D Driver Memory Seat — If Equipped This feature allows the driver to store up to two different memory profiles for easy recall through a memory switch. Each memory profile contains desired position settings for the driver seat, side mirrors, adjustable pedals (if equipped) and a set of desired radio station presets.
  • Page 35 G E T T I N G S T A R T E D Linking And Unlinking The Remote Keyless Entry Key Fob To Memory Your RKE Key Fobs can be programmed to recall one of two pre-programmed memory profiles by pushing the UNLOCK button on the RKE Key Fob. NOTE: Before programming your RKE Key Fobs to memory the feature has to be selected.
  • Page 36 G E T T I N G S T A R T E D Driver One Memory Position Recall • To recall the memory settings for driver one using the memory switch, push MEMORY button number 1 on the memory switch. •...
  • Page 37 G E T T I N G S T A R T E D Manual Seat Adjuster — If Equipped Both front seats are adjustable forward or rearward. The manual seat adjustment handle is located under the seat cushion at the front edge of each seat. While sitting in the seat, pull up on the handle and slide the seat forward or backward.

  • Page 38: Heated/Ventilated Seats

    G E T T I N G S T A R T E D HEATED/VENTILATED SEATS Front Heated Seats The front heated seats control buttons are located on the center instrument panel below the climate controls. If your vehicle is equipped with a touchscreen, the front heated seats control buttons are also located within the climate or controls screen of the touchscreen.

  • Page 39: Rear Heated Seats

    G E T T I N G S T A R T E D Rear Heated Seats The rear heated seat switches are located on the rear of the center console. • Push the heated seat button once to turn the HI setting On. •...

  • Page 40: Heated Steering Wheel

    G E T T I N G S T A R T E D Vehicles Equipped With Remote Start On models that are equipped with remote start, the ventilated seats can be programmed to come on during a remote start. If your vehicle is equipped with a touchscreen, this feature can be programmed through the Uconnect system.

  • Page 41: Tilt Steering Column

    G E T T I N G S T A R T E D WARNING! • Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaus- tion, or other physical conditions must exercise care when using the steering wheel heater.
  • Page 42 G E T T I N G S T A R T E D DRIVER ADJUSTABLE PEDALS — IF EQUIPPED The adjustable pedals system is designed to allow a greater range of driver comfort for steering wheel tilt and seat position. This feature allows the brake, accelerator, and clutch pedals (if equipped) to move toward or away from the driver to provide improved position with the steering wheel.

  • Page 43: Operating Your Vehicle

    O P E R A T I N G Y O U R V E H I C L E ENGINE BREAK-IN RECOMMENDATIONS A long break-in period is not required for the engine and drivetrain (transmission and axle) in your vehicle. Drive moderately during the first 300 miles (500 km).

  • Page 44: Turn Signals/Wiper/Washer/High Beams Lever

    O P E R A T I N G Y O U R V E H I C L E TURN SIGNALS/WIPER/WASHER/HIGH BEAMS LEVER Turn Signal/Wiper/Washer/High Beam Lever Turn Signals/Lane Change Assist Tap the lever up or down once and the turn signal (right or left) will flash three times and automatically turn off.

  • Page 45: Headlight Switch

    O P E R A T I N G Y O U R V E H I C L E HEADLIGHT SWITCH NOTE: If your vehicle is equipped with illumi- nated approach lights under the outside mirrors, they can be turned off through the instrument cluster or the Uconnect radio.

  • Page 46: Electronic Speed Control

    O P E R A T I N G Y O U R V E H I C L E NOTE: If your vehicle is equipped with a touchscreen, the dimming is programmable through the Uconnect system. Refer to “Uconnect Settings ” in “Understanding Your Instrument Panel”...
  • Page 47 O P E R A T I N G Y O U R V E H I C L E To Set A Desired Speed Turn the Electronic Speed Control ON. When the vehicle has reached the desired speed, push the SET (-) button and release. Release the accelerator and the vehicle will operate at the selected speed.

  • Page 48: To Accelerate For Passing

    O P E R A T I N G Y O U R V E H I C L E To Decrease Speed When the Electronic Speed Control is set, you can decrease speed by pushing the SET (-) button. The drivers preferred units can be selected through the instrument panel settings if equipped.

  • Page 49: Electronic Range Select (Ers) Operation

    O P E R A T I N G Y O U R V E H I C L E ELECTRONIC RANGE SELECT (ERS) OPERATION Electronic Range Select (ERS) allows you to limit the highest available transmission gear, and can be activated during any driving condition. When towing a trailer or operating the vehicle in off-road conditions, using ERS shift control will help you maximize both performance and engine braking.

  • Page 50: Manual Climate Controls Without Touchscreen

    O P E R A T I N G Y O U R V E H I C L E MANUAL CLIMATE CONTROLS WITHOUT TOUCHSCREEN Manual Climate Controls 1 — Rotate Blower Control 4 — Push A/C Button 2 — Push Air Recirculation Button 5 —...

  • Page 51: Manual Climate Controls With Touchscreen

    O P E R A T I N G Y O U R V E H I C L E MANUAL CLIMATE CONTROLS WITH TOUCHSCREEN Uconnect 8.4 Manual Climate Controls 1 — Max A/C Button 6 — Blower Speed Up Button 2 —...

  • Page 52: Air Recirculation

    O P E R A T I N G Y O U R V E H I C L E Climate Control Knobs 1 — A/C Button 5 — Rotate Blower Control 2 — Temperature Control Buttons 6 — OFF Button 3 —...

  • Page 53: Automatic Climate Controls With Touchscreen

    O P E R A T I N G Y O U R V E H I C L E AUTOMATIC CLIMATE CONTROLS WITH TOUCHSCREEN Uconnect 8.4 Automatic Climate Controls 1 — MAX A/C Button 8 — Passenger Temperature Down 2 —...
  • Page 54 O P E R A T I N G Y O U R V E H I C L E Climate Control Knobs 1 — A/C Button 7 — Defroster Button 2 — Driver Temperature Up 8 — Passenger Temperature Down 3 —...

  • Page 55: Power Sliding Rear Window

    O P E R A T I N G Y O U R V E H I C L E Air Recirculation • Use Recirculation for maximum A/C operation. • For window defogging, turn the Recirculation button off. • If the Recirculation button is pushed while in the AUTO mode, the indicator light may flash three times to indicate the cabin air is being controlled automatically.

  • Page 56: Electronics

    E L E C T R O N I C S YOUR VEHICLE'S SOUND SYSTEM 1. Uconnect Voice Command Button pg. 96 2. Uconnect Phone Button pg. 96 3. Steering Wheel Audio Controls (Left — Behind Steering Wheel) pg. 124 4.
  • Page 57 E L E C T R O N I C S 7. Back Button 8. Tune/Scroll Knob — Browse/Enter Button 9. Uconnect 8.4 Radio pg. 84 10. Power Inverter (If Equipped) pg. 131 11. USB Port pg. 80 12. SD Card pg. 80 13.

  • Page 58: Cybersecurity

    E L E C T R O N I C S CYBERSECURITY Your vehicle may be a connected vehicle and may be equipped with both wired and wireless networks. These networks allow your vehicle to send and receive informa- tion. This information allows systems and features in your vehicle to function properly.

  • Page 59: Identifying Your Radio

    E L E C T R O N I C S IDENTIFYING YOUR RADIO Radio 3.0 • Two buttons on the faceplate on either side of the display Radio 3.0 Uconnect 3.0 • Two buttons on the faceplate on either side of the display •...
  • Page 60 E L E C T R O N I C S Uconnect 8.4A • 8.4” Touchscreen • HD Button will NOT be visible on right side of screen when viewing AM or FM • SiriusXM Travel Link feature NOT listed within Apps Uconnect 8.4A Uconnect 8.4AN •...

  • Page 61: Uconnect Access

    E L E C T R O N I C S UCONNECT ACCESS Uconnect Access — If Equipped (Available On Uconnect 8.4A/8.4AN — U.S. Residents Only) WARNING! • ALWAYS obey traffic laws and pay attention to the road. Some Uconnect Access services, including 9-1-1 and Assist, will NOT work without an operable 1X (voice/data) or 3G (data) network connection.
  • Page 62 E L E C T R O N I C S Before you drive, familiarize yourself with the easy-to-use Uconnect Access. 1. The ASSIST and 9-1-1 buttons are located on your rearview mirror. The ASSIST button is used for contacting Roadside Assistance, Vehicle Care and Uconnect Care.
  • Page 63 E L E C T R O N I C S Uconnect Access Registration (Uconnect 8.4A/8.4AN, U.S. 48 Contiguous States, Alaska And Hawaii) To unlock the full potential of Uconnect Access in your vehicle, you first need to register with Uconnect Access. 1.
  • Page 64 E L E C T R O N I C S Download The Uconnect Access App You’re only a few steps away from using remote commands and playing your favorite music in your vehicle. To link your internet radio accounts: 1.
  • Page 65 E L E C T R O N I C S • Slacker Radio — Enjoy millions of songs and hundreds of handcrafted stations. NOTE: For detailed information on how to use Via Mobile apps visit the Mopar Owner Connect website moparownerconnect.com and login using the username and password you set up when registering for Uconnect...
  • Page 66 E L E C T R O N I C S Apps Main Menu Press the “Apps ” button on the touchscreen to open the Apps main menu, in this screen you will be able to access all of your available Apps. To access an App directly, press the corresponding button on the touchscreen and you will be directed to that App.
  • Page 67 E L E C T R O N I C S Maintaining Your Uconnect Access Account Selling Your Vehicle When you sell your vehicle, we recommend that you remove your Uconnect Access Account information from the vehicle. You can do this on the Mopar Owner Connect website moparownerconnect.com.
  • Page 68 E L E C T R O N I C S NOTE: Your vehicle may be transmitting data as authorized by the subscriber. 1. Assist Call (8.4AN) — The rearview mirror contains an ASSIST push button which automatically connects the vehicle occupants to one of these predefined desti- nations for immediate support: •...
  • Page 69 E L E C T R O N I C S may share information obtained through such recording and monitoring in accordance with regulatory requirements. You acknowledge, agree and consent to any recording, monitoring or sharing of information obtained through any such call recordings.
  • Page 70 E L E C T R O N I C S NOTE: Your vehicle must have a working electrical system for any of the in vehicle Uconnect features to operate. Uconnect Access Remote Features If you own a compatible iPhone or Android powered device, the Uconnect Access App allows you to remotely lock or unlock your doors, start your engine or activate your horn and lights from virtually anywhere.
  • Page 71 E L E C T R O N I C S Remote Door Lock/Unlock — This feature provides the ability to lock or unlock the door on your vehicle, without the keys and from virtually any distance. You can send a request to your vehicle in one of three ways: 1.
  • Page 72 E L E C T R O N I C S To Send A Text Message: 1. Push the Uconnect Phone Button on the steering wheel. 2. Wait for the beep. 3. Say “Text.” 4. Uconnect will prompt you “Say the phone number, or full name and phone type of the contact you want to send a message to.”...

  • Page 73: Radio 3.0

    E L E C T R O N I C S RADIO 3.0 Radio 3.0 1 — RADIO Button 8 — Play/Pause — Mute Button 2 — INFO Button 9 — MENU Button 3 — A-B-C Button 10 — SEEK Down Button 4 —...
  • Page 74 E L E C T R O N I C S Audio Setting • Push the MENU button on the radio faceplate. • The Audio Menu shows the following options for you to customize your audio settings. Treble, Mid, Bass, Fade, Balance, Speed Adjusted Volume, Loudness and AUX Offset •...

  • Page 75: Uconnect 3.0

    E L E C T R O N I C S Audio Jack (AUX) • The AUX allows a device such as an MP3 player or an iPod to be plugged into the radio and utilize the vehicle’s audio system, using a 3.5 mm audio cable, to amplify the source and play through the vehicle’s speakers.
  • Page 76 E L E C T R O N I C S Clock Setting 1. Push the Menu button at the bottom of the radio, and push the Enter/Browse button for System Settings. Next, select the Time and Format setting and then select Set Time by pushing the Enter/Browse button.
  • Page 77 E L E C T R O N I C S Disc Operation (If Equipped) Your vehicle may have a remote CD player located in the lower center console storage bin, or in the lower center bench seat bin. • CD/Disc Mode is entered by either inserting a CD/Disc or by pushing the MEDIA button located on the side of the display.

  • Page 78: Uconnect 5.0

    E L E C T R O N I C S UCONNECT 5.0 Uconnect 5.0 Radio 1 — RADIO Button 6 — Back Button 2 — COMPASS Button 7 — Screen OFF Button 3 — SETTINGS Button 8 — Mute Button — Volume Control 4 —...
  • Page 79 E L E C T R O N I C S Clock Setting To start the clock setting procedure, perform the following: 1. Push the SETTINGS button on the faceplate on the right side of the display, then press the “Clock & Date” button on the touchscreen. 2.
  • Page 80 E L E C T R O N I C S Radio Operation Uconnect 5.0 Radio Screen 1 — Radio Station Presets 5 — Station Info 2 — Show All Presets 6 — Direct Tune 3 — Seek Up 7 — Radio Band 4 —...
  • Page 81 E L E C T R O N I C S SiriusXM Premier Over 160 channels Get every channel available on your satellite radio, and enjoy all you want, all in one place. Hear commercial-free music plus sports, news, talk and entertainment. Get all the premium programming, including Howard Stern, every NFL game, Oprah Radio, every MLB and NHL game, every NASCAR race, Martha Stewart and more.
  • Page 82 E L E C T R O N I C S USB/Audio Jack (AUX)/SD CARD — If Equipped To select a specific audio source, push the MEDIA button on the faceplate. To allow music to play from your device through the vehicle’s speakers, press the “Source”...

  • Page 83: Uconnect 8.4A/8.4An

    E L E C T R O N I C S UCONNECT 8.4A/8.4AN Uconnect 8.4A/8.4AN At A Glance Uconnect 8.4AN Radio Screen WARNING! ALWAYS drive safely with your hands on the wheel. You have full responsibility and assume all risks related to the use of the Uconnect features and applications in this vehicle.
  • Page 84 E L E C T R O N I C S • If the time is not displayed at the top of the screen, press the “Settings” button on the touchscreen. In the Settings screen, press the “Clock” button on the touchscreen, then check or uncheck this option.
  • Page 85 E L E C T R O N I C S Personalized Menu Bar The Uconnect features and services in the main menu bar are easily changed for your convenience. Simply follow these steps: Uconnect 8.4A/8.4AN Main Menu 1. Press the “Apps ”...
  • Page 86 E L E C T R O N I C S Radio Uconnect 8.4AN Radio 1 — Radio Station Presets 7 — Audio Settings 2 — Toggle Between Presets 8 — Seek Up 3 — Status Bar 9 — Direct Tune To A Radio Station 4 —...
  • Page 87 E L E C T R O N I C S Seek Up/Seek Down • Press the Seek up or down arrow buttons on the touchscreen for less than two seconds to seek through radio stations. • Press and hold either arrow button on the touchscreen for more than two seconds to bypass stations without stopping.
  • Page 88 E L E C T R O N I C S The following describes features that are available when in SiriusXM Satellite Radio mode: Seek Up/Seek Down • Press the Seek arrow buttons on the touchscreen for less than two seconds to seek through channels in SXM mode.
  • Page 89 E L E C T R O N I C S Browse Lets you browse the SiriusXM channel listing or Genre listing. Favorites, Game Zone, Weather and Jump settings also provide a way to browse the SiriusXM channel list. Browse Sub-Menu Description Sub-Menu Shows the channel listing.
  • Page 90 E L E C T R O N I C S Our Sirius satellite service is also available in PR (with coverage limitations). Our Internet radio service is available throughout our satellite service area and in AK and HI. ©2015 Sirius XM Radio Inc. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
  • Page 91 E L E C T R O N I C S • The functions of the device are controlled using the device buttons. The volume may be controlled using the radio or device. • To route the audio cable out of the center console, use the access cut out in the front of the console.
  • Page 92 E L E C T R O N I C S Media Controls Media Controls 1 — Repeat Music Track 5 — Show Songs Currently In Cue To 2 — Music Track And Time Be Played 3 — Shuffle Music Tracks 6 —...
  • Page 93 E L E C T R O N I C S Navigation • The information in the section below is only applicable if you have the 8.4AN system or the Navigation has been activated on your 8.4A system. • If you have a Uconnect 8.4A system your radio is “Navigation-Ready,” and can be equipped with Navigation at an extra cost.
  • Page 94 E L E C T R O N I C S Finding Points Of Interest • From the main Navigation menu, press the “Where To?” button on the touch- screen, then press the “Points of Interest” button on the touchscreen. •...
  • Page 95 E L E C T R O N I C S Go Home • A Home location must be saved in the system. From the Main Navigation menu, press the “Where To?” button on the touchscreen, then press the “Go Home” button on the touchscreen.
  • Page 96 E L E C T R O N I C S Taking A Detour • To take a detour you must be navigating a route. • Press the “Detour” button on the touchscreen. NOTE: If the route you are currently taking is the only reasonable option, the device may not calculate a detour.

  • Page 97: Uconnect 8.4A/8.4An Voice Recognition Quick Tips

    E L E C T R O N I C S NOTE: SiriusXM Travel Link requires a subscription, sold separately after the five (5) year trial subscription included with your vehicle purchase. SiriusXM Travel Link is only available in the United States. UCONNECT 8.4A/8.4AN VOICE RECOGNITION QUICK TIPS Introducing Uconnect Start using Uconnect Voice Recognition with these helpful quick tips.

  • Page 98: Get Started

    E L E C T R O N I C S Get Started 1. Visit UconnectPhone.com to check device and feature compatibility and to find device pairing instructions. 2. Reduce background noise. Wind and passenger conversations are examples of noise that may impact recognition. 3.

  • Page 99: Basic Voice Commands

    E L E C T R O N I C S Basic Voice Commands The basic Voice Commands below can be given at any point while using your Uconnect system. Push the VR button . After the beep, say: • Cancel to stop a current voice session •...
  • Page 100 E L E C T R O N I C S Radio Use your voice to quickly get to the AM, FM or SiriusXM Satellite Radio stations you would like to hear. (Subscription or included SiriusXM Satellite Radio trial required.) Push the VR button .
  • Page 101 E L E C T R O N I C S Siri Eyes Free — If Equipped Siri lets you use your voice to send text messages, select media, place phone calls and much more. Siri uses your natural language to understand what you mean and will respond back to confirm your requests.
  • Page 102 E L E C T R O N I C S Getting Started Ensure Siri is enabled on your iPhone. Enable Siri 1 — Select Settings on your iPhone 3 — Select Siri 2 — Select General 4 — Enable Siri 1.
  • Page 103 E L E C T R O N I C S 2. Push and Hold, then release the Uconnect Voice Recognition (VR) button on the steering wheel. After you hear the familiar Siri "double beep," say a command. NOTE: A push and release of the button will start normal embedded VR functions.
  • Page 104 E L E C T R O N I C S Media Uconnect offers connections via USB, SD, Bluetooth and auxiliary ports (If Equipped). Voice operation is only available for connected USB and iPod devices. Push the VR button . After the beep, say one of the following commands and follow the prompts to switch your media source or choose an artist.
  • Page 105 E L E C T R O N I C S Phone Making and answering hands-free phone calls is easy with Uconnect. When the Phonebook button is illuminated on your touchscreen, your system is ready. U.S. residents can visit: • UconnectPhone.com for device compatibility and pairing instructions. Canadian residents can visit: •...
  • Page 106 E L E C T R O N I C S Voice Text Reply Uconnect will announce incoming text messages. Push the Phone button say Listen. (Must have compatible device paired to Uconnect system.) 1. Once an incoming text message is read to you, push the Phone button .
  • Page 107 E L E C T R O N I C S Climate (8.4A/8.4AN) Too hot? Too cold? Adjust vehicle temperatures hands-free and keep everyone comfortable while you keep moving ahead. (If vehicle is equipped with climate control.) Push the VR button .
  • Page 108 E L E C T R O N I C S Navigation (8.4A/8.4AN) The Uconnect navigation feature helps you save time and become more productive when you know exactly how to get to where you want to go. (Navigation is optional on the Uconnect 8.4A system.
  • Page 109 E L E C T R O N I C S Uconnect Access — If Equipped (8.4A/8.4AN) WARNING! ALWAYS obey traffic laws and pay attention to the road. Some Uconnect Access services, including 9-1-1 and Assist, will NOT work without an operable 1X (voice/data) or 3G (data) network connection.
  • Page 110 E L E C T R O N I C S Register (8.4A/8.4AN) To unlock the full potential of Uconnect Access in your vehicle, you first need to register with Uconnect Access. 1. Push the ASSIST button on your rearview mirror. Uconnect 8.4 Registration 2.
  • Page 111 E L E C T R O N I C S Mobile App (8.4A/8.4AN) You’re only a few steps away from using remote commands and playing your favorite music in your vehicle. To link your internet radio accounts: 1. Download the Uconnect Access App on your device.
  • Page 112 E L E C T R O N I C S Voice Texting (8.4A/8.4AN) You must be registered with Uconnect Access and have a compatible MAP – enabled device to use your voice to send a personalized text message. (Not compatible with iPhone.) 1.
  • Page 113 E L E C T R O N I C S Yelp (8.4A/8.4AN) Once registered with Uconnect Access, you can use your voice to search for the most popular places or things around you. 1. Push the VR button . After the beep, say: Launch YELP. 2.

  • Page 114: Additional Information

    E L E C T R O N I C S SiriusXM Travel Link (8.4A/8.4AN — US Market Only) Need to find a gas station, view local movie listings, check a sports score or the 5 - day weather forecast? SiriusXM Travel Link is a suite of services that brings a wealth of information right to your Uconnect 8.4AN system.

  • Page 115: Uconnect Phone

    E L E C T R O N I C S UCONNECT PHONE Uconnect Phone (Bluetooth Hands Free Calling) Uconnect 5.0 Phone Menu 1 — Call/Redial/Hold 7 — Uconnect Phone Settings Menu 2 — Mobile Phone Signal Strength 8 — Text Messaging 3 —...
  • Page 116 E L E C T R O N I C S Uconnect 8.4A/8.4AN Phone Menu 1 — Favorite Contacts 12 — Browse Phone Book Entries 2 — Mobile Phone Battery Life (Contains 9-1-1) 3 — Currently Paired Mobile Phone 13 — End Call 4 —...
  • Page 117 E L E C T R O N I C S NOTE: • The Uconnect Phone requires a mobile phone equipped with the Bluetooth Hands-Free Profile, Version 1.0 or higher. • Most mobile phones/devices are compatible with the Uconnect system, however some mobile phones/devices may not be equipped with all of the required features to utilize all of the Uconnect system features.
  • Page 118 E L E C T R O N I C S Uconnect 8.4A, 8.4AN: 1. Place the ignition in the ACC or ON position. 2. Press the “Phone” button in the Menu Bar on the touchscreen. 3. Select “Settings.” 4. Select “Paired Phones.” 5.
  • Page 119 E L E C T R O N I C S Select The iPhone's Priority Level When the pairing process has successfully completed, the system will prompt you to choose whether or not this is your favorite mobile phone. Selecting “Yes” will make this mobile phone the highest priority.
  • Page 120 E L E C T R O N I C S Select The Android Mobile Phone's Priority Level When the pairing process has successfully completed, the system will prompt you to choose whether or not this is your favorite mobile phone. Selecting “Yes” will make this mobile phone the highest priority.
  • Page 121 E L E C T R O N I C S Voice Command Tips • Speaking complete names (i.e; Call John Doe vs. Call John) will result in greater system accuracy. • You can “link” commands together for faster results. Say “Call John Doe, mobile,” for example.
  • Page 122 E L E C T R O N I C S Incoming Text Messages After pairing your Uconnect system with a Bluetooth enabled mobile device with the Message Access Profile (MAP), the Uconnect system can announce a new incoming text message and read it to you over the vehicle’s audio system. NOTE: Only incoming text messages received during the current ignition cycle can be viewed/read.
  • Page 123 E L E C T R O N I C S Android Devices 1. Push the Menu button on the mobile phone. 2. Select Settings. 3. Select Connections. 4. Turn “Show Notifications” to On. • A pop up will appear asking you to accept a request for permission to connect to your messages.
  • Page 124 E L E C T R O N I C S Once your Uconnect system is paired with a compatible mobile device, the system can announce a new incoming text message, and read it to your over the vehicle audio system.
  • Page 125 E L E C T R O N I C S Helpful Tips And Common Questions To Improve Bluetooth Performance With Your Uconnect System Mobile Phone won’t reconnect to system after pairing: • Set mobile phone to auto-connect or trusted device in mobile phone Bluetooth settings (Blackberry devices).

  • Page 126: Steering Wheel Audio Controls

    E L E C T R O N I C S STEERING WHEEL AUDIO CONTROLS The steering wheel audio controls are located on the rear surface of the steering wheel. Right Switch • Push the switch up or down to in- crease or decrease the volume.

  • Page 127: Programmable Features

    E L E C T R O N I C S Compass Calibration This compass is self-calibrating, which eliminates the need to set the compass manually. When the vehicle is new, the compass may appear erratic, and the EVIC/DID will display “CAL” until the compass is calibrated. You may also calibrate the compass by completing one or more 360 degree turns (in an area free from large metal or metallic objects) until the “CAL”...
  • Page 128 E L E C T R O N I C S Uconnect Customer Programmable Features The Uconnect system allows you to access Customer Programmable feature settings such as Display, Voice, Clock, Safety & Driving Assistance, Lights, Doors & Locks, Auto-On Comfort, Engine Off Options, Compass Settings (Uconnect 5.0,) Trailer Brake, Suspension, Audio, Phone/Bluetooth, SiriusXM Setup, Restore Settings, Clear Personal Data, and System Information through buttons on the touchscreen.
  • Page 129 E L E C T R O N I C S Instrument Cluster Reconfigurable Screen Setup The following settings allow you to change what information is displayed in the instrument cluster as well as the location that information is displayed. Digital Speedometer •...

  • Page 130: Universal Garage Door Opener (Homelink)

    E L E C T R O N I C S Stop/Start • Push the UP or DOWN arrow button until the Stop/Start icon is highlighted in the EVIC/DID. Push the RIGHT arrow button to display the Stop/Start status. Trailer Tow •...
  • Page 131 E L E C T R O N I C S Before You Begin Programming HomeLink Ensure that your vehicle is parked outside of the garage before you begin program- ming. For efficient programming and accurate transmission of the radio-frequency signal, it is recommended that a new battery be placed in the hand-held transmitter of the device that is being programmed to the HomeLink system.
  • Page 132 E L E C T R O N I C S 5. At the garage door opener motor (in the garage), locate the “LEARN” or “TRAINING” button. This can usually be found where the hanging antenna wire is attached to the garage door opener motor. Firmly push and release the “LEARN”...

  • Page 133: Power Inverter

    E L E C T R O N I C S Using HomeLink To operate, push and release the programmed HomeLink button. Activation will now occur for the programmed device (i.e., garage door opener, gate operator, security system, entry door lock, home/office lighting, etc.,). The hand-held transmitter of the device may also be used at any time.

  • Page 134: Power Outlets

    E L E C T R O N I C S POWER OUTLETS The auxiliary 12 Volt (13 Amp) power outlets can provide power for in-cab accesso- ries designed for use with the standard “cigar lighter” plug. The 12 Volt power outlets have a cap attached to the outlet indicating “12V DC”, together with either a key symbol or a battery symbol.
  • Page 135 E L E C T R O N I C S • Inside the upper lid of the center storage compartment. NOTE: • Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded, the fuse protecting the sys- tem will need to be replaced.

  • Page 136: Auxiliary Switches - If Equipped

    Holding last state conditions are met when switch type is set to latching and power source is set to ignition. For further information on using the auxiliary switches, please refer to the Ram Body Builders Guide by accessing www.rambodybuilder.com and choosing the appropriate...

  • Page 137: Off-Road Capabilities

    O F F - R O A D C A P A B I L I T I E S FOUR-WHEEL DRIVE OPERATION — IF EQUIPPED Four-wheel drive trucks are equipped with either a manually shifted transfer case or an electronically shifted transfer case. Refer to the operating instructions for electronic transfer case, located in this section for further information.
  • Page 138 O F F - R O A D C A P A B I L I T I E S WARNING! You or others could be injured or killed if you leave the vehicle unattended with the transfer case in the NEUTRAL position without first fully engaging the parking brake.

  • Page 139: Utility

    U T I L I T Y TOWING & PAYLOAD NOTE: For additional trailer towing information (maximum trailer weight ratings) refer to the following website addresses: • ramtrucks.com/en/towing_guide/ • ramtruck.ca (Canada) • rambodybuilder.com TOW/HAUL MODE When driving in hilly areas, towing a trailer, carrying a heavy load, etc., and frequent transmission shifting occurs, push the TOW/HAUL switch to select TOW/HAUL mode.

  • Page 140: Integrated Trailer Brake Module

    U T I L I T Y INTEGRATED TRAILER BRAKE MODULE The Integrated Trailer Brake Controller allows you to automatically or manually activate the Electric Trailer Brakes and Electric Over Hydraulic Trailer Brakes for a better braking performance when towing a trailer. NOTE: The Integrated Trailer Brake Controller is located in the center stack below the climate controls.
  • Page 141 U T I L I T Y GAIN Adjustment Buttons (+/-) Pushing the +/- buttons, located on the left side of the module, will increase/ decrease the brake control power output to the trailer brakes in 0.5 increments. The GAIN setting can be increased to a maximum of 10 or decreased to a minimum of 0 (no trailer braking).

  • Page 142: Recreational Towing (Behind Motorhome, Etc.)

    U T I L I T Y RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Towing Condi- Wheels OFF The Two-Wheel Four-Wheel Drive Models tion Ground Drive Models See Instructions: • Automatic transmission in PARK Flat Tow NONE NOT ALLOWED •...
  • Page 143 U T I L I T Y Recreational Towing — Four-Wheel Drive Models NOTE: Both the manual shift and electronic shift transfer cases must be shifted into NEUTRAL (N) for recreational towing. Automatic transmissions must be shifted into PARK for recreational towing. Manual transmissions must be placed in gear (NOT in NEUTRAL) for recreational towing.
  • Page 144 U T I L I T Y Shifting Into NEUTRAL (N) Use the following procedure to prepare your vehicle for recreational towing. WARNING! You or others could be injured or killed if you leave the vehicle unattended with the transfer case in the NEUTRAL (N) position without first fully engaging the parking brake.
  • Page 145 U T I L I T Y 9. Repeat steps 7 and 8 with automatic transmission in DRIVE or manual transmis- sion in first gear. 10. Shift the transmission to NEUTRAL. Firmly apply the parking brake. Turn OFF the engine. For vehicles with Keyless Enter-N-Go, push and hold the ENGINE START/STOP button until the engine shuts off.
  • Page 146 U T I L I T Y 5. Shift the transmission into NEUTRAL. • With manual shift transfer case, shift the transfer case lever to the desired position. • With electronic shift transfer case, push and hold the transfer case NEUTRAL (N) button until the NEUTRAL (N) indicator light turns off.

  • Page 147: 6 . 7 L C U M M I N S D I E S E L

    6 . 7 L C U M M I N S D I E S E L DIESEL ENGINE BREAK-IN RECOMMENDATIONS The Cummins turbocharged diesel engine does not require a break-in period due to its construction. Normal operation is allowed, providing the following recommenda- tions are followed: •...

  • Page 148: Engine Idling

    6 . 7 L C U M M I N S D I E S E L Water In Fuel Message If a Water In Fuel message or indicator appears in the cluster and a chime sounds five times, the fuel/water separator will need to be drained immediately to prevent engine damage.

  • Page 149: Diesel Exhaust Brake (Engine Braking)

    6 . 7 L C U M M I N S D I E S E L If the engine is allowed to idle, under some conditions the idle speed may increase to 900 RPM then return to normal idle speed. This is normal operation. WARNING! Remember to disconnect the cord before driving.

  • Page 150: Idle-Up Feature (Automatic Transmission Only)

    6 . 7 L C U M M I N S D I E S E L IDLE-UP FEATURE (AUTOMATIC TRANSMISSION ONLY) Speed Control Switches 1 — Push CANCEL 2 — Push ON/OFF 3 — Push Resume/Accel 4 — Push Set/Decel The Idle-Up Feature uses the speed control switches to increase engine idle speed and quickly warm the vehicle’s interior.

  • Page 151: Engine Mounted Fuel Filter/Water Separator

    6 . 7 L C U M M I N S D I E S E L ENGINE MOUNTED FUEL FILTER/WATER SEPARATOR Draining Fuel/Water Separator If the “Water in Fuel” indicator light is illuminated and an audible chime is heard five times, you should stop the engine and drain the water from the separator. The drain is located on the bottom of the Fuel Filter and Water Separator assembly which is located on the driver's side of the engine.

  • Page 152: Underbody Mounted Fuel Filter/Water Separator

    6 . 7 L C U M M I N S D I E S E L CAUTION! • Diesel fuel will damage blacktop paving surfaces. Drain the filter into an appropriate container. • Do not prefill the fuel filter when installing a new fuel filter. There is a possibility debris could be introduced into the fuel filter during this action.

  • Page 153: Exhaust Regeneration

    6 . 7 L C U M M I N S D I E S E L The underbody mounted filter housing will cause the engine not to run if: • No filter is installed. NOTE: • Using a fuel filter that does not meet the manufacturer's filtration and water separating requirements can severely impact fuel system life and reliability.
  • Page 154 6 . 7 L C U M M I N S D I E S E L Exhaust System — Regeneration Required Now “Exhaust System — Regeneration Required Now” will be displayed on the EVIC/DID if the exhaust particulate filter reaches 80% of its maximum storage capacity. Exhaust Filter XX% Full Indicates that the Diesel Particulate Filter (DPF) is approaching full.

  • Page 155: Cool-Down Idle Chart

    6 . 7 L C U M M I N S D I E S E L COOL-DOWN IDLE CHART TURBO "COOL DOWN" CHART Idle Time (in min- Driving Conditions Load Turbo Temp utes) Before Shut Down Stop and Go Empty Cool Less than 1...

  • Page 156: System Overview

    6 . 7 L C U M M I N S D I E S E L System Overview This vehicle is equipped with a Diesel Exhaust Fluid (DEF) injection system and a Selective Catalytic Reduction (SCR) catalyst to meet the emission requirements. The DEF injection system consists of the following components: •...

  • Page 157: Adding Diesel Exhaust Fluid

    6 . 7 L C U M M I N S D I E S E L Adding Diesel Exhaust Fluid The DEF gauge (located in the instrument cluster) will display the level of DEF remaining in the tank. Completely fill the DEF tank through the diesel exhaust fluid fill location at every maintenance interval or before if prompted by the Electronic Vehicle Information Center (EVIC)/Driver Information Display (DID).
  • Page 158 6 . 7 L C U M M I N S D I E S E L DEF Fill Procedure • Remove cap from DEF tank (located on drivers side of the vehicle). • Insert DEF container into DEF tank. •...
  • Page 159 6 . 7 L C U M M I N S D I E S E L The vehicle will only be capable of a maximum speed of 5 MPH upon the first of the following conditions to occur: • If the vehicle is shutoff and restarted. •...
  • Page 160 6 . 7 L C U M M I N S D I E S E L NOTE: Under some circumstances this mileage counter may start with a value of less than 150 miles (241 km). For example, if recurring faults are detected in a time interval of less than 40 hours, the counter may restart at the value where it stopped when a previous fault was temporarily remedied, or at a minimum of 50 miles (80 km).

  • Page 161: What To Do In Emergencies

    W H A T T O D O I N E M E R G E N C I E S ROADSIDE ASSISTANCE Dial toll-free 1-800-521-2779 for U.S. Residents or 1-800-363-4869 for Canadian Residents. • Provide your name, vehicle identification number, license plate number, and your location, including the telephone number from which you are calling.
  • Page 162 W H A T T O D O I N E M E R G E N C I E S WARNING! A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. –...
  • Page 163 W H A T T O D O I N E M E R G E N C I E S – Malfunction Indicator Light (MIL) The Malfunction Indicator Light (MIL) is part of an onboard diagnostic system called OBD II that monitors engine and automatic transmission control systems. The light will illuminate when the key is in the ON/RUN position before engine start.
  • Page 164 W H A T T O D O I N E M E R G E N C I E S – Anti-Lock Brake (ABS) Light This light monitors the Anti-Lock Brake System (ABS). The light will turn on when the ignition switch is turned to the ON/RUN position and may stay on for as long as four seconds.
  • Page 165 W H A T T O D O I N E M E R G E N C I E S – Transmission Temperature Warning Light This light indicates that there is excessive transmission fluid temperature that might occur with severe usage such as trailer towing. If this light turns on, stop the vehicle and run the engine at idle, with the transmission in NEUTRAL, until the light turns off.
  • Page 166 W H A T T O D O I N E M E R G E N C I E S As an added safety feature, your vehicle has been equipped with a Tire Pressure Monitoring System (TPMS) which display in the Electronic Vehicle Information Center (EVIC) or Driver Information Display (DID) when one or more of your tires is significantly under-inflated.

  • Page 167: Instrument Cluster Indicator Lights

    W H A T T O D O I N E M E R G E N C I E S CAUTION! The TPMS has been optimized for the original equipment tires and wheels. TPMS pressures and warning have been established for the tire size equipped on your vehicle.

  • Page 168: If Your Engine Overheats

    W H A T T O D O I N E M E R G E N C I E S – Cargo Light Indicates that the rear cargo light is on. – Door Ajar Indicates that one of the vehicle’s doors is open. –...

  • Page 169: Jacking And Tire Changing

    W H A T T O D O I N E M E R G E N C I E S CAUTION! Driving with a hot cooling system could damage your vehicle. If the temperature gauge reads HOT (H), pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range.

  • Page 170: Jacking Instructions

    W H A T T O D O I N E M E R G E N C I E S 4. Place the gear selector into PARK (automatic transmission) or REVERSE (manual transmission). On 4-Wheel drive vehicles, shift the transfer case to the “4L” position.
  • Page 171 W H A T T O D O I N E M E R G E N C I E S Warning Label CAUTION! Do not attempt to raise the vehicle by jacking on locations other than those indicated in the Jacking Instructions for this vehicle. 1.
  • Page 172 W H A T T O D O I N E M E R G E N C I E S When changing a rear wheel, assemble the jack drive tube to the jack and connect the drive tube to the extension tube. Securely place the jack under the sway bar bracket (unless both tires are flat on one side, then place jack under shock bracket) facing forward in vehicle.
  • Page 173 W H A T T O D O I N E M E R G E N C I E S WARNING! A loose tire or jack thrown forward in a collision or hard stop could injure someone in the vehicle. Always stow the jack parts and the extra tire and wheel in the places provided.
  • Page 174 W H A T T O D O I N E M E R G E N C I E S You must use the flat end of the lug wrench to pull off the wheel skins. Locate the hub cap pull notches (2 notches on each cap).
  • Page 175 W H A T T O D O I N E M E R G E N C I E S These dual rear wheels should be tightened as follows: It is recommended that wheel stud nuts be kept torqued to specifications at all times.

  • Page 176: Hoisting

    W H A T T O D O I N E M E R G E N C I E S HOISTING A conventional floor jack may be used at the jacking locations. Refer to the graphics that show jacking locations. However, a floor jack or frame hoist must never be used on any other parts of the underbody.
  • Page 177 W H A T T O D O I N E M E R G E N C I E S Preparations For Jump-Start The battery in your vehicle is located in the front of the engine compartment, behind the left headlight assembly. NOTE: The positive battery post is covered with a protective cap.
  • Page 178 W H A T T O D O I N E M E R G E N C I E S Jump-Starting Procedure WARNING! Failure to follow this jump-starting procedure could result in personal injury or property damage due to battery explosion. CAUTION! Failure to follow these procedures could result in damage to the charging system of the booster vehicle or the discharged vehicle.

  • Page 179: Emergency Tow Hooks

    W H A T T O D O I N E M E R G E N C I E S 6. Once the engine is started, remove the jumper cables in the reverse sequence: Disconnecting The Jumper Cables 1. Disconnect the negative (-) end of the jumper cable from the engine ground of the vehicle with the discharged battery.

  • Page 180: Gear Selector Override

    W H A T T O D O I N E M E R G E N C I E S GEAR SELECTOR OVERRIDE If a malfunction occurs and the gear selector cannot be moved out of the PARK position, you can use the following procedure to temporarily move the gear selector: 1.

  • Page 181: Freeing A Stuck Vehicle

    W H A T T O D O I N E M E R G E N C I E S FREEING A STUCK VEHICLE If your vehicle becomes stuck in mud, sand, or snow, it can often be moved using a rocking motion.

  • Page 182: Enhanced Accident Response System (Ears)

    W H A T T O D O I N E M E R G E N C I E S ENHANCED ACCIDENT RESPONSE SYSTEM (EARS) This vehicle is equipped with an Enhanced Accident Response System. Please refer to “Supplemental Restraint System (SRS) — Air Bags” for further information on the Enhanced Accident Response System (EARS) function.

  • Page 183: Maintaining Your Vehicle

    M A I N T A I N I N G Y O U R V E H I C L E TO OPEN AND CLOSE THE HOOD To open the hood, two latches must be released. 1. Pull the hood release lever located below the steering wheel at the base of the instrument panel.

  • Page 184: Engine Compartment - 6.4L

    M A I N T A I N I N G Y O U R V E H I C L E ENGINE COMPARTMENT — 6.4L 1. Engine Coolant Reservoir 2. Transmission Fluid Dipstick 3. Engine Oil Fill 4. Brake Fluid Reservoir 5.
  • Page 185 M A I N T A I N I N G Y O U R V E H I C L E 7. Power Distribution Center (Fuses) 8. Washer Fluid Reservoir 9. Power Steering Reservoir 10. Engine Oil Dipstick 11. Air Cleaner Filter...

  • Page 186: Engine Compartment - 6.7L

    M A I N T A I N I N G Y O U R V E H I C L E ENGINE COMPARTMENT — 6.7L 1. Batteries 2. Engine Coolant Reservoir 3. Transmission Fluid Dipstick 4. Brake Fluid Reservoir 5.
  • Page 187 M A I N T A I N I N G Y O U R V E H I C L E 6. Power Distribution Center (Fuses) 7. Washer Fluid Reservoir 8. Power Steering Fluid Reservoir 9. Engine Oil Dipstick 10.

  • Page 188: Fluid Capacities - Gas Engine

    M A I N T A I N I N G Y O U R V E H I C L E FLUID CAPACITIES — GAS ENGINE U.S. Metric Fuel (Approximate) Standard Rear Tank 52 Gallons 197 Liters Optional Midship Tank 22 Gallons 83 Liters Engine Oil With Filter...
  • Page 189 M A I N T A I N I N G Y O U R V E H I C L E CAUTION! • Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and may decrease corrosion protection.

  • Page 190: Fluid Capacities - 6.7L Cummins Diesel Engine

    M A I N T A I N I N G Y O U R V E H I C L E FLUID CAPACITIES — 6.7L CUMMINS DIESEL ENGINE U.S. Metric Fuel (Approximate) 2500/3500 Standard Cab Longbed 28 Gallons 106 Liters Models 2500/3500 Crew/Mega Cab Shortbed 31 Gallons...
  • Page 191 API Certified to the ISO 22241 standard. Use of fluids not Diesel Exhaust API Certified to ISO 22241 may result in system damage. You can Fluid receive assistance in locating DEF in the United States by calling 866-RAM-INFO (866-726-4636). In Canada call 1–800–465–2001 (English) or 1–800–387–9983 (French).
  • Page 192 M A I N T A I N I N G Y O U R V E H I C L E CAUTION! • Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and may decrease corrosion protection.

  • Page 193: Maintenance Procedures

    M A I N T A I N I N G Y O U R V E H I C L E MAINTENANCE PROCEDURES For information on the maintenance procedures for your vehicle, please refer to “Maintenance Procedures” in “Maintaining Your Vehicle” in your Owner’s Manual or applicable supplement on the DVD for further details.
  • Page 194 M A I N T A I N I N G Y O U R V E H I C L E Once A Month Or Before A Long Trip: • Check engine oil level • Check windshield washer fluid level •...
  • Page 195 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 196 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 197 M A I N T A I N I N G Y O U R V E H I C L E...

  • Page 198: Maintenance Schedule - 6.7L Cummins Diesel Engine

    M A I N T A I N I N G Y O U R V E H I C L E MAINTENANCE SCHEDULE — 6.7L CUMMINS DIESEL ENGINE CAUTION! Failure to perform the required maintenance items may result in damage to the vehicle.
  • Page 199 M A I N T A I N I N G Y O U R V E H I C L E Your authorized dealer will reset the oil change indicator message after completing the scheduled oil change. If a scheduled oil change is performed by someone other than your authorized dealer, the message can be reset by referring to the steps described under “Instrument Cluster Warning Lights”...
  • Page 200 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 201 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 202 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 203 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 204 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 205 M A I N T A I N I N G Y O U R V E H I C L E...

  • Page 206: Fuses

    M A I N T A I N I N G Y O U R V E H I C L E FUSES WARNING! • When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating.
  • Page 207 M A I N T A I N I N G Y O U R V E H I C L E Cavity Cartridge Fuse Micro Fuse Description 40 Amp Green – Diesel Fuel Heater – If Equipped (Special Ser- vices Vehicle &...
  • Page 208 M A I N T A I N I N G Y O U R V E H I C L E Cavity Cartridge Fuse Micro Fuse Description 30 Amp Pink – Rear Defroster – If Equipped 30 Amp Pink –...
  • Page 209 M A I N T A I N I N G Y O U R V E H I C L E Cavity Cartridge Fuse Micro Fuse Description – 10 Amp Red PCM – If Equipped – 20 Amp Yellow Fuel Transfer Pump (HD Only) –...

  • Page 210: Tires - General Information

    M A I N T A I N I N G Y O U R V E H I C L E CAUTION! • When installing the power distribution center cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the power distribution center and possibly result in an electrical system failure.
  • Page 211 M A I N T A I N I N G Y O U R V E H I C L E WARNING! • Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recom- mended load capacity for your vehicle.
  • Page 212 M A I N T A I N I N G Y O U R V E H I C L E Compact Spare Tire — If Equipped The compact spare is for temporary emergency use only. You can identify if your vehicle is equipped with a compact spare by looking at the spare tire description on the Tire and Loading Information Placard located on the driver’s side door opening or on the sidewall of the tire.

  • Page 213: Wheel And Wheel Trim Care

    M A I N T A I N I N G Y O U R V E H I C L E Limited Use Spare — If Equipped The limited use spare tire is for temporary emergency use only. This tire is identified by a label located on the limited use spare wheel.

  • Page 214: Replacement Bulbs

    M A I N T A I N I N G Y O U R V E H I C L E REPLACEMENT BULBS LIGHT BULBS — Interior Bulb Number Overhead Console Lamps TS 212-2 Dome Lamp 7679 For lighted switches, see your authorized dealer for replacement instructions. LIGHT BULBS —...

  • Page 215: Customer Assistance

    • If you are the first registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Owner's Manual, Navigation/Uconnect Manu- als or Warranty Booklet. United States customers may visit the Ram Truck Contact Us page at www.ramtrucks.com scroll to the bottom of the page and select the “Contact Us”...

  • Page 216: Reporting Safety Defects In The United States

    • The Owner's Manual and User Guide electronic files are also available on the Chrysler, Jeep ® , Ram Truck, Dodge and SRT websites. • Click on the “Owners” tab, select “Owner And Service Manuals”, then select your desired model year and vehicle from the drop down lists.

  • Page 217: Mopar® Accessories

    • The following highlights just some of the many Authentic Ram Accessories by Mopar featuring a fit, finish, and functionality specifically for your Ram. • For the full line of Authentic Ram Accessories by Mopar, visit your local dealership or online at mopar.com for U.S. residents and mopar.ca for Canadian residents.

  • Page 218: Faq's

    F A Q ’ s FREQUENTLY ASKED QUESTIONS GETTING STARTED How do I install my LATCH Equipped Child Seat? pg. 20 How do I program my Front Seat Memory? pg. 32 OPERATING YOUR VEHICLE How does the Electronic Range Select (ERS) operate? pg. 47 ELECTRONICS Which radio is in my vehicle? •...
  • Page 219 How do I shift into different four-wheel drive selections? pg. 135 UTILITY How do I know how much I can tow with my Ram Truck? pg. 137 How do I adjust the gain on the Integrated Trailer Brake Module? pg. 138 DIESEL How do I operate my diesel? pg.

  • Page 220: Index

    I N D E X Access Axle Fluid ... .187, 190 Uconnect ..59, 61, 65 Adding Engine Coolant (Antifreeze).191 Background Themes Adding Washer Fluid ..191 Uconnect 8.4A .
  • Page 221 I N D E X Turn Signal Indicator ..165 Emergency, In Case Of Vehicle Security Light ..165 Freeing Vehicle When Stuck . .179 Clutch ....191 Jump Starting .
  • Page 222 I N D E X Gear Select Lever Override..178 Arm The Alarm ...14 General Maintenance..191 Disarm The Alarm ..14 Glass Cleaning .
  • Page 223 I N D E X Change Interval ..191 Radio 3.0 ....71 Checking ... . .191 Radio Screens .
  • Page 224 I N D E X Sound Systems (Radio) . . .76, 88, 91 Transfer Case Spare Tire..209, 210, 211 Electronically Shifted ..135 Spark Plugs ....186 Fluid .
  • Page 225 I N D E X Via Mobile Apps Water Separator, Diesel Fuel ..149 Uconnect ....62 Water Separator Draining ..149 Voice Command .
  • Page 226 N O T E S...

  • Page 227: Driving And Alcohol

    2016 User Guide This guide has been prepared to help you get quickly acquainted with your new Ram vehicle and to provide a convenient reference source for common questions. However, it is not a substitute for your Owner’s Manual. For complete operational instructions, maintenance procedures and important safety messages, please consult your Owner’s Manual, Navigation/Uconnect...
  • Page 228 OF THE OWNER’S MANUAL AND WARRANTY BOOKLET BY VISITING: WWW.RAMTRUCKS.COM/EN/OWNERS/MANUALS OR WWW.RAMTRUCKS.COM/EN/WARRANTY (U.S.); WWW.OWNERS.MOPAR.CA/EN (CANADA). © 2016 FCA US LLC. ALL RIGHTS RESERVED. RAM IS A REGISTERED TRADEMARK OF FCA US LLC. 16DD43-926-AA . RAM Chassis Cab . FOURTH Edition . User Guide...

This manual is also suitable for:

Chassis cab 3500 2016Chassis cab 5500 2016

Table of Contents
