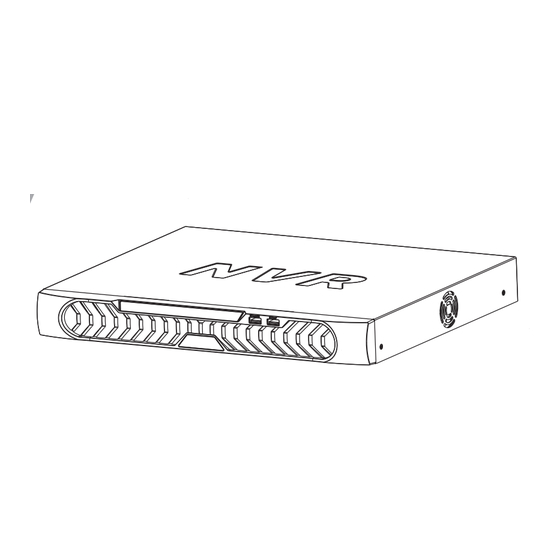

Network Video Recorder(NVR)
NO:101-600-0155-01
Issue:1.0
Precautions
Fully understand this document before using this device, and
strictly observe rules in this document when using this device. If
you install this device in public places, provide the tip "You have
entered the area of electronic surveillance" in an eye-catching
place. Failure to correctly use electrical products may cause fire
and severe injuries.
It alerts you to moderate dangers which, if not
WARNING
avoided, may cause minor or moderate injuries.
It alerts you to risks. Neglect of these risks may
cause device damage, data loss, device
CAUTION
performance deterioration, or unpredictable results.
It provides additional information.
NOTE
WARNING
Ÿ
Strictly observe installation requirements when installing the
device. The manufacturer shall not be held responsible for
device damage caused by users' non-conformance to these
requirements.
Ÿ
Strictly conform to local electrical safety standards and use
power adapters that are marked with the LPS standard when
installing and using this device. Otherwise, this device may be
damaged.
Use accessories delivered with this device. The voltage must
Ÿ
meet input voltage requirements for this device.
Ÿ
If this device is installed in places with unsteady voltage, ground
this device to discharge high energy such as electrical surges in
order to prevent the power supply from burning out.
When this device is in use, ensure that no water or any liquid
Ÿ
flows into the device. If water or liquid unexpectedly flows into
the device, immediately power off the device and disconnect all
cables (such as power cables and network cables) from this
device.
Ÿ
Do not focus strong light (such as lighted bulbs or sunlight) on
this device. Otherwise, the service life of the image sensor may
Ÿ
be shortened.
Ÿ
If this device is installed in places where thunder and lightning
frequently occur, ground the device nearby to discharge high
energy such as thunder strikes in order to prevent device
damage.
CAUTION
Avoid heavy loads, intensive shakes, and soaking to prevent
Ÿ
damages during transportation and storage. The warranty does
not cover any device damage that is caused during secondary
packaging and transportation after the original packaging is
taken apart.
Ÿ
Protect this device from fall-down and intensive strikes, keep the
device away from magnetic field interference, and do not install
the device in places with shaking surfaces or under shocks.
Ÿ
Clean the device with a soft dry cloth. For stubborn dirt, dip the
cloth into slight neutral cleanser, gently wipe the dirt with the
cloth, and then dry the device.
Ÿ
Do not jam the ventilation opening. Follow the installation
instructions provided in this document when installing the device.
Keep the device away from heat sources such as radiators,
Ÿ
electric heaters, or other heat equipment.
Ÿ
Keep the device away from moist, dusty, extremely hot or cold
places, or places with strong electric radiation.
If the device is installed outdoors, take insect- and moisture-
Ÿ
proof measures to avoid circuit board corrosion that can affect
monitoring.
Remove the power plug if the device is idle for a long time.
Ÿ
Special Announcement
All complete products sold by the manufacturer are delivered
Ÿ
along with nameplates,
quick setup guide
and accessories after
strict inspection. The manufacturer shall not be held responsible
for counterfeit products.
Ÿ
The manufacturer will update this manual according to product
function enhancement or changes and regularly update the
software and hardware described in this manual. Update
information will be added to new versions of this manual without
prior notice.
Ÿ
This manual may contain misprints, technology information that
is not accurate enough, or product function and operation
description that is slightly inconsistent with the actual product,
the final interpretation of company is as a standard.
This manual is only for reference and does not ensure that the
Ÿ
information is totally consistent with the actual product. For
consistency, see the actual product.
NOTE
For more information, please refer to CD and website.
1

Open Package Examination

Open the package, check the appearance of product for no
obvious damage, and confirm the item
list
for
table
1-1 is
consistent.
Table 1-1 Packing list
Quantity
Component
1
Network Video Recorder
1
Quick Setup Guide
1
CD-ROM
1
Mouse
Power adapter
1
Optional
1
Power cord
Silicone cushion
8
12
Phillips head screw
2
Optional
Terminal block
2

Device Structure

2.1 Device Ports

NOTE
Different device may have different ports and
multi-head
cable
, please refer to the
actual product
.
Front panel description of
device, please
refer to table 2-1.
Table 2-1 Front panel description
Port Name
Description
When the NVR is operating, the PWR indicator
PWR
is steady on.When the NVR is shut down, the
Indicator
PWR indicator is turned off.
HDD
Hard disk status indicator
Indicator
This indicator flashes when data is transmitted.
PoE network status indicator
Indicator
This indicator flashes when data is transmitted.
KB/MOUSE
Supports connection to a USB mouse and
keyboard.
Supports connection to a USB flash drive or
BACKUP
USB removable hard disk.
Rear panel description of
device, please
refer to table 2-2.
Table 2-2 Rear panel description
Port Name
Description
Safe ground screw of the device
PoE
PoE network interfaces
RJ45 10 /100/1000 Mbps adaptive Ethernet
LAN
interface.
RESET
Factory reset button
LINE OUT/
Audio output and audio input
LINE IN
VGA
Video output interface
HDMI
Alarm input and alarm output
110 V/220 V AC power input interface of the
device
DC 12V
Connected to an external power adapter

2.2 Device Dimensions

NOTE
Different device may have different dimensions, please refer
to the
actual product
.
Figure 2-1 Dimensions (Unit:mm)
Remark
372

3 Device Installation

The hard disk of the NVR must be provided by the user. Take the
following steps to install hard disks:
Step 1 Remove the screws for fixing the cover and take down the
cover.
Step 2 Take out the screws and silicone cushion, route the screws
through the silicone cushion, and install it to the screw
holes, as shown in figure 3-1.
Figure 3-1 Installing the hard disk screws
NOTE
During the installation, ensure that the large disc of the silicon
Ÿ
cushion close to the hard disk screw holes.
Please install the hard disk fixing screws on the screw holes far
Ÿ
away from the power supply interface.
Step 3 Route the screws through the holes on the base, push the
hard disk to the appropriate position on the left, as shown in
figure 3-2.
Step 4
Turn the device over, and fasten the rest two hard disk
fixing screws, as shown in figure 3-3.
Figure3-2 Installing hard disk
Step
5 Install other hard disks following step 2,step 3 and step 4,
and insert the hard disk data cable and power cable, then
put on the upper cover and fasten the fixing screws.
KB/MOUSE
BACKUP
Figure3-3 Fixing hard disk
