GUILD
3.6V Lithium-Ion Screwdriver
Original Instruction Manual
Important - Please read these instructions fully before operating or maintaining your Guild Lithium-Ion Screwdriver
These instructions contain important information that will help you get the best from your Guild
Lithium-Ion screwdriver, ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 0333 3201989
After Sales Support
UK/Ireland 0333 3201989
Help@guildpowertools.co.uk
CSD36G2
Advertisement
Related Manuals for Guild CSD36G2
Summary of Contents for Guild CSD36G2
- Page 1 UK/Ireland 0333 3201989 Help@guildpowertools.co.uk Important - Please read these instructions fully before operating or maintaining your Guild Lithium-Ion Screwdriver These instructions contain important information that will help you get the best from your Guild Lithium-Ion screwdriver, ensuring it remains safe to operate.
-
Page 2: Table Of Contents
Contents Safety Information....................3 In The Box......................8 Accessories.......................8 Operating Instructions ..................9 Maintenance....................11 Technical Data....................11 Environmental Protection................12 Guarantee.......................13 Customer Helpline 0333 3201989... -
Page 3: Safety Information
Safety Information Important - Please read these instructions fully before starting assembly Warning Symbols The following warning symbols appear throughout this assembly manual and indicate the appropriate safety measures you should take when assembling and operating the Lithium-Ion Screwdriver. To reduce the risk of injury. Please read the instruction manual Warning Wear ear protection... - Page 4 Safety Information Important - Please read these instructions fully before starting assembly Warning Symbols Do not expose to rain or water Do not burn Li-Ion battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs Li-I on and battery pack.
- Page 5 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
- Page 6 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings 2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
- Page 7 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
- Page 8 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
- Page 9 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 10 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 11 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
- Page 12 Safety Information Important - Please read these instructions fully before starting assembly Screw Driver Safety Warning 1. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live”...
- Page 13 Safety Information Important - Please read these instructions fully before starting assembly Safety Warnings For Battery Cells Inside The Tool e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
- Page 14 Safety Information Important - Please read these instructions fully before starting assembly Screw Driver Safety Warning of different electrochemical systems separate from each other. n) Recharge only with the charger specified by GUIDE. Do not use any charger other than that specifically provided for use with the equipment.
- Page 15 Safety Information Important - Please read these instructions fully before starting assembly General Safety Warnings with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 16 Safety Information Important - Please read these instructions fully before starting assembly Additional Safety Instructions For Your Battery Charger 6. For indoor use, or do not expose to rain. 7. The charging device must be protected from moisture. 8. Do not use the charging device in the open. 9.
- Page 17 Safety Information Important - Please read these instructions fully before starting assembly Additional Safety Instructions For Your Battery Charger that batteries and chargers are not left unsupervised during charging. 16.Do not recharge non-rechargeable batteries, as they can overheat and break. 17.Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between 18°C and...
-
Page 18: In The Box

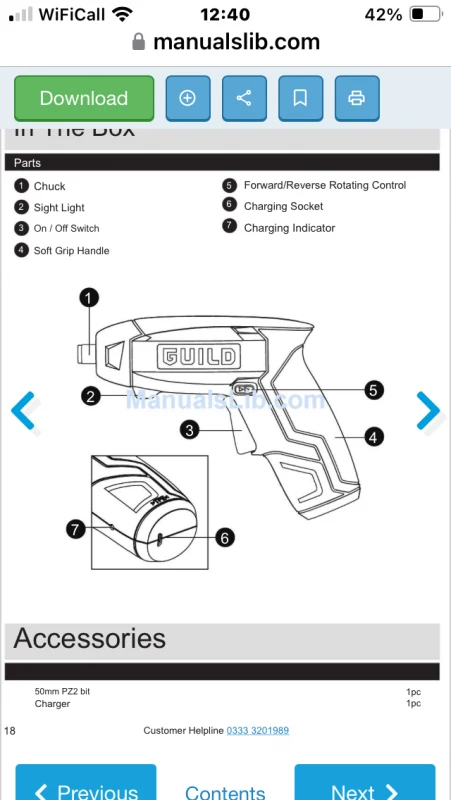

In The Box Parts Forward/Reverse Rotating Control Chuck Charging Socket Sight Light Charging Indicator On / Off Switch Soft Grip Handle Accessories 50mm PZ2 bit Charger Customer Helpline 0333 3201989... -
Page 19: Operating Instructions
Operating Instructions NOTE: Before using the tool, read the instruction book carefully. Intended Use This tool is intended for driving in and loosening screws. BEFORE PUTTING INTO OPERATION 1. CHARGING THE BATTERY(SEE FIG A) NOTE: a) Do not use any charger other than that specifically provided for use with the equipment. b) If the battery pack is very hot you must remove your battery pack from the charger and allow time for the battery to cool down before recharging. - Page 20 Operating Instructions OPERATION 1. FITTING AND REMOVING BITS (SEE FIG B) Insert the bit into the bit holder and push the bit into the chuck as far as possible. To remove the bit, simply pull it out of the bit holder. WARNING: Do not suggest to use screw bit shorter then 25mm.
-
Page 21: Maintenance
Operating Instructions 4. ON / OFF SWITCH Depress the On/Off switch to start and release it to stop your screwdriver. 5. USING THE SIGHTLIGHT To turn on the light simply press the on/off switch. When you release the on/off switch, the light will be off. -
Page 22: Environmental Protection
Technical Data Noise Information A weighted sound pressure : 70.5dB(A) A weighted sound power : 81.5dB(A) & K =3.0dB(A) Wear ear protection Vibration Information Vibration total values (triax vector sum) determined according to EN 60745: Vibration emission value: a = 1.7m/s Typical weighted vibration Uncertainty K = 1.5m/s²... -
Page 23: Guarantee
Guarantee This product is selected for DOMESTIC USE ONLY and not for business use. This product is guaranteed against manufacturing defects for a period of 24 months. This does not cover the product where the fault is due to misuse, abuse, use in contravention of the instructions, or where the product has been the subject of unauthorised modifications or alterations, or has been the subject of commercial use.
