  • Page 2 Before installing or replacing any component, disconnect the equipment from the mains, and use exclusively spare parts supplied  by IDEGIS. Taking into account the fact that the equipment produces heat, it must be installed in places with sufficient ventilation. Fan ...

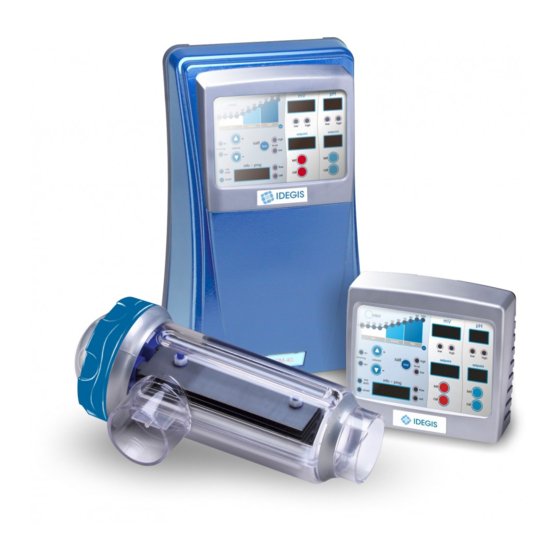

  • Page 3 POWER SUPPLY MODEL DESCRIPTION DOM-12 / DOM-12 PH / DOM-24 / DOM-24 PH / DOM-32 / DOM-32 PH / DOM-42 / DOM-42 PH / DOM-12 PLUS DOM-24 PLUS DOM-32 PLUS DOM-42 PLUS Standard working voltage 230 V AC, 50/60 Hz.
  • Page 4 Fig.1 Recommended installation diagram (DOMOTIC Series DOM-XX).
  • Page 5 Fig.2 Recommended installation diagram (DOMOTIC Series DOM-XX PH and DOM-XX PLUS).
  • Page 6 INSTALLATION: _______________________________________________________________________________________________ 4.1. Installation of the power supply Always install the POWER SUPPLY of the DOMOTIC Series system VERTICALLY on a solid and rigid surface (wall) as shown in the recommended installation diagram (Figs. 1,2). In order to guarantee a good state of conservation, the POWER SUPPLY should be installed in a well-ventilated dry place.
  • Page 7 IDEGIS distributor. The cable connecting the electrolysis cell and the power supply should never exceed the maximum length recommended in this Manual: DOM-12 (6 A), 7.5 m.;...
  • Page 8 4.4. Installation of the pH / ORP sensors (only in DOM-XX PH and DOM-XX PLUS). Insert the pH / ORP sensors into their corresponding places of the holder (Fig. 12) To that purpose, loosen the connection screws and insert the sensor into the holder. The sensors must be installed in the holder so that it is guaranteed that the sensors located in their ends are always submerged in the water circulating through the pipe.
  • Page 9 Unscrewing its four fixation screws (Fig. 11-5). Assemble the control terminal (Fig. 11-6). OPTION A: installation using the original IDEGIS cable ref. DOM-020-XX (XX indicates the cable length in meters). OPTION B: installation using a standard 6-conductor signal cable (each conductor must have a 0,22 mm minimum cross section).
  • Page 11 4.8. Controls and indicators DOMOTIC Series electrolysis systems are equipped with a control panel in the front (Figs. 15,16, 16b). Fig. 15. DOM-XX models control panel Fig. 16. DOMXX-PH models control panel...
  • Page 12 Fig. 16b. DOM-XX PLUS models control panel. Key “” (decrease production / programming menu Key “” (increase production / programming menu navigation). navigation). Display of water pH. Indicator of activated AUTOMATIC COVER control. Indicator of activated ORP control (AUTO mode) Indicator of HIGH PH ALARM (>...
  • Page 13 Besides basic operations, the DOMOTIC Series electrolysis system has three inputs for voltage-free contacts, enabling the connection of additional external controls. They are located on connector [CN7] of the power card (Fig. 17). Fig. 17 The logic associated to these three inputs can be programmed during the system configuration process (see point 5.2) [FS] OPTIONAL EXTERNAL FLOW DETECTOR CONTROL (not included with the equipment): input for potential-free contact.
  • Page 14 [or] ORP / RESIDUAL CHLORINE control (unavailable in DOMOTIC-XX PLUS models): input for potential-free contact. This input can be used to install an external controller of the electrolysis system (ORP, RESIDUAL CHLORINE, PHOTOMETER, etc.). To that purpose connect two cables from the potential-free contact, placed in the external controller, to the corresponding input [or] placed in the system’s control card.
  • Page 15 OPERATION: __________________________________________________________________________________________________ 5.1. System on stand-by The system goes into “STAND-BY” when the “” [1] key is pressed until the “0%” light blinks. When this occurs, there is no production in the electrolysis cell. Fig. 21 5.2. System configuration The DOMOTIC Series system can be reconfigured through a menu accessed from the control panel. The system has to be switched off, as described in point 5.1, in order to access this menu.
  • Page 16 Fig. 23 System programming flow-sheet.
  • Page 17 5.3. Production level selection To select the desired production level, press the “” [1] / “” [14] keys until the production level light blinks. The system information screen [11] will display the value of the production scale light [4]. The system will set its production to the desired level after a few seconds. Fig.
  • Page 18 5.5. Integrated pH controller (DOM-XXPH) The integrated pH / ORP controller is supplied with a default factory calibration and programmed with the following parameters: SETPOINT pH=”7.2” / ORP=”700 mV” IMPORTANT: In order to have a correct regulation of the pH value, the Total Alkalinity of the pool water must be maintained in the range 60–120 ppm CaCO .
  • Page 19 5.5.4. ORP SETPOINT PROGRAMMING (only in models DOM-XX PLUS) Keep the “SET” [26] key pressed until the light displays the desired ORP value within the 600 – 850 mV range. Release after selection. Fig. 27b 5.5.5. SAFETY STOP CONFIGURATION OF THE DOSAGE PUMP (PUMP-STOP FUNCTION) The integrated pH controller has a security system (PUMP-STOP FUNCTION) acting on the dosage pump which allows to avoid the following situations: ...
  • Page 20 Fig. 27d. 5.6. Alarms HIGH SALT LEVEL  If too much salt has been added, the production level will automatically fall beneath the selected level. The “HIGH SALT” [7] light will stay on. In this case, empty part of the pool (10%, for instance) and add fresh water to reduce the salt concentration. To precisely measure the salt level, we recommend the use of a portable salinity-temperature meter LOW SALT LEVEL ...
  • Page 21 WATER LEVEL IN CELL/FLOW DETECTOR (GAS)  If an air or gas bubble forms at any time at the top of the electrolysis cell and the FLOW DETECTOR is not submerged, the system will automatically switch off production, with the “FLOW” [12] light blinking and “FLO” displayed on the system information screen [11].
  • Page 22 ELECTRODES  The DOMOTIC Series system has a light indicating malfunction of the electrolysis cell electrodes [13]. This usually occurs at the end of the electrodes ’useful life, when they lose their power. However, although this is a self-cleaning system, this malfunction could also be due to excessive scaling on the electrodes when the system operates with hard water with a high pH value.
  • Page 23 MAINTENANCE: _______________________________________________________________________________________________ 6.1. Maintenance of the electrolysis cell The electrolysis cell must be kept in suitable conditions to ensure a long lifetime. This salt chlorination unit has an automatic electrode cleaning system that helps to prevent scale build-up on the electrode surface. If the salt chlorination system is operated in accordance with these instructions, and in particular if the pool water balance is kept within the recommended parameters, it should not be necessary to manually clean the electrodes.
  • Page 24 6.2.2. “STANDARD” MODE “STANDARD” MODE allows the precise calibration of the pH-sensor using two calibration solutions of pH 7.0 and 4.0, however this method requires that the pH-sensor is removed from the installation. PROCEDURE: IMPORTANT: before closing the by-pass valves, stop the system from control panel (see Section 5.1). Extract the pH-sensor from the holder and wash it with tap water.
  • Page 25 Fig. 35 ERROR MESSAGES: If the calibration process is interrupted for whatever reason, the pH-controller will automatically leave the calibration mode if the intervention of the user is not detected in a few seconds. In this case, “E1” indication in the display [15] will appear.
  • Page 26 Fig. 37 ERROR MESSAGES: If the calibration process is interrupted for whatever reason, the ORP controller will automatically leave the calibration mode if the intervention of the user is not detected in a few seconds. In this case, “E1” indication in display [21] will appear.
  • Page 27 TROUBLESHOOTING: ________________________________________________________________________________________ Any action required to solve possible problems in the equipment should always be performed with the equipment disconnected from the mains. Any problem not indicated in the following list should be solved by an IDEGIS technician. PROBLEM SOLUTION Production indicator always indicates “0”...
  • Page 28 COMPONENTS: _____________________________________________________________________________________________ POWER SUPPLY DESCRIPTION NUM. PLUS PLUS PLUS PLUS Power supply cover Power card AC-12 Power card AC-22 Power card AC-30 Power card AC-7 Power card AC-12/PH Power card AC-22/PH Power card AC-30/PH Power card AC-7/PH/ORP Power card AC-12/PH/ORP Power card AC-22/PH/ORP Power card AC-30/PH/ORP Power card AC-7/PH/ORP...
  • Page 29 TECHNICAL CHARACTERISTICS: ______________________________________________________________________________ TECHNICAL SPECIFICATIONS: GENERAL FEATURES: Standard working voltage Control system 230V AC – 50/60 Hz. Microprocessor.  Cable: 3 x 1.0 mm , leng. 2 m. Membrane keypad with control keys and operation  Domotic Series 12 0.8 A indication leds.
  • Page 30 Dimensions DOMOTIC (DOM-XX models) DOMOTIC-PH / PLUS (DOM-XX PH and DOM-XX PLUS models)
  • Page 31 10. WARRANTY CONDITIONS: ____________________________________________________________________________________ 10.1. GENERAL ASPECTS 10.1.1. According to these provisions, the seller guarantees that the guaranteed product is in perfect condition upon delivery. 10.1.2. The Total Warranty period is 2 YEARS. 10.1.3. The Warranty period will be calculated as of delivery to the purchaser. The electrode is covered by a 2-YEAR WARRANTY (or 5.000 hours), which is not extendable.
  • Page 32 I.D. ELECTROQUIMICA, S.L. Polig. Ind. Atalayas, c./ Dracma R-19 E-03114 ALICANTE Tel. +34 965101979 Fax +34 965107293 info@idegis.es www.idegis.es DOM10182540E109-14 We reserve to change all or part of the articles or contents of this document, without prior notice Nous nous reservons le droit de modifier totalment oru en partie les caracteristiques de nos articles ou le contenu de ce document sans pré avis Nos reservamos el derecho de cambiar total o parcialmente las características de nuestros artículos o el contenido de eeste documento sin previo aviso...
