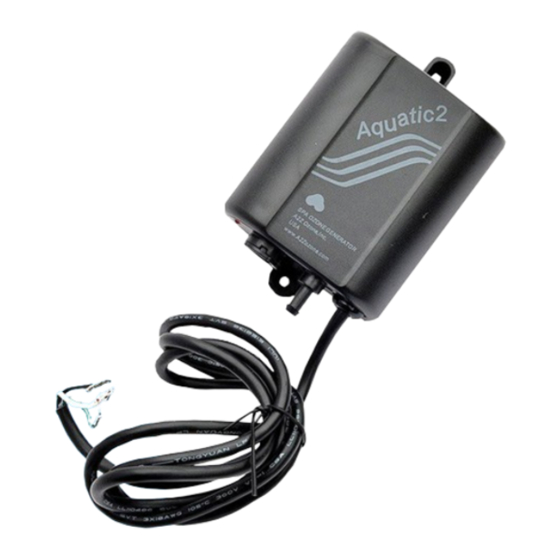

- Page 1 Aquatic 2 Operating Manual...
-
Page 2: Table Of Contents
Table of Contents • Important Safety Information ............2 • Technical Specifications ............... 3 • Aquatic 2 Features ................4 • Installation Instructions ..............6 • Wiring Diagram ................10 • Operating Instructions ..............11 • Maintenance ..................12 • Troubleshooting ................13... -
Page 3: Important Safety Information
• Per UL spa requirements, the Aquatic 2 must be mounted indoors or under a cover sheltered from the elements (rain, sun, sprinklers). • Mount the Aquatic 2 so that it is inaccessible to anyone in the spa. Never attempt servicing when wet. -
Page 4: Technical Specifications
Technical Specifications Items Included: 1. Aquatic 2 spa ozone generator 2. Aquatic 2 operation manual 3. 1 check valve 4. 5 feet of tubing 5. 4 hose ties 6. 2 screws and plastic anchor for mounting Model Aquatic 2 Electric... - Page 5 (Bottom of unit)
-
Page 6: Aquatic 2 Features
Aquatic 2 Features Allows air that is needed for ozone to pass over the ozone cell. DO Air Intake NOT BLOCK Indicates when there is power to the unit. If the power is supplied, Power LED the light will remain a solid red. -
Page 7: Installation Instructions
At no time should water come in contact with the Aquatic 2. To protect the ozone generator from water traveling backwards through the tubing connection, the unit must be mounted and plumbed as described in this manual. - Page 8 • Secure all tubing connections with the hose ties. NOTE: If the Aquatic 2 is mounted below the water line, run tubing to a point above the water line and back down to the vacuum source. Secure tubing in this position.
- Page 9 Figure 1 This diagram represents how the Aquatic Spa 2 Ozone Generator should be installed in relation to the hot tub’s water and electric box. Additionally, the venturi injector and check valve are on the ozone line. Remember, the spa ozone generator should be mounted as high as possible to prevent backflow into the unit.
-
Page 10: Installation Complete
• Test the GFCI breaker protecting the spa for proper operation. • Disconnect power to the spa. • Connect the Aquatic 2 cord to the mating connector(s) on the spa control box as described in the spa’s installation manual and the provided A2Z Ozone wiring diagram in Figure 2. -
Page 11: Wiring Diagram
Wiring Diagram This unit is shipped with the wiring as shown. 110V or 240V can be applied to the black and white wires. To match alignment of the white wire of the ozone generator connector with the controller box connector. Keep in mind, the white wire can be moved. Mount the unit so that the tube, light and wires are toward the ground. -
Page 12: Operating Instructions
Operating Instructions Please make sure water will not back into the Aquatic 2 Spa Ozone Generator. Water will damage the unit and void the warranty. Please check these: • Install the Aquatic 2 above water level and as high as possible. -
Page 13: Maintenance
• To ensure the highest degree of sanitation at all times, refer to the chart below. • Renew your spa ozone generator as needed with a renewal kit. • To keep your Aquatic 2 Spa Ozone Generator operating properly, please replace the air filter in the unit every month. -
Page 14: Troubleshooting
Troubleshooting Problem Possible Cause What to Do Unit and pump not operating Increase operating time (min. 6 hours long enough is recommended) Adjust total alkalinity between 8 and Total alkalinity not correct 150 ppm Check for proper pH between 7.2 and pH not correctly balanced Cloudy water condition even... -
Page 15: Warranty
The limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and sold by A2Z Ozone Systems or its authorized dealers. This limited warranty is given only to the first retail purchaser of such products and is not transferable to any subsequent owners or purchasers of such products. - Page 16 Phone ( ) ________________ Purchase/Product Info: Purchased Date: _______________________Date Installed____________________ Product Purchased: AQUATIC 2 SPA OZONE GENERATOR Comments / Questions: DO NOT FORGET TO CUT OUT, PLACE IN ENVELOPE AND MAIL TO THE FOLLOWING ADDRESS FOR INSTANT WARRANTY COVERAGE! A2Z Ozone Systems Inc.
