Thrane&Thrane SAILOR 6215 VHF DSC Installation Manual

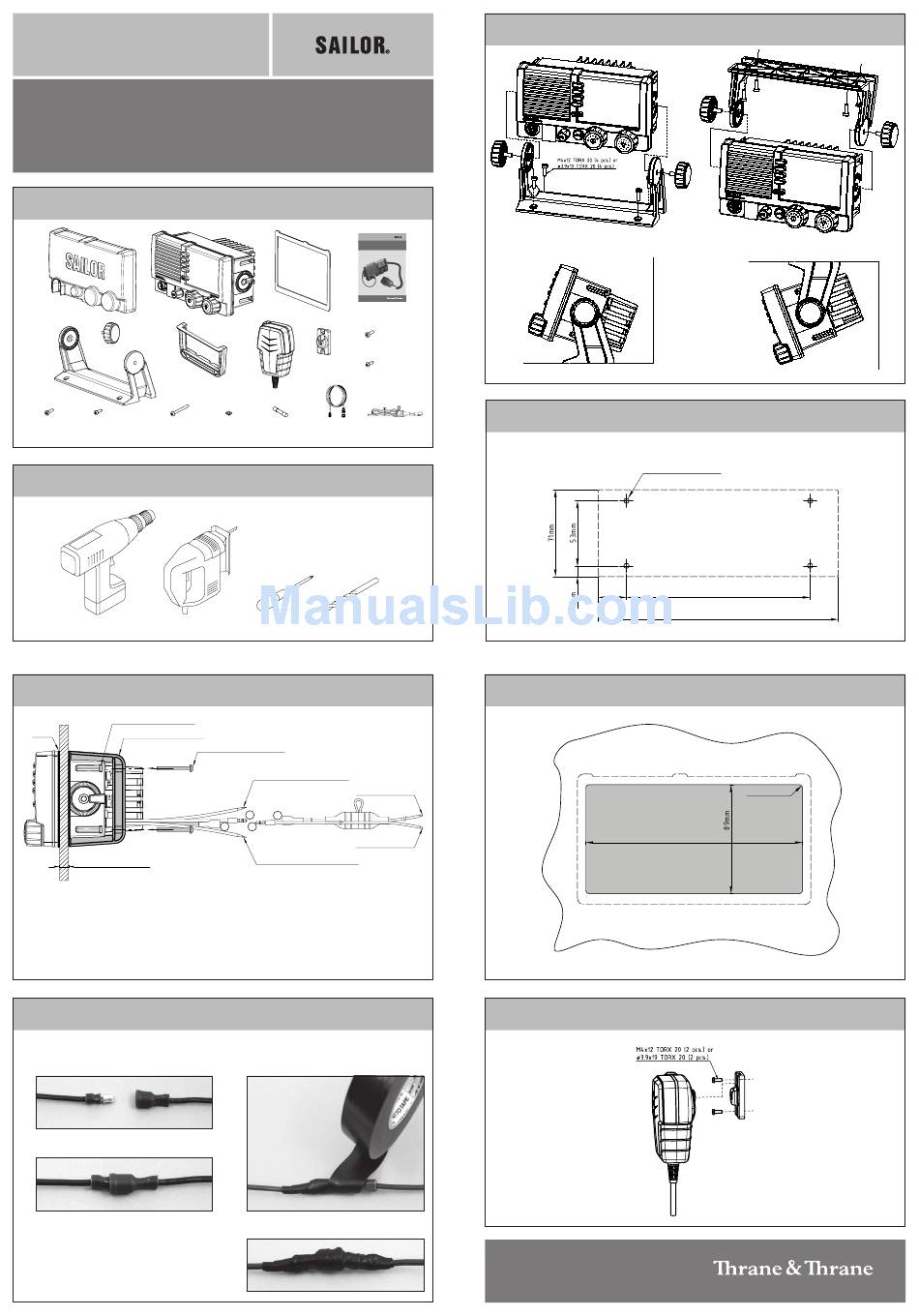

INSTALLATION GUIDE
SAILOR 6215/6216 VHF DSC
What's in the box?.....
Sun Screen Transceiver
Wheel Knob
(2 pcs.)
U-Mounting
Bracket
Flush Mount
Bracket (2 pcs.)
Screw M4x12 Screw ø3.9x19 Screw M4x45
TORX 20 (5 pcs.) TORX 20 (5 pcs.) TORX 20 (5 pcs.)

What do I need to fit it?.....

Power Drill Jigsaw

How to install the VHF flush mount.....

Square Nut M4x7x2.2 (4 pcs.)
Gasket Flush Mount Bracket (2 pcs.)
Max wall thickness 26mm
99-130248
Note! e! e! e! e! Not Not
Not Not
- Firmly tie back and secure any wires not used in order to
avoid possibility for mutual shorting or shorting to ground!
- To ensure waterproof sealing:
If the surface isn't plane and/or rigid remove the gasket and
seal with silicone sealant between the VHF and the surface.

Cable assembly for waterproof installation.....

Connect the 4 cable connections with rubber vulcanizing tape as shown .....
1.
2.
USER & INSTALLATION MANUAL
SAILOR 6215 VHF DSC
Gasket User & Installation
Manual
Screw M4x12
TORX 20 (3 pcs.)
Cradle
Screw ø3.9x19
TORX 20 (3 pcs.)
Handmicrophone
Square Nut Fuse Connection Cable,
M4x7x2.2 (5 pcs.) 6.3x3.2mm (10AT) 1 m
Screwdriver Drill for M4 or
TORX 20 Ø3.9 self-tapping
Screw M4x45 TORX 20 (4 pcs.)
Connect to LOUD HAILER
(RED isolation on inner connector)
Connect to POWER +
A A
B B
Connect to POWER -
Connect to EXT. SPEAKER
(WHITE isolation on inner connector)
3.
4.

How to install the VHF on desktop and overhead.....

Drilling plan.......on desktop and overhead.....
Power Cable
99-130249
Drilling plan.......flush mount.....
(RED wire)
(BLUE wire)
99-130250

How to install the handmicrophone cradle.....

Thrane & Thrane A/S • info@thrane.com • www.thrane.com
Tilting ±20°
4 x M4 or hole for
self-tapping ø3.9
23mm 150mm
196mm
R2.5mm x 4
177mm
Remove material from shaded area only!
TT98-128470-THR-F
