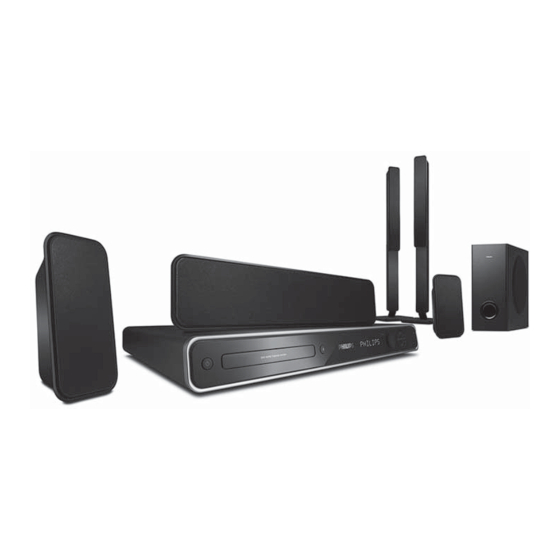

DVD Home Theater System
Service Manual
©
Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by
SL0910
Service Audio Printed in The Netherlands Subject to modification
Version 1.1
TABLE OF CONTENTS
Location of PCB Boards ............................................ 1-2
Versions Variation ...................................................... 1-2
Specifications ............................................................ 1-3
Measurement Setup .................................................. 1-4
Service Aids .............................................................. 1-5
ESD & Safety Instruction .......................................... 1-6
Lead-free soldering Information ................................ 1-7
Setting procedure & Repair Instructions........................ 2
Disassembly Instructions & Service positions .............. 3
Block & Wiring Diagram ................................................ 4
DISP+LED+VOL Board.................................................. 5
MAIN+Y.U.V Board ........................................................ 6
Power Board .................................................................. 7
MP3 IN+MIC Board........................................................ 8
Mechanical Exploded View & Part List .......................... 9
Revision List ................................................................ 10
HTS3276
Chapter
/98/93
GB
3141 785 33471

Advertisement

Table of Contents
loading

Related Manuals for Philips HTS3276/93

Summary of Contents for Philips HTS3276/93

  • Page 1 Revision List ..............10 © Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

  • Page 2: Location Of Pcb Boards

    1 - 2 LOCATION OF PCB BOARDS Y.U.V PCB MAIN PCB LED PCB DISPLAY PCB POWER PCB VOLUME PCB MP3 IN & MIC PCB VERSION VARIATION: Type/Versions HTS3276 Features Output Power - 420W Voltage (110~240V) MP3 LINK SERVICE SCNARIO MATRIX: Type/Versions HTS3276 Board in used...

  • Page 3: Specifications

    1 - 3 SPECIFICATIONS Playback media Speakers DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R DL, CD-R/ System ............full range satellite CD-RW, Audio CD, Video CD/SVCD, Picture CD, MP3-CD, Speaker impedance ..............WMA-CD, DivX-CD, USB ash drive ..... For HTS3276: 4 ohm (center), 8 ohm(Front/Rear) ..For HTS3371, HTS3378: 4 ohm(center), 4 ohm (Front/Rear) Amplifier Speaker drivers .................
  • Page 4 1 - 4 MEASUREMENT SETUP Tuner FM Bandpass LF Voltmeter 250Hz-15kHz e.g. PM2534 e.g. 7122 707 48001 RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Use Audio Signal Disc SBC429 4822 397 30184 (replaces test disc 3)
  • Page 5 1 - 5 SERVICE AIDS Service Tools: Universal Torx driver holder .........4822 395 91019 Torx bit T10 150mm ...........4822 395 50456 Torx driver set T6-T20 .........4822 395 50145 Torx driver T10 extended ........4822 395 50423 Compact Disc: SBC426/426A Test disc 5 + 5A ......4822 397 30096 SBC442 Audio Burn-in test disc 1kHz ....4822 397 30155 SBC429 Audio Signals disc .........4822 397 30184 Dolby Pro-logic Test Disc ........4822 395 10216...
  • Page 6 1 - 6...
  • Page 7 1 - 7...
  • Page 8 2 - 1 2 - 1 System , Region Code , etc. Setting Produre 1)System Reset a) Press “source” to select “FM”. b) In “FM” playback mode, press & hold “play/pause” button until a) Press “SETUP“ button on R/C,TV will show setup menu Grid 9”...
  • Page 9 2 - 2 2 - 2 REPAIR INSTRUCTIONS (ONE)
  • Page 10 2 - 3 2 - 3 REPAIR INSTRUCTIONS (TWO)
  • Page 11 2 - 4 2 - 4 REPAIR INSTRUCTIONS (THREE)
  • Page 12 3 - 1 3 - 1 DISASSEMBLY INSTRUCTIONS Dismantling of the Front Panel Assemble 3) Loosen 6 screws and remove the Top Cover by lifting the rear portion upwards before sliding it out towards the rear. - 1 screw “A” each on the left & right side as shown in gure 4. 1) Open the DVD Tray by using the Open/Close Button while the Set is ON and disconnect the mains supply after removing the Tray - 4 screws “B”...

  • Page 13: Service Positions

    3 - 2 3 - 2 Dismantling of the DISP+LED+VOL&MP3 IN Board SERVICE POSITIONS 1) Loosen 10 screws “E” on the top of DISP+LED+VOL&MP3 IN Board as shown in gure 8. Service position A Figure 8 Dismantling of the Power Board 1) Loosen 4 screws “F”...

  • Page 14: Block Diagram

    4 - 1 4 - 1 BLOCK DIAGRAM Sanyo / Sony pick up VF D Display AS A DVD Loader B+5V IC V 5888 V- CL K VF D DR IV ER V- CS V- DAT A PT6311 Loader motor driver KE Y 1080P 3.3V...
  • Page 15 4 - 2 4 - 2 WIRING DIAGRAM...

  • Page 16: Disp+Led+Vol Board

    5 - 1 5 - 1 FTD DISPLAY PIN ASSIGNMENT DISP+LED+VOL BOARD TABLE OF CONTENTS FTD Display Pin Assignment ............. 5-1 Circuit Diagram ................. 5-2 PCB Layout Top & Bottom View ............5-3 PIN CONNECTION...
  • Page 17 5 - 2 5 - 2 CIRCUIT DIAGRAM C380 B1 C384 C1 C387 A2 C390 B2 C395 C4 DP351 A2 Q351 C1 R3051 B1 R3054 B1 R3057 C1 R3060 C1 R3063 B1 R3068 A3 R3072 C1 RB351 C4 RB357 C1 TA351 A1 TA354 C1 ZD310 C1...
  • Page 18 5 - 3 5 - 3 PCB LAYOUT - TOP VIEW C386 C391 DP351 A2 ESD4 ESD6 J351 J353 J355 J357 J359 LD351 RB355 A1 RB357 B1 SN351 B3 TA352 TA354 VR351 A3 C389 C392 ESD1 ESD5 ESD7 J352 J354 J356 J358 J363...

  • Page 19: Table Of Contents

    6 - 1 6 - 1 INTERNAL IC DIAGRAM - TAS5508B Power Supply MCLK PWM_MPP and MR XTL_OUT PWM Section PWM_MPP and ML XTL_IN Soft Soft Loud Comp DRC Emph Interpolate SRC NS PWM Blquads Tone Block PWM AP and AM1 L Front PLL_FLTM PLL_FLTP Soft...

  • Page 20: Circuit Diagram(Part One)

    6 - 2 6 - 2 CIRCUIT DIAGRAM - part one C370 C1 C4009 B3 C4021 B4 C4031 A4 C4043 A4 C4068 D2 C409 B1 C421 B1 C434 D3 C447 D4 C460 D4 C471 B3 C484 C4 C497 B4 D411 D2 IC407 C1 L410 A4 R4029 D2...

  • Page 21: Circuit Diagram(Part Two)

    6 - 3 6 - 3 CIRCUIT DIAGRAM - part two C0201 C2 C0215 C2 C0237 D4 C0252 C4 C204 C219 C237 C601 C713 C736 C812 C828 C843 CE217 C2 CN202 C1 D205 FB212 C1 FB706 A3 IC206 D4 L204 Q206 Q805 R216...

  • Page 22: Circuit Diagram(Part Three)

    6 - 4 6 - 4 CIRCUIT DIAGRAM - part three C301 C319 C331 C343 C356 C503 C918 CE301 D2 CE311 D2 CE321 D2 CE346 A1 D303 FE306 D3 IC305 B2 Q903 D1 R309 R325 R338 R351 R361 R379 R503 R560 ZD901 D1 C305...

  • Page 23: Pcb Layout Top View

    6 - 5 6 - 5 PCB LAYOUT - TOP VIEW C0202 A2 C216 C317 C351 C4015 B4 C4081 C4 C457 C702 C801 C833 CN201 C2 FB206 B2 FB715 B1 IC309 B1 JK702 A4 L701 Q802 D1 R223 R258 R290 R322 R355 R4035 D3...

  • Page 24: Pcb Layout Bottom View

    6 - 6 6 - 6 PCB LAYOUT - BOTTOM VIEW C0201 C4 C0218 B3 C0241 A1 C206 C311 C4004 B1 C4041 A2 C413 C448 C485 C701 C837 CE204 D3 CE304 D4 CE318 C1 CE347 A3 D406 FB601 A3 Q207 B4 R351 R4031 A1 R418...

  • Page 25: Power Board

    7 - 1 7 - 1 INTERNAL IC DIAGRAM - AZ431 CATHODE POWER BOARD TABLE OF CONTENTS Internal IC Diagram ................7-1 ANODE Circuit Diagram .................. 7-2 PCB Layout Top View ............... 7-3 PCB Layout Bottom View ..............7-4...
  • Page 26 7 - 2 7 - 2 CIRCUIT DIAGRAM BD901 A1 C910 A1 C918 D2 C930 B2 C939 C3 C949 C3 C957 A3 C967 D2 CN903 C4 D908 A3 D917 B3 IC905 B3 L907 A4 Q910 B4 R903 C1 R914 D2 R922 A2 R932 B3 R940 A1...
  • Page 27 7 - 3 7 - 3 PCB LAYOUT - TOP VIEW BD901 A1 C907 C1 C916 A1 C921 A2 C946 A4 C955 B4 C961 D4 CN901 D1 D903 A3 D911 D2 F901 D1 IC905 B3 J904 J910 J915 L901 L906 Q907 A4 R918 A2 R926 B2...
  • Page 28 7 - 4 7 - 4 PCB LAYOUT - BOTTOM VIEW C941 A1 R953 A1 ZD905 A1 R912 A2 R983 A2 R939 A3 C950 B1 R944 B1 R937 B2 D919 B3 ZD908 B3 R933 C1 R969 C1 D916 C2 C909 C3 R922 C3 C958 D1 C937 D3...

  • Page 29: Mp3 In+Mic Board

    8 - 1 8 - 1 MP3 IN+MIC BOARD TABLE OF CONTENTS Circuit Diagram .................. 8-1 PCB Layout Top & Bottom View ............8-2...
  • Page 30 8 - 2 8 - 2 CIRCUIT DIAGRAM J360 J361 JK351 JK352 RB352 A1 RB353 A1 RB354 A2 USB351 A2 C383 USB 351 RB354 FB 355 USB5 V USB5 V USBM GN D FB 356 USBP USBM FB 357 USBP RB4/2 0 USB2 .0...
  • Page 31 8 - 3 8 - 3 PCB LAYOUT - TOP VIEW PCB LAYOUT - BOTTOM VIEW J360 J361 JK351 JK352 RB352 A1 RB353 A1 RB354 A2 USB351 A2 C383 A1 C393 A2 C394 A2 FB351 A2 FB352 A2 FB353 A2 FB354 A2 FB355 A1 FB356 A1 FB357 A1 R3079 B2 R3080 B2...
  • Page 32 9 - 1 9 - 1 Mechanical Exploded View A1=11+10+18 A2=30+34...
  • Page 33 9 - 2 9 - 2 Packing Exploded View Only for version /93 reference Video...
  • Page 34 996510020341 IC 8P D4558 SOP SILICORE D911 996510021223 DIODE PR2007 2A 1000V DO-15CTC 996510017572 TUNER PACK IC407 996500023948 IC 14PIN 74HCU04D PHILIPS TSOP D912 994000005249 DIODE SB360 3A 60V DO-201AD REAR PANEL SECC IC801 996510010380 Motor Drive IC D913 994000000943...
  • Page 35 IC406 996510020341 IC 8P D4558 SOP SILICORE SPKC 996510021206 SPEAKER BOX-CENTER D904 994000001571 DIODE FR107 1A 1000V IC407 996500023948 IC 14PIN 74HCU04D PHILIPS TSOP SPKFL 996510021201 SPEAKER BOX-FRONT LEFT D910 996510012516 DIODEHER105 DO-411A400V50nSFMS IC801 996510010380 Motor Drive IC SPKFR 996510021243...
  • Page 36 9 - 4 9 - 4 R925 996510021241 RESISTOR 0.22R 3W 5% MO ONLY FOR VERSION /93 R928 996510021232 RES. 56R 3W +/-5% MOF R954 996510021232 RES. 56R 3W +/-5% MOF T901 996510021236 TRASFO. EEL-25 7+7P 40W T902 996510021238 TRASFO. ERL-35 7+7P 150W L902 996510013922 LINE FILTER ET24...

  • Page 37: Revision List

    10 - 1 10 - 1 REVISION LIST Version 1.0 *Initial release Version 1.1 *In this version, the version /93 added, the Part List for /93 has been added.
