CCD Camera Products.
CCD Black-and-white Camera
IV 380X24A
Models
IV 3 8 0 4 24A
Operation Manual
Before operating the unit, Please read this manual thoroughly and retain it for future
reference.

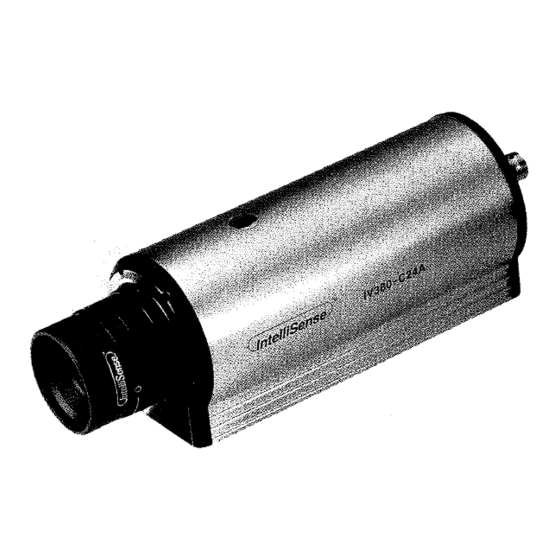

The Lens in the picture is not included.
CCIR)
(
EIA
(
1
)

Advertisement

Table of Contents
loading

Summary of Contents for IntelliSense IV 380X24A

  • Page 1 CCD Camera Products. CCD Black-and-white Camera IV 380X24A CCIR) Models IV 3 8 0 4 24A Operation Manual Before operating the unit, Please read this manual thoroughly and retain it for future reference. The Lens in the picture is not included.
  • Page 2 Features : There are two mounting holes provided for flexible installation. One on the top and the other one on the bottom. Resolution: This camera is using 1/3” CCD image Sensor with an effective 252K (EIA)/298K (CCIR) pixels. The camera can produce an image with a horizontal resolution of 380 TV lines.

  • Page 3: Accessories Provided

    Accessories Provided: The camera comes with the following: Miniature Plug for Auto Iris Lens angle wrench. C mount adaptor. Operation Manual. (b) 6 angle wrench ( c) C Mount adaptor (a) Miniature Plug Operation Procedure: Install a CS mount type lens to the camera. If a C mount type lens is used, please install the lens with the C mount adaptor (provided) to the camera.
  • Page 4 FUNDAMENTAL SYSTEM VIDEO IN MONITOR CAMERA The Auto Shutter Control Switch is set to " O N " position at the factory before the camera is shipped. With the Auto Shutter Control Switch is in the "OFF" position, adjust aperture of the lens to obtain the most desirable aperture setting. Please adjust the focus on the lens to obtain the best quality picture on the monitor.
  • Page 5 BACK FOCUS SCREW ADJUSTING The external synchronization (Line Lock) switch is set to “ON” position at rhe factory, The camera will synchronize to the zero crossing of incoming AC voltage, which is connected to the middle pin of the power connector. Please ensure that all the input AC voltage connection of the camera are on the same phase.

  • Page 6: Auto Iris Lens

    IRIS TERMINAL COVER D C DRIVE VIDEO DRIVE (DMP- ) CONTROL - (DMP+) CONTROL+ VIDEO DRIVE + DRIVE - G N D PLUG Connect the Plug of the Lens to the Iris terminal on the back of the camera. VIDEO OUTPUT VIDEO LEVEL ADJUSTOR CONTROL (DMP...

  • Page 7: Front View

    COLLECTIVE SURVEILLANCE SYSTEM COLLECTIVE SURVEILLANCE SYSTEM DIMENSIONS FRONT VIEW END VIEW...

  • Page 8: Specifications

    Specifications: IV 3 80-E24A IV 380-C24A CCD Sensor 1/3" 1/3" Total Number of 542 (H) X 492 (V) (€3) X 582 (V) Pixels Number of Effective 5 12 (H) X 582 (V) 492 (V) 5 12 (H) Pixels 6.4mm (H) X Chip Size 6.4mm (H) X 5.24mrn (V)
