Charter UR4U-MDVR-CHD2 Operating Instructions

1
Introduction
Operating Instructions
This remote control is designed to operate all
For 4-Function
Motorola and Scientific Atlanta digital set top
boxes (including HD and DVR), plus the
Cable Remote Control
majority of TVs, VCRs, DVDs and AUDIO
equipment on the market as shown below.
CABLE : Cable Converters
DVD : DVDs, TV/DVDs, VCRs and TV/VCRs
UR4U-MDVR-CHD2
AUX : Audio Receivers and DVRs, etc.
2
Replacing Batteries
Before you program or operate this remote
control, you must first install two new AA Alkaline
batteries.
STEP1 Remove the battery compartment cover
on the back of your remote control.
STEP2 Check battery polarity carefully, and
install the batteries as shown in the
illustration below.
STEP3 Replace the battery compartment cover.
3
Operations
DEFAULT STATUS:
Component Default: CABLE
Channel Default: CABLE channel +/- and
numbers operate through the CABLE box.
You have the option of controlling channel +/-
and numbers through the TV, VCR or DVD.
Refer to section H for programming steps.
Volume Default: CABLE volume +/- and mute
operate through the TV. You have the option
Universal Remote Control, Inc.
of controlling volume through the Cable box,
VCR or DVD. Refer to section I for
www.universalremote.com
OCE-0053A REV 22(01/10/13) programming steps.
4

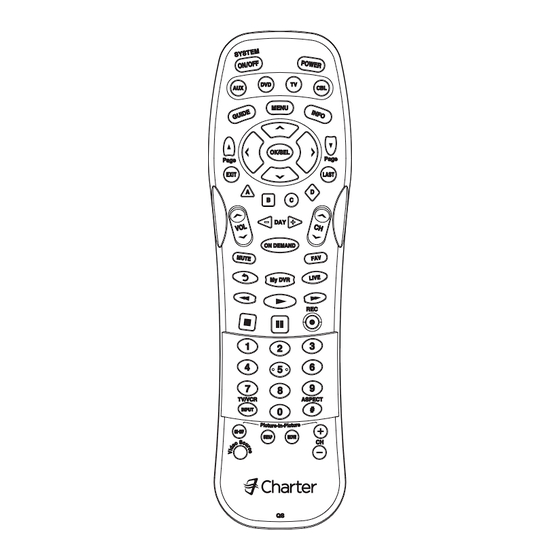

Button Functions
G
TV : Televisions
5
Programming the Remote Control
There are three ways you can program your remote control:
* Quick Set-Up Method
* The Pre-Programm rogrammed 3-Digit Code Method
* The Auto-Search Method
The Quick Set-Up Method is a unique new feature that enables the fastest and easiest set-up by using
one-digit codes for up to 10 major brands for each component.
The Pre-Programmed Code Method allows you to setup all the buttons at once by entering 3-digit code
numbers that correspond to a particular Component's manufacturer/brand, so it's the fastest and
easiest of the two methods. (Code Tables are on the backside of this Instruction Sheet.) The Auto-
Search Method scans through all the codes in the remote control, one at a time.
IMPORTANT SETUP NOTES:
This pertains to all programming steps. When you are in setup mode in each component, a component
LED will light up for 30 seconds. If you do not press a button within 30 seconds, the LED light will turn off
and exit setup mode and you will need to start over.
When programming a combo unit, program as a VCR or DVD first.
A. Quick Set-Up Method for 30 seconds indicating the unit is
ready to be programmed.
STEP1 Turn on the component you want to
STEP3 Point the remote control toward the
program. To program your TV, turn on the TV.
Component and enter the 3-digit code
STEP2 Point the remote control at the
number assigned to your brand.
component.
*Note : If the 3-digit code number you just
STEP3 Press and hold the [DEVICE] key for 5
entered is correct, the Component will
seconds until the Device LED will blink
turn Off. If it did not turn Off, continue
once and stays on. Continue to hold the
entering code numbers listed for that
[DEVICE] key and press the number key
brand until the Component turns Off.
assigned to your brand in the Quick Set-
up Code Table. The component should STEP4 After you've entered the correct code
turn off as soon as the number key is number and the Component has turned
pressed. (If it does not turn off, release Off, press the [POWER] button to turn
the [DEVICE] key and use the Pre- the Component back On. Now it's time
Programmed 3-Digit code Method or
to test the VOLUME and MUTE buttons
Scanning Method.)
for the TV (or PLAY and STOP buttons
for VCR and DVD) to make sure they all
STEP4 Release the [DEVICE] key to save the
work. If any of the functions do not
code. The Device LED will blink twice to
work as they should, repeat from STEP
confirm that the code is stored.
3 using the next 3-digit code number
Repeat the steps above for all components (TV,
listed for that brand.
DVD, AUX).
STEP5 Once you have found the correct 3-
digit code, save it by pressing the same
B. Quick Set-up Code Tables
[COMPONENT] button one more time.
TV
The Component LED light will blink
Quick Number Manufacturer/Brand twice to confirm that the code was
successfully stored.
0 SANYO
1 SONY
2 SAMSUNG Now, program the rest of your Components by
3 LG
repeating STEPS 1-5.
4 TOSHIBA
5 PANASONIC
*Note : If the Pre-Programmed Method did
6 PHILIPS
7 HITACHI not work, or if the Code Tables do not
8 SHARP
list your Component brand, use the
9 VIZIO
Auto-Search Method as explained in
DVD
Section D.
Quick Number Manufacturer/Brand
D. Auto-Search Method
0 HITACHI
1 SONY
2 PHILIPS
STEP1 Turn on the Component you want to
3 SAMSUNG
program (TV, VCR, DVD or AUX).
4 PHILIPS MAGNAVOX
5 PANASONIC
STEP2 Press the [COMPONENT] button (TV,
6 LG
7 JVC
DVD or AUX) to be programmed and
8 DENON
[OK/SEL] button simultaneously for 3
9 PIONEER
seconds. The Component LED will light
AUX
for 30 seconds indicating the unit is
Quick Number Manufacturer/Brand
ready to be programmed.
0 BOSE
1 HP STEP3 Point the remote toward the
2 APPLE/iPod
Component and press the [CH5] or
3 APPLE/iPod
[CH6] button one step at a time or
4 MICROSOFT / XBOX
5 SONY / PS2
keep it pressed. The remote will emit a
6 LUTRON
series of ON/OFF commands. Release
7 X-10
8 ZINWELL
the [CH5] or [CH6] button as soon as
9 MICROSOFT / XBOX
the Component turns Off.
C. Pre-Programmed 3-Digit Code Method
STEP4 Test functions. (Same as for 3-Digit Code
STEP1 Turn on the Component you want to Programming Method - Section C). If any
program (TV, VCR, DVD or AUX) . of the functions do not work as they
should, repeat from STEP 3 using [CH5]
STEP2 Press the [COMPONENT] button (TV,
or [CH6] buttons to find the correct code.
DVD or AUX) to be programmed and
[OK/SEL] button simultaneously for 3
STEP5 Save the code. (Same as for 3-Digit Code
seconds. The Component LED will light
Programming Method - Section C).
Now, repeat the Auto-Search Method for those
G. Programming the System On/Off Button
Components you could not program earlier with the
This allows you to program the System On/Off button
Pre-Programmed Method.
so it can send up to four power On/Off commands
E. Finding a Component Button's
with one button press.
Setup Code Number
STEP1 Press the [CBL] button.
If you used the Auto-Search Method to program a STEP2 Press the [SYSTEM ON/OFF] button and the
Component, you may not know what the correct code [OK/SEL] button simultaneously for 3
number is. Here is a way for you to identify the code seconds. The [CBL] Component LED will
number, so you can record it for future reference. light for 30 seconds.
STEP1 Press the [COMPONENT] button (TV, DVD or STEP3 Press the first [COMPONENT] button you
AUX) you want to verify and the [OK/SEL]
want to store in the [SYSTEM ON/OFF]
button simultaneously for 3 seconds. The button and then the [POWER] button.
Component LED will light for 30 seconds. Repeat this for other Components until you
have stored all the desired power
STEP2 Press the [INFO] button and count the
commands into the [SYSTEM ON/OFF]
number of times the Component LED light
button.
blinks. This number indicates the first digit
of the code, followed by the second and
STEP4 Press the [CH5] button to save the power
third, each separated by a one second
commands you stored. The [CBL] button
pause when the LED will turn off. will blink twice to confirm the commands
have been saved.
*Note : 10 blinks represents the number zero.
H. Programming Channel Control
Example : One blink, (pause), eight blinks, (pause) and
three blinks, indicates code number 183.
You can program the channel controls (Channel Up,
F. AUX Function: Programming a 4 th
Channel Down, Last and Numbers) from one
Component to operate in another Component mode.
Component
Default channel control settings on the remote control
are as follows:
You can take advantage of the AUX function to
program a 4 th Component such as a second TV, VCR,
CBL : CBL T V : CBL
DVD or Audio Component.
DVD : DVD AUX : AUX
STEP1 Turn on the 4 th Component you want to
If you wish to operate the TV channel control in TV
program (TV, VCR, DVD or Audio).
mode, use the following steps.
STEP2 Press the [AUX] button and the [OK/SEL]
STEP1 Press the [TV] button and the [OK/SEL]
button simultaneously for 3 seconds.The
button simultaneously for 3 seconds. The
[AUX] Component LED will light for 30
[TV] Component LED will light for 30 seconds.
seconds.
STEP2 Press the [VOL6] button.
STEP3 Press the [COMPONENT] button you want
STEP3 Press the [TV] button again.
to setup. Point the remote control toward
The Component LED will blink twice to
the Component and enter the 3-digit code
confirm the programming.
number assigned to your brand.
To return to original state:
*Note : If the 3-digit code number you just entered is
If you wish to restore the CABLE channel control in
the correct number, the Component will turn TV mode, repeat the above steps but press [CBL]
Off. If it did not turn Off, continue entering
in STEP3.
code numbers listed for that brand until the
I. Programming Volume Control
Component turns Off.
You can program the volume controls (Volume Up,
STEP4 Test functions. (Same as for 3-Digit Code
Volume Down and Mute) from one Component to
Programming Method - Section C). If
operate in another Component mode. Default volume
any of the functions do not work as they
control settings on the remote control are as follows:
should, you need to find a new code.
CBL : TV T V : TV
STEP5 Once you have found the correct 3-digit
DVD : TV AUX : AUX
code, save it by pressing the [AUX] button
If you wish to operate the CBL volume control in
one more time. The Component LED light
CBL mode, use the following steps.
will blink twice to confirm the code was
STEP1 Press the [CBL] button and the [OK/SEL]
stored. Now when you press the AUX
button simultaneously for 3 seconds. The
button, all the buttons will work with that 4 th
[CBL] Component LED will light for 30
Component.
seconds.
