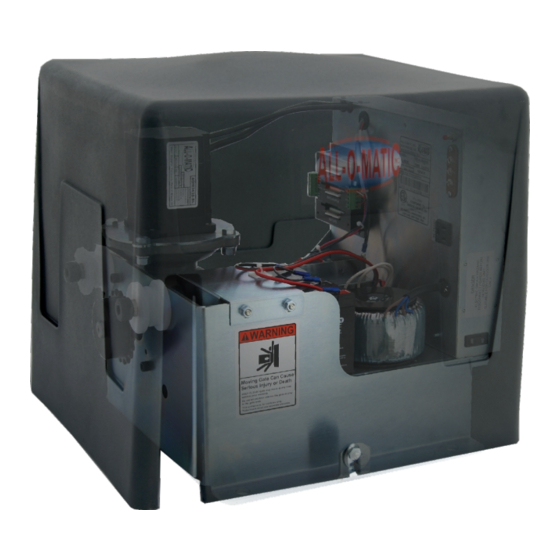

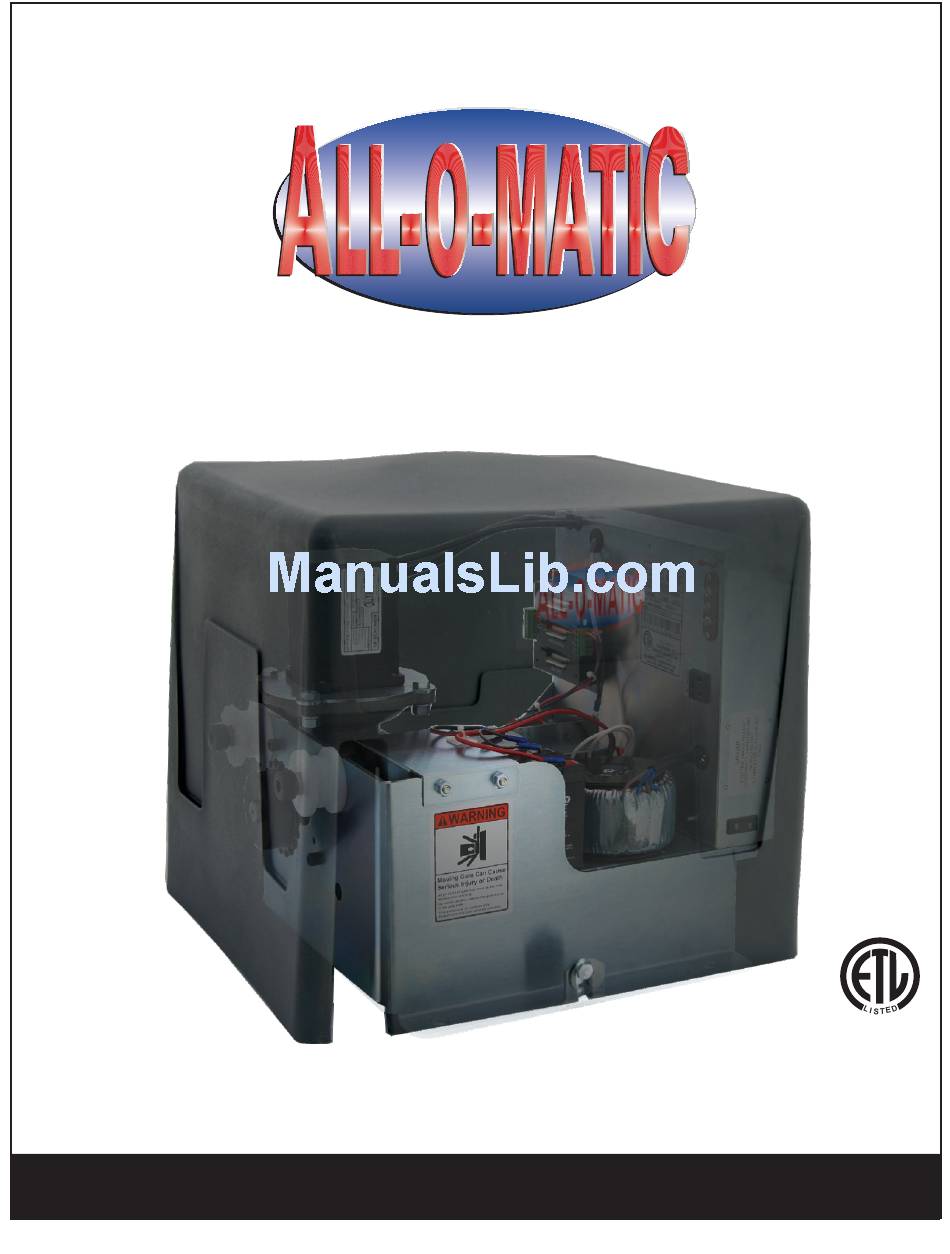

- Page 1 ® ® Pending UL325 compliant UL991 WWW.ALLOMATIC.NET compliant SL-90DC Installation Manual Copyright © 2008 all-o-matic inc. www.allomatic.net...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important safety instructions ............. 2 Different UL 325 class types............3&4 Concrete pad installation..............Different installation types (front & rear mounts)......Gate travel adjustment..............Directional settings................Electrical power connection.............. Typical loop layout..............10&11 Accessory connections..............Multiple safety device connection........... Plugin loop detector installation............ -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of injury: READ THE FOLLOWING DIRECTIONS. DO NOT EVEN THINK OF STARTING UNTIL YOU HAVE READ AND UNDERSTAND THESE DIRECTIONS. IF THERE IS SOMETHING YOU DO NOT UNDERSTAND CALL US. Never let children operate or play with gate controls. Keep the remote control away from children. - Page 4 INSTALL THE GATE OPERATOR ONLY WHEN YOU HAVE READ THE FOLLOWING: *Confirm that the gate operator being installed is appropriate for the application. *Confirm that the gate is designed and built according to current published industry standards. *Confirm that all appropriate safety features and safety accessory devices are being incorporated, including both primary and secondary entrapment protection devices.
-
Page 5: Different Ul 325 Class Types
DIFFERENT UL 325 CLASS TYPES Class one: Residential A vehicle gate operator intended for use at a home of one to four single family dwellings, garages or parking area. Class Two: Commercial or General Public Access A vehicular gate operator intended for use at a commercial location or building such as a multi-family housing unit (five or more single family units), hotel, garages, retail stores, other buildings servicing the general public. -
Page 6: 3&4 Concrete Pad Installation
CONCRETE PAD PLACEMENT SL-90DC GATE TRACK GATE TRACK GATE FOOTING 10” Minimum 5” RED HEAD BOLTS Operator plastic cover FOUR PLACES ½”X 3 ½” 18” ½” 24” Operator concrete pad Operator frame 13 ½” 15” 24” Area for conduit(s) Total cover higth... -
Page 7: Different Installation Types (Front & Rear Mounts)
A front mount installation and chain layout Gate in open position Gate closed Operator footing Gate operator Track footing Overhead View DRIVEWAY Track footing Operator footing Rear mount installation and chain layout Gate in open position Gate closed Track footing See blow out below Gate operator Operator footing... -
Page 8: Gate Travel Adjustment
GATE TRAVEL ADJUSTMENT SL-90DC Locate limit switches Step 1: Stop the gate operator using the three button station on the board. Step 2: Push limit lock plate down. Turn limit nut in the desired direction. Step 3: Place limit plate to its locked position. -
Page 9: Directional Settings
OPENING DIRECTION SETTINGS OPEN L/R dipswitch to change the opening direction on the operator. for left hand opening, for right hand opening. 2491 2491 LED’s will show opening or closing directions when gate is running. 1002 LEFT HAND RIGHT HAND Opening Opening Right hand and left hand opening is from behind the operator. -
Page 10: Electrical Power Connection
ELECTRICAL CONNECTION OPERATORS MUST BE PROPERLY GROUNDED! 120 Volt Electrical Plug. NOTE: When applying 230V to operator make sure voltage switch is flipped to 230V Control Box position. GRD LINE 1 LINE 2 Power connection | 115VAC | 220VAC Single Phase LINE 1 115V HOT 220V LINE 1... -
Page 11: Typical Loop Layout
TYPICAL LOOP LAYOUT 8 FT SAFETY LOOP WIRED IN SERIES GATE TRACK 1/4 IN 1/4 IN GATE SAFETY LOOP GATE OPERATOR TWISTED 6 TURNS PER FOOT EXIT LOOP WHEN USED This is a normal loop layout. Remember when connecting to an All-O-Matic normally closed contacts circuit board you use the for your safety loop... - Page 12 GENERAL LOOP INSTALLATION GUIDELINES The following loop installation guidelines are for installing typical driveway loops for access control applications (i.e. parking gates, sliding gates, swing gates etc...) Always consult withl loop detector manufacturers for specific equipment guidelines. This will confirm that the proper configuration and installation techniques are properly applied for your application.
-
Page 13: Accessory Connections
ACCESSORY CONNECTIONS The circuit board 12 or 24VDC output provides up to mAmps of power for accessories. More than two or three accessories will require a separate power supply. NOTE: 12 or 24VDC Accessories only. Remove wire jumper from SAFETY when See page 14 for plugin loop a safety device is... -
Page 14: Multiple Safety Device Connection
MULTIPLE SAFETY DEVICES CONNECTIONS Multiple SAFETY devices installed together must be connected in series . “ ” Locate the white loop rack safety wire and connect with common wire of second device. Dry contact (N.C.) from second device goes to SAFETY the circuit board B efore installing the accessory devices, remove the wire... -
Page 15: Plugin Loop Detector Installation
® LPR-1 LOOP RACK INATALLATION This is a typical loop configuration for a gated driveway. Remember when connecting to an All-O-Matic circuit board the safety (reverse) uses normally closed contacts from the loop detector, the wire jumper from the safety connector needs to be removed when a safety loop is inatalled. -
Page 16: Three Button Station System Installation
THREE BUTTON STATION SYSTEM See push button connections below. 1210 1001 1001 1001 1001 2262 476E 476E 1001 0022 4021 A three button station was integrated on the board to make adjustments 1002 1002 1002 1002 1002 1002 1002 1002 1002 easier when setting limit switches and adjusting ERDs. -
Page 17: Leading Edge Installation
LEADING EDGE CONNECTION wire to 12VDC BLACK wire to COMMON LEADING EDGE SENSOR Connect one of the wires from leading edge and/or one of the grey wires from a wireless edge receiver to COMMON connector on control board. Connect the other wire from leading edge and/or the other wire from a wireless edge receiver to EDGE connector on control board. -
Page 18: Master/Slave Connection
MASTER/SLAVE CONNECTION Before connecting master/slave gate operators together, test and adjust limit switches and the ERDs for each operator as “stand alone” machines. All accessories must be installed on the master board, no exception. See page 22 for dip switch settings. Use a two wire shielded cable and run it through a UL listed conduit for master/slave connection. -
Page 19: Magnetic/Solenoid Lock Installation
MAGNETIC/SOLENOID LOCK CONNECTIONS Magnetic lock installation requires a step down transformer with appropriate voltage for the specific lock accessory. Operator will provide a 120VAC outlet for the step down transformer. Connections: Plug the lock device transformer to the 120VAC outlet plug. For Magnetic lock: Connect one wire from transformer directly to one wire of the magnetic lock, the other wire from transformer will be connected to the relay plug input and the... -
Page 20: Radio Receiver Hookup
RADIO RECEIVER CONNECTIONS 4 wire receiver: connect the two relay wires to & terminals. Black negative wire to terminal and Red positive wire to terminal receiver strip outside control box as shown below. 1001 0022 ATMEL ATMEGA168 20AU 0743 72CB74K Ls14 4750 1001... -
Page 21: Open And Close Electronic Reversing Sensor(Erds) Adjustment
OPEN AND CLOSE ELECTRONIC REVERSING SENSOR(ERDs) ADJUSTMENT Open and Close ERD I0615 6040 1212 3002 SENSITIVITY F260 1212 DR127-330 1131 43CL07 E 9531 4750 1001 HFK. 2491 Coilcraft 1001 90R9 Coilcraft 2491 360G 10R0 1000 1332 2001 1501 72CB74K Ls14 1001 1501 1501... -
Page 22: Timer Adjustment
TIMER ADJUSTMENT TIMER ON: Timer to close, can be set from 1 to 60 seconds. TIMER OFF: Gate operation is push button to open, push button to close. TO OVERRIDE THE TIMER: Turn the RADIO switch to the “ON” position. This will allow the radio receiver to close the gate before the timer. -
Page 23: Dip Switch Functions
DIP SWITCH FUNCTIONS TIMER TIMER switch “ON” activates the TIMER. See page 21 TIMER for details RADIO RADIO RADIO switch “ON” allows the radio receiver to override FAIL SF/SC the timer. See page 21 for details. 1-PASS SLAVE OSC switch “ON” allows the radio receiver to stop and AUTO OPEN reverse the gate in any direction. -
Page 24: Solar Panel Installation
SOLAR PANEL CONNECTION The solar panel input will take a 12VDC panel or two 12VDC panels wired in sires to make 24VDC . The charging circuit is limited by 1 Amp max. NOTE: For information on what solar panel to use on any other type of installation call ALL O MATIC for Assistance. -
Page 25: Led Diagnostics
LED DIAGNOSTICS AC/PWR ON: Will be lit when AC power is ON. M/S LINK: Will be lit when master/slave communication is active. ALARM: Two states. 1st state: LED will blink(horn will beep also) every 30 seconds when battery is low, bad or disconnected. -
Page 26: Emergency Release
EMERGENCY RELEASE Procedures to open gate for SL-90DC 1. Turn power OFF. 2. Our gear box has a 15 to 1 ratio so it allows you to push gate open when set in fail safe mode. ®...
