WARNING: DO NOT
connect the RCA plugs of the "Y" Cable Adapter to a speaker
output on the audio source. If you use the speaker output of an audio source to
connect the transmitter, you will permanently damage the transmitter. It is designed
to work with RCA-type line/variable outputs or headphone outputs only.
Note: For more information on hooking up and using the transmitter with various
ouputs, please see
MORE HELPFUL INFORMATION
beginning on Page 7.

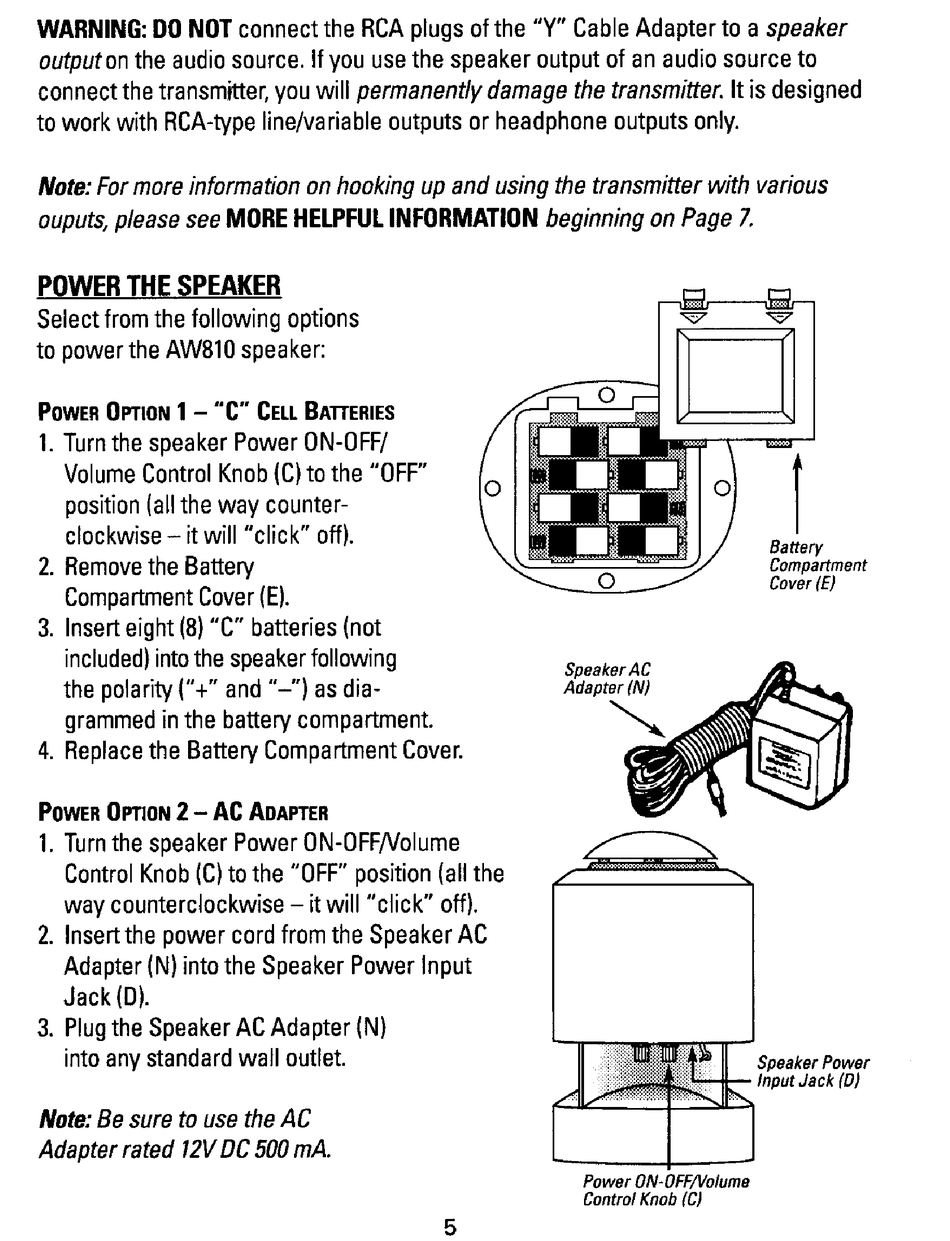

POWER THE SPEAKER
Select from the following options
to power the AW810 speaker:
1
Battery
Compartment
Cover IE)
Speaker Power
;;....+-Input Jack (0)
SpeakerAC
Adapter IN)
~
Note: Be sure to use the AC
Adapter rated 12V DC 500 mA.
POWER OPTION
1 - "C"
CELL BATTERIES
1. Turn the speaker Power ON-OFF!
Volume Control Knob (C) to the "OFF"
position (all the way counter-
clockwise - it will "click" off).
2. Remove the Battery
Compartment Cover (E).
3. Insert eight (8) "C" batteries (not
included) into the speaker following
the polarity
("+"
and "-") as dia-
grammed in the battery compartment.
4. Replace the Battery Compartment Cover.
POWER OPTION
2 -
AC ADAPTER
1. Turn the speaker Power ON-OFFNolume
Control Knob (C) to the "OFF" position (all the
way counterclockwise - it will "click" off).
2. Insert the power cord from the Speaker AC
Adapter (N) into the Speaker Power Input
Jack (0).
3. Plug the Speaker AC Adapter (N)
into any standard wall outlet.
Power ON-OFF/Volume
Control Knob IC)
5
