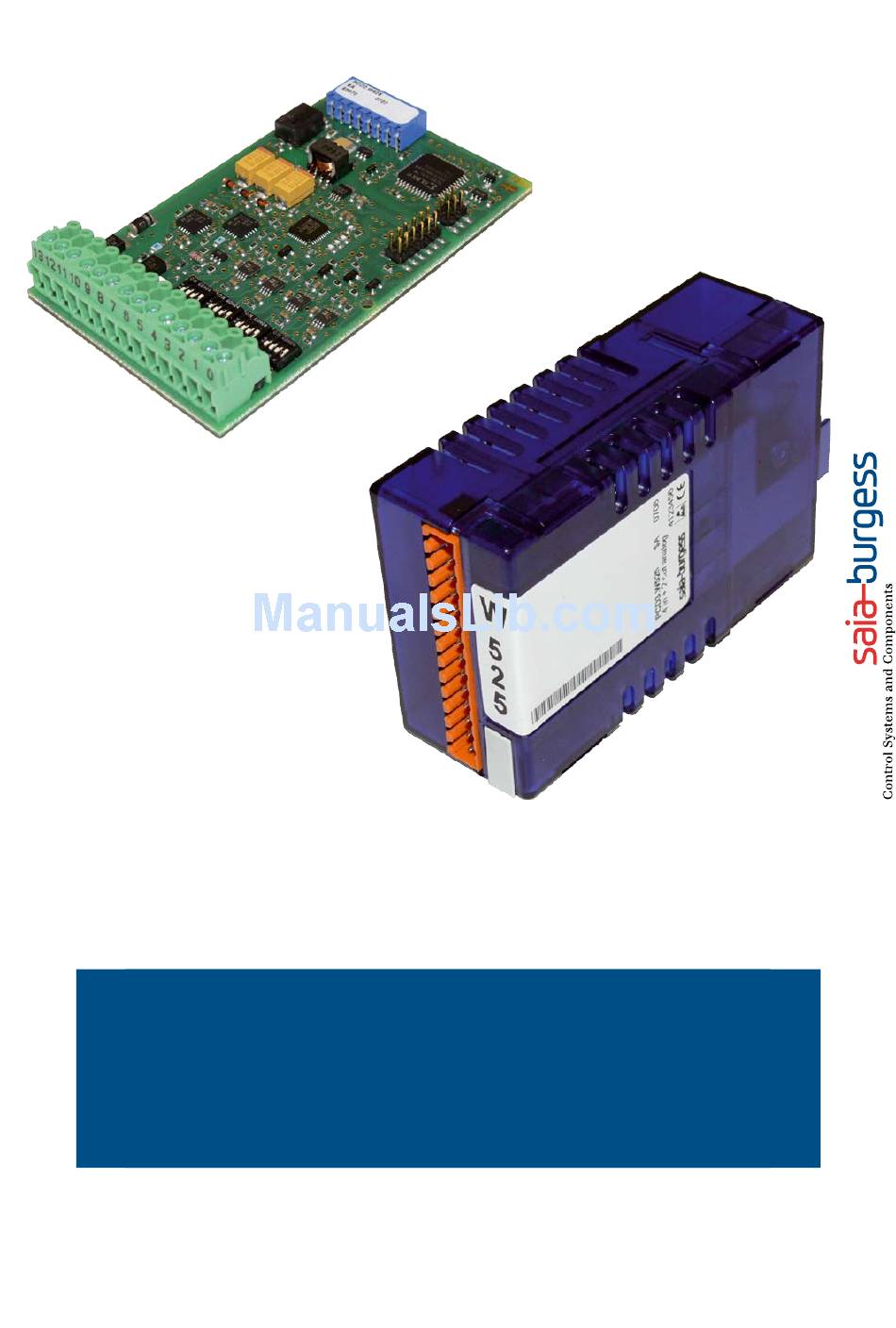

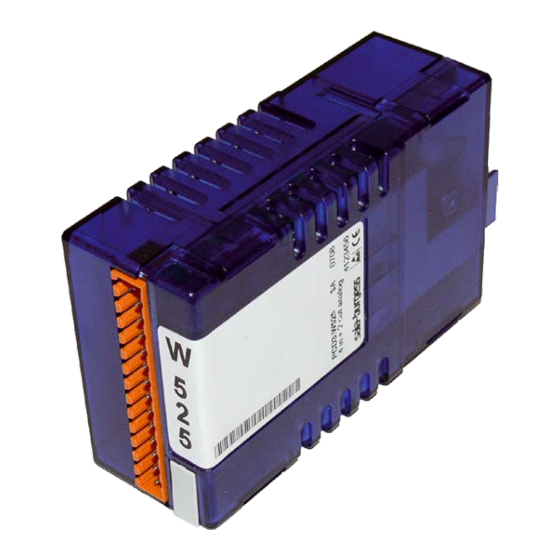

- Page 1 Hardware Manual PCD2.W525 | PCD3.W525 Controls Division Document-No. 26-853 | Edition E 2 | 2008-01-18...
-
Page 2: Table Of Contents
1.2.3 How to configure the outputs ................ 1-2 Function ......................1-2 1.3.1 Power Supply ....................1-2 1.3.2 Timing ......................1-3 1.3.3 Filter ......................1-3 Technical Data ....................1-4 Appendix Icons ....................... A-1 Address ......................A-2 Manual PCD2.W525&PCD3.W525│Document 26/853; Edition E2│2008-01-18... -
Page 3: Document History
A few changes to pE1 2007-11-15 Chapter PCD3.W525 pluggable terminal: 2008-01-18 wrong ordering number replaced Trademarks PCD are registered trademarks of Saia-Burgess Controls AG Saia ® and Saia ® Technical modifications and changes are subject to the state of technology Saia-Burgess Controls AG, 2007. -
Page 4: Hardware
4 … 20 mA, resolution 4.88 μA per LSB (11.7 Bit) ○ High impedance Miscellaneous ● All I/O-Channels are galvanically isolated to the PCD and external power sup- ply. (But all channels are galvanically connected to each other.) ● Every channel has two connection terminals. Manual PCD2.W525&PCD3.W525│Document 26/853; Edition E2│2008-01-18... -
Page 5: Configuration
1.3.1 Power Supply PCD2.W525 / PCD3.W525 has to be supplied externally! This power supply is gal- vanically isolated to both, the PCD and the I/Os of W525. Furthermore, the design allows using the same power supply for the PCD and for W525 without loosing the galvanic isolation. -
Page 6: Timing
In case of use of a 50 Hz (60 Hz) filter, the notch filter frequency is 50 Hz (60 Hz); the delay remains the mentioned 2ms. ● Outputs There is only the hardware based filter with a time constant of 1 ms, which is active Manual PCD2.W525&PCD3.W525│Document 26/853; Edition E2│2008-01-18... -
Page 7: Technical Data
± 70 ppm/°C. Over current protection: short circuit protected Time constant of filter: 1 ms Voltage mode: Max. load to guarantee specified accuracy: > 700 Ω Resolution range 0 … 10 V: 12 Bit; 2.44 mV per LSB Manual PCD2.W525&PCD3.W525│Document 26/853; Edition E2│2008-01-18... - Page 8 Power consumption: max. 2.5 W (depends on output load) Terminal: Pluggable 14-pole screw terminal PCD2 (PCD2.W525; O no. 4 405 5002 0, will be delivered with the module), both for wires up to 1,5 mm² Pluggable 14-pole cage clamp terminal PCD3 (PCD3.W525;...
-
Page 9: A Appendix
This sign accompanies instructions that must always be followed. Explanations beside this sign are valid only for the Saia-Burgess PCD Classic series. Explanations beside this sign are valid only for the Saia-Burgess PCD xx7 series. Manual PCD2.W525&PCD3.W525│Document 26/853; Edition E2│2008-01-18... -
Page 10: Address
Appendix Saia-Burgess Controls AG Address Address Saia-Burgess Controls Ltd. Bahnhofstrasse 18 CH-3280 Murten / Switzerland Telephone ++41 26 672 71 11 Telefax ++41 26 672 74 99 E-mail: pcd@saia-burgess.com Homepage: www.start-controls.com Support: www.sbc-support.ch Manual PCD2.W525&PCD3.W525│Document 26/853; Edition E2│2008-01-18...
