GW Security 55 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

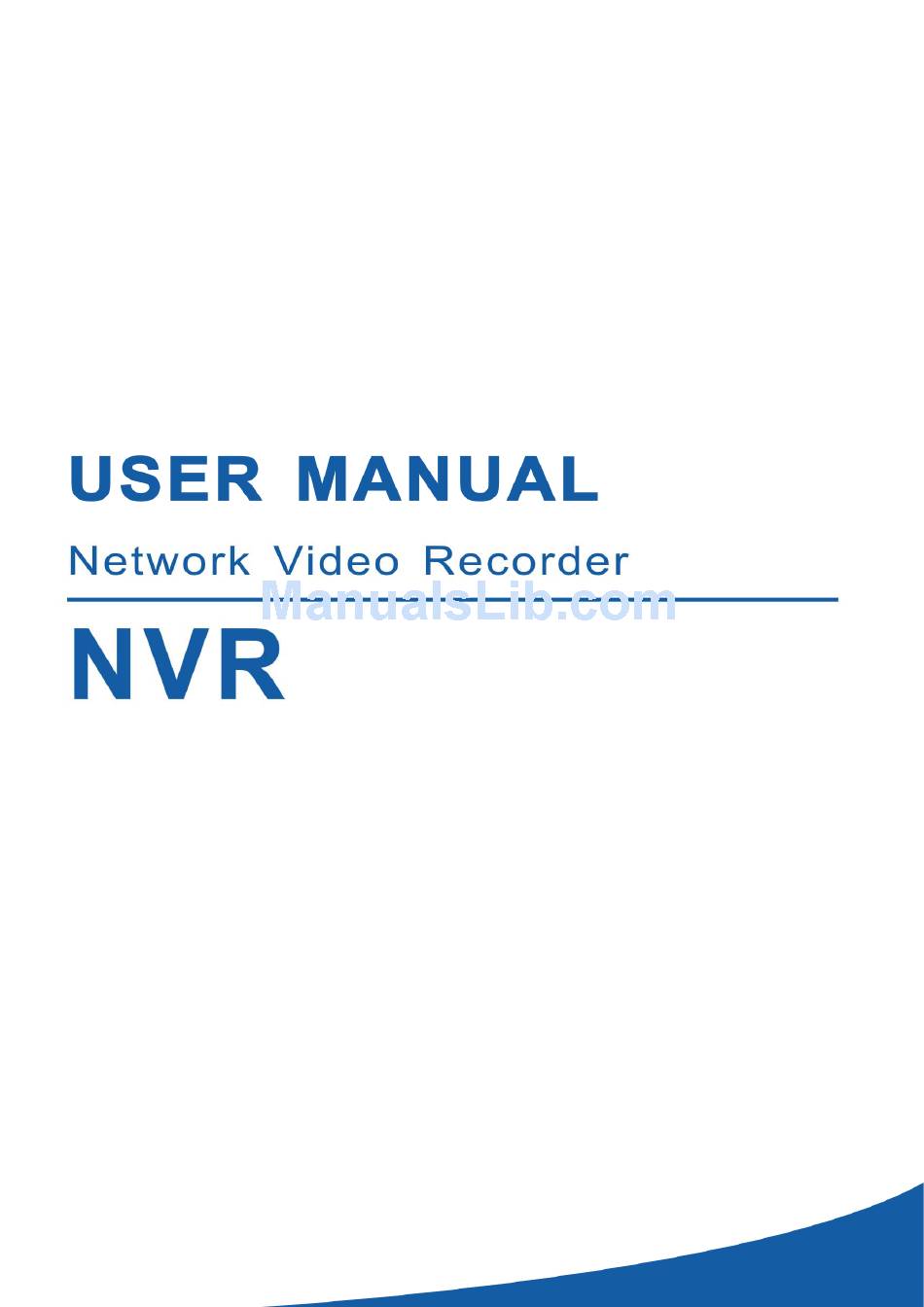

USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GW Security 55 Series

Summary of Contents for GW Security 55 Series

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    USER MANUAL Contents SAFETY INSTRUCTION....................5 CHAPTER 1 OVERVIEW OF NVR................6 1.1 R ......................6 ANEL 1.2 R )..........7 EMOTE ONTROLLER OR REFERENCE ONLY CHAPTER 2 NVR CONNECTION................8 2.1 HDD I NSTALLATION ....................8 2.2 IP C AMERA AND ONITOR ONNECTION ...............8...
  • Page 3 USER MANUAL 5.3.2 Record Schedule..................27 5.3.3 Mainstream....................28 5.3.4 Substream.....................29 5.3.5 Mobilestream....................30 5.4 N ......................31 ETWORK 5.4.1 Network......................31 5.4.2 Switch......................32 5.4.3 Email......................33 5.4.4 Email Schedule.................... 34 5.4.5 DDNS......................34 5.4.6 RTSP......................35 5.4.7 FTP........................ 36 5.5 A ........................
  • Page 4 USER MANUAL 5.8.5 Info......................... 60 5.8.6 Log......................... 61 5.9 A ......................62 DVANCED 5.9.1 Maintain......................62 5.9.2 Events......................63 5.10 I ......................64 NTELLIGENT 5.10.1 Schedule..................... 64 5.10.2 PID(Perimeter Intrusion Detection)............65 5.10.3 LCD(Line Crossing Detection)..............67 5.10.4 SOD(Stationary Object Detection)............70 5.10.5 PD(Pedestrian Detection)................ 72 5.10.6 FD(Face Detection)...................74 5.10.7 CC(Cross-Counting)..................76 5.10.8 View Log of Intelligent Analysis...............

  • Page 5: Safety Instruction

    USER MANUAL SAFETY INSTRUCTION Please carefully read the following safety instruction so as to avoid personal injuries and prevent the equipment and other connection devices from being damaged. 1. Power sources (note: please use the power supply attached or specified by the manufacturer) Never operate the equipment by unspecified power supply.

  • Page 6: Chapter 1 Overview Of Nvr

    USER MANUAL Chapter 1 Overview of NVR 1.1 Rear Panel NVR Rear Panel (For reference only) Item Physical Port Connection Method Power Switch Startup and shutdown Power Port Connect the attached power supply USB Port Connect USB devices, such as USB mouse and USB flash disk. Sensor/Alarm Connect to sensor or alarming device HDMI Port...

  • Page 7: Remote Controller (For Reference Only)

    USER MANUAL 1.2 Remote Controller (For reference only) Item Key title Key function Channel select 1-8; Numeric key 9、0 Numeric key Multiple display mode Menu Enter into Main menu/Exit Mute Mute On/off Go to submenu Submenu ▲ Up arrow key, volume increase Select key/Edit key ◄/ Left/Right key;...

  • Page 8: Chapter 2 Nvr Connection

    USER MANUAL Chapter 2 NVR Connection 2.1 HDD Installation Caution: Please do not take out hard drive when NVR is running! HDD Installation: (1) Cut power firstly, and then remove screws on both sides and rear panel and open NVR upper cover.

  • Page 9: Chapter 3 Nvr Common Operations

    USER MANUAL Chapter 3 NVR Common Operations 3.1 Using the Supplied Mouse Left Button of Mouse Right Button of Mouse Click once to choose an item in the menus and confirm Click once to open the your selection. pop-up menu on the Live Viewing screen and to exit Click once upon a channel on Live Viewing screen to from the menus.

  • Page 10: Password & Locking The Screen Operation

    USER MANUAL 3.3 Password & Locking the Screen Operation When you run the DVR for the first time, you are required to set your password immediately in order to protect your privacy. Please be sure to record your username and password and save them in a secure place.

  • Page 11: Chapter 4 Nvr Boot Up

    USER MANUAL Chapter 4 NVR Boot up 4.1 Startup Wizard After NVR startup is completed, the startup wizard will be displayed. If you do not want to make any setting, you may click “Don't show this window next time” to cancel. Wizard setting menu includes Startup Wizard, Network, IPC setup, Record Schedule and HDD Management.
  • Page 12 USER MANUAL 3) Network This menu allows you to configure network parameters, such as PPPoE, DHCP, and Static. The most common types are DHCP or Static. Most probably your network type is DHCP, unless the network is manually addressed (usually called- Static). If you need an authentication user name and password to the Internet, then choose PPPoE.
  • Page 13 USER MANUAL 5) Record Schedule: This menu allows you to specify when the NVR records video and define the recording mode for each channel. The recording schedule lets you set up a schedule like, daily and hourly by Normal (continuous) recording, Motion recording, and Alarm recording.

  • Page 14: Main Interface

    USER MANUAL 4.2 Main Interface Note: When internal HDD is not connected to NVR or the HDD is not formatted, first channel of the live screen and accompany buzzer alarm. If you want to close the buzzer alarm, please enter into [AdvancedEvents] to set HDD loss, HDD space not enough and alarm output to “off”.

  • Page 15: Chapter 5 Nvr Menu

    USER MANUAL Chapter 5 NVR Menu Popup Menu After finishing system initialization, click right key of mouse on preview interface or slide the mouse to the bottom of screen to enter into Pop-up Menu. Now you could perform parameter setting and operate on Main Menu, Multi-screen (Quad, Nine), More Layout, Stream switch, Preview Policy, Start SEQ, Mute, Playback, Info.
  • Page 16 USER MANUAL This icon appears when the camera has detected Intelligent and triggers recording. The HDD icon indicates that the NVR cannot detect a HDD or the HDD is not formatted. VIDEO LOSS: Connection to the camera has been lost. Off-line: The added IP camera is offline or disconnected.
  • Page 17 USER MANUAL Camera Quick Toolbar Click to switch all IP channels to mainstream or substream (for live view resolution) Click to start recording the channel manually. Click to playback the recent 5 minutes recording. Click to zoom in the channel. Click to adjust the channel color settings.
  • Page 18 USER MANUAL Main Menu Guide IP Camera Live Display Output Image Control Privacy Zone Record RecordSchedule Record Mainstream Substream Mobilestream Parameter Network Switch Email Network Email Schedule DDNS RSTP Motion Alarm Alarm General Main Menu Record Search PTZLinkage Events General Device General Users...

  • Page 19: Overview

    USER MANUAL 5.1 Overview In Main Menu mode, you can make settings for Parameter, Record Search, Device, System, Advanced, and Shutdown. Alarm – To set the motion detection function and/or I/O alarm function Network - To configure the NVR’s access parameters to the network, configure email settings, DDNS parameters, etc.

  • Page 20: Display

    USER MANUAL 5.2 Display 5.2.1 IP Camera This NVR supports to connect IP camera inputs. In this menu, you can add, edit or delete the IP cameras. Auto Assign IP to Camera(s): Click to reassign an IP address to the IP camera that is already connected to the NVR.
  • Page 21 USER MANUAL With the Protocol Manage button, you can edit your own RTSP protocol to connect to IP cameras. In the Added IP Camera List, you can view the IP Camera Channel title, Delete IP Camera, Edit. IP Camera, Check the connection State, view the IP address/Domain / Subnet Mask / Port, view the Manufacturer of the added IP cameras, view the Device Type, check the Protocol, MAC Address &...

  • Page 22: Live

    USER MANUAL 5.2.2 Live This menu allows you to configure channel parameters. Channel: Select the channel you want to modify. Channel Name: Enter the name of the channel. Show Name: Enable to display the channel name on the live screen. Record Time: Disable if you do not want to see the recording time on the channel.

  • Page 23: Output

    USER MANUAL 5.2.3 Output This menu allows you to configure video output parameters. Video Output: This is the monitor that you use for live view display. Sequence Mode: Choose your favorite layout from the drop-down menu for viewing channels in a sequence on live view. SEQ Time: Set how long you want the live view from a channel to be displayed in a sequence.
  • Page 24 USER MANUAL Channel: Select the channel you want to modify. IR-CUT Mode: Select the desired built-in filter switch-over mode to ensure the camera works properly both in the daylight and night. IR-CUT Delay: Set the IR-CUT switching time delay. Lens Flip/Angle Flip: Check to enable automatic lens flip and/or angle flip. Angle Trad: Set the flip angle.

  • Page 25: Privacy Zone

    USER MANUAL 5.2.5 Privacy Zone This menu allows you to create Privacy Zone(s) if you want to partially cover up part of the image. You can create up to four privacy zones in any size and location on the channel view. These zone(s) appear as “red box rectangle areas”.

  • Page 26: Record

    USER MANUAL 5.3 Record 5.3.1 Record This menu allows you to configure the channel recording parameters. Channel: Select the channel to set its recording parameters. Record Switch: Enable in order to allow the video to be recorded to the HDD. Stream Mode: Choose the recording resolution.

  • Page 27: Record Schedule

    USER MANUAL 5.3.2 Record Schedule This menu allows you to specify when the NVR records video and define the recording mode for each channel. The recording schedule lets you set up a schedule like, daily and hourly by normal (continuous) recording, motion recording, and alarm recording. To set the recording mode, click first on the mode radio button (Normal, Motion, or Alarm), then drag the cursor to mark the slots.

  • Page 28: Mainstream

    USER MANUAL 5.3.3 Mainstream This menu allows you to configure the recorded video parameters. All the modifications you apply to these settings will affect the recorded video saved into the HDD. Channel: Select the channel to configure recording related information. Resolution: This parameter defines how large the recorded image will be.

  • Page 29: Substream

    USER MANUAL 5.3.4 Substream This menu allows you to configure the settings of a particular channel if the channel is being viewed via remote access, for example Web Client. Channel: Select the channel to configure recording related information. Resolution: This parameter defines how large the recorded image will be. FPS: This parameter defines the number of frames per second the NVR will record.

  • Page 30: Mobilestream

    USER MANUAL 5.3.5 Mobilestream This menu allows you to configure the settings of a particular channel if the channel is being viewed via mobile devices Channel: Select the channel to configure recording related information. Enable: Enable to allow to use mobile streaming on this channel Resolution: This parameter defines how large the recorded image will be.

  • Page 31: Network

    USER MANUAL 5.4 Network This menu allows you to configure Network parameters, Switch, E-mail setup, DDNS, RTSP & FTP. 5.4.1 Network This menu allows you to configure network parameters, such as PPPoE, DHCP, and Static. The most common types are DHCP or Static. Most probably your network type is DHCP, unless the network is manually addressed (usually called- Static).

  • Page 32: Switch

    USER MANUAL numbers, separated by periods. For example, “255.255.000.000”. Alike IP address, you need to enter the subnet mask manually only if your network type is Static. Gateway: This address allows the NVR to access the Internet. The format of the Gateway address is the same as the IP Address.

  • Page 33: Email

    USER MANUAL 5.4.3 Email This menu allows you to configure email settings. Please complete these settings if you want to receive the system notifications on your email when a motion is detected, HDD becomes full, HDD is in error state, or Video Loss occurs. Email: Enable this feature.

  • Page 34: Email Schedule

    USER MANUAL 5.4.4 Email Schedule The color codes on email schedule have the following meanings: Green: Slot for Motion. Yellow: Slot for I/O Alarm. Red: Slot for Exception (HDD full, HDD error, or Video Loss). Sky blue: stands for Intelligent (PID, LCD or SOD). 5.4.5 DDNS This menu allows you to configure DDNS settings.

  • Page 35: Rtsp

    USER MANUAL DDNS: Enable the DDNS service. Server: Select the preferred DDNS server (DDNS_3322, DYNDNS, NO_IP, CHANGEIP, and DNSEXIT). Domain: Enter the domain name you created on the DDNS service provider’s web page. This will be the address you type in the URL box when you want to connect remotely to the NVR via PC.

  • Page 36: Ftp

    USER MANUAL Instruction: rtsp://IP:Port/ipA/B. A: 01(ip1), 02(ip2)….8(ip16) B: 0(main stream), 1(sub stream) For example, the NVR IP address is 192.168.1.61, and you want to view CH1 with mainstream, then the RTSP address will be: rtsp://192.168.1.61:554/ip1/0 Note: RTSP user name and password is same with NVR user name, password and permissions.

  • Page 37: Alarm

    USER MANUAL FTP Enable: Enable the feature in NVR. Server IP: Enter your FTP server IP address or domain name. Port: Enter the FTP port for file exchanges. User Name/ Password: Enter your FTP server user name and password. Directory Name: Enter the default directory name for the FTP file exchanges. Test FTP: Click to test the FTP settings.
  • Page 38 USER MANUAL Buzzer: The NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when the motion is detected. Sensitivity: Set the sensitivity level. Area: To setup motion area, click Setup. By default, the whole screen is marked for motion detection (red blocks).

  • Page 39: Alarm

    USER MANUAL 5.5.2 Alarm This is an optional function. If the NVR you purchased doesn’t support connect external sensor I/O alarm devices, you will not find this section in your NVR OSD menu. Alarm In: User may set four groups of alarm inputs Alarm Type: There are 3 types for your choice: Normally-Open, Normally-Close, and OFF.

  • Page 40: Ptzlinkage

    USER MANUAL 5.5.3 PTZLinkage If you had connected the PTZ cameras, you can set the linkage between PTZ cameras and Motion Alarm and/or external I/O sensor alarm. With the linkage function, you can turn your PTZ cameras focus to the preset point when a motion or I/O alarm happens. Channel: Select the channel to set.

  • Page 41: Record Search

    USER MANUAL 5.6 Record Search This section allows you to search and playback the recorded videos based on recording type, channel, date and time parameters. You can also view and backup events and captured images. 5.6.1 General 1) Select the channel & the recording type (All / Normal / Alarm (including preset point & IO) /Motion / IO / Manual).
  • Page 42 USER MANUAL Backup. 5) If you want to make backup for individual files, select the recording list(s) from the table. 6) If you want to move to other page, click << or >> to move to previous or next page. Or input the number of page, and then click to jump to the page.

  • Page 43: Playback Video Recordings

    USER MANUAL 5.6.3 Playback Video Recordings 1. Recording Calendar: Dates marked with orange triangles have recordings. 2. Playback Type: Select the playback type among General, Events, Picture & Sub-periods 3. Channels: Check the channels to playback. 4. Playback Control Bar. Full Screen Fast Forward, x2, x4, x8 and x16 Fast Rewind: x2,...
  • Page 44 USER MANUAL 5. Time Bar: The color indicates the video recording type: - Motion recording (Yellow) - Normal recording (Green) - I/O sensor recording (Blue) - Alarm recording (Red) - Intelligent recording (Sky blue) 6. Time Frame: Select Playback timeline. View 5.7.4.3 Time Frame 8.
  • Page 45 USER MANUAL 7) Select the channel to be backed up. 8) A video type selection message appears. Select the file format and click...
  • Page 46 USER MANUAL 5.6.3.2 Time Frame During video playback, the time bar is displayed in 24 Hours (00:00~24:00) by default. You can shorten the time bar to be displayed in 2 Hours, 1 Hour or 30 Minutes in order to make an accurate position to the time bar.
  • Page 47 USER MANUAL 5.6.3.3 Sub-periods Playback This function will allow you to divide a recording video into average separate segments and play together in the same screen. 1) In the video playback interface, choose Sub-periods from Playback Type section. 2) Select a channel you want to play. 3) Choose the Split Screens.

  • Page 48: Play Backup Files

    USER MANUAL 5.6.4 Play Backup Files This section will help you to play the backup files. 1) Install the Video_Player software in the CD and run. 2) Copy the backup files to your computer. 3) Click “+” or “Open File” button to add files. It supports to play rf, avi, mp4, 264 & 265 files.
  • Page 49 USER MANUAL Function Description: Play: Click to play file Pause: Click to pause. Stop: Click to stop playback. Frame Forward: step forward by frame Slow forward : Click to play at 8x,4x,2x,1x,1/2,1/4,1/8,1/16 speed. Fast forward : Click to play at 16x,8x,4x,2x,1x,1/2x,1/4x,1/8x speed Open file/Open Directory Expand/pack up the list.
  • Page 50 USER MANUAL Basic Settings: Set on-top mode Capture Settings: Set the path to save images...

  • Page 51: Device

    USER MANUAL 5.7 Device In this section, you can configure the internal HDD, PTZ setup. 5.7.1 HDD Go to “Main Menu” → “Device” → “HDD” to enter into the interface. When HDD is connected, the system will automatically detect if HDD is normal or not;...
  • Page 52 USER MANUAL  No.: Number of HDD connected to system.  Type: Hard disk read and write types, divided into: read and write, redundant and read-only.  Disk Group: Disk group number  Status: It shows the current status of HDD. It will be available only when HDD is “Normal”.

  • Page 53: Disk Group

    USER MANUAL Tip: All hard disk disk group number are the default 1, one can only choose a hard disk to set. Disk Type: Read-write, read-only, and redundant. To prevent important video data from being overwritten during cyclic recording, you can protect the hard disk by setting it to "read-only"...

  • Page 54: Ptz

    USER MANUAL 5.7.3 PTZ 5.7.3.1 PTZ set This menu allows you to configure the PTZ (Pan-Tilt-Zoom) settings for the dome camera. Channel: Choose a channel where is connected a dome camera. Signal Type Digital: no parameter setting is required and no connecting the RS-485 control cable.

  • Page 55: Ptz Control

    USER MANUAL 5.7.3.2 PTZ control After finishing the PTZ setup, you can use the PTZ function to control your PTZ camera. Left click your mouse upon a channel on Live Viewing screen to open Camera Quick Toolbar , and click the PTZ control icon 2) PTZ control panel will be displayed.

  • Page 56: System

    USER MANUAL Number of preset point Total Total Display the total number of preset points Set the time how long the camera will stay in the preset Time Time point Save Save Click to save the settings and preset points Clear Clear Click to delete the selected preset point...

  • Page 57: Dst

    USER MANUAL Time Format: Set the time format here. Language: Choose the OSD language. Video Format: Choose the video format between NTSC and PAL. If the NVR’s picture is flickering or has only black screen, it may be that the video format is not correct. Menu Timeouts: Set the time out the NVR will exit the menus when they are not in use.

  • Page 58: Ntp

    USER MANUAL 5.8.3 NTP NTP stands for Network Time Protocol. This feature allows you to synchronize the date and time automatically on the NVR over Internet. Therefore the NVR needs to be connected to the Internet. NTP: Enable if you want the NVR to update the date and time automatically. Server Address: Select the NTP (Network Time Protocol) server.
  • Page 59 USER MANUAL Edit: To enable/disable the user account, modify the user name and password, click on the user account you wish to edit, then click Edit. Permission: To modify user access permissions, click on the user account you wish to modify, and then click Permission.

  • Page 60: Info

    USER MANUAL 5.8.5 Info This menu allows you to view the summary of the system, channel information & record information. Device ID: Enter the desired ID for your NVR. The device ID is used to identify the NVR, and can only be composed of numbers, and cannot be the same with other IDs when multiple NVRs are connected in the same network.

  • Page 61: Log

    USER MANUAL 5.8.6 Log This menu allows you to view a list of events of system operation. - To search for a log, enter the start time/end time to the respective fields and click Search. - To display log details, double-click on the item. - To backup a log entry, connect an external USB disk to the NVR, click on the log event and click Backup.

  • Page 62: Advanced

    USER MANUAL 5.9 Advanced 5.9.1 Maintain This menu allows you to configure automatic system maintenance, load factory defaults, update the firmware settings, upgrade the IPC, etc. Default User: If you want to log in to the NVR automatically for live view after each startup, then only administrator user account can be set for auto login.

  • Page 63: Events

    USER MANUAL 5.9.2 Events This menu allows you to set the type of events that you want the NVR to inform you. Event Type: Select the event type. Options are: -No Space on Disk: When HDD is full. - Disk Error: If HDD is not detected properly. - Video Loss: If camera is not detected properly.

  • Page 64: Intelligent

    USER MANUAL 5.10 Intelligent The NVR provides super performance intelligent functions, including Perimeter Intrusion , Stationary Object Detection, Pedestrian Line Crossing Detection Detection, Detection, Face Detection, and Cross Counting. 5.10.1 Schedule You are able to config the schedule for intelligent detection function. The schedule will be active in 24 hours x 7 days.

  • Page 65: Pid(Perimeter Intrusion Detection)

    USER MANUAL 5.10.2 PID(Perimeter Intrusion Detection) Perimeter Intrusion Detection function detects people, vehicle or other objects which enter and loiter in a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered. Channel: to select the channel you want to configure Enable: to enable or disable the PID function Buzzer: to disable or to active the buzzer to emit an alarm tone in 10, 20, 40 or 60 seconds when the detection is triggered...
  • Page 66 USER MANUAL Method to set the PID function: 1. Set the schedule. 2. Choose a channel you want to set, and enable the PID function. 3. Click Area Setup. 4. Choose one of the Rule Number. It is the number of PID area. Maximum 4 areas you can set for PID function.

  • Page 67: Lcd(Line Crossing Detection)

    USER MANUAL 5.10.3 LCD(Line Crossing Detection) Line Crossing Detection function detects people, vehicle or other objects which cross a pre-defined virtual line, and some certain actions can be taken when the alarm is triggered. Channel: to select the channel you want to configure Enable: to enable or disable the LCD function Buzzer: to disable or to active the buzzer to emit an alarm tone in 10, 20, 40 or 60 seconds when the detection is triggered...
  • Page 68 USER MANUAL Latch Time: To configure the external alarm time when the detection is triggered. Alarm Out: If your NVR support to connect to external alarm device, you can set to emit an alarm tone. Show Message: A letter “S” will be displayed on the screen when the LCD function is triggered.
  • Page 69 USER MANUAL Notice: The lines shall not be too close to the edges of the camera picture, to avoid any failure to trigger an alarm when the target cross through it. 2) The lines shall not be set too short, to avoid any failure to trigger an alarm when the target pass outside it.

  • Page 70: Sod(Stationary Object Detection)

    USER MANUAL 5.10.4 SOD(Stationary Object Detection) Stationary Object Detection function detects the objects left over or lost in the pre-defined region such as the baggage, purse, dangerous materials, etc., and a series of actions can be taken when the alarm is triggered. Channel: to select the channel you want to configure Enable: to enable or disable the SOD function Buzzer: to disable or to active the buzzer to emit an alarm tone in 10, 20, 40 or 60...
  • Page 71 USER MANUAL Area: Click [Setup] to draw a virtual region in the camera picture. Method to set the SOD function: 1. Set the schedule. 2. Choose a channel you want to set, and enable the SOD function. 3. Click Area Setup. 4.

  • Page 72: Pd(Pedestrian Detection)

    USER MANUAL Notice: 1) The area for detection shall be greater than or equal to the size of the detected object, such as the detection of a white bottle. 2) The detected object cannot be covered. 5.10.5 PD(Pedestrian Detection) Pedestrian Detection function detects the moving people in a pre-defined region, and a series of actions can be taken when the alarm is triggered.
  • Page 73 USER MANUAL with the place your camera installed. Post Recording: You can set how long after an event occurs that the NVR will continue to record. Latch Time: To configure the external alarm time when the detection is triggered. Alarm Out: If your NVR support to connect to external alarm device, you can set to emit an alarm tone.

  • Page 74: Fd(Face Detection)

    USER MANUAL move the whole region, or drag the corners to resize the region. 10. If you want to remove one of the regions from the camera picture, click the red box in the region and then click Remove button. Click Remove All will delete all regions. Notice: 1) The region for detection shall not be in the area that people cannot reach.
  • Page 75 USER MANUAL Scene: Scene setting includes Indoor and Outdoor. Please choose the scene to match with the place your camera installed. Post Recording: You can set how long after an event occurs that the NVR will continue to record. Latch Time: To configure the external alarm time when the detection is triggered. Alarm Out: If your NVR support to connect to external alarm device, you can set to emit an alarm tone.

  • Page 76: Cc(Cross-Counting)

    USER MANUAL of the region will be changed to red color. Long press the left button of your mouse to move the whole region, or drag the corners to resize the region. 10. If you want to remove one of the regions from the camera picture, click the red box in the region and then click Remove button.
  • Page 77 USER MANUAL seconds when the detection is triggered Sensitive: The sensitivity level is from 1 to 4, with a default value of 2. Higher sensitivity will be easier to trigger the detection. Scene: Scene setting includes Indoor and Outdoor. Please choose the scene to match with the place your camera installed.
  • Page 78 USER MANUAL 8. Click Save to save your settings. 9. If you want to modify the position or length of the line, click the red box in the line, the color of the line will be changed to red color. Long press the left button of your mouse to move the line, or drag the terminals to modify the length or position of the line.

  • Page 79: View Log Of Intelligent Analysis

    USER MANUAL View the Cross-Counting Result To System  Intelligent Analysis menu, you will be able to search & view the statistical result of cross counting. The statistical result can be queried by Daily / Weekly / Monthly / Annual. 5.10.8 View Log of Intelligent Analysis Click the icon in the upper right corner of the preview interface, you can view the...

  • Page 80: Shutdown

    USER MANUAL 5.11 Shutdown Manually turn off or reboot the NVR.

  • Page 81: Chapter 6 Web Application Manager

    USER MANUAL Chapter 6 Web Application Manager Use the Web Client to remotely access your NVR at any time via a PC. Before you access the Web Client, you need to ensure that the network settings of the NVR are configured properly.
  • Page 82 USER MANUAL 2) For the first time when you run the web client, system will require to install the web client plugin. Click download to download the plugin and install to your computer. 3) After installing the plug-in, close & launch again your browser and repeat step 1 to open the login page.
  • Page 83 USER MANUAL For Mac SAFARI: 1) Launch the Safari on your Mac, and enter the NVR static IP address or DDNS domain name (Host Name) you have set on NVR in the URL box. 2) Download the plug-in "SurveillanceClient.dmg", locate the downloaded file and double click it.

  • Page 84: Web Client Manager

    USER MANUAL 4) Shut down Mac SAFARI browser and restart it, and then enter IP address of NVR in address bar to access login page. 6.2 Web Client Manager The web client supports to full control the NVR with administrator account. Please make sure to protect your user name &...
  • Page 85 USER MANUAL : Record switch: the remote record switch of client. Record will be automatically saved to a specified position on PC after the function is enabled. : Snapshot: Capture the selected live image and save it to a specified position on PC.

  • Page 86: Playback

    USER MANUAL 3. PTZ Control ：PTZ direction control and automatic scanning button PTZ movement speed adjustment ： ：Adjust the zoom +, - ：Adjust FOCUS +, - ：Adjust the IRIS +, - ：Set, clear and jump points ：Start cruising and stop cruising 6.3.1 Playback Click to enter into Playback interface to remotely view the records in...
  • Page 87 USER MANUAL 6.3.1.1 Record Search Record playback procedure Firstly, select the date you want to check and select 4 channels. Any record files in current channel at current date will be displayed in the status bar of the interface. Secondly, select record type (Normal record, Alarm record and All) and channels, and select stream (Mainstream and Substream).
  • Page 88 USER MANUAL "Stream" select "SubStream", select the channel, click search video, and click play.

  • Page 89: Playback Control

    USER MANUAL 6.3.1.2 Playback Control Playback control bar Detailed brief description is shown as below list Description Description Play Enable the volume switch Pause Volume adjustment bar Slow playing 1/2,1/4, 1/8, Fast Stop playing 1/2/4/8 By frame Digital ZOOM Record Clip Original proportions Snap Stretch...
  • Page 90 USER MANUAL The captured file will be saved as bmp format. Record file download Click download icon on the control bar to display all the matched record file according to the search conditions of channels. Tick-select the record file you want to download and click [Start download] .System will download the record file in sequence and save to local PC.

  • Page 91: Remote Setting

    USER MANUAL 6.3.2 Remote Setting Here you can remotely configure the settings of the NVR. Please see “Chapter 5 NVR Menu” for more information. 6.3.3 Local Setting Record Path: Set the path to save manual recordings on your PC’s local drive. Download Path: Set the path on your PC’s local drive where you want to download recordings from the NVR.

  • Page 92: Chapter 7 Remote Access Via Mobile Devices

    USER MANUAL Chapter 7 Remote Access via Mobile Devices The NVR supports to remote access via mobile devices based on Android & iOS operating system. 1) Search RXCamView from Google Play Store for android devices or App Store or iOS devices and install.
  • Page 93 USER MANUAL 4) Choose “Manual”, and input the NVR information. Name: Input the name you want to display Device Type: Device ID and IP/DOMAIN Login -Device ID: For P2P connection. -IP/DOMAIN: IP address or Domain name of the NVR Address: Input the P2P ID or IP address/Domain Device ID/IP name.
  • Page 94 USER MANUAL 6) Touch icon to open the Menu list where you can check & configure the live view, playback, local recorded videos, captured pictures, push alarm notifications, Device manager, Local Setting & Help documents.

  • Page 95: Chapter 8 Appendix

    USER MANUAL Chapter 8 Appendix 8.1 Troubleshooting Q: What can I do if the system does not detect the HDD? A: Check if the power supply system is properly connected and data cord and power cables are securely connected, and if something wrong with the HDD interface. Or you may check if your HDD is supported by referring to the specifications or descriptions.

  • Page 96: Usage Maintenance

    USER MANUAL 13. Q: Why does buzzer keep alarming? A: Please check the alarm setting, check if motion detection function is enabled and object motion is detected all the time and if I/O alarm is set as Always Off. Besides, refer to corresponding HDD alarm setting.

  • Page 97: Accessories

    USER MANUAL 8.4 Accessories (Goods in kind prevail) Remote Controller Power Adapter User Manual (Good in kind prevail) USB Mouse Warranty Card CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS...
  • Page 98 USER MANUAL The material in this document is the intellectual property of our department . No part of this manual be reproduced, copied, translated, transmitted, or published in any form or by any means without our department prior written permission. Our products are under continual improvement and we reserve the right to make changes without noti ce.
