Installation, Operation & Maintenance of the T
Step 1
The units should be shipped assembled except for the backpan.
Remove all packaging from the components. The thermal T
protect the actuator assembly. Be sure to remove packaging between the diffuser plaque and the control
disc. Make sure that no packaging is obstructing the thermal element at the top of the actuator or the
induction cap on the plaque.
If unit is not assembled, follow the steps below before proceeding (See Figure 1):
1. Insert induction cap into plaque of diffuser.
2. Insert venturi tube into induction channel until tabs engage.
3. Slide control disc over venturi tube.
4. Insert actuator through center hole in the control disc and snap into induction channel.
Backpan
Thermal Actuator
Control Disc
Venturi Tube
Induction Channel
Face Plaque
IOM Label
Induction Cap

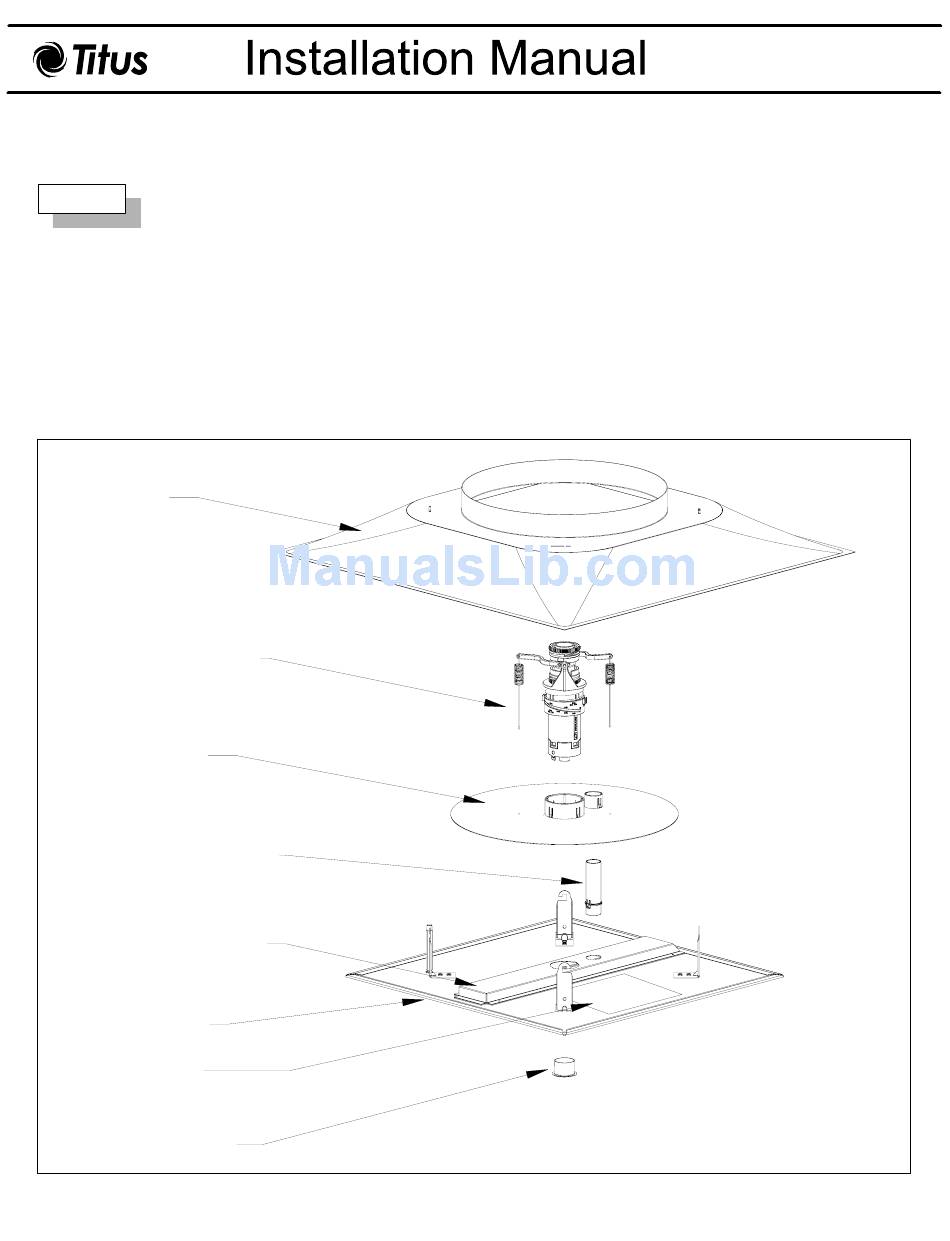

Figure 1. T
SQ-4 Parts & Assembly
3
VAV Diffuser
T3SQ-4-IOM-3.0
SQ Thermal
3
SQ is shipped with additional packaging to
3
05-17-07
Advertisement
Table of Contents
Related Manuals for Titus T3SQ
Summary of Contents for Titus T3SQ
- Page 1 T3SQ-4-IOM-3.0 05-17-07 Installation, Operation & Maintenance of the T SQ Thermal VAV Diffuser Step 1 The units should be shipped assembled except for the backpan. Remove all packaging from the components. The thermal T SQ is shipped with additional packaging to protect the actuator assembly.
- Page 2 Note: This IOM is meant to demonstrate general dimensions of this product. The drawings on this IOM are not meant to detail every aspect of the product with exactness. Drawings are not to scale. TITUS reserves the right to make changes without written notice.
