MULTI MEASURING INSTRUMENTS CO.,LTD. LV-1 Instruction Manual

Thank you very much for selecting our voltage detector model LV-1.
This model is complex instrument and employ a very reliable
mechanical/electronic design.
Before you use your new instrument, read this Instruction Manual
completely and familiarize yourself thoroughly with all functions.
With proper use and care, your tester will give you years of
satisfactory service.

1. SPECIFICATIONS

Model No.:
Voltage Range:
Isolation Resistance:
Withstanding Voltage:
Min. Responsible Voltage:
(to the ground)
Operating Indications:
Power Supply:
Size & Weight:
Accessories:

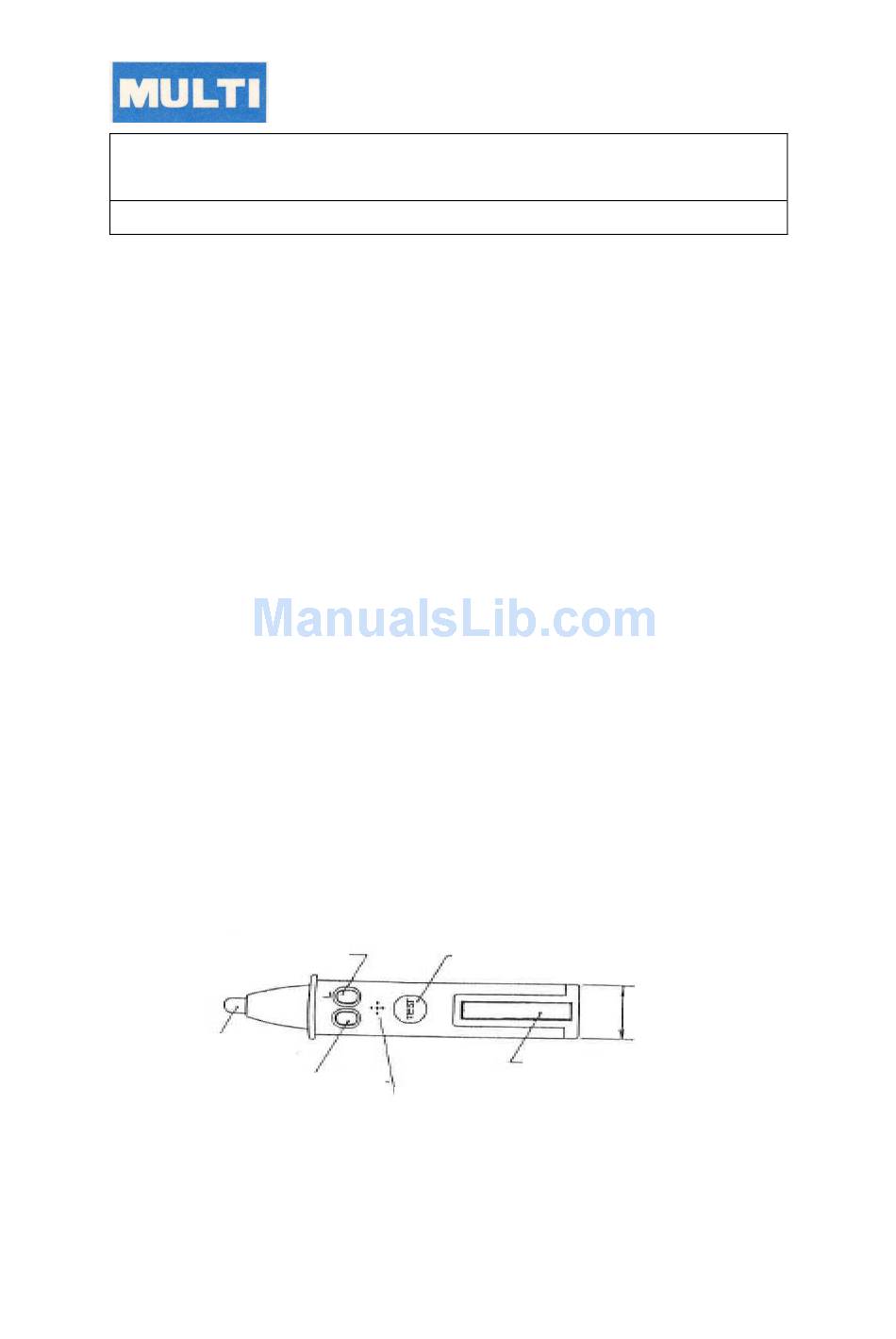

2. Outer Structure

Leakage Detection Lamp (L)
Detection Tip
Voltage Detection Lamp
VOLTAGE DETECTOR
MODEL LV-1
INSTRUCTION MANUAL
LV-1 (for low voltage only)
On the cover of wire/AC 50~600V (50/60Hz)
On the bare terminal/AC 0~300V (50/60Hz)
Over 10MΩ by DC 500V insulation tester.
(between detecting tip and clip)
AC 1500V/1 min. between detection tip and clip.
Sensitivity adjustable. (initial adjustment = AC 40V
with detecting tip in contact with insulated wire)
Visual/Intermittent flashing red light for the both of
voltage detection and isolation defect.
Audio/Intermittent beeper sound.
Alkaline button cell LR-44 x 2 pcs.
20(W) x 129(H) x 19.5(D) mm, approx.30g
Batteries (LR-44) x 2, Alligator Clip x 1, Manual x 1.
Beeper Hole
Test Switch
Crip & Conductive Rubber
