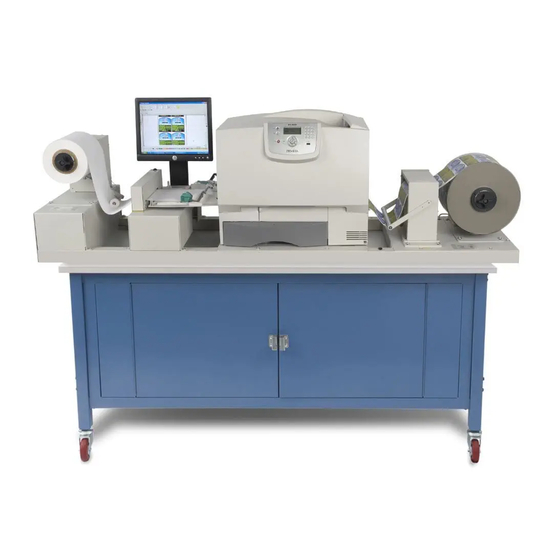

Primera CX1200e Quick Reference Manual

1
Switch on the
unwinder, printer
and rewinder.
2X
3
The loose stock should fall on
the right side of the roll. Turn
the tension knob clockwise to
secure the roll to the chuck.
Turn the knob as as tight as
you can! Feed the stock under
the dancer arm and through
the cutter.
Tension Knob
5
Engage the Feeder Switch (left
Position).
Warning! Failure to engage this switch
will cause the label stock to feed out of
the top of the printer.
Dancer Arm
Cutter
!
Loading Label Stock Quick Reference Guide
2
Place the label stock roll
16 mm
(max 12" OD/
max 30.48 cm) on the
unwinder chuck.
Center the label stock
on the aluminum area
of the chuck.
4
Continue feeding the stock
into the printer feeder tray.
Feed the stock under the green
guides and under the paper
feed roller. Stop feeding when
the leading edge of the stock
has covered the red stop block
printed just outside the feeder
door entrance.
Green Guides
Feed Roller
Red Stop Block
6
Place an empty label
core on the rewinder
chuck. Center the core
on the aluminum area
of the chuck. Turn the
tension knob clockwise
to secure the core to the
chuck. Turn the knob as
as tight as you can!
16 mm
(.63 inches)
