lmp WKP-803 Quick Start Manual

Quick Start Guide – LMP NexGen Keypad WKP-803
To turn on the LMP NexGen Keypad, slide the power switch from „off" to „on" position.
4
The power switch is located on the right upper corner. The LED will flash 3 times.
Go to „System Preferences" g „Bluetooth". Make sure that Bluetooth is activated by
4
checking the box. Press the „+" icon (with Mac OS X 10.9, the Bluetooth assistent sear-
ches automatically for new Bluetooth devices).
Turn the LMP NexGen Keypad upside down and press the black button (Pairing Button).
4
The Bluetooth assistant displays a list with all found Bluetooth devices. Search for
4
"Bluetooth keypad" or „LMP Keypad" and press "Continue".
The Bluetooth Identification Code (8-digit ID for Mac OS X 10.5 to 10.8; 6-digit ID for Mac
4
OS X 10.9) is shown on the screen. Enter the displayed ID on the LMP NexGen Keypad
and press the "enter" key on the LMP NexGen Keypad at the end.
The LMP NexGen Keypad is now ready to work. It is displayed in the list of all Bluetooth
4
devices and marked as "connected".

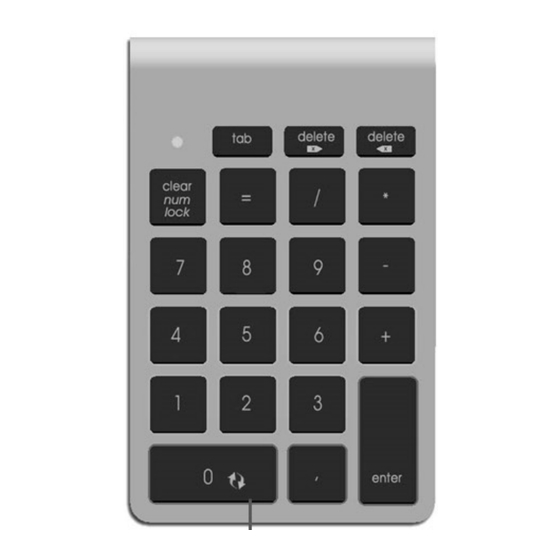

How to assign the „="-sign on your LMP NexGen Keypad under Windows OS:
„="-sign setting for Windows OS:
Press key „0" & key „delete
Press key „0" & key „delete
Press key „0" & key „tab" simultaneously
Press key „0" key & key „ * " simultaneously
Press key „0" key & key „ / " simultaneously
© Cropmark AG, Switzerland. info@cropmark.ch. www.lmp-adapter.com. QSG 1.0 Mac, 11/13
All rights reserved. LMP is a trademark of Cropmark AG.
– Mac Edition –
" simultaneously
" simultaneously
Windows OS language in use:
US, UK, RU, UA, GR, CN, IL, IR, KR, CZ, HR, BR
DE, CH, IT, ES, PT, SE, DN, FI, NO
FR, BE
JP
PL
