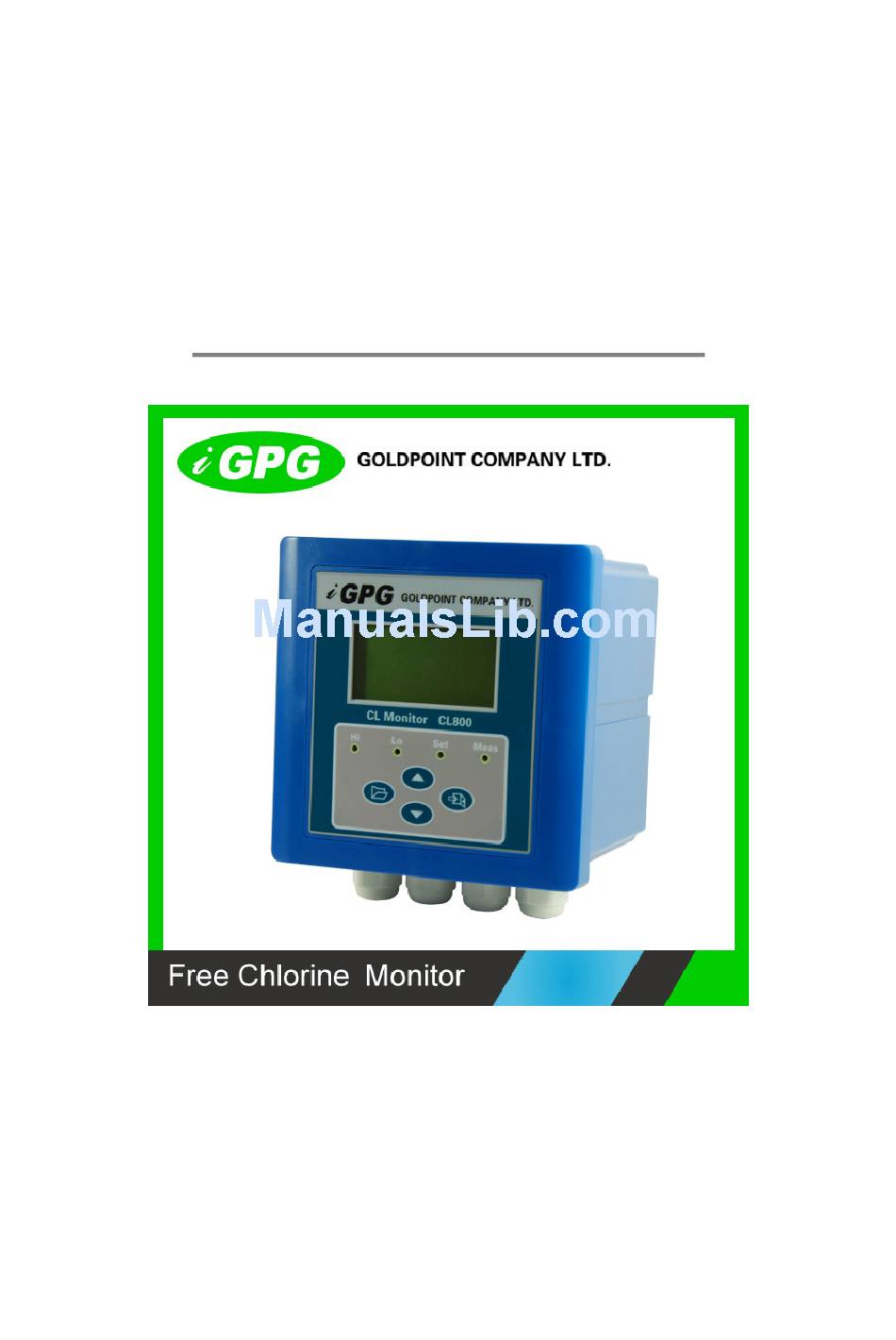

- Page 1 CL800 Free Chlorine & pH Monitor OPERATION GUIDE...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION…..…………………………………..….…….. … FEATURES AND TECHNICAL SPECIFICATIONS………. Features..…………………………..……………...……….. Technical Specifications……...…………….…………..INSTALLATION…….…………………………..………..……… Dimension………………...……...…………………..…….. Connection.…………….……..………..……..….……… SETTING AND OPERATION…..…………...…….…………… User Interface and Description…………………..….. Parameter Setting and Operation.……..…..….……...….. 4.2.1 Password……………………………………………………. 4.2.2 Main Setting Menu Directory……………………………… 4.2.3 Set Parameter……………...………………………………. 4.2.4 Set Alarm………….……………...………………………… 4.2.5 Set Current Output………...…..……………..……………. 4.2.6 Calibration……………….…………..……..………………. -
Page 3: Introduction
CL800 Intelligent On-line Free Chlorine & pH Monitor 1. INTRODUCTION The CL800 is a microprocessor controlled Free Chlorine and pH measurement instrument. The unit utilizes a multifunction LCD to display readings and provide feedback to the user. It is available with different option to provide fully configurable control, alarm and feedback with up to four relays and two 4-20mA current output sources. -
Page 4: Installation
Temp: 0~100℃ (2) Accuracy：±0.5 %F.S ppm / ±0.2 %F.S PH / ±0.2℃ (3) Linearity：±0.5% of range (4) Repeatability：±0.5% of range (5) Temperature compensation type：Auto / manual 0℃ to 100℃(for (6) Alarm Output：Four relays outputs (250V/10A)，full range with hysteresis adjustable (7) Current output： Two DC 4~20mA， Opto-isolated outputs， ( 750 Max. load) (8) Ambient Operating temperature：-10~+55℃... -
Page 5: Dimension
Dimensions Figure 2 : overall dimensions panel-mounting Connection Remove the four bolts on the front of the instrument, open the case gently, you can see a row of terminals shown in Figure 3, please wiring follow the directions. Figure 3 : connection terminals diagram Connection terminals wiring directions：... - Page 6 22. Power supply terminal: Connect the power supply phase CAUTION ! : ★ The specified performance of the CL800 is entirely dependent on correct installation. For this reason, the installer should thoroughly read the instructions before attempting to make any electrical connections to the...
-
Page 7: Setting And Operation
4. SETTING AND OPERATION 4.1 User Interface and Description Figure 4: front panel diagram Front panel description: (1) CL alarm light， Under the conditions of setting Free Chlorine high or low alarm, when the measured Free Chlorine value of the solution is higher than the value of High alarm or lower than the value of Low alarm, the CL alarm light will be turned on. -
Page 8: Parameter Setting And Operation
increment the digit. (4) MENU switch. Press this key to enter or exit the setting state. (5) DOWN key，In the setting state, using the DOWN key the user can cycle through the next menu. To adjust a value, the DOWN key is used to select a digit. - Page 9 Instrument has two kinds of operating states: "Measuring" state and "Setting" state. In the measuring state, there are two kinds of display: “only Free Chlorine” and “Free Chlorine & pH” display status. Generally， when the instrument is powered on, it enter into the measuring state. Use the MENU key to switch the "Measuring"...
-
Page 10: Password
Figure 7. When cleaning function stopped, cleaning mark disappear. Figure 7 measurement state 3 (cleaning state) 4.2.1 Password The CL800 Monitor is locked to prevent unauthorised access to the configuration menu’s by using a password. If you want to enter the setting menu, you must enter correct password. -
Page 11: Main Setting Menu Directory
4.2.2 Main Setting Menu Directory Figure 8 main setting menu directory After entering into the setting menu, the main menu is displayed on the screen as Figure 8. By pressing the UP and DOWN keys to select menu option, then press the ENTER key to enter this menu subdirectory. 4.2.3 Set Parameter... - Page 12 4.2.3.1 Set Free Chlorine Measuring Range Select “Set CL Range”, press ENTER key to enter the next menu level. When the character starts flashing, press DOWN key to select the digit, the UP key is to modify the selected digit. After modifying the value, press ENTER key to save and return to the previous menu.
- Page 13 CL800 has Auto and manual temperature compensation function. Use manual temperature compensation, according to the manual input temperature value compensate. automatic temperature compensation, according to the measuring temperature value by the temperature sensor to compensate. Press UP and DOWN keys to select “Auto”...
- Page 14 temperature compensation. The Calculation Method of coefficient pH35-pH25 pH25*(35-25) ε ×100% *Remark：pH25=the pH value at t=25℃；pH35=the pH value at t=35℃ 4.2.3.4 Modify Time and Date of Instrument When the character starts flashing, press DOWN key to select the digit, the UP key is to modify the selected digit.
-
Page 15: Set Alarm
*Note: " Clean Duration " and " Clean Interval " can not both be set to 0. Sensor cleaning equipment is the optional configuration, please confirm the device are connected correctly before set cleaning to “ON”. 4.2.4 Set Alarm The CL800 monitor has four alarm outputs designated high alarms(H) - Page 16 and low alarms(L). The alarm value and alarm hysteresis can be set within the currently selected measuring range. Alarm Relay During normal operation when the alarm is not active, the alarm output will be in its NORMAL condition, the N/O (normal open) contact will be open.
- Page 17 Select “Set Alarm”, press ENTER key to enter the next menu level. Press UP and DOWN keys to select the item you want to modify, then press ENTER to enter into. When the character starts flashing, press DOWN key to select the digit, the UP key is to modify the selected digit. After modifying the value, press ENTER key to save and return to the previous menu.
-
Page 18: Set Current Output
*Note: The setting should meet (high alarm - high hysteresis)≥(low alarm + low hysteresis) 4.2.5 Set Current Output CL800 has two 4~20mA current outputs. One input source is pH or ORP and the other is temperature. The current output can be set work over the whole range of the input source. -
Page 19: Calibration
(Free Chlorine measuring range is 0.00~2.00ppm) Input source Zero Span 0.00 ppm 2.00 ppm 0.00 pH 14.00 pH 4.2.6 Calibration Calibration Intervals The CL800 Monitor and Sensor combination once calibrated will require calibration checking/recalibration at 3-6 monthly intervals, however this does depend on the application. - Page 20 4.2.6.1 Free Chlorine sensor calibration Preparing For Calibration： pure water 100ml (t=25℃); known value free chlorine solution 100ml (t=25℃); Specific operations: Select “CL Zero Cal” in the menu and put the Free Chlorine sensor into pure water, press ENTER to store the zero data, and return to the previous menu.
- Page 21 The Method of calibrate Free Chlorine high value is Select “CL High Cal” in the menu and put the sensor into known value free chlorine solution, press UP and DOWN keys to modify, then press ENTER to store the calibration data, and return to the previous menu. 4.2.6.2 pH sensor auto calibration Preparing For Calibration：...
- Page 22 (pH = 7 or 6.86) 4.2.6.3 temperature calibration CL800 has temperature measurement function (Use pH and Temperature sensor), for the automatic temperature compensation, and also can be displayed on the monitor. Temperature calibration requires a high and a low constant temperature environment.
- Page 23 Specific operations: Select CL Current Cal (PH Current Cal) in the menu, properly connected the Current Meter to the terminals 7, 8 (9, 10) of CL800. Observe the reading of Current Meter, adjust the output value to be equaled to the value of your setting.
-
Page 24: Save And Read Data
If they are equal, the calibration is the one-point calibration. 4.2.7 Save and Read Data CL800 has measurement data storage function, the data can be saved by timer or manual. The saved content is including pH or ORP measurements, temperature, date and time. - Page 25 Press UP and DOWN keys to switch "ON / OFF", press ENTER to confirm. Only when it sets to "ON", in order to proceed to set save interval. 4.2.7.2 set save interval Press UP and DOWN keys to modify the save interval (Unit is min), press ENTER key to confirm.
- Page 26 Press UP and DOWN keys to view the previous data or the next data. Press MENU key to exit. 4.2.7.4 delete all data Select “DELETE DATE”. Press ENTER key to delete all data. Press MENU key to exit. Began to delete all data, wait for a few seconds, it will return to the previous menu automatically until display remaining 0%.
-
Page 27: Restore Factory Setting
4.2.8 Restore Factory Setting Select “RESET”, press ENTER key to enter the next menu level. Press ENTER key to restore factory setting. Press MENU key to exit. Began to restore the factory settings, wait for a few seconds, it will return to the previous menu automatically. -
Page 28: Sensor
5. SENSOR 5.1 Free Chlorine Sensor Use Description For new sensors, connect the sensor to power and allow to run overnight (at least 12 hours) before calibration. If the sensor will be un-powered for two hours or more, run for two hours prior to use. - Page 29 Dry stored pH sensors must be immersed in water for 12 hours prior to use. Each new sensor must be calibrated with monitor. For pH sensors, 2 or 3 points calibration is necessary. The frequency of calibration or checking the measuring sensor depends on the application conditions.
- Page 30 5.2.5.1 Dimension (Unit: mm) Figure 12 sensor dimension 5.2.5.2 Installation Diagram Figure 13 installation diagram...
-
Page 31: Warranty
As we have no control over the conditions in which their sensors are used, no further guarantee is given. 7. STANDARD CONFIGURATION CL800 monitor Mounting fixing of monitor Operation guide Inspection report 8. OPTIONAL CONFIGURATION...
