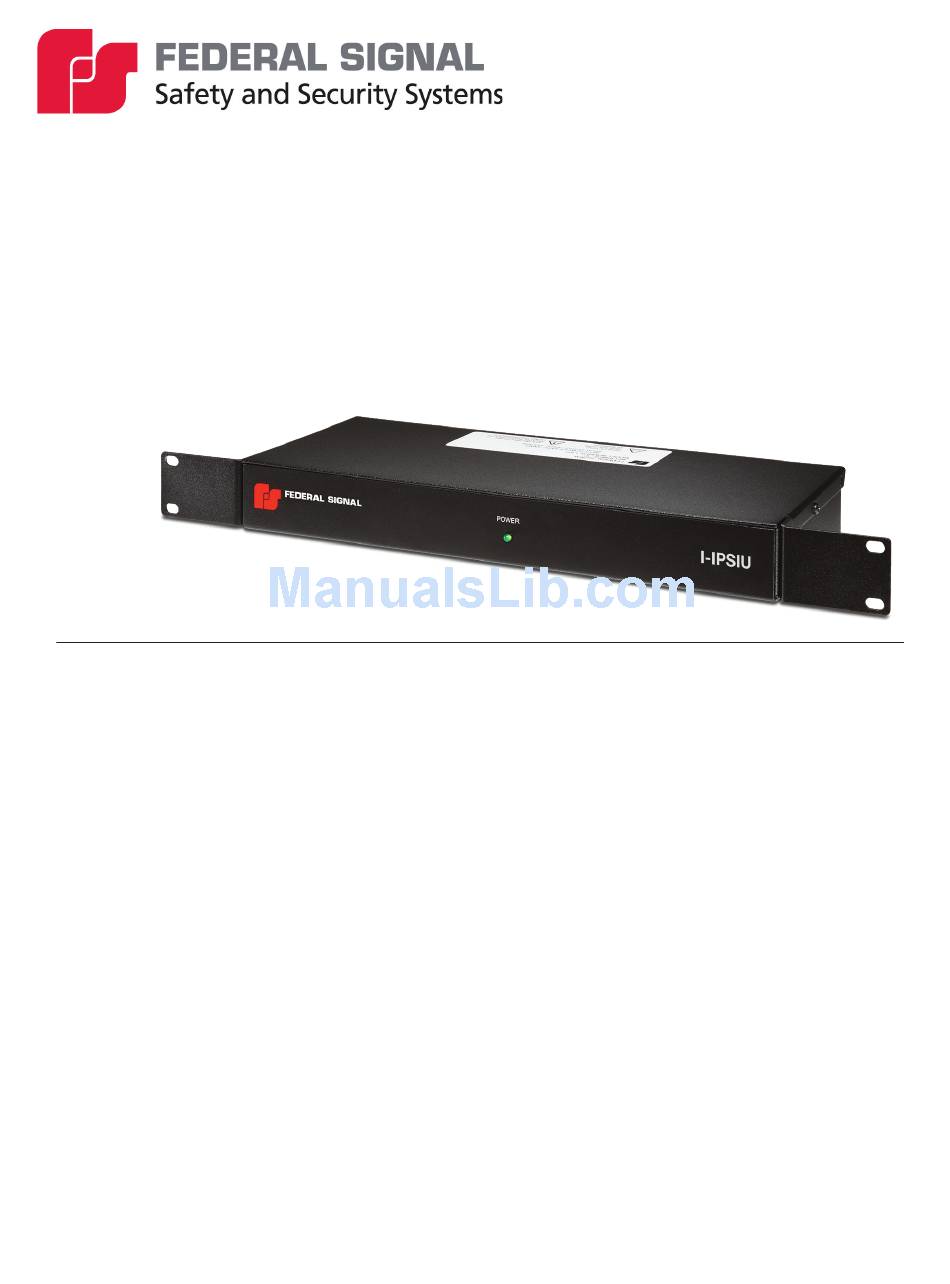

- Page 1 Informer Sensor/Radio Interface Unit ™ Model I-IPSIU Description, Specifications, and Installation Manual 25500431 Rev. A1 0218 Printed in U.S.A. © Copyright 2018 Federal Signal Corporation...
-
Page 2: Limited Warranty
A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400. -
Page 3: Table Of Contents
Safety Messages..............................5 Safety Messages to Installers ..........................5 General Description ..............................8 Introduction .................................8 Features ................................8 Optional Features ...............................9 I-IPSIU Main Components ..........................9 Input/Output Locations ............................9 Visual Indications ..............................10 Ethernet Port (PoE) ............................10 Power Input ...............................10 Serial Port .................................10 Carrier Detect/Rear Input ..........................10 Digital Inputs ..............................10... - Page 4 Table 12 Environmental and Physical .........................13 Table 13 Replacement Connectors Part Numbers .....................17 Table 14 Scrolling Message Display Part Number .....................17 Figures Figure 1 I-IPSIU Front Views ...........................9 Figure 2 I-IPSIU Back View .............................9 Figure 3 Attach Bracket ............................14 Figure 4 Rack Mount Dimensions ........................15 Figure 5 Attach Bracket ............................15...
-
Page 5: Safety Messages
Safety Messages Safety Messages It is important to follow all instructions shipped with this product. This device is to be installed by trained personnel who are thoroughly familiar with the country electric codes and will follow these guidelines as well as local codes. Planning •... - Page 6 To reduce the risk of electric shock, do not perform any servicing other than what is contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel. Always test the Informer before using after repairs have been made. Informer Sensor/Radio Interface Unit (Model I-IPSIU)
- Page 7 Ethernet Wiring • Unless shielded or run in conduit, Ethernet wiring must be at least six feet from bare power wiring or lightning rods and associated wires, and at least six inches from other wire (for example, antenna wires, doorbell wires, wires from transformers to neon signs), steam or hot water pipes, and heating ducts.
-
Page 8: General Description
An I-IPSIU can also interface a mobile or portable radio for broadcast of alert messages over the radio system. The I-IPSIU has carrier detect capability to delay broadcast until the radio system is idle. -
Page 9: Optional Features
• Scrolling message display, part number I-SMD2-36 (See Table 14.) • Radio Interface Cables. The Universal Cable Adapter is provided with each I-IPSIU. Find the proper cable for your radio system and order separately. (See Table 5.) I-IPSIU Main Components... -
Page 10: Visual Indications
Route the DC power cord through the strain relief located next to the digital input and plug into the I-IPSIU. Plug the DC power supply into a 120 Vac outlet after all other connections have been made. The center connector connects to the positive lead on the DC supply. -
Page 11: Audio Input
The audio output level is adjustable from 0 to 2.5 V into 600 ohms with 1 kHz tone. A removable eight-position connector is located on the rear of the I-IPSIU for making electrical connections. The connector accepts 5 mm (3/16 in) stripped wire, 18-26 AWG. -
Page 12: Table 5 Radio Interface Cables Part Numbers
C.D./Rear Input for Carrier Detect. If audio is provided use the Audio input for Carrier Detect. Audio from the I-IPSIU to the radio uses JP3 pins 1 and 2. PTT from the I-IPSIU to the radio uses JP3 pins 3 and 4. -
Page 13: Specifications
Specifications Specifications Table 6 Electrical Operating Voltages 9 Vdc (8 to 30 Vdc) PoE: 48 Vdc (42 to 57 Vdc), IEEE 802.3af 120 Vac 60 Hz (108-128 Vac) with wall transformer Operating Current Standby (at 9 Vdc) < 200 mA Signaling (at 9 Vdc) <... -
Page 14: Electrical Code Compliance
4. Place within six feet of an AC power receptacle to eliminate the need for an extension cord unless a Power over Ethernet (PoE) connection is available. Rack Mounting The I-IPSIU is designed for 19-inch rack mount. Attach the bracket to the I-IPSIU with supplied screws. Figure 3 Attach Bracket... -
Page 15: Wall Mounting
120 Vac, 60 Hz outlet. Plug the low voltage end of the cord into the power jack located at the rear of the I-IPSIU. Route the cord to ensure it is protected against walking on, tripping over or pinching the cord. -
Page 16: Testing And Training
120 Vac, 60 Hz outlet. Plug the low-voltage end of the cord into the power jack located at the rear of the I-IPSIU. Route the cord to ensure it is protected against walking on, tripping over or pinching the cord. -
Page 17: Replacement Parts
Replacement Parts Replacement Parts The I-IPSIU uses one of these two types of connectors: one with slots or one without slots. Match the 8-pin connector of your Informer to the picture below and order the corresponding part number. Table 13 Replacement Connectors Part Numbers... - Page 18 2645 Federal Signal Drive University Park, Illinois 60484-3617 www.fedsig.com Customer Support 800-548-7229 • +1 708 534-3400 Technical Support 800-524-3021 • +1 708 534-3400...
