OPERATOR'S MANUAL

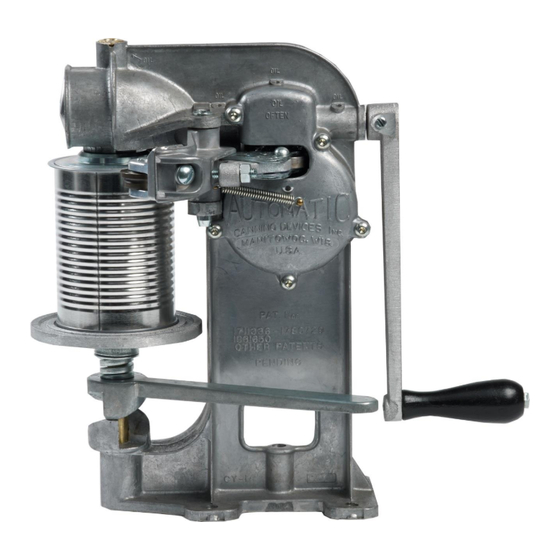

MODEL 225
CAN SEALER
WISCONSIN ALUMINUM FOUNDRY CO.
TH
1931 SOUTH 14
STREET
MANITOWOC, WI 54220 USA
920-682-8627 FAX: 920-682-4090
email: customerrelations@wafco.com
web page: www.allamerican-chefsdesign.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 225 and is the answer not in the manual?

Questions and answers

Summary of Contents for All American 225

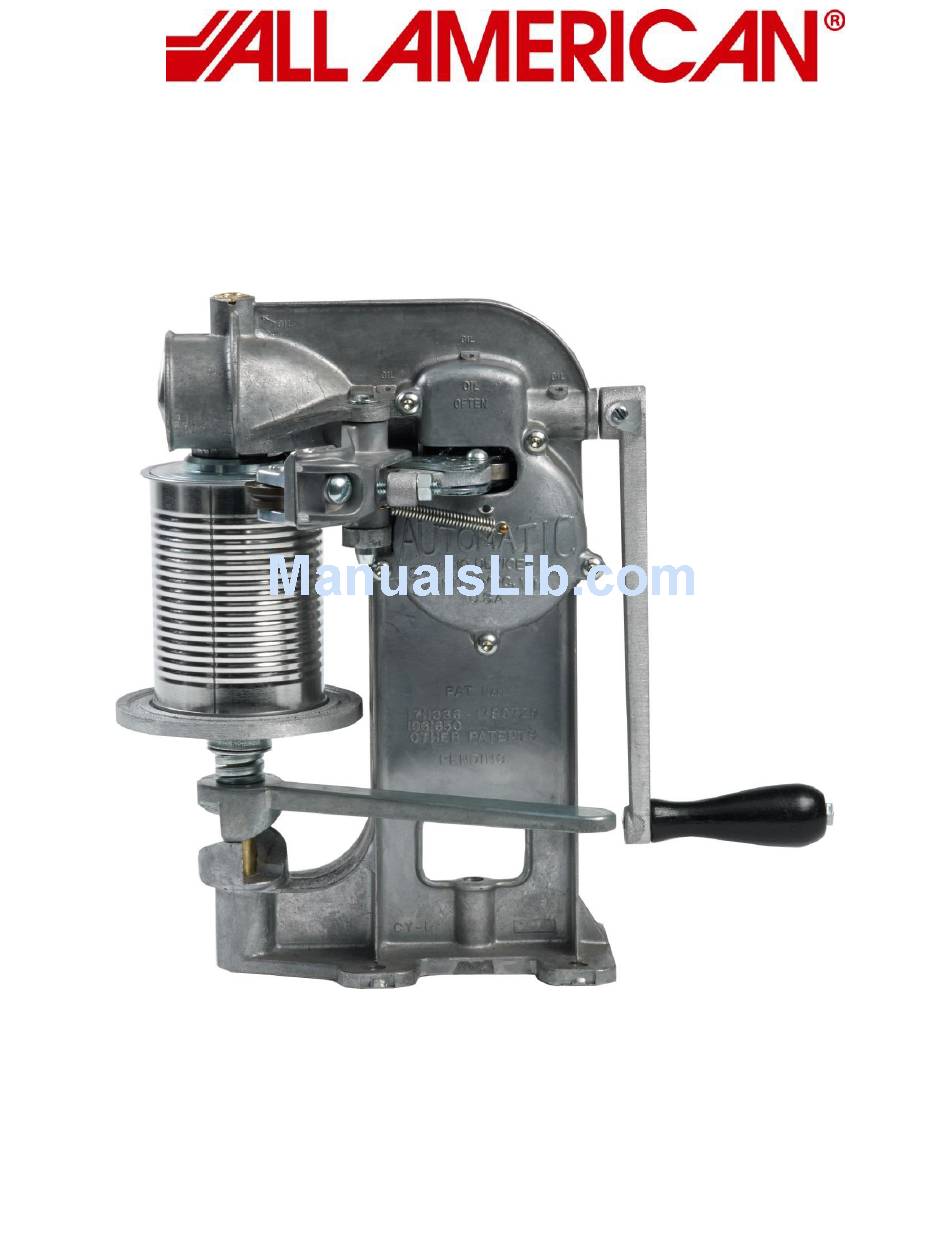

  • Page 1 OPERATOR’S MANUAL MODEL 225 CAN SEALER WISCONSIN ALUMINUM FOUNDRY CO. 1931 SOUTH 14 STREET MANITOWOC, WI 54220 USA 920-682-8627 FAX: 920-682-4090 email: customerrelations@wafco.com web page: www.allamerican-chefsdesign.com...
  • Page 2: Table Of Contents

    Table of Contents Page 3 - Introduction & Getting Started Page 4 - Parts Diagram Page 5 - Maintenance Page 6 - Adjustments & Seam Gauge Page 7 - Trouble Shooting Page 8 - Parts Picture List Page 9 - Parts List Page 10 - Warranty Information Page 11 - Packing List...
  • Page 3: Introduction & Getting Started

    920-682-8627 for further instruction. The 225 comes with either the CY-28 No. 2 Chuck or the CY-27 No. 3 chuck and the CY-3 Base Plate. These are designed and set up to seal a No. 2 or No. 3 can. A sample can was used to set up the machine and was locked in place during shipping to help protect the machine.
  • Page 4: Parts Diagram

    Crank Complete Front Gear CY-11 Cover CY-65 CY-28 Cam Worm Wheel No. 2 Chuck Cover CY-2 Base Plate CY-3 Frame for 225 CY-1 Base Plate Shaft CY-32 Compression Spring CY-34 Can Lifter Handle CY-10 Chuck Holder Seaming Lever Pin Bushing...
  • Page 5: Maintenance

    MAINTENANCE Quarterly Maintenance Schedule 1. Remove Base Plate and oil CY-32 Baseplate Shaft on the underside with food grade lube oil. 2. Remove Can Lifter Handle; oil brass stem and where Handle comes in contact with Frame. (Use food grade oil) 3.
  • Page 6: Adjustments & Seam Gauge

    ADJUSTMENTS & SEAM GAUGE Check the adjustment of the Seaming Rolls occasionally. First check the height adjustment as follows: When Chuck (A in sketch) is held up tightly against the Brass Bushing (CY-1BER), the underside of the top flange on the Seaming Roll (B in sketch) must fit closely on top of Chuck (A).
  • Page 7: Trouble Shooting

    TROUBLE SHOOTING Can isn’t spinning properly: 1. Increase belt tension as follows: Loosen lock nut on the tensioning bolt, then turn tensioning bolt to the right to increase tension. After adjustment, tighten the lock nut. Operation rollers aren’t spinning properly: 1.
  • Page 8: Parts Picture List

    PARTS PICTURE LIST...
  • Page 9: Parts List

    PARTS LIST PART PICTURE NUMBER NUMBER DESCRIPTION CY-26 Worm Wheel Shaft CY-6 Cam Worm Wheel/225 & 225F CY-7 Worm Gear CY-4 Bevel Gear w/ Ball Lock CY-25W Worm Shaft Fiber Washer CY-25D Pin for Worm Shaft CY-25 Worm Shaft CY-5...
  • Page 10: Limited Warranty

    ALL AMERICAN AUTOMATIC MASTER CAN SEALER LIMITED WARRANTY This quality Automatic Master Can Sealer is designed and manufactured to provide many years of satisfactory performance under normal use. Wisconsin Aluminum Foundry guarantees to the original owner that should there be any defects in material or workmanship during the first ninety (90) days after purchase, we will repair or replace it, at our option.
  • Page 11: Packing List

    PACKING LIST FOR: One – No. 225 ALL AMERICAN Automatic MASTER Can Sealer. Parts Included: To Seal No. Cans - instruction booklet - seam gauge ADDITIONAL SPECIAL PARTS: Packed by:___________________________ This packing list must be returned within five days if any shortage is claimed to: Wisconsin Aluminum Foundry Co., Inc.
