C&C TECHNIC Smart View IC-714-IA User Manual

KVM
SWITCH
(IC-712-IA)
(IC-714-IA)
USER MANUAL
IC-712-IA
IC-714-IA
Package Contents –
1 Smart View IC-712-IA or IC-714-IA KVM Switch
1 User Manual
1 DC 9V 300mA power adapter
2 Rack rails, 8 screws for IC-714-IA only
Cables: 3L-1512C, 3L-1518C, 2L-1212C and
2L-1218C each 1 pcs for IC-712-IA, each 2 pcs for
IC-714-IA
Please contact your vendor if anything is missed.
Features
Controls PCs with one PS/2 keyboard, PS/2 mouse and monitor
respectively
Supports speaker & microphone
Supports the standard PS/2 mouse, Microsoft IntelliMouse (PS/2
compatible/Optical/Explorer 3.0), WheelMouse Optical, Trackball
(Optical 1.0/Explorer 1.0) & Logitech TrackMan (Marble/Marble FX/
Marble+), Cordless MouseMan (Wheel/Optical), Cordless TrackMan
(FX/Live) mouse, Cordless Optical TrackMan, MX300 Optical
mouse
Fully supports the Microsoft IntelliPoint 5.0 mouse driver & Logitech
Mouse Ware driver
Supports the Windows 95/98/98SE/Me/NT4.0/2000/XP, DOS, Linux,
Novell Netware, FreeBSD
Superior video quality - Up to 1920 x 1440, DDC, DDC2, DDC2B,
DDC2AB, 200MHz
Supports selecting PC by mouse clicking
Real mouse identification function
3 ways for PC selection -- Push-button switch, hot key or mouse
clicking
Easy to install--No software required
Hot Pluggable
Integral keyboard and mouse emulation for PC booting error free
Auto scan function to monitor PCs
Auto skips over the power-off PC
Beep sound and multi selection ways on/off option for port selection

Specifications

Function
PC Connectors
Port Selection
On Line
LEDs
Selected
Keyboard
Emulation
Mouse
Console Port
Connector
-Keyboard
CPU Port
Console Port
Connector
V1.0 -Mouse
CPU Port
Console Port 1x HD-15 Female (Std. VGA/SVGA)
Connector
-Monitor
CPU Port
Connector Console Port
-Audio,Mic.
CPU Port
(Jack)
VGA Resolution
Power Adapter
Scan Interval
Housing
Weight
Dimensions (LxWxH)
Cable Requirement
IC-712-IA IC-714-IA
2 4
Push-button Switch / Hot Key
/ Mouse Clicking
2 4
2 4
PS/2
PS/2
1x6 pin mini-DIN Female (PS/2)
2x6 pin mini-DIN 4x6 pin mini-DIN
Female (PS/2) Female (PS/2)
1x6 pin mini-DIN Female (PS/2)
2x6 pin mini-DIN 4x6 pin mini-DIN
Female (PS/2) Female (PS/2)
2x HD-15 Male 4x HD-15 Male
(Std. VGA/SVGA) (Std. VGA/SVGA)
1 x Audio, Microphone
2 x Audio, Mic. 4 x Audio, Mic.
1920x1440 (Max.), DDC, DDC2,
DDC2B, DDC2AB, 200MHz
DC 9V 300mA (Min.) spare
5 sec ~ 30 sec
Metal
475 g 1085 g
128x75x45 mm 269x104x45 mm
3L-1512C (1.2m), 3L-1518C (1.8m) &
2L-1212C (1.2m), 2L-1218C (1.8m)
-1-

Hardware Requirements

Required specifications
One highest resolution VGA, SVGA or Multisync monitor
One PS/2 mouse
Console One PS/2 keyboard
One pair of speakers.
One microphone.
One VGA, SVGA or Multisync card
One 6-pin mini-DIN (PS/2) mouse port
PC One 6-pin mini-DIN (PS/2) keyboard port
One audio jack port.
One microphone port.
Cable Smart View custom cables or equivalent

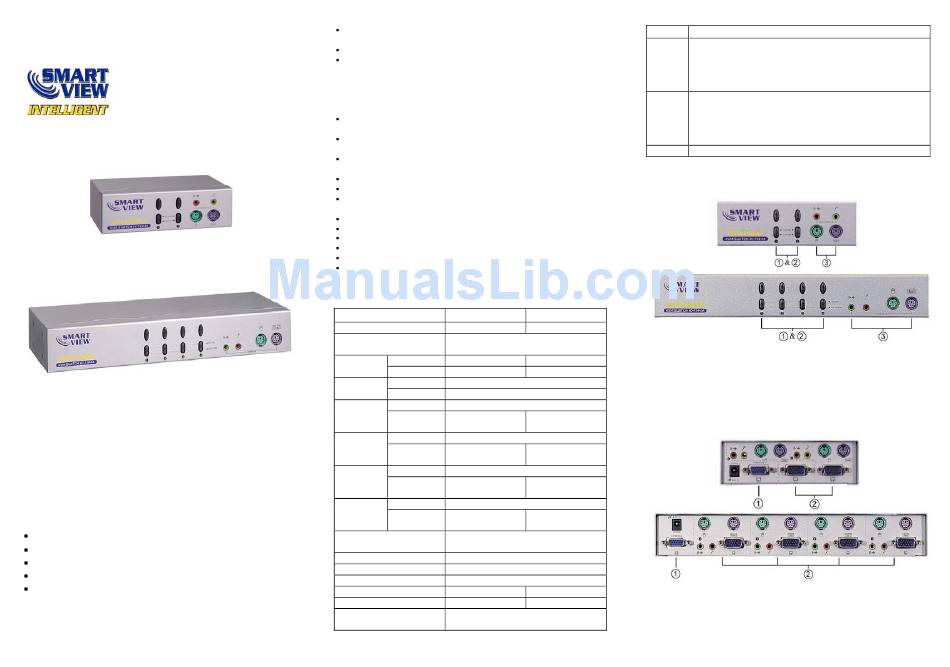

Appearance

Front View

1. Push-button Switches (Manual type)
2. Port LEDs
3. Console Keyboard, Mouse, Speaker and
Microphone Ports

Rear View

1.
Console Monitor Connector
2.
CPU Port Connectors
-2-
