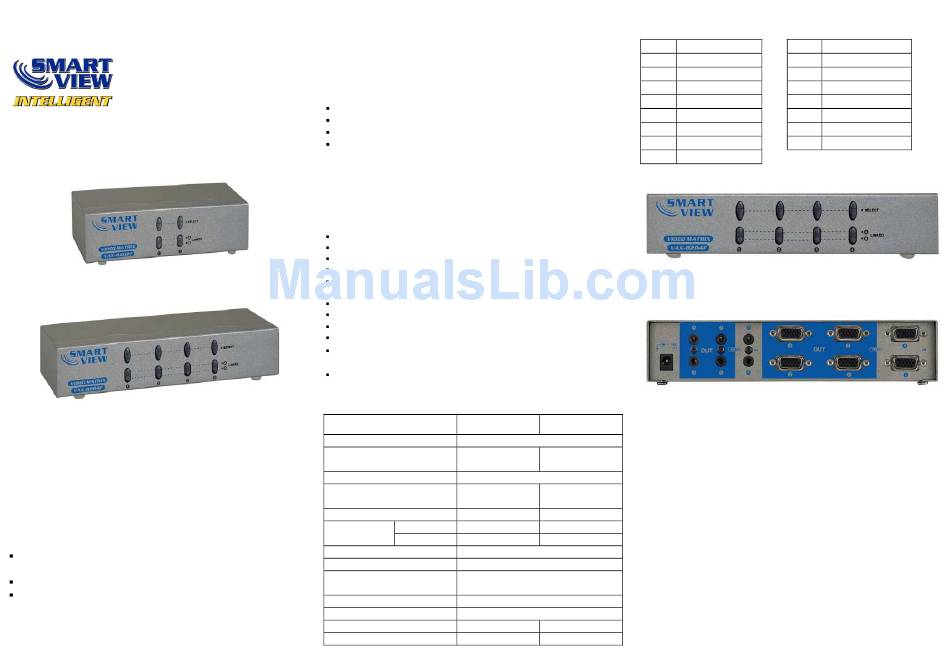

C&C TECHNIC VAX-8204F User Manual

VIDEO/AUDIO
MATRIX
(VAX-8202F)
2 In 2 Out
(VAX-8204F)
2 In 4 Out
USER MANUAL
VAX-8202F / VAX-8204F
Package Contents-
1 Smart View VAX-8202F or VAX-8204F video/audio
matrix
1 user manual
1 power adapter DC 12V 600mA
Any thing missed, please contact with your vendor.

Introduction

Through the video/audio matrix VAX-8202F, 8204F, you can
display / play different images / audio signals to 2,4 monitors /
speakers (or earphones) through 2 PC; meanwhile, optional
means for controlling monitor's image either come from PC "A" or
PC "B" or just switching off.

Video/Audio matrix is ideal for:

Test bench facilities
Data center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities

Features

Intelligent functionality.
With 250 MHz pixel frequency.
Support VGA, SVGA, UXGA, QXGA resolutions.
Support Multi-Sync video type include RGBHV, RGsB, RGBS.
Support synchronous Include positive, negative; TTL or 1Vpp
level.
Supports the DDC, DDC2, DDC2B.
The output is compatible with standard VGA card.
Extends the video signal up to 65 meter (213 feet).
Audio Frequency Response 20Hz~20KHz.
Free select from PC ○
A
front panel switch.
Can be cascaded.

Specifications

Function
Video Input Connector
Video Output Connector
Audio Input Connector
V1.0
Audio Output Connector
Select Switch
A (Green)
Linked LEDs
B (Red)
Max. Resolution
Pixel Frequency
Cable Distance
(Device to Monitor)
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)
or PC ○ or switch off by means of the
B
VAX-8202F VAX-8204F
2x HD-15 Female
2x HD-15 4x HD-15
Female Female
2x 3.5φ Stereo Jack
2x 3.5φ Stereo 4x 3.5φ Stereo
Jack Jack
2 4
2 4
2 4
1920x1440 @ 85 Hz
250 MHz
65m (213 feet) Max.
DC 12V 600mA
Metal
450 g 680 g
130x75x42 mm 200x75x42 mm
-1-

Technical Specifications

Input/Output Signal
Pin # Signal Pin #
1 Red video 9
2 Green video 10
3 Blue video 11
4 NC 12
5 Ground 13
6 Analog ground 14
7 Analog ground 15
8 Analog ground
FRONT VIEW
1. Select Switch
2. ○ ,○ Linked
A B
REAR VIEW
1. Input Power Jack
2. "Audio Out" Port
3. ○ ,○ "Audio In" Port
A B
4. "Video Out" Port
5. ○ ,○ "Video In" Port
A B
*There are 2/4 ports for VX-8202F / VX-8204F
-2-
Signal
NC
Ground
NC
ID1
Horizontal sync
Vertical sync
ID3
