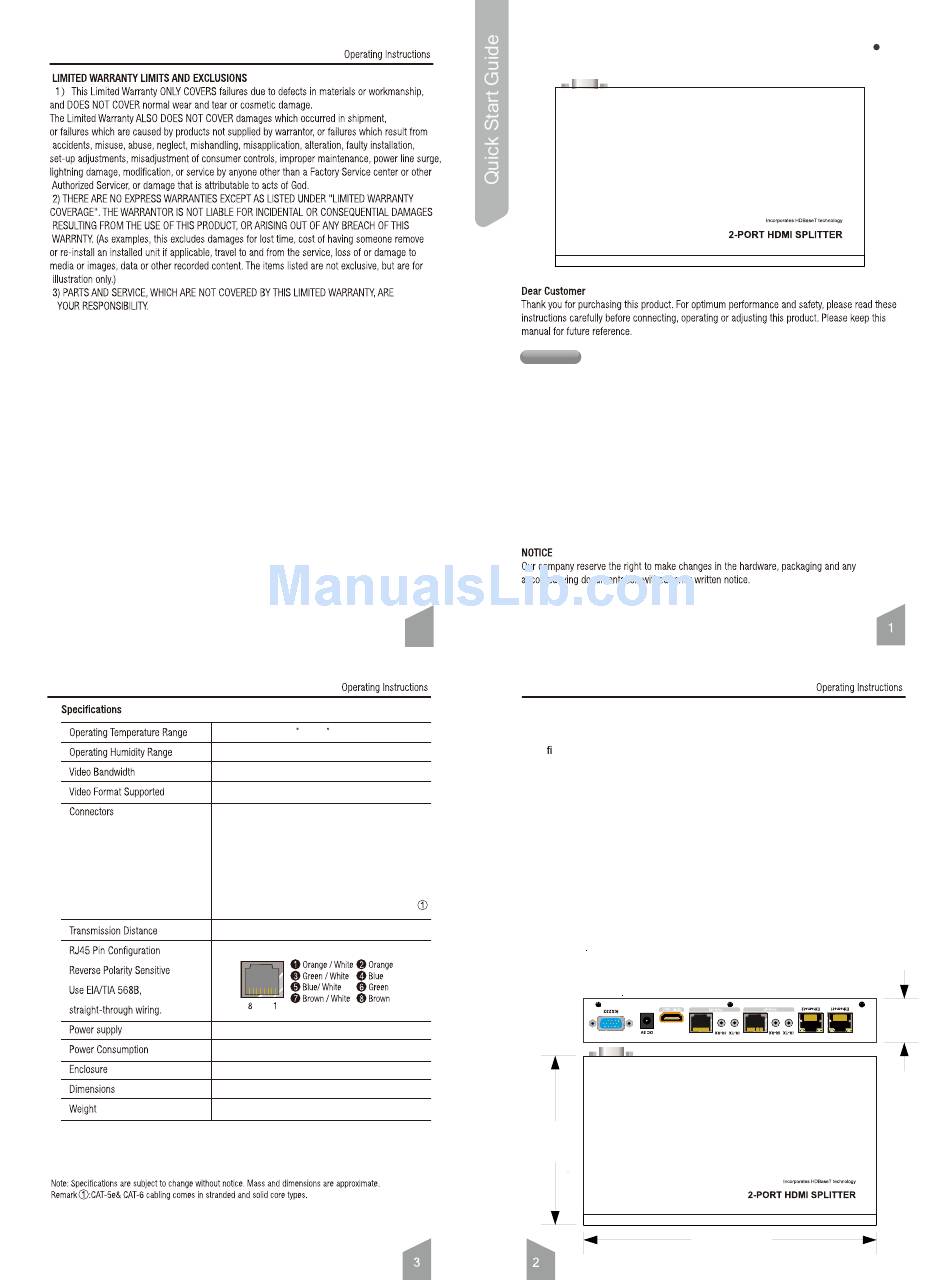

-5 to +35 C(+23 to +95 F)
5 to 90%RH (No Condensation)
300MHz/9Gbps
Up to 1080p@60Hz@48 b/pixels, support 3D ,4K
HDMI receptacle.
RJ45
Power connector terminal
Power DC receptacle
IR Blaster
D-Type 9pin plug
1080P 328FT/100m over single CAT5E/6 cable
110-240V/ 5VDC 3A power supply
10Watts
Cold-Rolled (Cold Rolled) Steel
W200xH116xT30mm
630g
Features
•Incorporates HD Base-T technology
•Distributes 1 HDMI source to 2 HDMI Displays simultaneously.
•Full HD support: 1080p@60Hz@48 b/pixels, support 3D and 4Kx2K
•Extends HDMI and IR up to 328 feet (100 meters) using one CAT5e (or better) cable
•With Infrared control signal passing through function.
•Supports high bit-rate audio formats (Dolby True-HD / DTS Master Audio )
•100BaseT Ethernet &RS-232 Pass-Through(Output1)
•HDCP compliant.
•CEC Pass-Through
•DC 5V power supply
8
TABLE OF CONTENTS
Package Contents
Dimensional drawing
Speci cations
Panel Descriptions
Connecting and Operating
Typical Application
Maintenance
Product Service
Warranty
Packing contents
1) Main Unit: 1x2 HDBaseT Splitter
2) Power supply DC 5V 3A
3) IR-TX cable x 2PCS
4) IR-RX cable x 2 PCS
5) M3x5 Screw x 6PCS
6) Operating Instructions
7) Mounting ear
Dimensional drawing
116mm
2-PORT HDBaseT SPLITTER
200mm
30mm
Advertisement
Related Manuals for Foxun SX-SPH2-100
Summary of Contents for Foxun SX-SPH2-100
- Page 1 2-PORT HDBaseT SPLITTER Features •Incorporates HD Base-T technology •Distributes 1 HDMI source to 2 HDMI Displays simultaneously. •Full HD support: 1080p@60Hz@48 b/pixels, support 3D and 4Kx2K •Extends HDMI and IR up to 328 feet (100 meters) using one CAT5e (or better) cable •With Infrared control signal passing through function.
- Page 2 7) To get on the ethernet,pls connect as below steps: 1.Connect ethernet cable into ethernet port on HDBaseT splitter. Front Panel 2.Connect ethernet cable with TV and ethernet extender receiver Note:1.The ethernet function is designed for ethernet compatible receiver units only. 2.Only output1 with ethernet function.
