Installing the DS2000 DSS Consoles
The DSS Console gives a 34-Button Display or 34-Button Super Display user a
Busy Lamp Field (BLF) and one-button access to extensions, trunks, and
selected system features. This saves time for users that do a lot of call process-
ing (such as operators or dispatchers). There are two DSS Console types: the
24-Button (P/N 80556) and the 110-Button (P/N 80555).
The system allows you to install 4 DSS Consoles maximum. In addition,
System Load Factor may further reduce the number that you can install. See
your system's Hardware Manual for more. You cannot connect multiple DSS
Consoles to the same keyset. DSS Consoles do not use a station port and do not
require their own power supply.

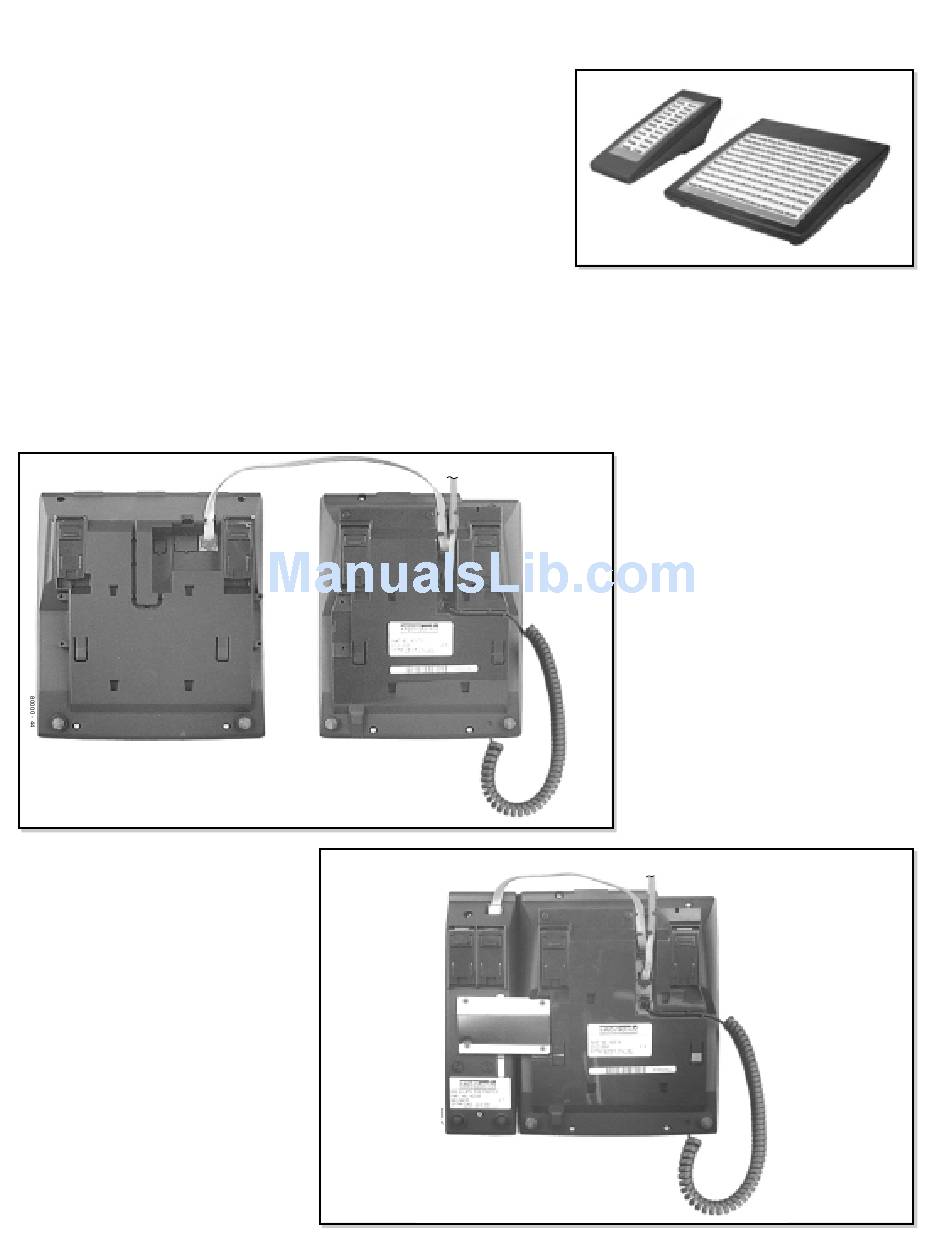

Installing a DSS Console
1. Turn the telephone upside down and remove the plastic filler plug from the DSS modular connector.
2. Plug the DSS Console's 8-pin modular line cord into the telephone's DSS connector.
3. Plug the other end of the 8-pin line cord into the DSS Console's 8-pin jack.
4. If you have a 24-Button DSS Console, attach the metal plate to both the DSS Console and telephone as shown below.
DSS Console
Installing the 24-Button
DSS Console
To 625 Modular Jack
Keyset
DSS Console
- over -
24-Button DSS Console (P/N 80556) and
110-Button DSS Console (P/N 80555
Installing the 110-Button
DSS Console
To 625 Modular Jack
Keyset
)
