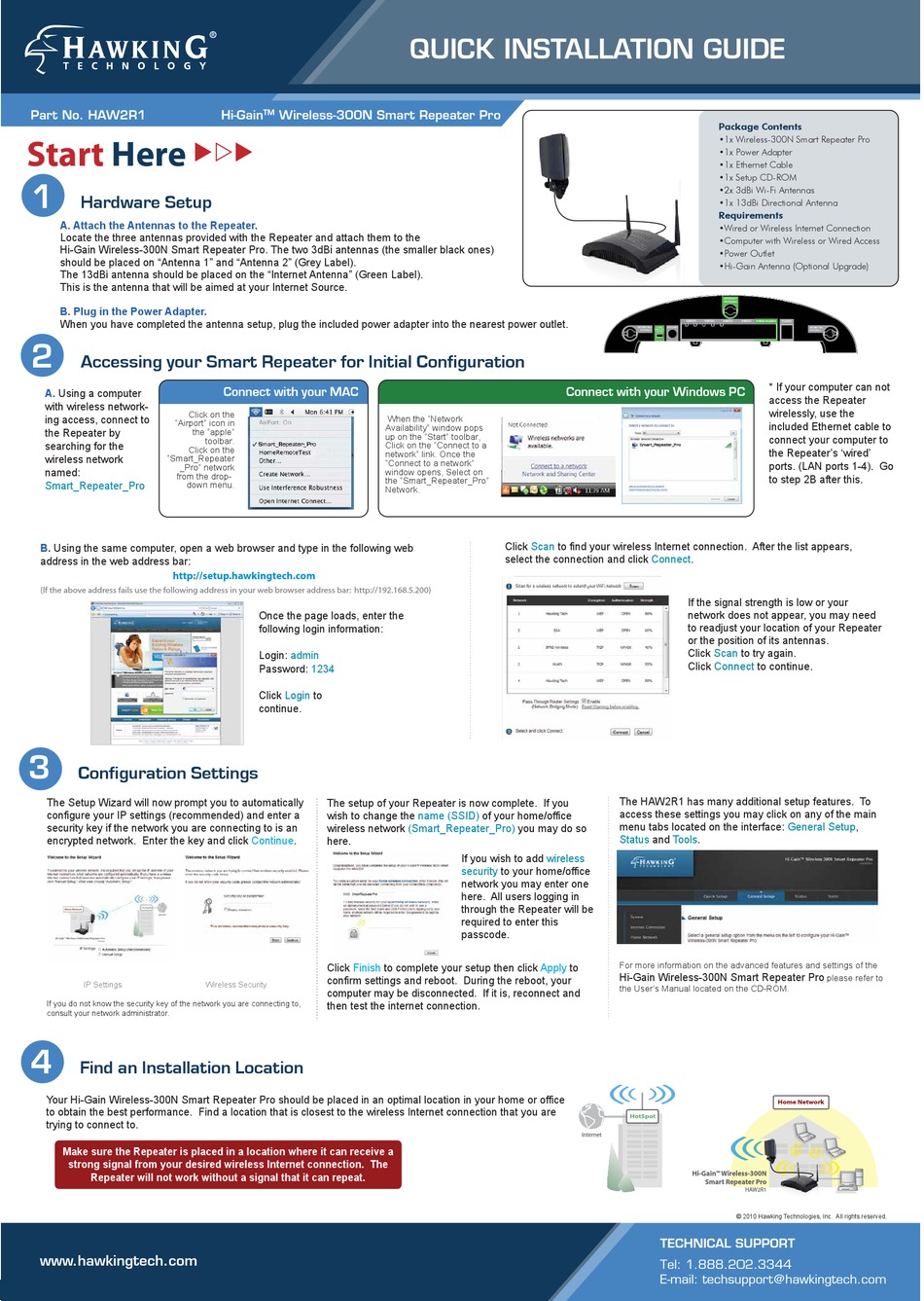

Hawking HAW2R1 Quick Installation Manual

Part No. HAW2R1
Start Here

1

Hardware Setup

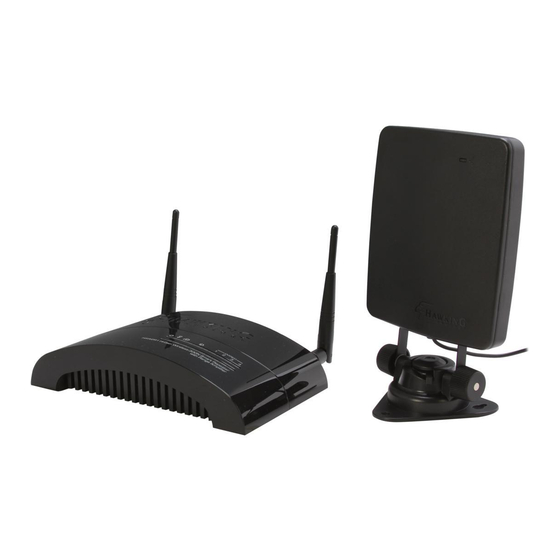

A. Attach the Antennas to the Repeater.
Locate the three antennas provided with the Repeater and attach them to the
Hi-Gain Wireless-300N Smart Repeater Pro. The two 3dBi antennas (the smaller black ones)
should be placed on "Antenna 1" and "Antenna 2" (Grey Label).
The 13dBi antenna should be placed on the "Internet Antenna" (Green Label).
This is the antenna that will be aimed at your Internet Source.
B. Plug in the Power Adapter.
When you have completed the antenna setup, plug the included power adapter into the nearest power outlet.
2
Accessing your Smart Repeater for Initial Configuration
A. Using a computer
with wireless network-
Click on the
ing access, connect to
"Airport" icon in
the Repeater by
the "apple"
searching for the
Click on the
wireless network
"Smart_Repeater
_Pro" network
named:
from the drop-
Smart_Repeater_Pro down menu.
B. Using the same computer, open a web browser and type in the following web
address in the web address bar:
http://setup.hawkingtech.com
(If the above address fails use the following address in your web browser address bar: http://192.168.5.200)
3

Configuration Settings

The Setup Wizard will now prompt you to automatically
configure your IP settings (recommended) and enter a
security key if the network you are connecting to is an
encrypted network. Enter the key and click Continue.
IP Settings
If you do not know the security key of the network you are connecting to,
consult your network administrator.
4
Find an Installation Location
Your Hi-Gain Wireless-300N Smart Repeater Pro should be placed in an optimal location in your home or office
to obtain the best performance. Find a location that is closest to the wireless Internet connection that you are
trying to connect to.
Make sure the Repeater is placed in a location where it can receive a
strong signal from your desired wireless Internet connection. The
Repeater will not work without a signal that it can repeat.
www.hawkingtech.com
Hi-Gain Wireless-300N Smart Repeater Pro
TM
Connect with your MAC
toolbar.
Smart_Repeater_Pro
Once the page loads, enter the
following login information:
Login: admin
Password: 1234
Click Login to
continue.
The setup of your Repeater is now complete. If you
wish to change the
wireless network
here.
Click Finish
confirm settings and reboot. During the reboot, your
Wireless Security
computer may be disconnected. If it is, reconnect and
then test the internet connection.
QUICK INSTALLATION GUIDE
When the "Network
Availability" window pops
up on the "Start" toolbar,
Click on the "Connect to a
network" link. Once the
"Connect to a network"
window opens, Select on
the "Smart_Repeater_Pro"
Network.
Click Scan
select the connection and click Connect.
name (SSID) of your home/office
(Smart_Repeater_Pro) you may do so
If you wish to add wireless
security to your home/office
network you may enter one
here. All users logging in
through the Repeater will be
required to enter this
passcode.
to complete your setup then click Apply
Package Contents
•1x Wireless-300N Smart Repeater Pro
•1x Power Adapter
•1x Ethernet Cable
•1x Setup CD-ROM
•2x 3dBi Wi-Fi Antennas
•1x 13dBi Directional Antenna
Requirements
•Wired or Wireless Internet Connection
•Computer with Wireless or Wired Access
•Power Outlet
•Hi-Gain Antenna (Optional Upgrade)
Connect with your Windows PC
Smart_Repeater_Pro
to find your wireless Internet connection. After the list appears,
If the signal strength is low or your
network does not appear, you may need
to readjust your location of your Repeater
or the position of its antennas.
Click Scan
Click Connect
The HAW2R1 has many additional setup features. To
access these settings you may click on any of the main
menu tabs located on the interface:
Status and Tools.
For more information on the advanced features and settings of the
to
Hi-Gain Wireless-300N Smart Repeater Pro
the User's Manual located on the CD-ROM.
HotSpot
Internet
Hi-Gain ™ Wireless-300N
Smart Repeater Pro
TECHNICAL SUPPORT
Tel: 1.888.202.3344
E-mail: techsupport@hawkingtech.com
* If your computer can not
access the Repeater
wirelessly, use the
included Ethernet cable to
connect your computer to
the Repeater's 'wired'
ports. (LAN ports 1-4). Go
to step 2B after this.
to try again.
to continue.
General Setup,
please refer to
Home Network
HAW2R1
© 2010 Hawking Technologies, Inc. All rights reserved.
