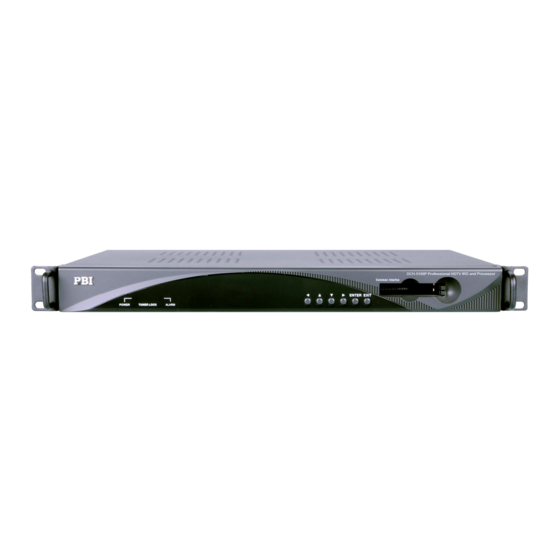

PBI DCH-5100P User Manual

Multi-format professional hdtv processor
Hide thumbs Also See for DCH-5100P:
Table of Contents

Advertisement

Quick Links

See also: User Manual
User's Manual
使用说明书
Brighten Your Digital View!
DCH-5100P
Multi-Format Professional HDTV Processor
P/N.85E12-M0401 Rev:A
www.pbi-china.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCH-5100P and is the answer not in the manual?

Questions and answers

Related Manuals for PBI DCH-5100P

Summary of Contents for PBI DCH-5100P

  • Page 1 User’s Manual 使用说明书 Brighten Your Digital View! DCH-5100P Multi-Format Professional HDTV Processor P/N.85E12-M0401 Rev:A www.pbi-china.com...

  • Page 2: Table Of Contents

    DCH-5100P Multi-Format Professional HDTV Processor Contents 1 Before Use the Device 2 Models that Are Covered by This User Manual 3 Installation 3.1 Inspection 3.2 Operating Voltage 3.3 The fuses 3.4 Connecting Up the Device 3.5 Power On the Device...

  • Page 3: Before Use The Device

    Do not remove the covers of this equipment. Hazardous voltages are present within this equipment and may be exposed if the covers are removed. Only PBI trained and approved service engineers are permitted to service this equipment. No operator serviceable parts inside. Refer servicing to PBI trained and approved service engineers.

  • Page 4: Models That Are Covered By This User Manual

    DCH-5100P Multi-Format Professional HDTV Processor 2 Models that Are Covered by This User Manual Model DCH-5100P-10x DCH-5100P-20x DCH-5100P-30x DCH-5100P-42x DCH-5100P-44x Tuner ASI Input 10/100M IP Input* ● ● ● ● ● ● ● ● ● ● ● ● GbE IP Input ○...

  • Page 5: The Fuses

    YPbPr output port B16, B17 L-Audio-R1 Group1 RCA audio output port CVBS CVBS RCA output port B20, B21 L-Audio-R2 Group2 RCA audio output port Audio1 AES/EBU and Balance Audio output port1 (need to use the RS232-to-XRL converting cable in accessories) www.pbi-china.com...

  • Page 6: Power On The Device

    DCH-5100P Multi-Format Professional HDTV Processor AUDIO2 AES/EBU and Balance Audio output port2 (need to use the RS232-to-XRL converting cable in accessories) TUNER OUT Tuner signal loop through output port TUNER IN Tuner signal input Grounding terminal Power Socket AC 90~250V 50-60Hz input...

  • Page 7: Menu Structure And Operating The Device

    IP IN: When signal from IP input port is locked, it will display package format and code rate; if signal is not locked, it will show Unlock.(Note: this option only appears when set the External Function as “IP IN”. Please refer to section 5.3.6 for setting method). www.pbi-china.com...
  • Page 8 DCH-5100P Multi-Format Professional HDTV Processor 5.1.2 DVB-S2 Menu There are 6 options to set DVB-S2 parameters. After signal is locked, the TUNER LOCK indicator on front panel will turn green. LNB Frequency: Input LNB frequency Satellite Frequency: Input downstream frequency of satellite Symbol Rate: Input symbol rate of satellite LNB Voltage: select the correct LNB voltage output of the F-connector: Off, 13 V, 18 V.

  • Page 9: Outputs Menu

    ASI2 input or TS/IP input (only when the TS/IP is set “IP In”, refer section 5.2.7 for details) to set the signal source of descrambling, press <ENTER>-key to save or press <EXIT>-key to scrap. Setup: under this sub menu, you can see all program names from the source of CI that was www.pbi-china.com...
  • Page 10 TS will be delivered to the ASI output port on the back panel. Program: under this sub menu, you will see all program names detected by DCH-5100P. The programs could be coming from ASI input, Tuner, TS/IP input, the internal CI de-encryption portion, BISS De-encryption portion or MUX TS.
  • Page 11 >-keys to modify the audio2 level within this range: 0~99. Audio2 Mode: select Stereo, Left, Right or Mono for soundtracks. Audio2 Language: select the language of the audio. Video Format: the following table shows the available format on different connectors. www.pbi-china.com...
  • Page 12 DCH-5100P Multi-Format Professional HDTV Processor Output port Resolution SDI port 1080ix60,1080ix50,720px50,576ix50,480ix60 1080ix60,1080ix50,1280x720px60,1280x720px50, HDMI port 720x480px50,720x576px50,576ix50,480ix60 1080ix60,1080ix50,1280x720px60,1280x720px50, YPbPr port 720x480px50,720x576px50,576ix50,480ix60 CVBS port 576ix50,480ix60 5.2.4 ASI1 You can configure the settings of ASI1 in this menu. ASI1 Source: Press the <ENTER>-key and use the <...
  • Page 13 TS ID: you can configure the TS ID to mark the multiplexed TS. Default value is 1. Program List: press the <ENTER>-key to enter ‘Mux List’ sub-menu. It shows all programs detected by DCH-5100P. The programs could be come from ASI input, Tuner, TS/IP input or the internal CI de-encryption portion. Use <...
  • Page 14 DCH-5100P Multi-Format Professional HDTV Processor Stream IP Addr: enter the IP address for the IP hardware board (should be the same network section of the IP Board Gateway, this depends on the characteristic of the gateway). Stream Netmask: enter the network submask for the IP hardware board.
  • Page 15 Unicast. The IP address of receiver device (maybe PC with VLC) needed to be set to as the unicast address on DCH-5100P, please don't use DHCP to get a dynamic IP address for receiver device.

  • Page 16: System Menu

    Type 5.3.1 Local Setup Each DCH-5100P has an IP address, a network sub mask and a gateway. These must be set to an appropriate value for the network over which the unit can be accessed by the remote control system such as the HDMS.

  • Page 17: Technical Specification

    Connector F Connector Symbol rate 2~45MBauds for QPSK; 2~45MBauds for 8PSK Rolling off factor 0.35 for QPSK; 0.35, 0.25, 0.2 for DVB-S2 Punctured rates DVB-S QPSK: 1/2,3/5,2/3,3/4,4/5,5/6,8/9,8/10 DVB-S2 8PSK: 3/5,2/3,3/4,5/6,8/9,9/10 LNB Level 0, 13V, 18V adjustable 0/22K 0/22KHz selectable www.pbi-china.com...
  • Page 18 DCH-5100P Multi-Format Professional HDTV Processor DiSEqC DiSEqC 1.0 DVB-C QAM Demodulation Tuner Input symbol rate 1~7Mbps(PAL), 1~6Mbps(NTSC) Demodulation 16/32/64/128/256 QAM Bandwidth 6MHz or 7MHz or 8MHz Input frequency 48～860MHz Input level -15～15dBmV Input impedance 75Ω, IEC female DVB-T COFDM Demodulation...

  • Page 19: Iptv Configuration Quick Guide

    First of all, make sure that your unit is equipped with IP hardware board. If not, please contact your agent for information. 7.1 How to receive a multicast or unicast stream Normally, the 5100P is set to IP Output by the factory. To set the 5100P to IP input mode, please follow the procedure below: www.pbi-china.com...
  • Page 20 DCH-5100P Multi-Format Professional HDTV Processor Only on the front panel is accessible, go to Main Menu System Optional function External board type IP in Switch off the unit, and then switch it on again. Then the unit will become IP in, and the FACTORY DEFAULT setting will not change this IP direction.

  • Page 21: How To Set The Unicast/Multicast Output

    If the mode is set to be DVB mode, please follow below procedure ‘DVB mode’. If the mode is set to be IPTV mode, please go to procedure ‘IPTV mode’ directly. DVB mode: Uni/Multicast Setup set the address and port parameters for the IP stream. Press Enter to go to the submenu. As below: www.pbi-china.com...
  • Page 22 DCH-5100P Multi-Format Professional HDTV Processor Multicast IP enter the multicast IP address for the output stream (for the addresses inside 224.0.0.1 to 239.255.255.255 are belonging to multicast, for others else are belonging to unicast). Multicast UDP Port enter the port number of the output stream.
  • Page 23 DingJun Plaza, No. 75 Suzhou Street, Haidian District, Beijing, China, 100080 Tel：＋86 10-82617178 Fax：＋86 10-82610263 Mail：mkt@pbicn.com/sales@pbicn.com...
